Ubiquiti Networks UNVR-Instant UNVR-Instant Network video recorder
EAN:
Part number:
Item no:
Ubiquiti Unifi protect network video recorder Instant
Highlights & Details

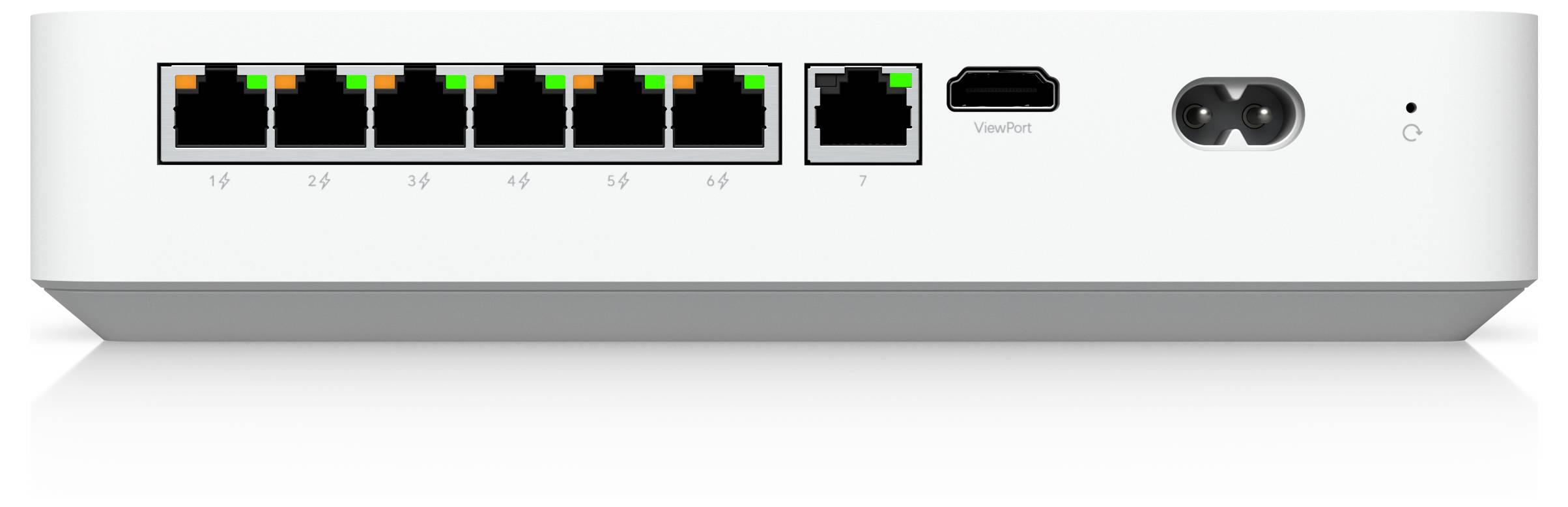

- 6x PoE
- PoE budget 40W

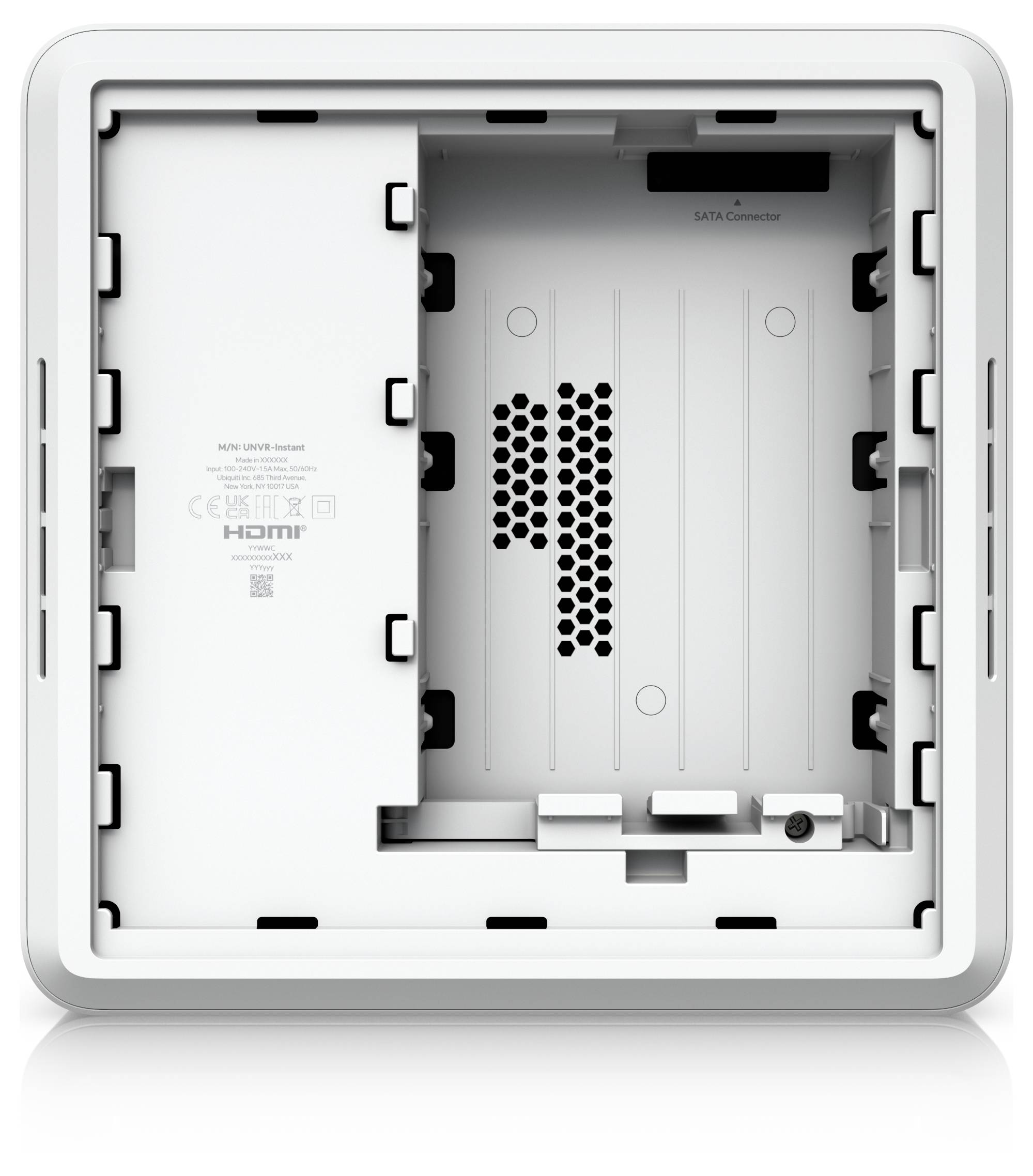

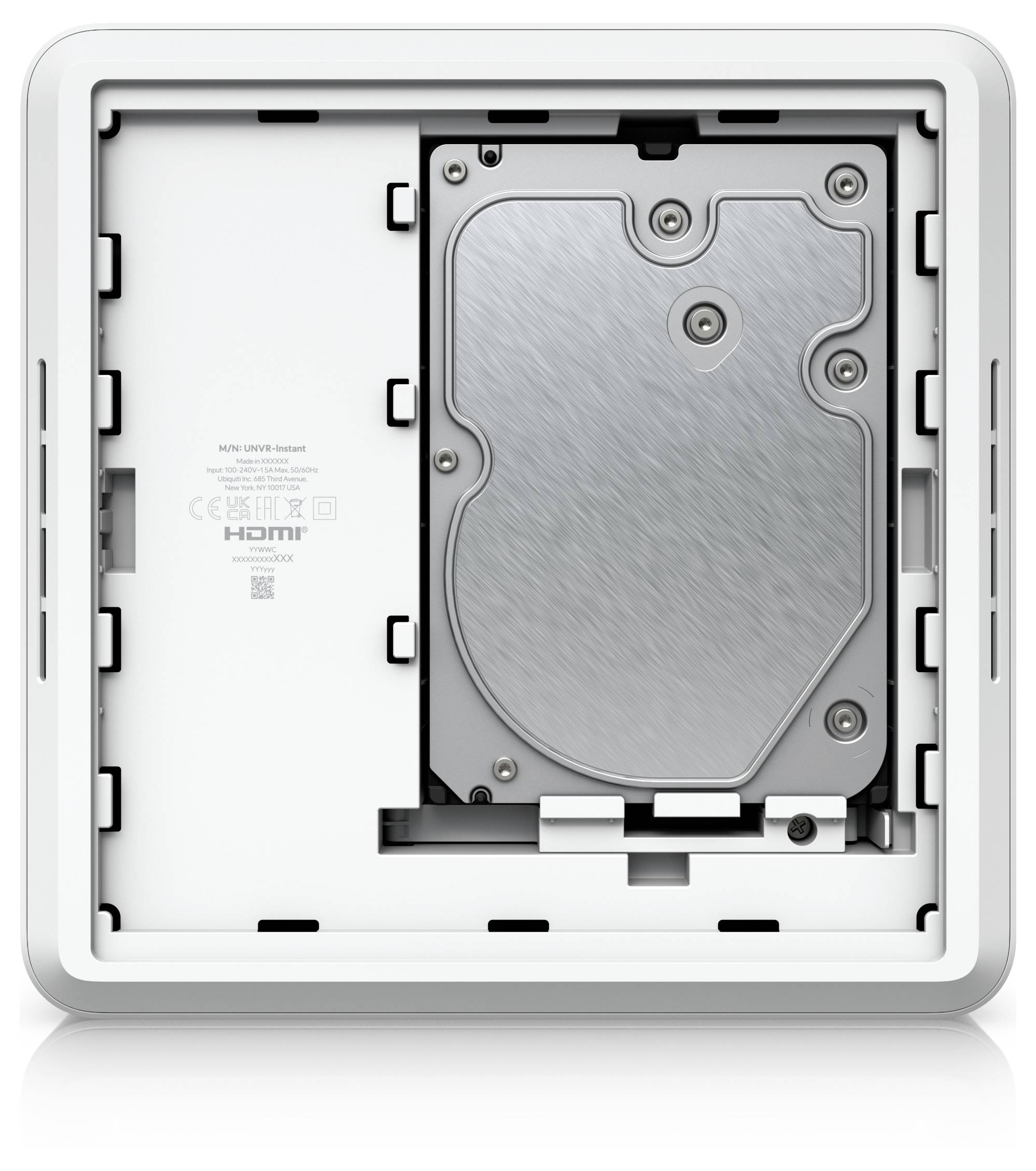

- 1 x 3.5" HDD
- HDMI view port
- UNVR instant
Technical specifications
- Processor: Quad-Core ARM® Cortex®-A55 with 1.7 GHz

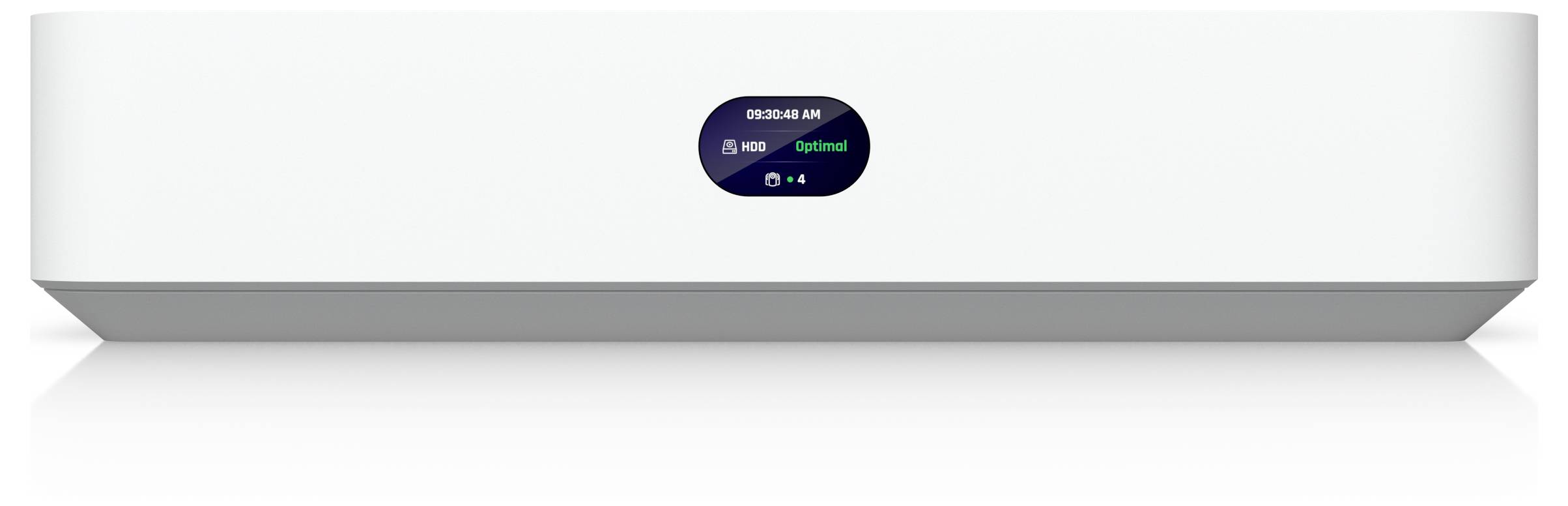

- Display: 1.14" screen on the unit
- Management software: Supports Unifi Protect, Unifi Access, and Unifi Connect

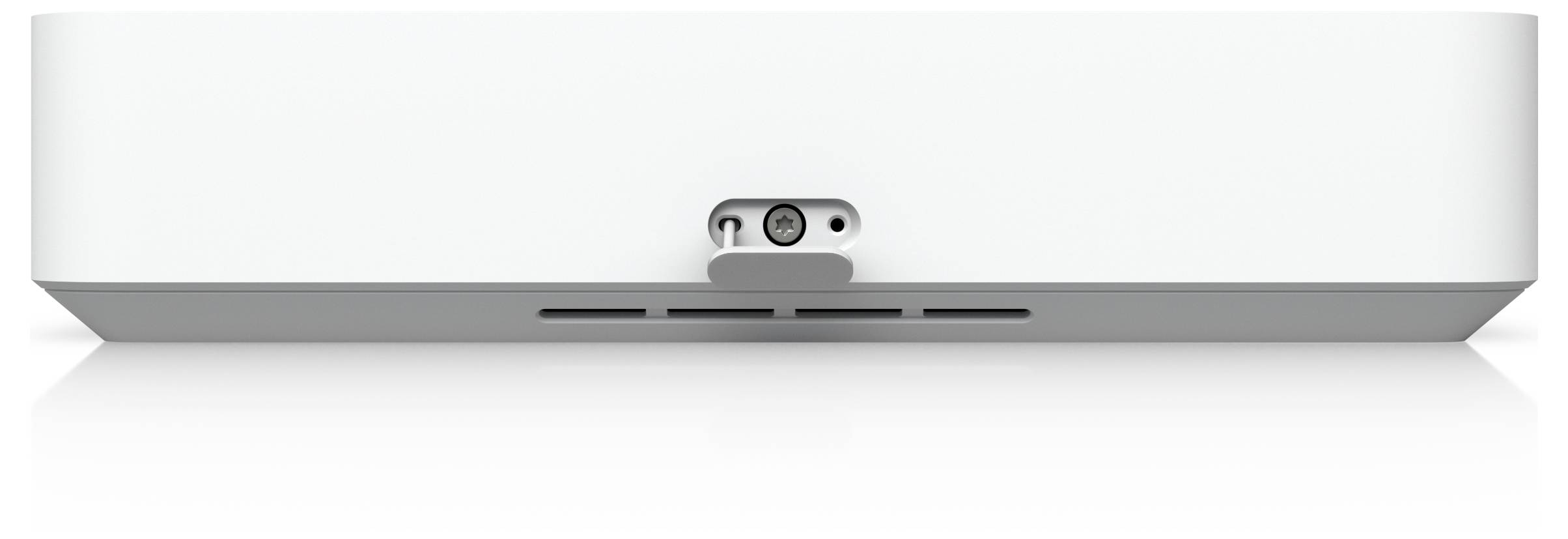

- Mounting: Wall or DIN rail mounting (bracket included)
- Power supply: Internal 60 W power supply for universal AC input (100–240 VAC, 50/60 Hz)
- The maximum power consumption of the device (without hard disk/PoE) is 9 W.
- Operating conditions: Ambient temperature 0 to 40°C, humidity 5 to 95% (non-condensing)
- Product type
Network video recorder
- Signal standard
IP
- Inputs
RJ45
- Factory colour
White
- Width
220 mm
- Height
47 mm
- Depth
220 mm
- Weight
1.04 kg
- Dim
(W x H x D) 220 x 47 x 220 mm
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3784649 Ubiquiti Networks UNVR-Instant UNVR-Instant Network video recorder
Description
Compact Unifi Protect NVR with 3.5" HDD support, integrated 6-port PoE switch, integrated HDMI view port and capacity for (6) 4K cameras or (15) Full HD cameras.
