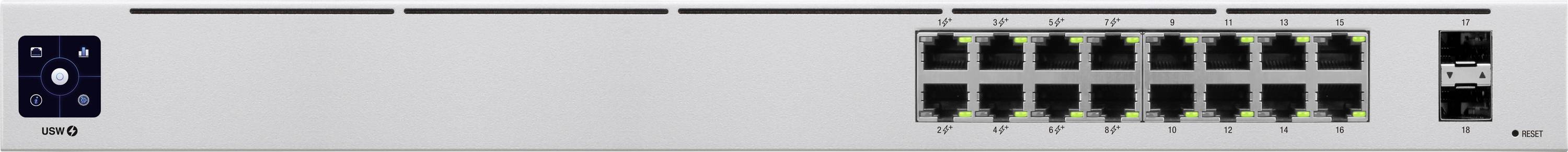

A network switch with 12 Ethernet ports and 2 uplink ports on a white panel, displaying green LED indicators above each port.

A network switch with 12 Ethernet ports and 2 uplink ports on a white panel, displaying green LED indicators above each port.

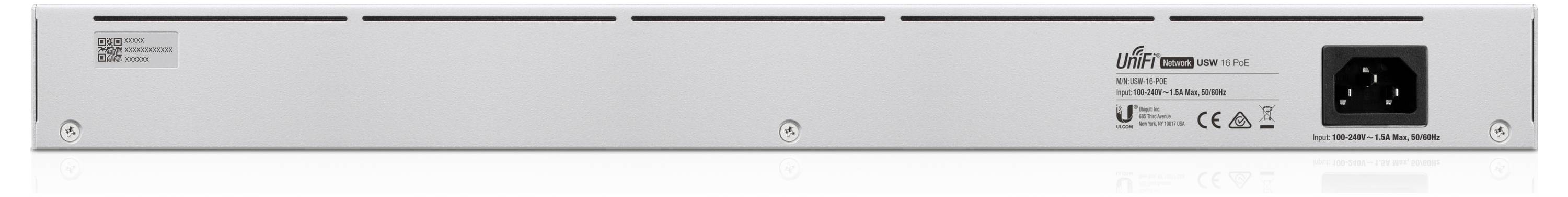

Rear view of a rack-mounted electronic device with power input, serial number, and regulatory compliance labels.

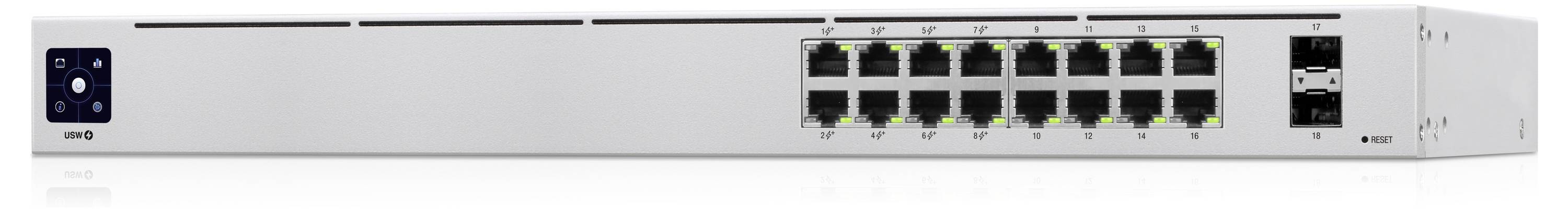

A silver network switch with 16 Ethernet ports and indicator lights; one SFP module to the right, viewed from the front.

1/3

Ubiquiti Networks

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Ubiquiti Unifi 16-port PoE managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Highlights & Details

Managed L2/L3
Number of basic switching RJ-45 Ethernet ports: 16
36 Gbps routing/switching capacity
1U Rack-mounting
Power supply includes Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Form factor: 1U

Product type: Network switch

PoE: IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)

Width: 442.4 mm

Height: 43.7 mm

Depth: 200 mm

Factory colour: Silver

10/100 Mbps ports: 16 x

10/100/1000 Mbps ports: 18 x

Power supply (details): 100 - 240 V

Transfer rate: 1 GBit/s

Weight: 2.8 kg

UKCA: yes

Operating temperature (T-T): -5 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 16

Auto-sensing: yes

Total Power over Ethernet (PoE) budget: 48 W

Throughput: 18000 Mpps

Switching capacity: 36 Gbit/s

Power over Ethernet (PoE) power per port: 32 W

SFP module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

Port mirroring: yes

Jumbo frames support: yes

Static route: yes

Rack mounting: yes

Full duplex: yes

Auto MDI/MDI-X: yes

Spanning tree protocol: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Forwarding rate: 26.78 Mpps

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3369007 Ubiquiti Networks USW-16-POE Network switch IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
