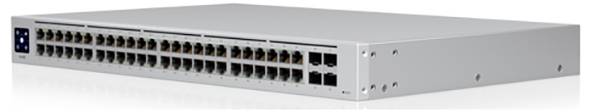

A silver network switch with 48 Ethernet ports, power indicator lights on the left, used for connecting multiple devices in a network.

A silver network switch with 48 Ethernet ports, power indicator lights on the left, used for connecting multiple devices in a network.

A 48-port network switch with numerous Ethernet connections in a rack-mountable design, featuring indicator lights above each port.

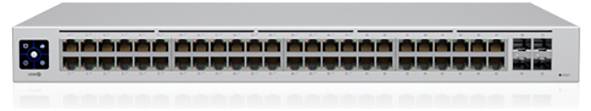

A network switch with 48 Ethernet ports and 4 SFP ports on the right, typically used for managing data traffic in networks.

1/3

Ubiquiti Networks

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti Unifi USW-48-POE network switch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U high-grade steel

Managed L2
Number of basic switching RJ-45 Ethernet ports: 48
104 Gbps routing/switching capacity
1U Rack-mounting
AC/DC power supply included Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Form factor: 1U
Energy source AC / DC

Product type: Network switch

PoE: IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)

Width: 442.4 mm

Height: 43.7 mm

Length: 150 cm

Depth: 285 mm

Factory colour: Stainless steel

Power supply (details): 100 - 240 V

Weight: 4.52 kg

UKCA: yes

Fanless: yes

Operating temperature (T-T): -5 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 32

Basic switching RJ-45 Ethernet ports quantity: 48

Auto-sensing: yes

Total Power over Ethernet (PoE) budget: 195 W

Switching capacity: 104 Gbit/s

Power over Ethernet (PoE) power per port: 32 W

SFP module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Throughput: 52 Gbit/s

Manual: yes

Rack mounting: yes

Auto MDI/MDI-X: yes

Spanning tree protocol: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Forwarding rate: 77.38 Mpps

Power consumption (max): 45 W

Power supply included: yes
