Buy Ubiquiti Networks USW-Pro-HD-24 Pro HD 24 19" switch box 10 GBit/s

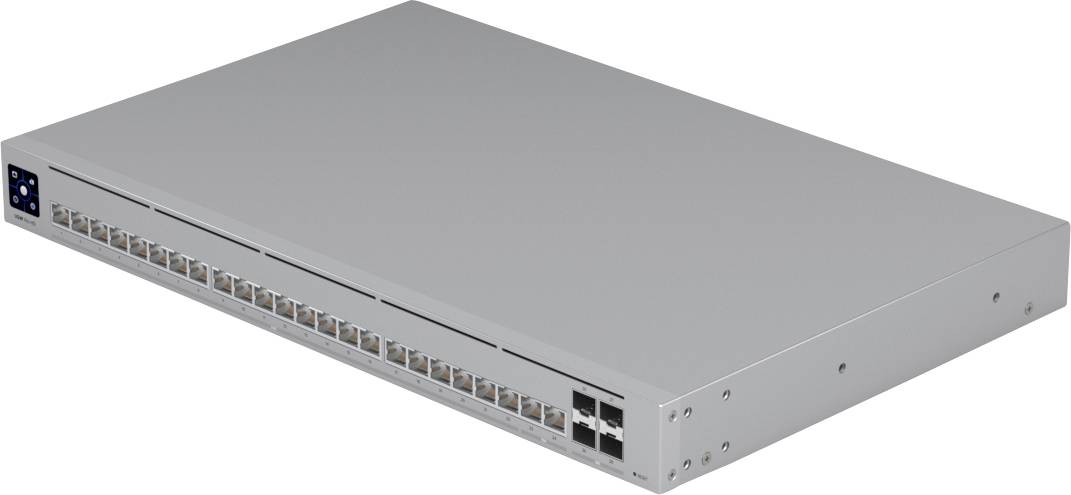

A metal network switch with 24 Ethernet ports and 2 uplink ports on the front panel, suitable for managing large network connections.

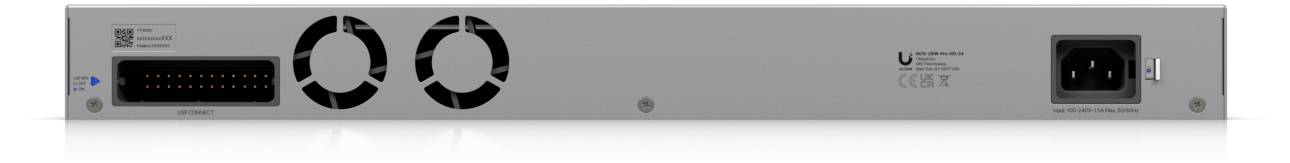

Rear view of a network device with two cooling fans, a power input, and a main connection port on the left side.

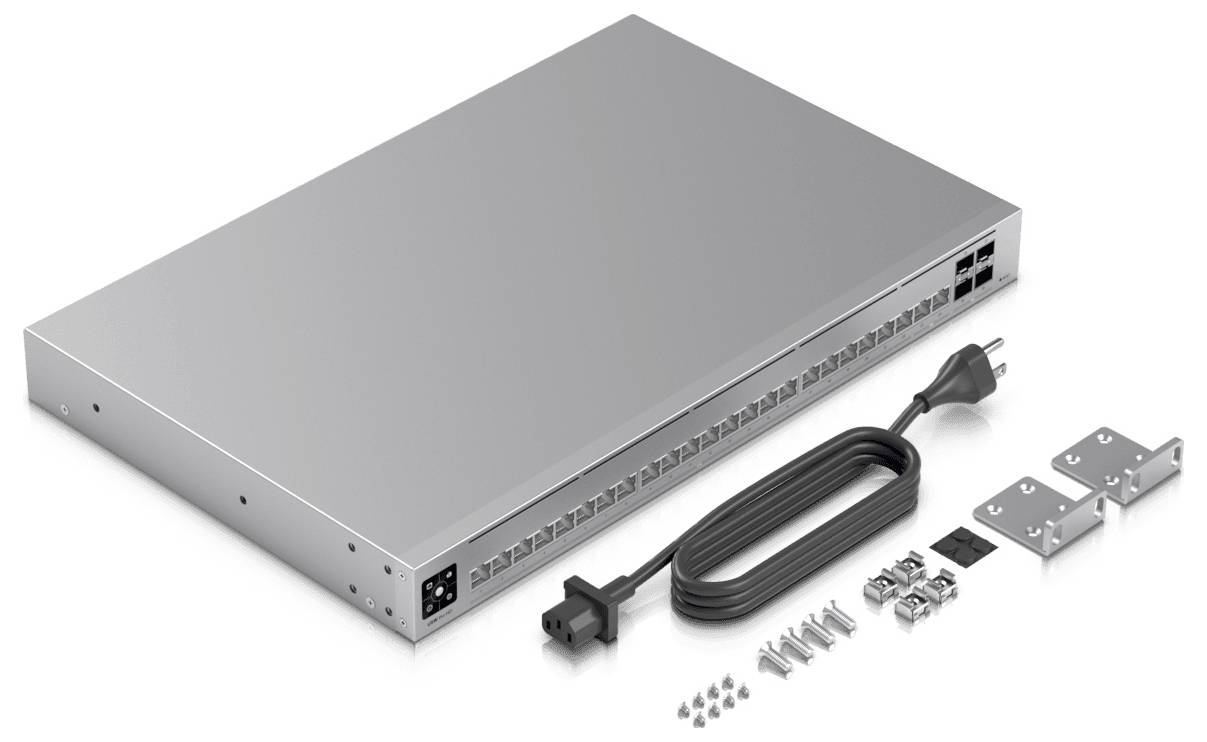

A silver network switch with ports on the front is shown alongside a power cable, screws, brackets, and mounting hardware for installation.

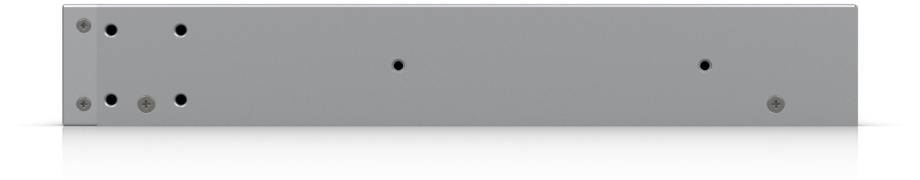

A sleek, flat, rectangular gray panel with multiple mounting holes on its surface, possibly part of an electronic device or equipment.

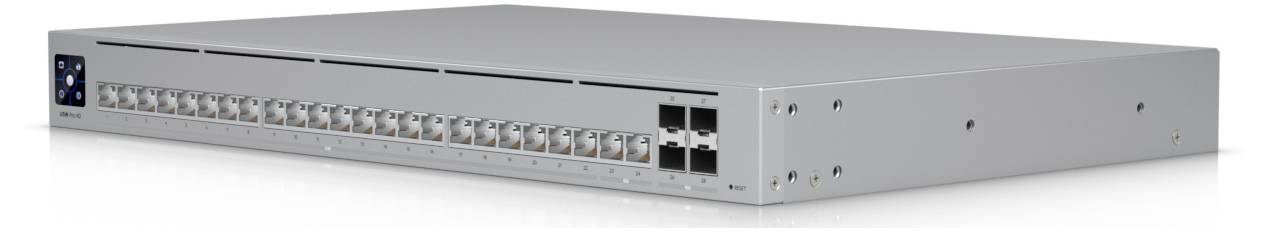

A silver network switch with 24 Ethernet ports and 4 additional uplink ports, designed for data communication in network setups.

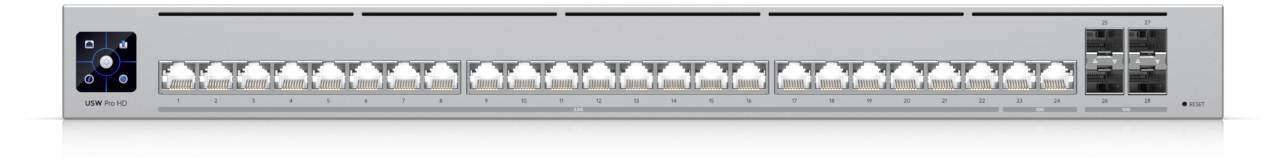

A network switch with 24 ports and four SFP+ ports on the right for fiber connectivity. An LCD display on the left shows status information.

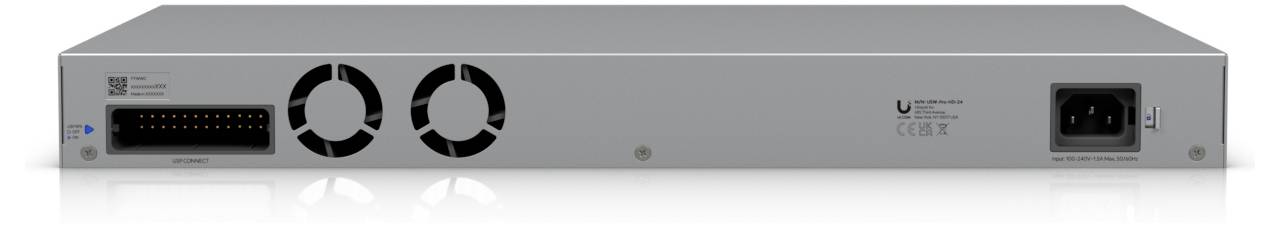

A gray network device with ventilation fans and multiple ports on the back panel, used for network connectivity.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti switch fully managed Layer3 28 port • 22x 2.5 GbE • 2x 10 GbE • 4x SFP+ • 19" • Unifi • USW-Pro-HD-24

Etherlighting™ ports that light to display port location, speed/connection, and native VLAN/network*
(22) 2.5 GbE, (2) 10 GbE ports
(4) 10G SFP+ connectors
Ready for DC emergency power supply**

Technical specifications

Form factor: 1U
Energy source AC / DC
Routing/switching capacity - 230 Gbps
Throughput - 115 Gb/s.
Transfer rate - 171.12 Mpps

Product type: 19" switch box

LAN transfer rate: 10000 MBit/s

Transfer rate: 10 GBit/s

Working principle: Managed switch

Ethernet ports: 22

SFP+ ports: 4 x

SFP ports: 4 x

No. of 100 Mbps/1Gbps/10Gbps ports: 2 x

10/100 Mbps ports: 24 x

10/100/1000 Mbps ports: 24 x

Jumbo frames: Yes

MAC addresses: 32.000

Weight: 4.2 kg

Width: 442.4 mm

Height: 44 mm

Depth: 285 mm

Type: Pro HD 24

Rack size: 483 mm (19")

Interfaces: SFP+

Factory colour: Grey

Current consumption: 60 W

Material (details): SGCC

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): -5 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 22

Packet buffer memory: 2 MB

Switching capacity: 230 Gbit/s

Heat dissipation: 102.36 BTU/h

Rack mount kit: yes

Loop protection: yes

SFP+ module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): no

Quality of Service (QoS) support: yes

Port mirroring: yes

Stackable: yes

Jumbo frames support: yes

Redundant power supply (RPS) support: yes

Multicast support: yes

Broadcast storm control: yes

Static route: yes

Throughput: 115 Gbit/s

Rate limiting: yes

Reset button: yes

IPv4 routes: 12000

2.5G Ethernet (copper) ports quantity: 22

10G Ethernet (copper) ports quantity: 2

Rack mounting: yes

MAC address table: 32000 Eintragungen

IGMP snooping: yes

Number of VLANs: 1000

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: yes

Forwarding rate: 171.12 Mpps

Power consumption (max): 60 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738680 Ubiquiti Networks USW-Pro-HD-24 Pro HD 24 19" switch box 10 GBit/s

Description

Professional Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.

This text is machine translated.

Hints

*Pair it with Unifi Etherlighting patch cables for optimal brightness.

**Requires Unifi RPS .
