Buy Ubiquiti Networks USW-Pro-XG-24 Pro XG 24 19" switch box

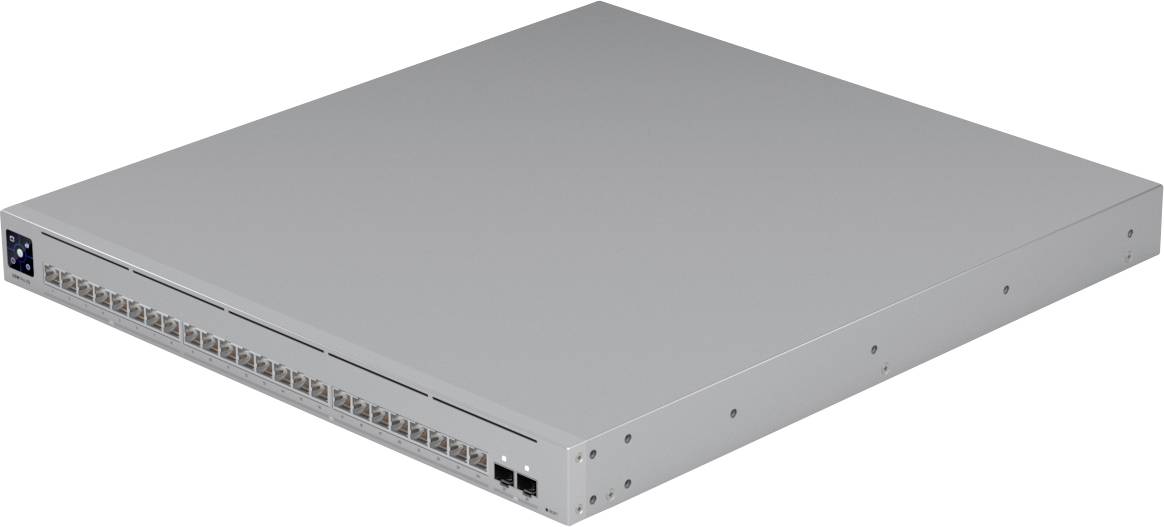

A network switch with multiple Ethernet ports is displayed, designed for mounting in a server rack, aiding in data distribution.

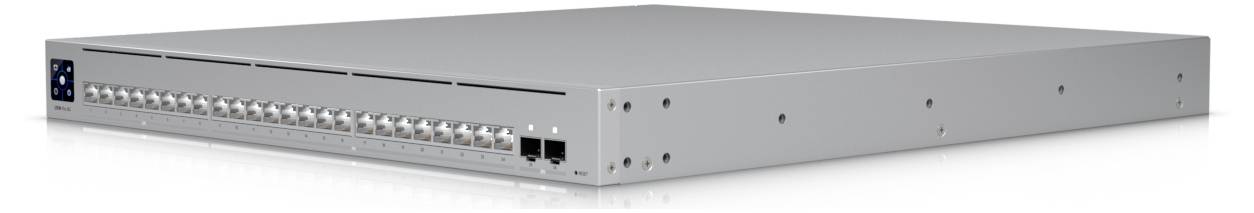

A silver network switch with multiple ethernet ports and LED indicators, designed for high-speed data connections in IT environments.

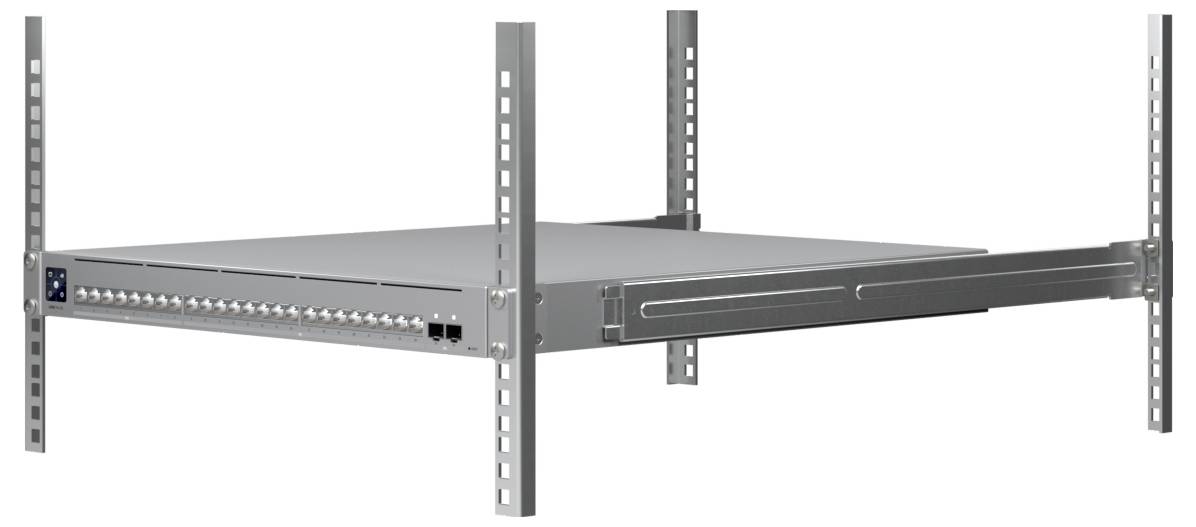

A metal server rack shelf with mounted equipment, showcasing a flat surface and side rails for support, used in data center setups.

A long, rectangular, gray metal rackmount panel with several circular holes evenly spaced across its surface.

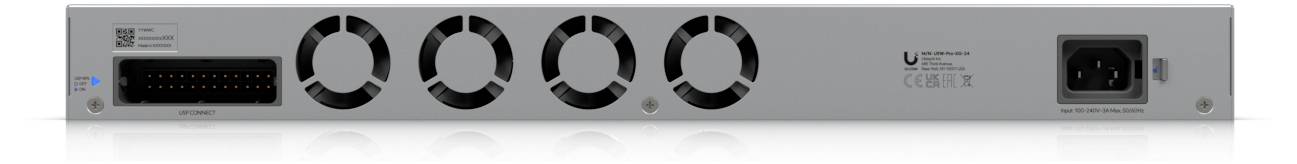

A back view of a network switch with three fans, a power socket, and multiple ports for cable connections.

A sleek network switch with 16 Ethernet ports and two SFP ports on the front, used for connecting multiple devices in a network.

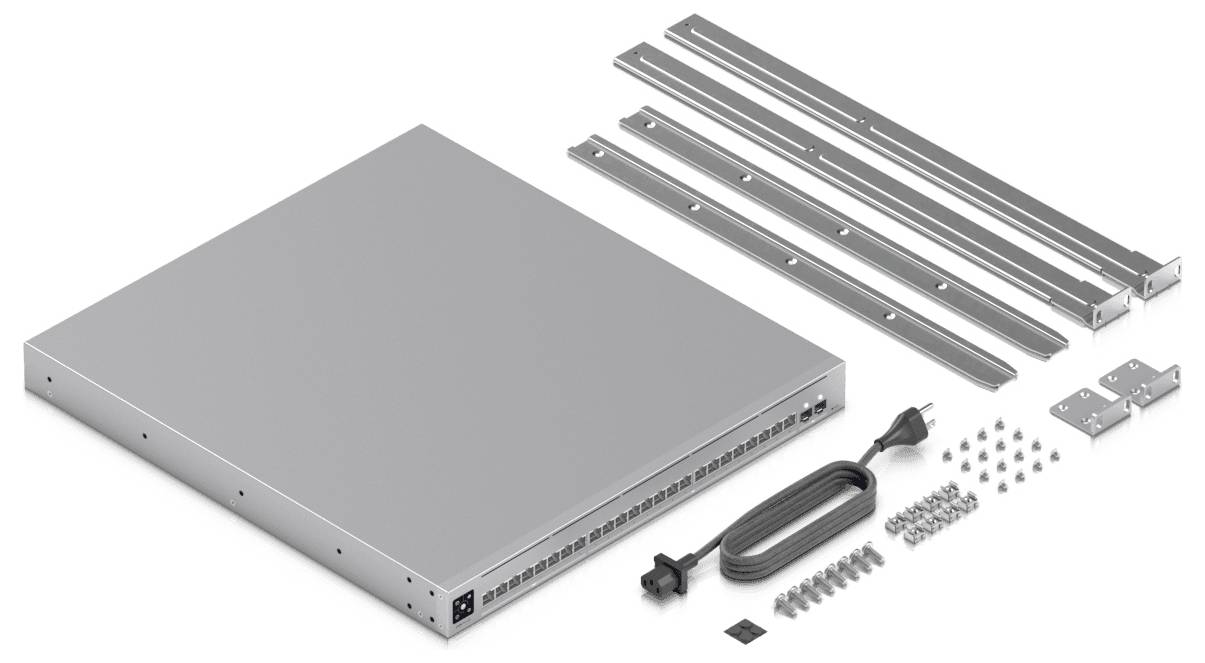

Rackmount server kit with a flat server unit, four metal mounting rails, a power cable, and an assortment of screws and connectors.

The image shows the back panel of a network switch with four cooling fans, a power input, and multiple Ethernet ports.

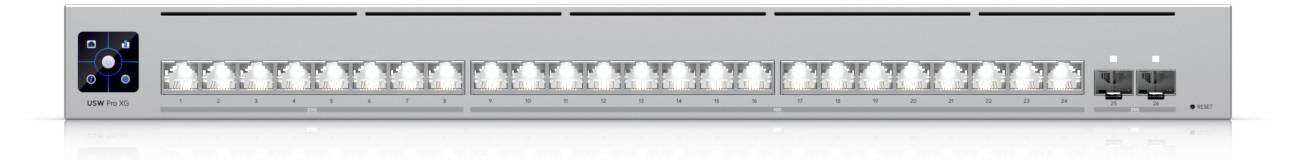

A network switch with 24 Ethernet ports and two additional uplink ports is shown, designed for connecting multiple devices in a network.

1/9

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Ubiquiti switch fully managed Layer3 26 port • 8x 2.5 GbE • 16x 10 GbE • 2x SFP28 • 19" • Unifi • USW-Pro-XG-24

Highlights & Details

Etherlighting™ ports that light to display port location, speed/connection, and native VLAN/network*
(16) 10 GbE, (8) 2.5 GbE ports
(2) 25G SFP28-connections
Ready for emergency power supply with direct current**

Technical specifications

Form factor: 1U
Energy source AC / DC

Product type: 19" switch box

LAN transfer rate: 25000 MBit/s

Working principle: Managed switch

Ethernet ports: 24

No. of 100 Mbps/1Gbps/10Gbps ports: 16 x

10/100 Mbps ports: 24 x

10/100/1000 Mbps ports: 24 x

Jumbo frames: Yes

MAC addresses: 128000

Weight: 7.2 kg

Width: 442 mm

Height: 44 mm

Depth: 480 mm

Type: Pro XG 24

Rack size: 483 mm (19")

Interfaces: RJ45

Factory colour: Grey

Current consumption: 150 W

Max. ambient temperature: 40 °C

Min. ambient temperature: -5 °C

Material (details): SGCC

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): -5 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 24

Packet buffer memory: 8 MB

Backlight display: yes

Switching capacity: 460 Gbit/s

Rack mount kit: yes

Loop protection: yes

Flow control support: yes

Power over Ethernet (PoE): no

Quality of Service (QoS) support: yes

Port mirroring: yes

Stackable: yes

Jumbo frames support: yes

Redundant power supply (RPS) support: yes

Multicast support: yes

Broadcast storm control: yes

Static route: yes

Throughput: 230 Gbit/s

Access Control List (ACL) IPv4 entries: 256

Rate limiting: yes

Reset button: yes

SFP28 ports quantity: 2

IPv4 routes: 256000

2.5G Ethernet (copper) ports quantity: 8

10G Ethernet (copper) ports quantity: 16

Rack mounting: yes

MAC address table: 128000 Eintragungen

IGMP snooping: yes

Number of VLANs: 1000

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: yes

Forwarding rate: 342 Mpps

Power consumption (max): 150 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738669 Ubiquiti Networks USW-Pro-XG-24 Pro XG 24 19" switch box

Description

Professional 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

This text is machine translated.

Hints

*Combine with Unifi Etherlighting patch cables for optimal brightness.

**Requires Unifi RPS .
