Buy Ubiquiti Networks USW-Pro-XG-8-PoE Pro XG 8 PoE Network switch 10 GBit/s PoE

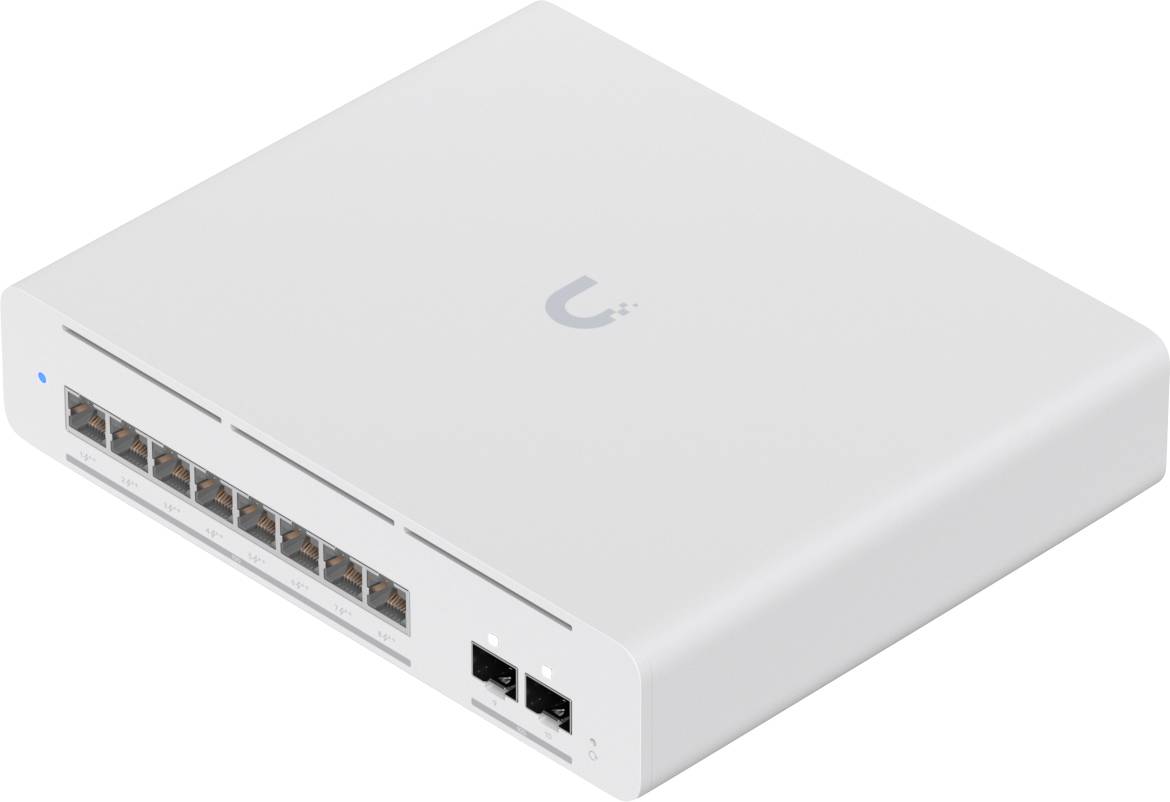

A white network switch with ten Ethernet ports and two additional ports on the front, used for connecting network devices.

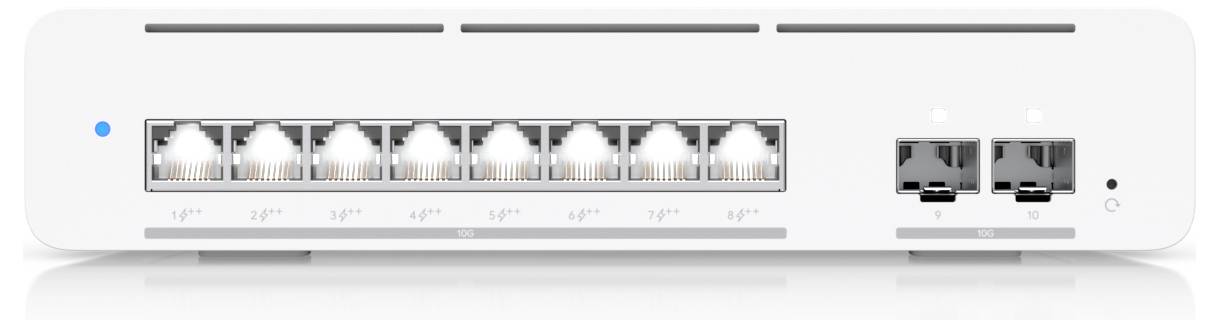

'Network switch with eight Ethernet ports and two SFP ports, front view, in a white casing.'

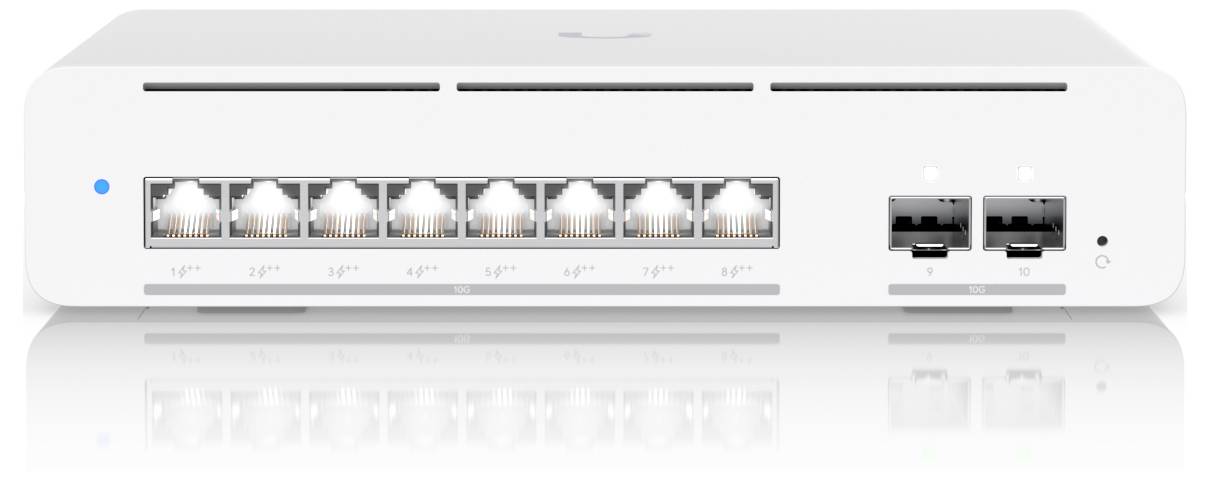

A white networking switch with eight Ethernet ports and two additional ports on the right side, all on a reflective surface.

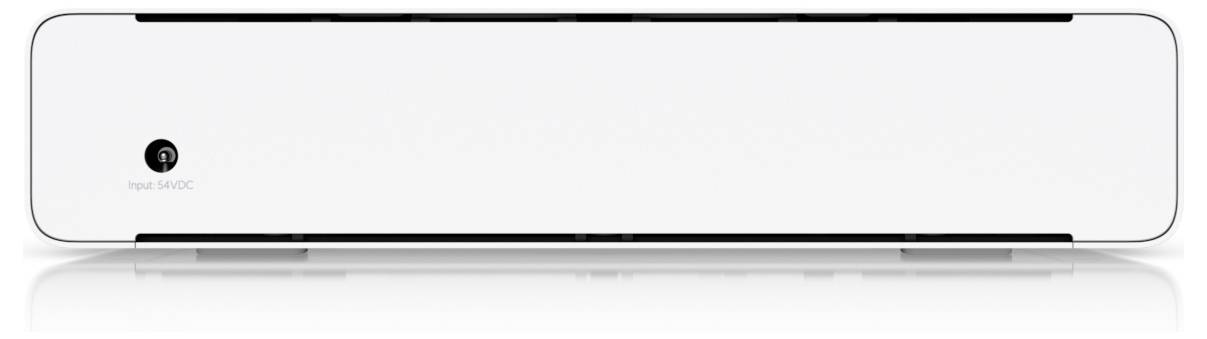

A white rectangular digital device with a power button icon on the left side.

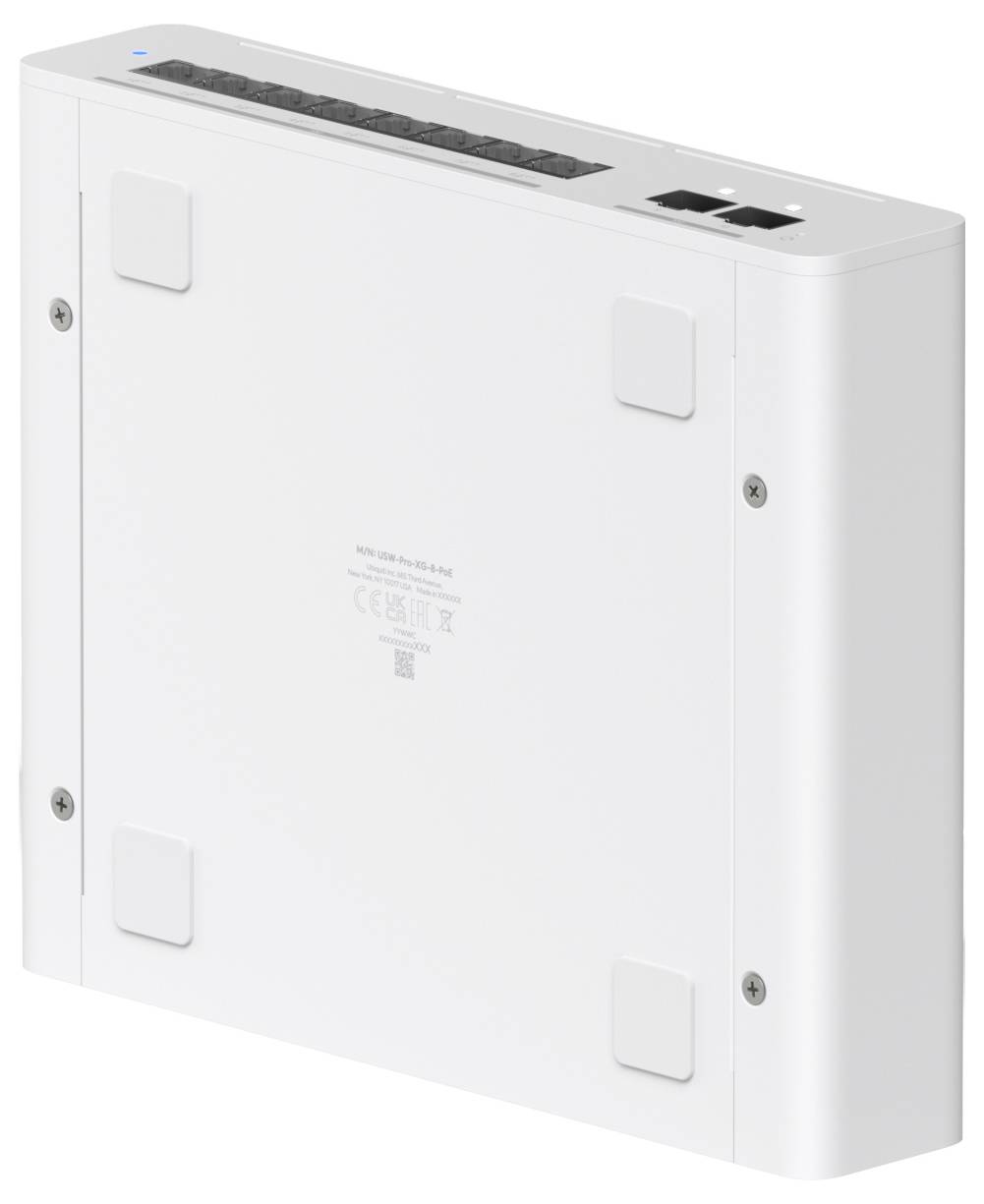

The image shows the bottom view of a white electronic device, possibly a Wi-Fi router, with visible ports and rubber feet for stability.

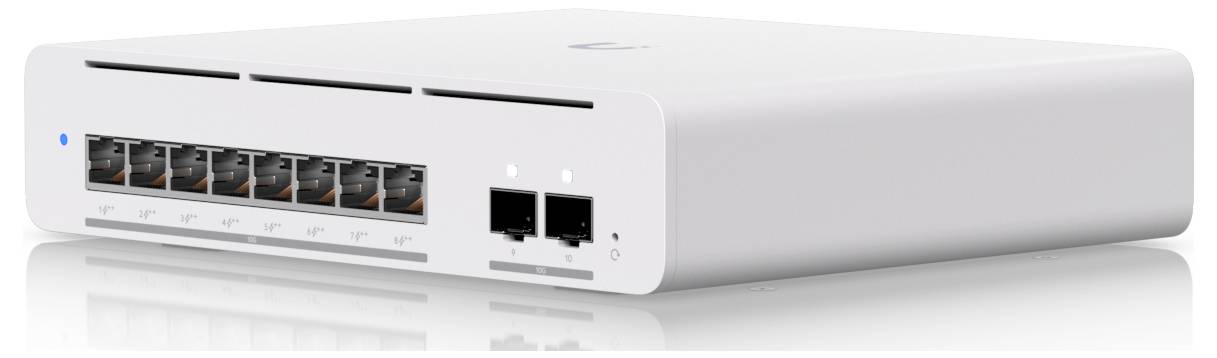

A network switch with eight Ethernet ports and two additional ports, housed in a sleek white casing, typically used for network connectivity.

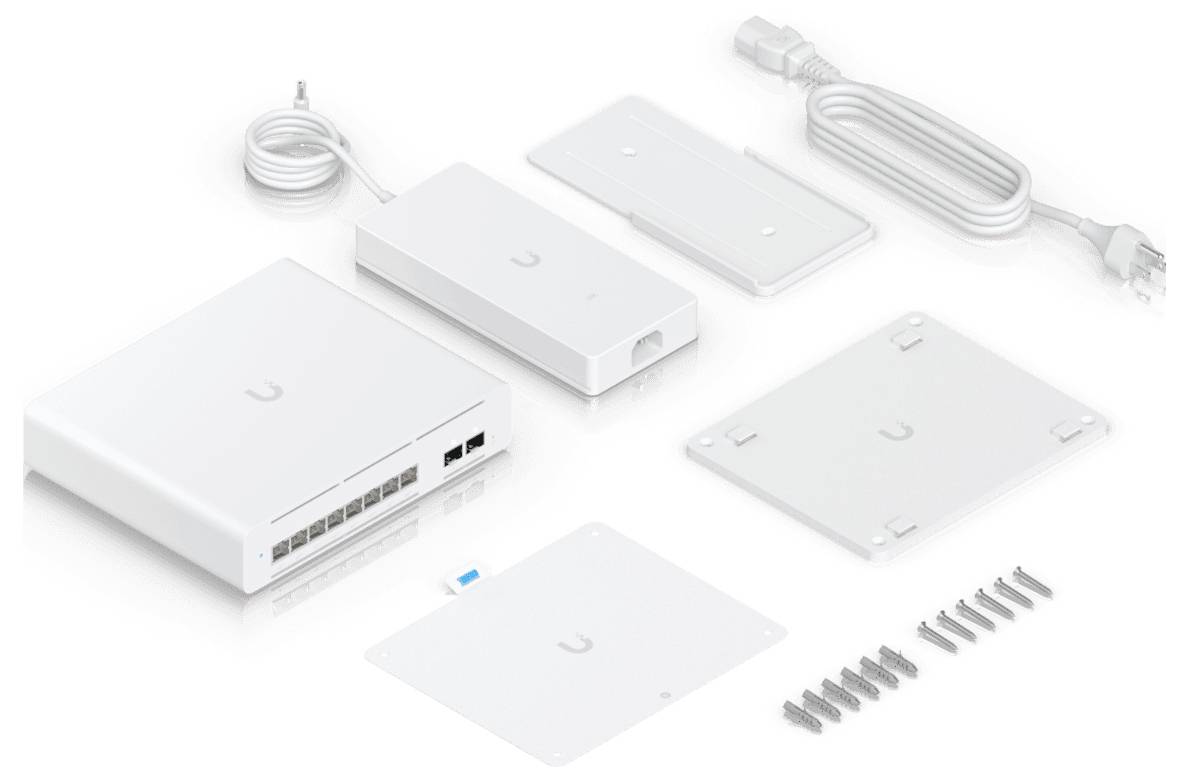

'Ubiquiti UniFi Security Gateway' components including gateway, power cord, mounting brackets, and screws, laid out against a white background.

1/8

Unavailable

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Ubiquiti switch fully managed Layer3 10 port • 8x 10 GbE • PoE Budget 155W • 8x PoE bt • 2x SFP+ • Desktop/Wall • Unifi • USW-Pro-XG-8-PoE

Highlights & Details

Etherlighting™ ports that light to display port location, speed/connection, and native VLAN/network*
(8) 10 GbE PoE+ ports
(2) 10G SFP+ ports
155 W PoE total availability
Versatile table or wall mounting

Technical specifications

Energy source AC / DC

Product type: Network switch

LAN transfer rate: 10000 MBit/s

Transfer rate: 10 GBit/s

Working principle: Managed switch

Ethernet ports: 8

IEEE 802.3af PoE: 8

PoE ports: 8

SFP+ ports: 2 x

SFP ports: 2 x

No. of 100 Mbps/1Gbps/10Gbps ports: 8 x

10/100 Mbps ports: 8 x

10/100/1000 Mbps ports: 8 x

Fibre-optic ports: 2

Jumbo frames: Yes

Router features: PoE

MAC addresses: 32000

Weight: 1.6 kg

Width: 210.4 mm

Height: 43.7 mm

Depth: 173.8 mm

Type: Pro XG 8 PoE

Rack size: 483 mm (19")

Interfaces: Gigabit LAN (10 Gbps)

Factory colour: Grey

Current consumption: 220 W

Material (details): SGCC

UKCA: yes

Operating temperature (T-T): -5 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 155 W

Packet buffer memory: 2 MB

Wall mountable: yes

Switching capacity: 200 Gbit/s

Loop protection: yes

Power over Ethernet (PoE) power per port: 15.4 W

SFP+ module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static route: yes

Throughput: 100 Gbit/s

Rate limiting: yes

Reset button: yes

Manual: yes

IPv4 routes: 12000

10G Ethernet (copper) ports quantity: 8

Power over Ethernet 4PPoE (PoE++) ports quantity: 8

Rack mounting: no

MAC address table: 32000 Eintragungen

IGMP snooping: yes

Number of VLANs: 1000

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: yes

Forwarding rate: 149 Mpps

Power consumption (max): 220 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738674 Ubiquiti Networks USW-Pro-XG-8-PoE Pro XG 8 PoE Network switch 10 GBit/s PoE

Description

Compact, bench/wall-mounted professional 8-port Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports

This text is machine translated.

Hints

*Pair the Unifi Enterprise patch cable for optimal brightness.

Ubiquiti switch fully managed Layer3 10 port • 8x 10 GbE • PoE Budget 155W • 8x PoE bt • 2x SFP+ • Desktop/Wall • Unifi • USW-Pro-XG-8-PoE
