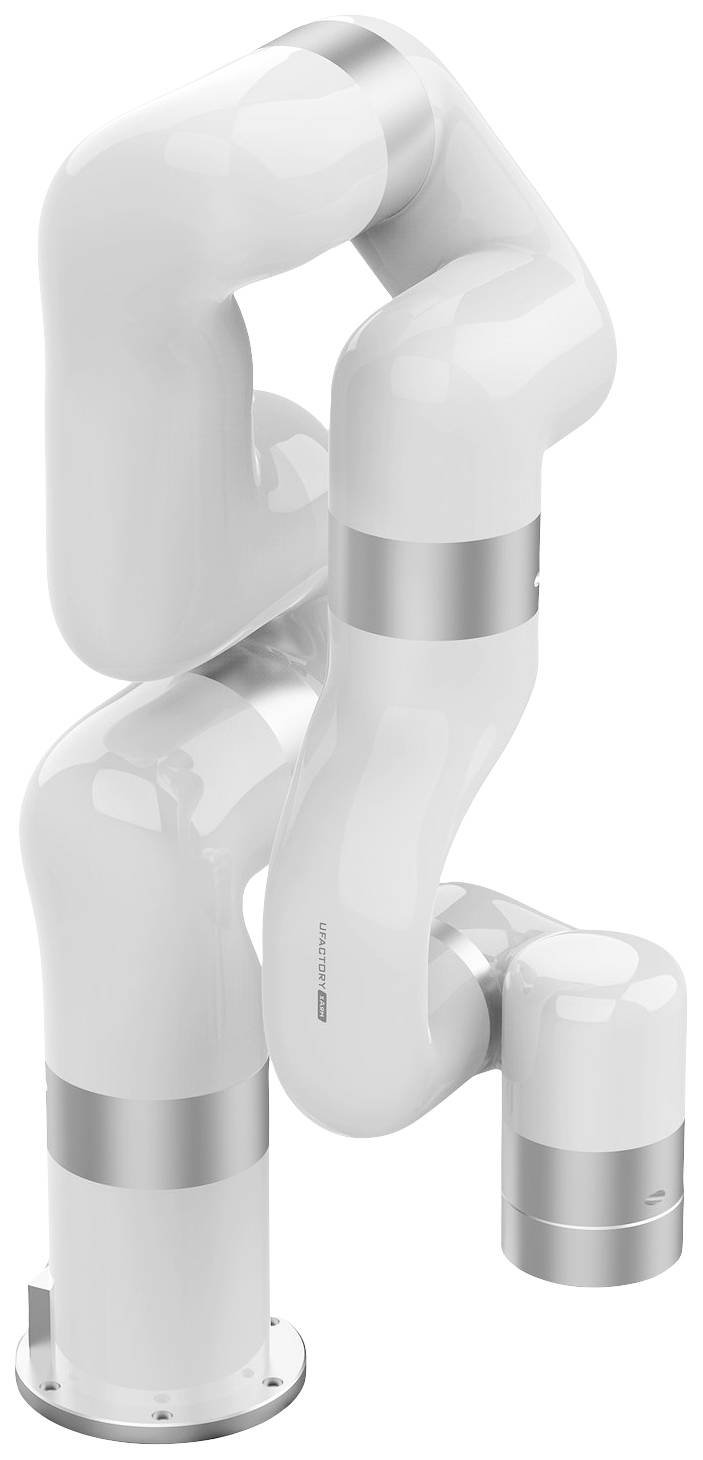

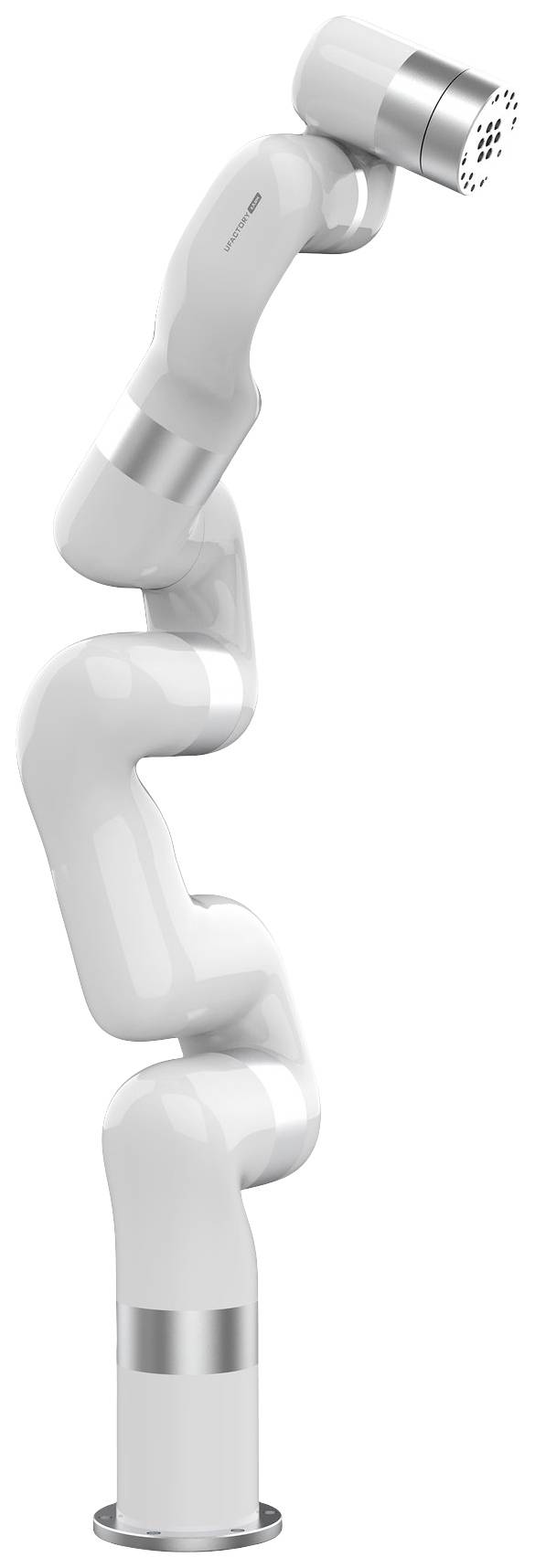

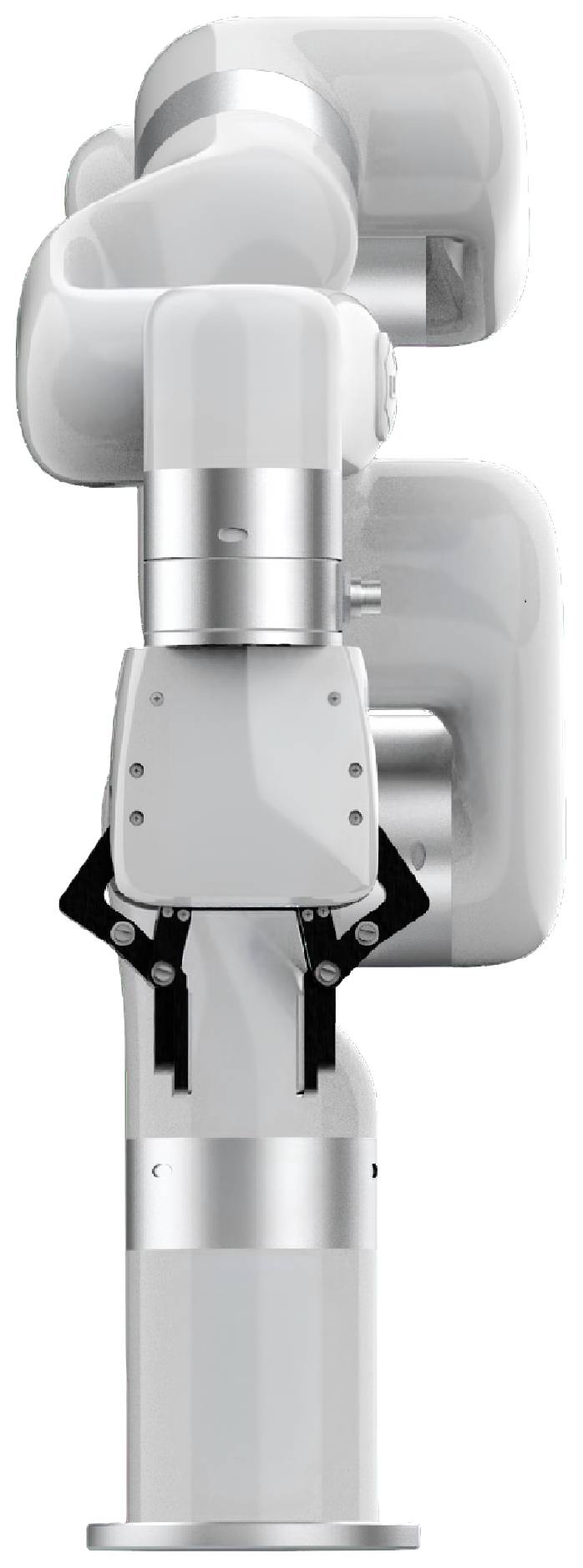

UFactory xArm6 MBS-UA-04-02 Robotic arm

The UFactory xArm is the industrial development of the very popular desktop robot arm, the uArm. The xArm6 has a payload of up to 5kg with a range of up to 700mm. Due to the high flexibility combined with the many interfaces to third-party software, this robot arm is a real alternative for many products available on the market.

The following standards are met by the manufacturer:
MD 2006/42/EC
EMC 2004/108/EC
EN ISO 10218-1:2011
EN 60204-1:2018
EN ISO 12100:2010
EN 61000-6-2:2005
EN 61000-6-4:2007+A1:2011
IEC 61000-6-2:2005
IEC 61000-6-4/A1:2010
EN 61000-6-2:2005 [2004/108/EC]
EN 61000-6-4/A1:2011 [2004/108/EC]
EN 61000-6-4:2019
EN 61000-6-2:2019

Compared to competitors, the following factors are of particular interest for the xArm:

High ROI (Return On Invest): In direct comparison, the xArm is relatively inexpensive, which means that the payback time is extremely low.
Very good weight/performance ratio: With a mass of 12.2Kg, the xArm6 handles a payload of up to 5kg
One-of-a-kind power management system (AC/DC): Due to the change between an AC & DC control box, the xArm can be operated both perfectly stationary and with the DC control box as a mobile manipulator on a UGV
Ethernet connectivity: The xArm can  be integrated into the network via static IP and subsequently programmed and monitored via the xArm Studio.

Xarm control box
The control box of the xArm provides communication between the robot arm and third-party devices, which means that additional sensors, end effectors or accessory components can also be connected to them. In addition, each xArm comes with the AC control box as standard, but a DC box can also be purchased in the accessories, which enables operation by means of 24V.

This text is machine translated.
