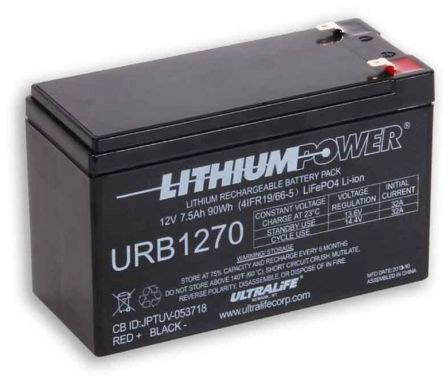

Ultralife URB1270 Non-standard battery (rechargeable) LiFePo PP3 Blade terminal LiFePO4 12.8 V 7500 mAh 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Ultra Life lithium iron phosphate battery URB1270
- Extremely resistant to high current
- BMF protective circuit
- Lightweight
Technical specifications
- 6.35 mm flat-pin plug
- Size
LiFePo PP3
- Product type
Non-standard battery (rechargeable)
- Technology
LiFePO4
- Dim
(W x H x D) 65 x 94 x 151 mm
- Voltage
12.8 V
- Capacity (mAh, Ah)
7500 mAh
- Special-purpose battery features
Blade terminal
- Max. charge voltage
14.6 V
- Max. charging current
7.5 A
- Terminal voltage
10 V
- Discharge current (max.)
15 A
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Width
65 mm
- Height
94 mm
- Depth
151 mm
- Weight
1100 g
- Content
1 pc(s)
- Type
URB1270
- Rechargeable
Yes
- Integrated surge protection
No
Documents & Downloads
Datasheet
Datasheet 1681600 Ultralife URB1270 Non-standard battery (rechargeable) LiFePo PP3 Blade terminal LiFePO4 12.8 V 7500 mAh 1 pc(s)
Security datasheet
Security datasheet 1681600 Ultralife URB1270 Non-standard battery (rechargeable) LiFePo PP3 Blade terminal LiFePO4 12.8 V 7500 mAh 1 pc(s)
Description
This lithium iron phosphate battery is extremely resistant to high current, can be used universally and has a low weight. Innovative technology with long operational reliability, long charge retention and a wide temperature range. This battery can be thanks to the BMF protective circuit with commercially available lead-acid battery chargers can be charged and can replace each of the same lead-acid battery.
This text is machine translated.
This text is machine translated.
Features
- High intrinsic safety
- Quick charging.
- Can be used in any position
- More than 3000 cycles (at 100% discharge)
- 1/3 less weight of lead-acid batteries
- BMF protective circuit
