Uni-T MSO3054X Digital 500 MHz 5 GS/s 500 MP Function generator, Spectrum analyzer, Harmonics analysis, Mixed signal (MS
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T MSO3054X Digital oscilloscope 500MHz 4+16 channel MSO ready 5 GSa/s 500 Mpts 2,000,000 WWFMS/s 10.1″ capacitive touch screen digital memory (DSO)
- 500 MHz
- No. of analogue inputs 4
Technical specifications
- Product type
Digital
- Bandwidth
500 MHz
- Channel sample rate
5 GS/s
- Screen size
10.1 inch
- Oscilloscope features
Function generator
Spectrum analyzer
Harmonics analysis
Mixed signal (MSO)
Logic analyzer
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- No. of digital inputs (max.)
16
- Interfaces
Serial
- Channel memory depth
500 MP
- Type
MSO3054X
Documents & Downloads
Datasheet
Datasheet 3399967 Uni-T MSO3054X Digital 500 MHz 5 GS/s 500 MP Function generator, Spectrum analyzer, Harmonics analysis, Mixed signal (MS
User & Safety Instructions
User & Safety Instructions 3399967 Uni-T MSO3054X Digital 500 MHz 5 GS/s 500 MP Function generator, Spectrum analyzer, Harmonics analysis, Mixed signal (MS
User & Safety Instructions 3399967 Uni-T MSO3054X Digital 500 MHz 5 GS/s 500 MP Function generator, Spectrum analyzer, Harmonics analysis, Mixed signal (MS
User & Safety Instructions 3399967 Uni-T MSO3054X Digital 500 MHz 5 GS/s 500 MP Function generator, Spectrum analyzer, Harmonics analysis, Mixed signal (MS
Description

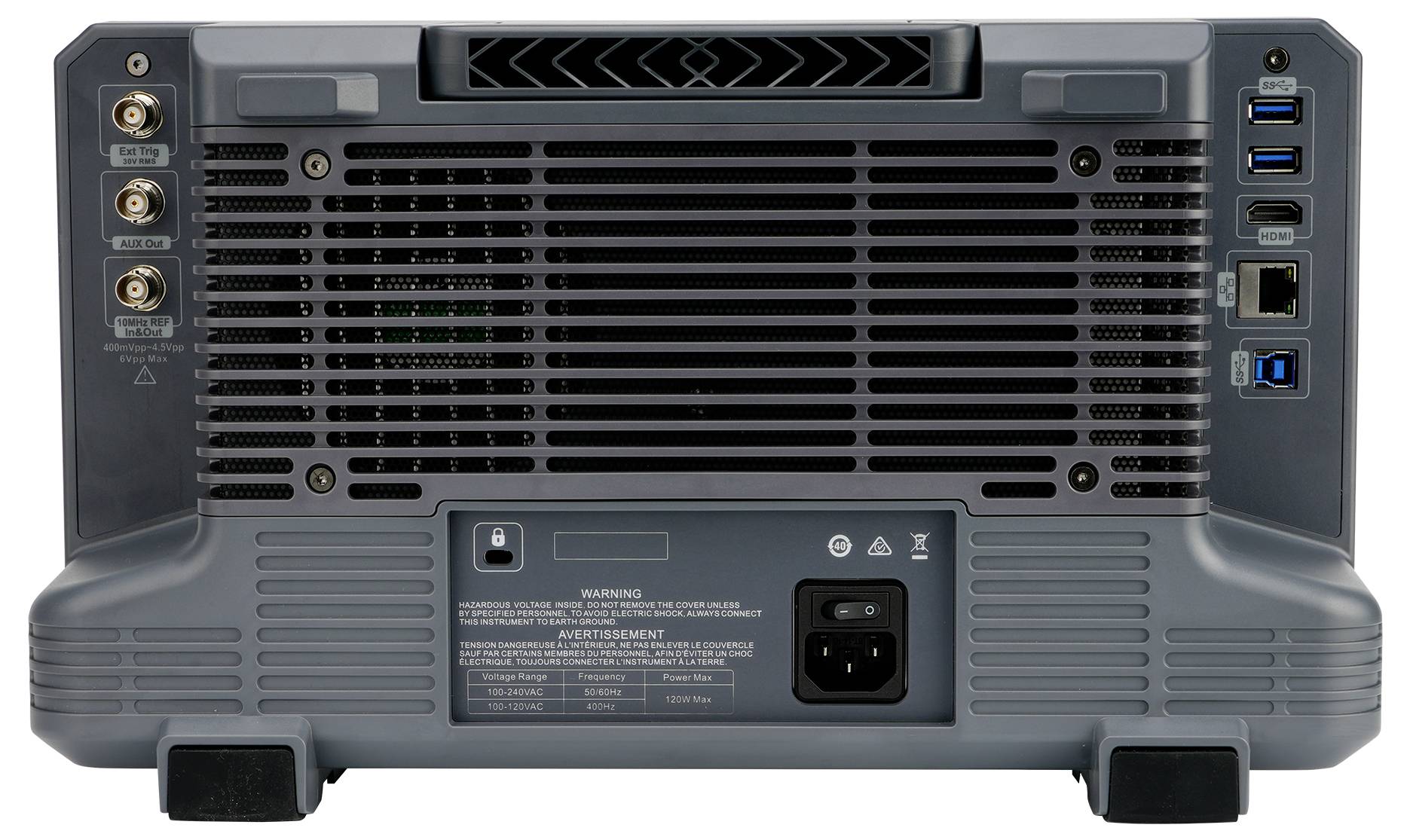

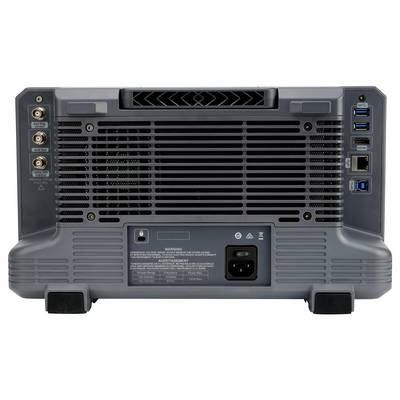

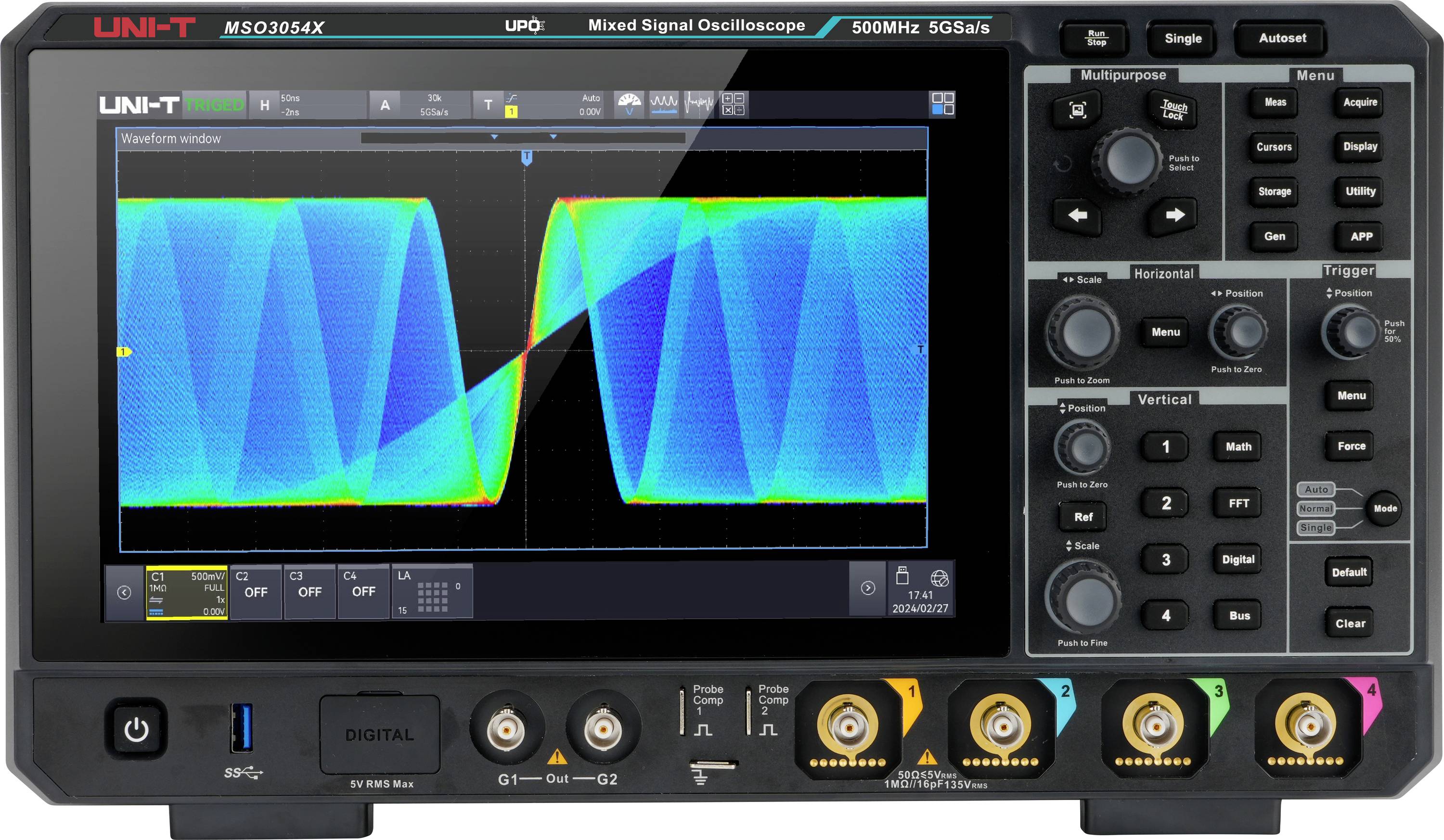

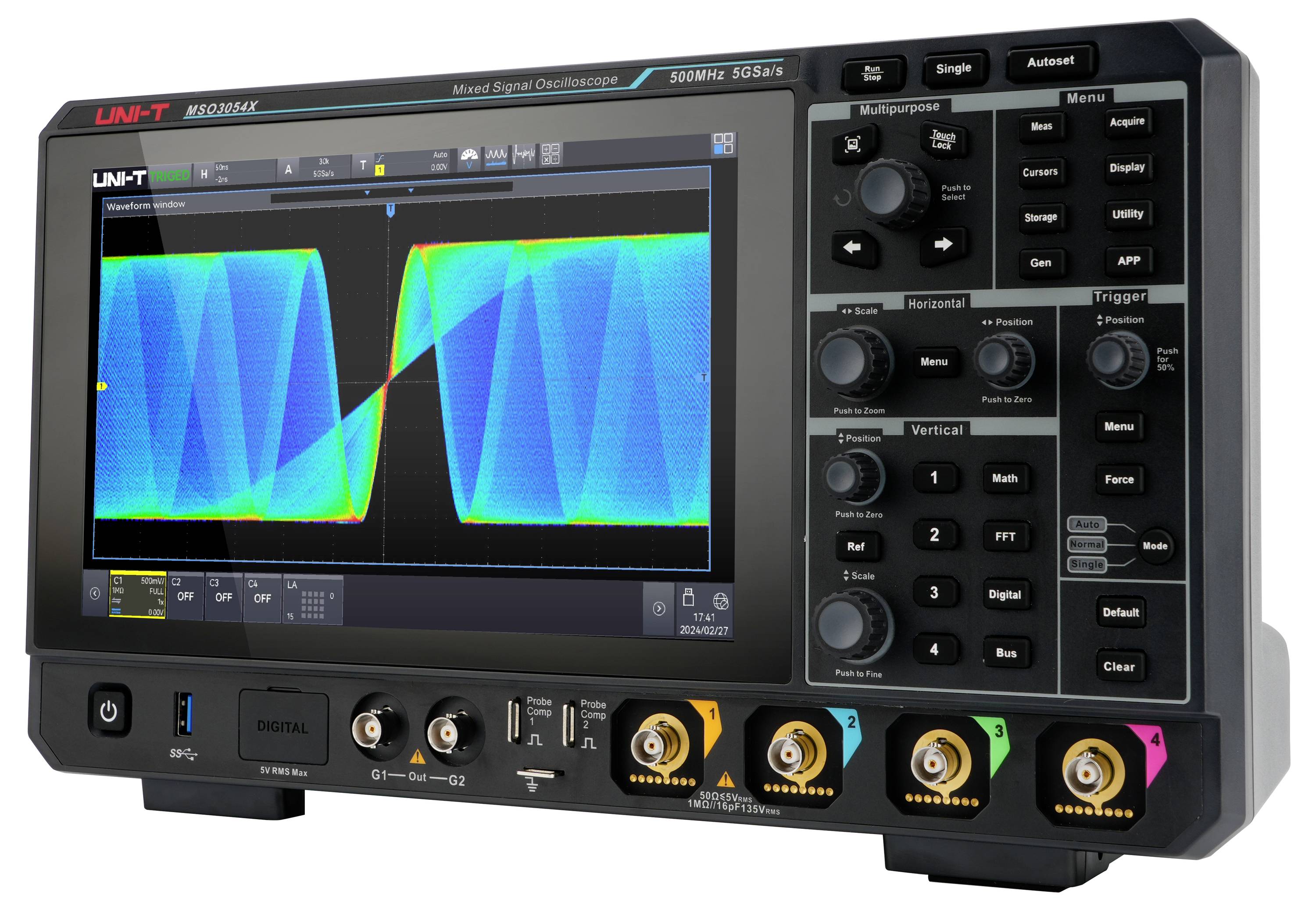

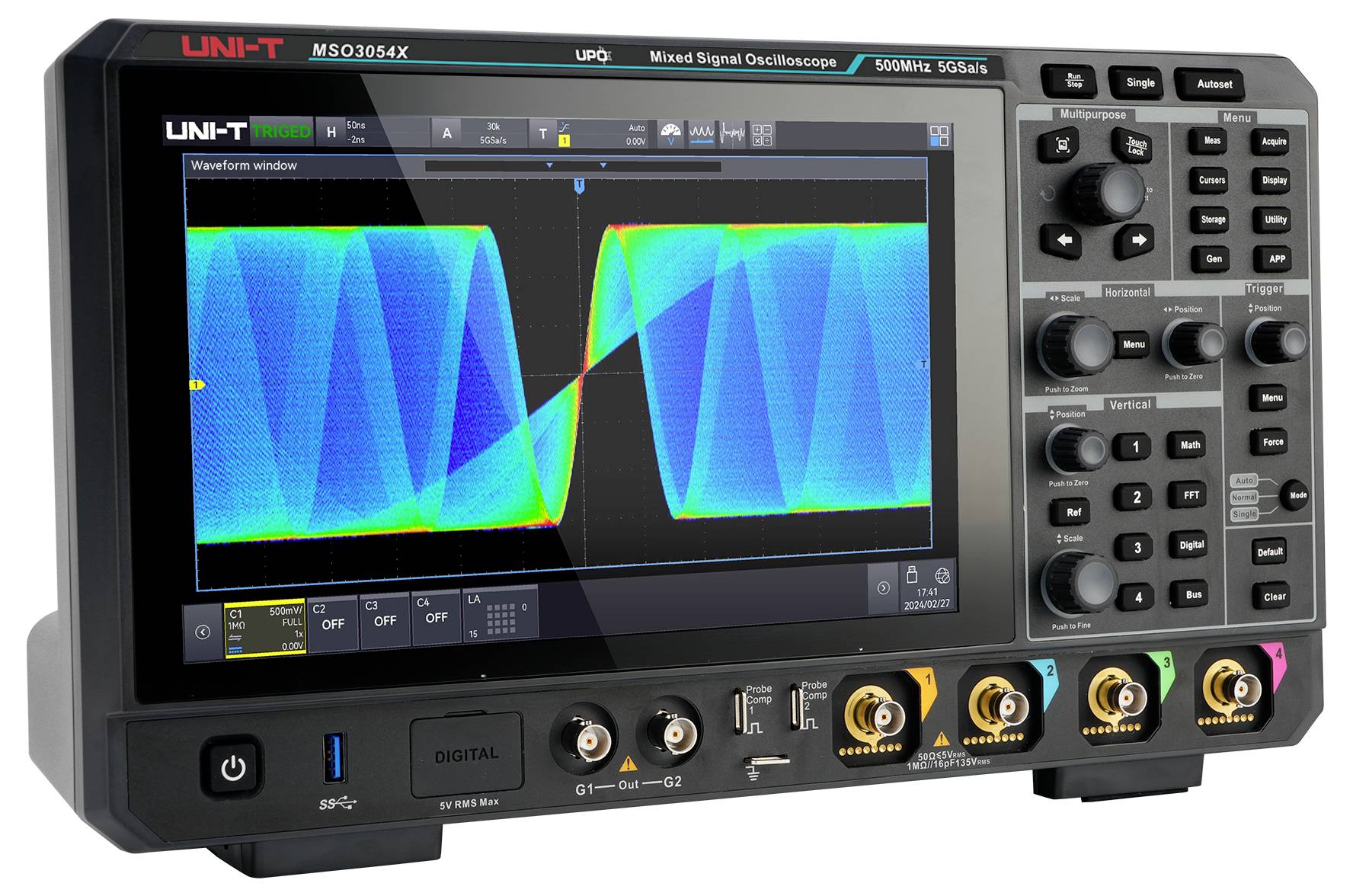

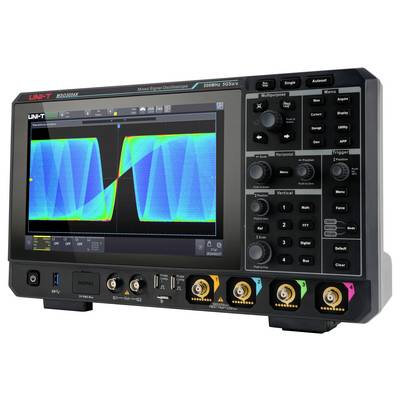

The UNI-T MSO3054X Mixed Signal Oscilloscope provides a maximum sampling rate of 5 GSa/s and a storage depth of up to 500 Mpts. Thanks to the exclusive Ultra Phosphorus 3.0 technology, it achieves a waveform capture rate of 2,000,000 WFM/s and supports 12 extended trigger and serial bus decoding protocols. Equipped with a 10.1-inch capacitive touch screen with gesture control and an integrated web server for remote control, this Ideal oscilloscope is suitable for applications in embedded systems, automotive electronics and the aerospace industry.
This text is machine translated.
This text is machine translated.
Features
- - 9-in-1 integration: Combines oscilloscope, logic analyzer, waveform generator, spectrum analyzer and more for maximum versatility.
- - Ultra Phosphorus 3.0: 8-channel parallel analysis, up to 20 Gbps processing and 2,000,000 WFMs/s acquisition rate for precise anomaly detection.
- - 54 measurement modes: Voltage, frequency and phase measurements with advanced statistical functions and trend graphics for in-depth analysis.
- - Power Analysis 6+: Comprehensive power quality and performance analysis with PSRR, harmonic and inrush current measurement and 12 tests in 2024.
- - Spectrum analyzer: Supports 4M-points FFT, simultaneous 4-channel FFT, waterfall diagram and marker measurement for fast and precise frequency analysis.
Scope of delivery
- - MSO3054X (500 MHz, 5 GSa/s, 4 channels) x 1
- - Power cable x 1
- - USB cable x 1
- - Passive probes (500 MHz) x4
- - BNC-BNC passage line × 1
- - BNC alligator clip cable (red & black) × 1
- - Passive probes × 4
- - Calibration certificate x 1
- - Multilingual safety instructions x 1
- - Brief instructions x 1
Hints
More models
- MSO3034X: 350 MHz bandwidth, 4 analog channels, 5 GSa/s sampling rate, up to 500 Mpts memory depth, waveform acquisition rate of 2,000,000 WFM/s, 16 digital channels and optional 50 MHz Dual channel generator.
Software options
- MSO3000X-AWG:Dual 50 MHz arbitrary waveform generator software option (including Bode diagram).
- MSO3000X-PWR: Performance Analysis software option
- MSO3000X-BND: All serial bus trigger and decoding software options (including AUTO, Audio, MIL-STD, ARINC, Manchester).
- MSO3000X AUDIO: Serial bus trigger and analysis software option (I2S, LJ, RJ, TDM).
- MSO3000X-MIL1553: Air and Space Serial Bus Trigger and Analysis Software Option (MIL-STD-1553).
- MSO3000X-ARINC429: Air and Space Serial Bus Trigger and Analysis Software Option (ARINC 429).
- MSO3000X AUTO: Automotive serial bus trigger and decoding software option (CAN, CAN-FD, LIN, FlexRay, SENT).
- MSO3000X-MANCH: Serial bus trigger and analysis （Manchester）
- MSO3000X-CANFD: Automotive Serial Bus Trigger and Analysis Software Option） CAN-FD （
- MSO3000X-LIN: Automotive Serial Bus Trigger and Analysis Software Option （） LIN
- MSO3000X-Flex: Automotive serial bus trigger and analysis Software option （FlexRay）
- MSO3000X-SENT: Automotive Sensor Bus Trigger and Analysis Software Option （SENT）
