Uni-T MSO5000HD-1WIRE Software option Mixed signal (MSO) 1 pc(s)
Part number:
Item no:
Technical specifications
- Product type
Software option
- Oscilloscope features
Mixed signal (MSO)
Manufacturer's standards (no certificate)
- Interfaces
1-Wire®
- Type
MSO5000HD-1WIRE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3757382 Uni-T MSO5000HD-1WIRE Software option Mixed signal (MSO) 1 pc(s)
Description
The option MSO5000HD-1WIRE extends your MSO5000HD series oscilloscope with trigger, decoding and search functions for the 1-wire protocol – Ideal for working with temperature sensors (DS18B20), iButton devices, EEPROMs and battery level indicators (fuel gauge).

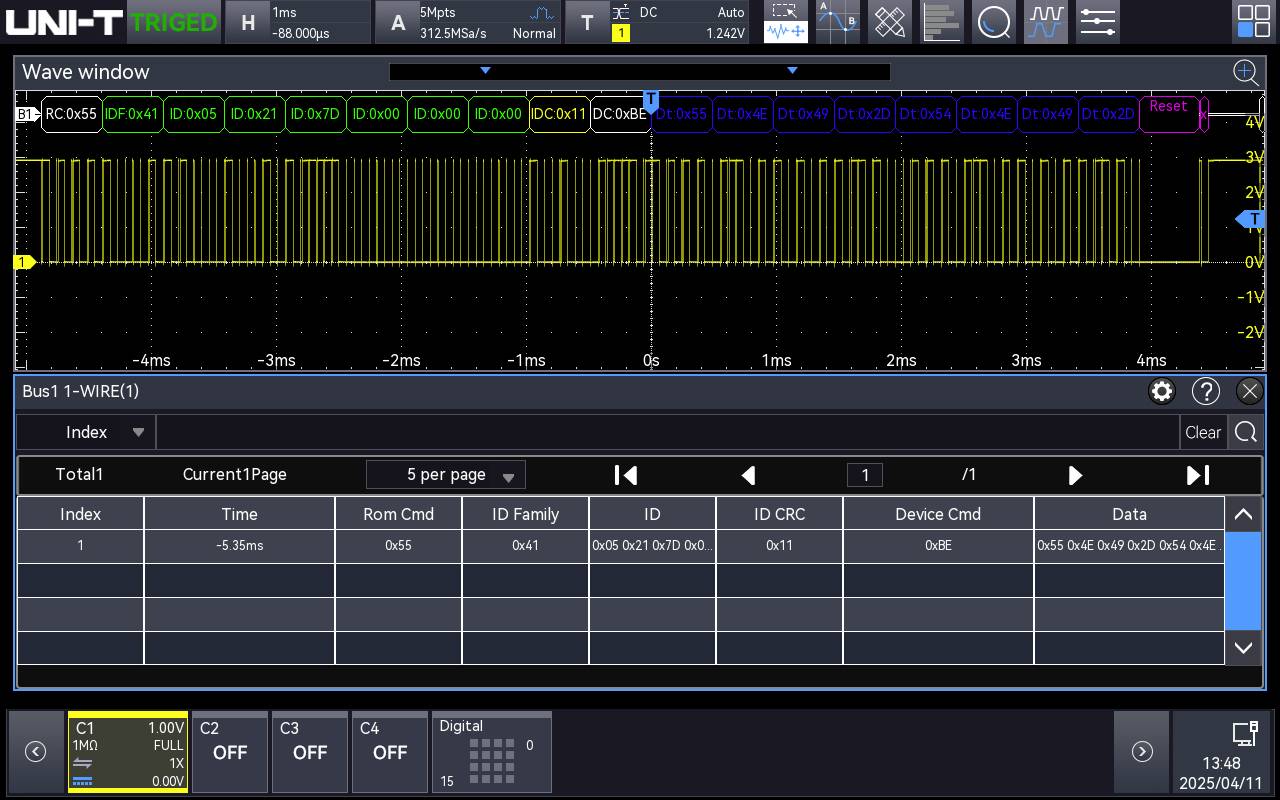

Timing is crucial for this bidirectional single-wire bus. The software decodes reset pulses, presence detection (presence detection), ROM commands and data bytes directly in the waveform.
This text is machine translated.
Timing is crucial for this bidirectional single-wire bus. The software decodes reset pulses, presence detection (presence detection), ROM commands and data bytes directly in the waveform.
This text is machine translated.
Scope of delivery
- License code x 1
