Uni-T MSO5000HD-AWG Software option 50 MHz Function generator 1 pc(s)
Part number:
Item no:
Highlights & Details
Software option for MSO5000HD series, 2 channels 50 MHz arbitrary waveform generator (including BODE)
- 50 MHz
Technical specifications
- Product type
Software option
- Bandwidth
50 MHz
- Oscilloscope features
Function generator
Manufacturer's standards (no certificate)
- Type
MSO5000HD-AWG
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3757376 Uni-T MSO5000HD-AWG Software option 50 MHz Function generator 1 pc(s)
Description

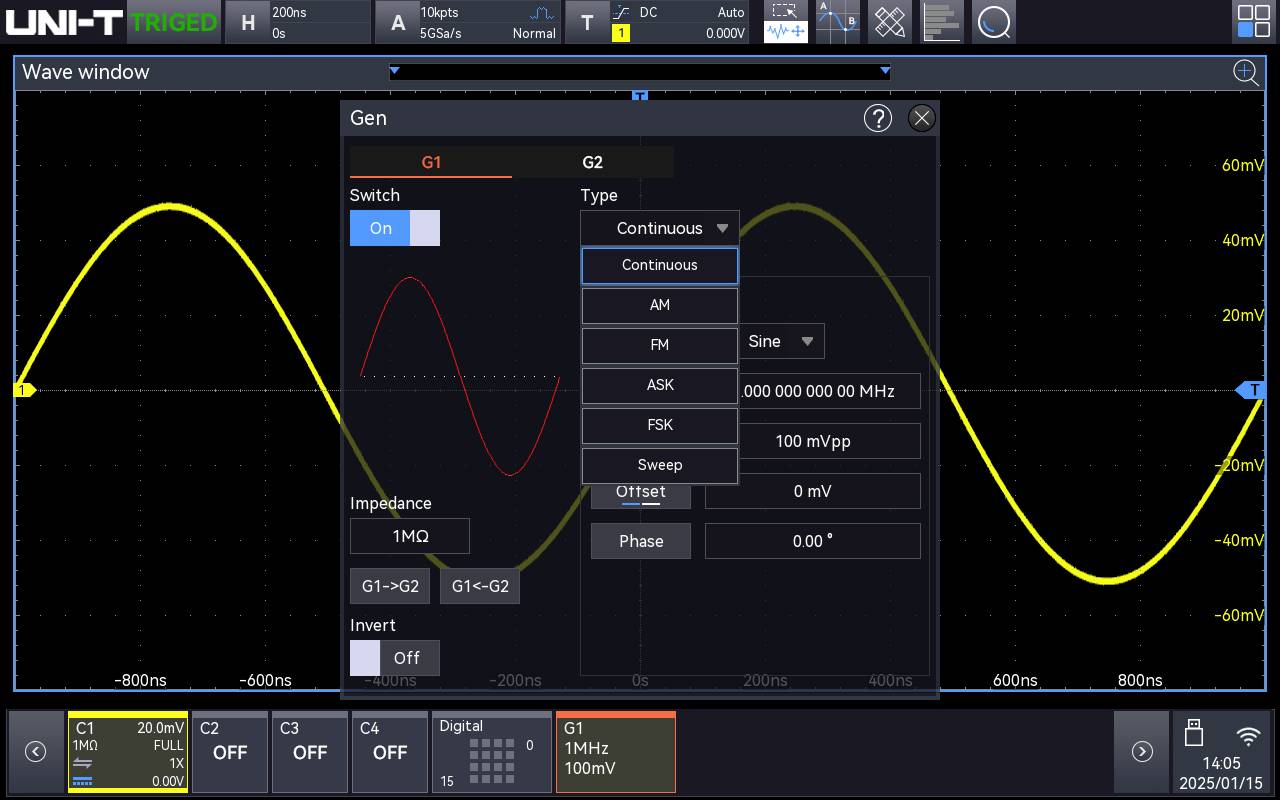

The MSO5000HD-AWG extends your oscilloscope by an integrated arbitrary function generator and the Bode-Plot-analysis. Generate stimulus signals and capture the corresponding responses directly on the same device – an external function generator is no longer required.
The Bode-Plot-function passes through a frequency range (sweeping) with a stimulus-signal, thereby measuring amplification as well as phase and shows the diagram directly on the screen. The fastest way to characterize filters, amplifiers and control loops.
This text is machine translated.
The Bode-Plot-function passes through a frequency range (sweeping) with a stimulus-signal, thereby measuring amplification as well as phase and shows the diagram directly on the screen. The fastest way to characterize filters, amplifiers and control loops.
This text is machine translated.
Scope of delivery
- License code x 1
