Uni-T MSO5034HD Analog, Digital 350 MHz 2 GS/s 200 MP 12 Bit Mixed signal (MSO) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

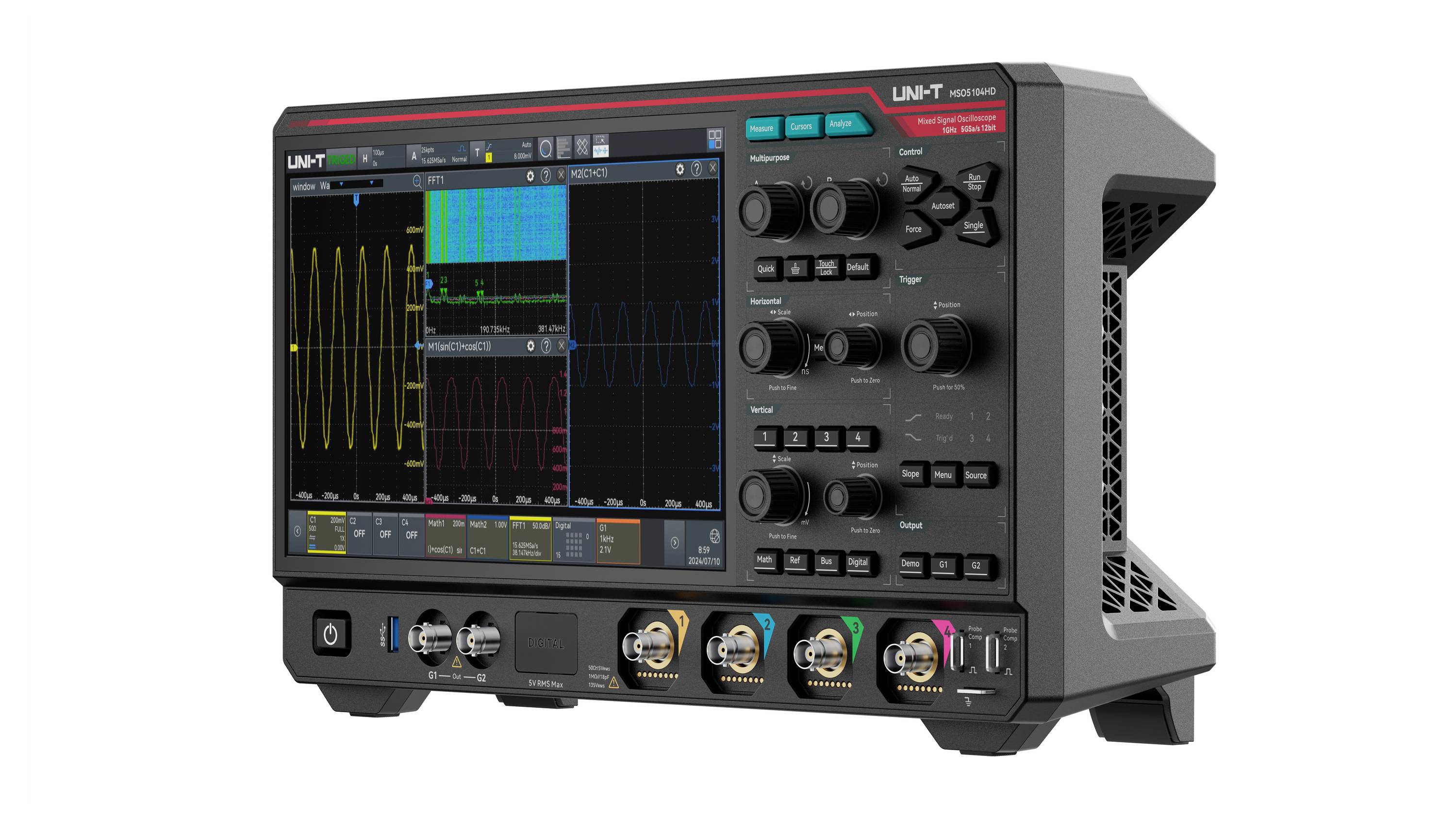

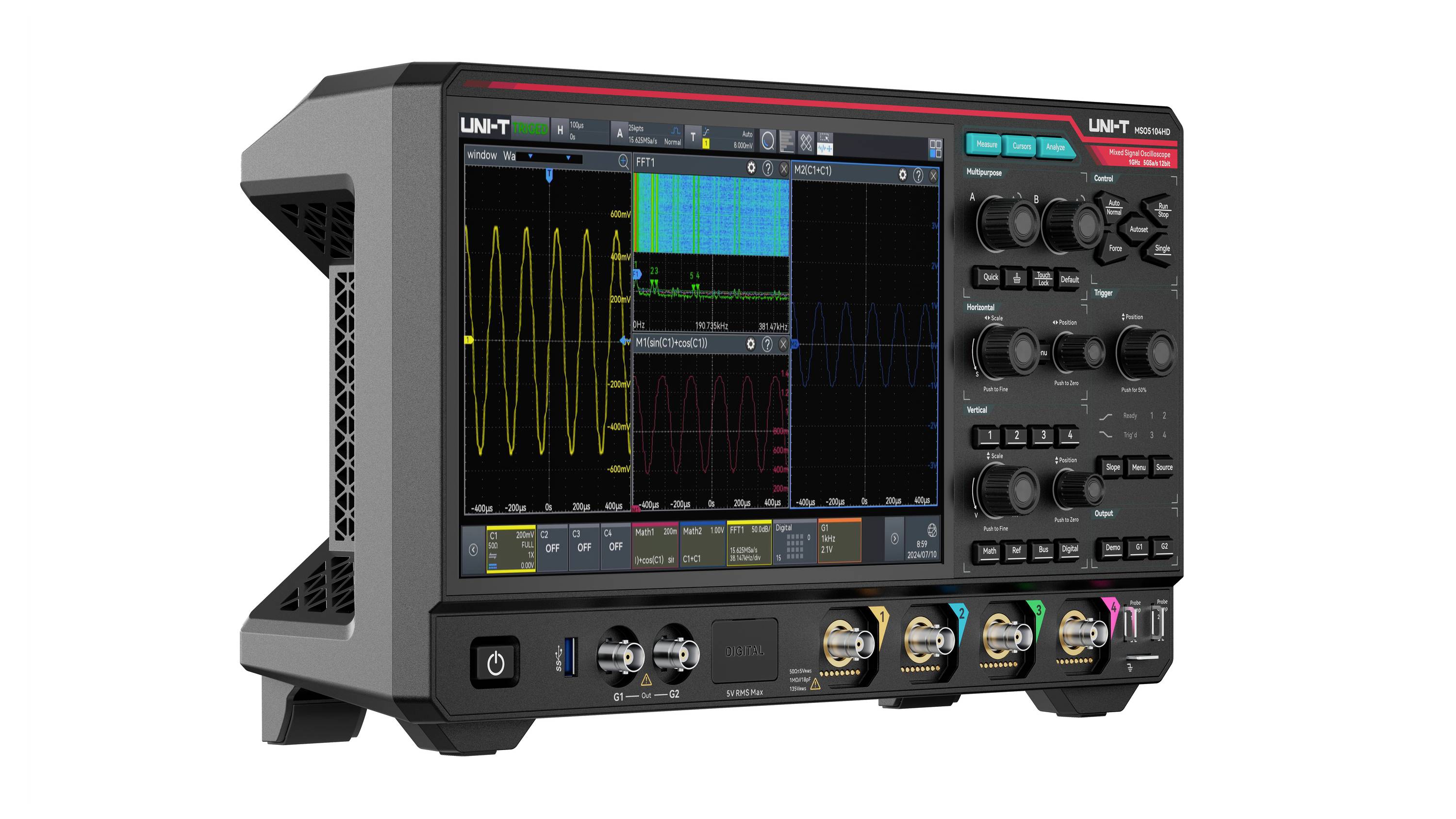

UNI-T high resolution oscilloscope MSO5034HD
- 350 MHz
- No. of analogue inputs 4
Technical specifications
- Product type
Analog
- Bandwidth
350 MHz
- Channel sample rate
2 GS/s
- Resolution
12 Bit
- Screen size
25,65 cm (10,1 Zoll)
- Oscilloscope features
Mixed signal (MSO)
- Time base
500 ps/div to 1000 s/div
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- Reading category
CAT II
- Vertical deflection
1 mV/div to 10 V/div
- Input impedance
1 MΩ
- Input coupling
DC AC GND
- Input voltage
1 mV/div to 10 V/div (at 1 MΩ)
- Power supply (details)
100 - 240 V AC
- Dim
(L x W x H) 121 x 358 x 214 mm
- Weight
4.1 kg
- No. of digital inputs (max.)
16
- Display
1280 x 800 p
- Calibration service
Internal self-calibration (self-cal)
- Width
358 mm
- Height
214 mm
- Length
121 mm

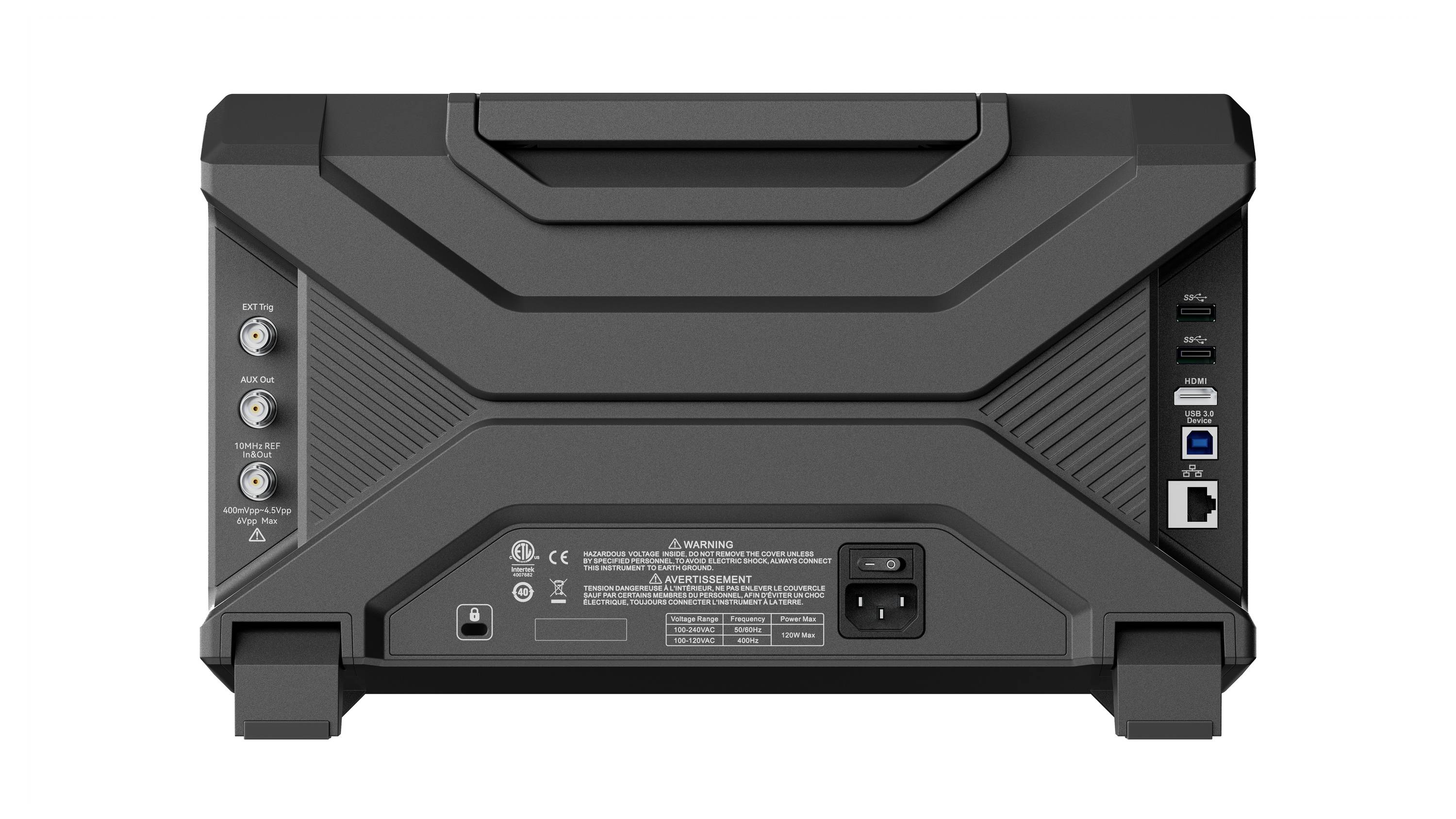

- Interfaces
USB host
USB device
LAN
HDMI
- Channel memory depth
200 MP
- Type
MSO5034HD
Documents & Downloads
Datasheet
Datasheet 3757372 Uni-T MSO5034HD Analog, Digital 350 MHz 2 GS/s 200 MP 12 Bit Mixed signal (MSO) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3757372 Uni-T MSO5034HD Analog, Digital 350 MHz 2 GS/s 200 MP 12 Bit Mixed signal (MSO) 1 pc(s)
Description
The MSO5034HD is a powerful high-resolution oscilloscope series with 350 MHz bandwidth, 5 GSa/s sampling rate, 4 analogue and 16 digital channels as well as a memory depth of up to 500 Mpts. Thanks to the exclusive UltraPhosphorus 3.0 technology it achieves a waveform capture rate of up to 1,500,000 WFM/s with 256 gray shades It offers an innovative, high-sensitivity, low jitter digital trigger system and a wide range of advanced triggers and analysis functions such as spectrum analysis, power analysis, histogram, waveform recording, ERES, hardware accelerated mask test, search and navigation as well as serial bus triggering and decoding. The 10.1 inch capacitive touchscreen with multi-gesture control in combination with convenient quick-dial buttons enables a particularly intuitive use and an optimized user experience.
This text is machine translated.
This text is machine translated.
Features
- 16-bit high resolution: Combines 12-bit ADC with 4-bit ERES for effective 16-bit resolution, reduces noise and accurately displays fine signal details.
- Ultra Phosphorus 3.0 enables real-time waveform display and improved signal visualization.
- 9-in-1 functionality: Combines digital oscilloscope, logic analyzer, arbitrary waveform generator, spectrum analyzer, protocol analyzer, digital voltmeter, frequency counter, Bode diagram analyzer and power analyzer in one device.
- Bus timing analysis: Supports timing analysis for I²C, SPI and CAN protocols.
- 56 automatic measurement functions: With histogram and trend diagrams for quick and clear signal analysis.
- Hardware-based waveform recording: Real-time recording and playback of up to 400,000 frames.
- Extended FFT: With up to 4 Mpts for a detailed analysis in the frequency range.
- Multi-window display: Simultaneous display of waveform, FFT and protocol analysis on a single screen.
- Zone trigger: Detects specific signal anomalies and isolates relevant signal ranges.

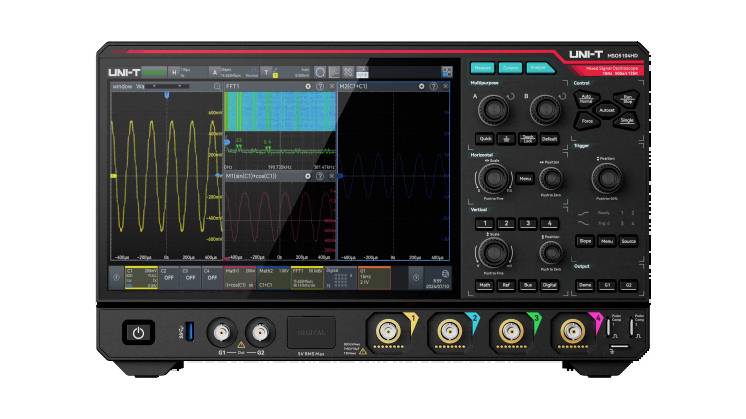

- 10.1-inch touchscreen: 1280 × 800 resolution capacitive HD touchscreen for intuitive operation.
- SCPI support: Ideal for remote control and automated test routines.
- Built-in web server: Enables remote monitoring and control via PC or mobile device.
Scope of delivery
- MSO5034HD x 1
- Power cable x 1
- USB3.0 cable x 1
- Passive probes (500 MHz) x4
- BNC-BNC feed-through cable × 1
- BNC alligator clip cable (red & black) × 3
Hints
More models
- MSO5104HD: 1 GHz bandwidth, 4 analogue channels, 16 digital channels, 5 GSa/s sampling rate, 500 Mpts memory depth, Waveform rate 800,000 WFMs/s (Sequence mode: up to 1,500,000 WFMs/s)
- MSO5054HD: 500 MHz bandwidth, 4 analogue channels, 16 digital channels, 5 GSa/s sampling rate, 500 Mpts memory depth, Waveform rate 800,000 WFMs/s (Sequence mode: up to 1,500,000 WFMs/s)
Software options
-MSO5000HD-BND: All serial bus trigger and decode options (including EMBED, AUTO, Audio, MIL-STD, ARINC, Manchester, 1-WIRE, I3C, CAN-XL and Timing).
-MSO5000HD AUTO: Automotive Serial Bus Trigger and Decode Option (CAN-FD, FlexRay, SENT, 1-WIRE, I3C, CAN-XL).
-MSO5000HD-AWG: 2 channels 50 MHz arbitrary waveform generator (including BODE).
-MSO5000HD-CANFD: Automotive serial bus trigger and analysis option (CAN-FD).
-MSO5000HD-Flex: Automotive serial bus trigger and analysis option (FlexRay).
-MSO5000HD-SENT: Automotive serial bus trigger and analysis option (SENT).
-MSO5000HD-CANXL: Automotive serial bus trigger and analysis option (CAN-XL).
-MSO5000HD-I3C: Embedded trigger/decode option (I3C).
-MSO5000HD-1WIRE: Automotive serial bus trigger and analysis option (1-WIRE).
-MSO5000HD-MAN. Serial Bus Trigger and Analysis Option (Manchester).
-MSO5000HD AUDIO: Audio Serial Bus Trigger and Analysis Option (I2S, LJ, RJ, TDM).
-MSO5000HD-MIL1553: Aerospace Serial Bus Trigger and Analysis Option (MIL-STD-1553).
-MSO5000HD-ARINC429: Aerospace Serial Bus Trigger and Analysis Option (ARINC429).
-MSO5000HD-PWR: Power analysis option.
-MSO5000HD Timing: Timing analysis (including I²C, SPI, I²S and CAN).
