Uni-T UDP1306C Bench PSU (adjustable voltage) 0 - 32 0 - 6 A 160 W USB device, RS232 programmable, remote controlled No.
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T UDP1306C Programmable Laboratory Power Supply 32V 6A 192W 10mV, 1mA 1-Channel
- No. of outputs 2 x
- 0 - 32 / 0 - 6 A
- 5 V / 2 A
- 160 W
- USB device, RS232
- programmable, remote controlled
Technical specifications
- High-resolution E-Ink display
- 5 memory places for setups
- Software control on the PC
- Overload and reverse polarity
- Type
UDP1306C
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
2 x
160 W
- Technology
Linear regulated PSU
- Interfaces
USB device
RS232
- Features
programmable
remote controlled
- Dim
(L x W x H) 327 x 136 x 194 mm
Manufacturer's standards (no certificate)
- Input voltage
100 V AC
120 V AC
220 V AC
230 V AC
- Weight
7.5 kg

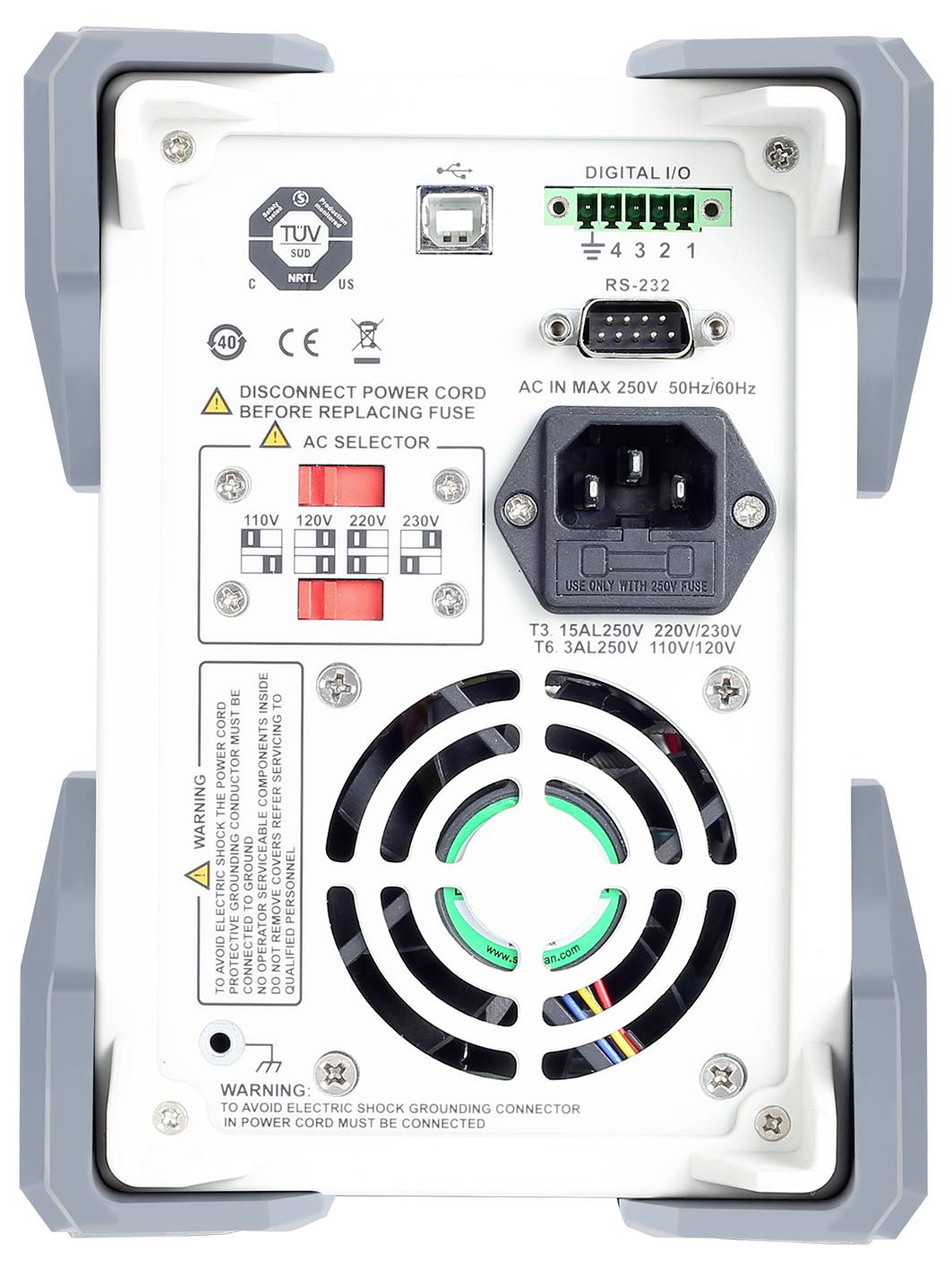

- Connections
Safety sockets (4 mm) on the front side
USB-A socket (front)
RS232 (back panel)
USB device (back panel)
- Type
Table-top device with E-Ink display (4.3")
- Output
USB
- Output voltage (max.)
32 V
- Output voltage (min.)
0 V
- Output voltage 2 (max.)
5 V
- Output voltage 2 (min.)
5 V
- Max. output current
6 A
- Output current (min.)
0 A
- Output current 2 (max.)
2 A
- Output current 2 (min.)
2 A
- Inputs
Cold-device mains connection
- Calibration service
Factory standard (calibration possible using PC software)
- Load balance
0,1
- Type
Linear
- Width
136 mm
- Height
194 mm
- Length
327 mm
- Residual ripple
1 mV
- Max. temperature
40 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3757397 Uni-T UDP1306C Bench PSU (adjustable voltage) 0 - 32 0 - 6 A 160 W USB device, RS232 programmable, remote controlled No.
User & Safety Instructions
User & Safety Instructions 3757397 Uni-T UDP1306C Bench PSU (adjustable voltage) 0 - 32 0 - 6 A 160 W USB device, RS232 programmable, remote controlled No.
Description

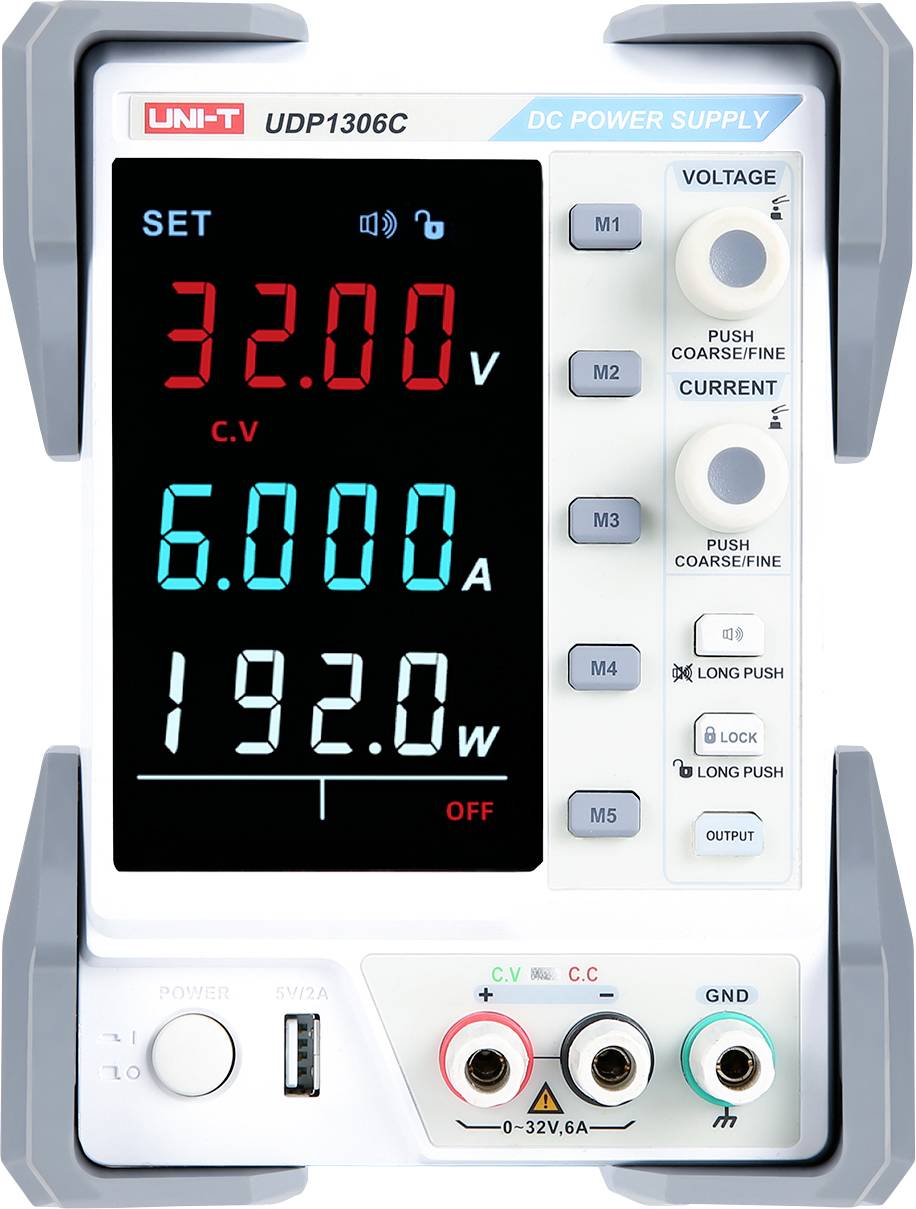

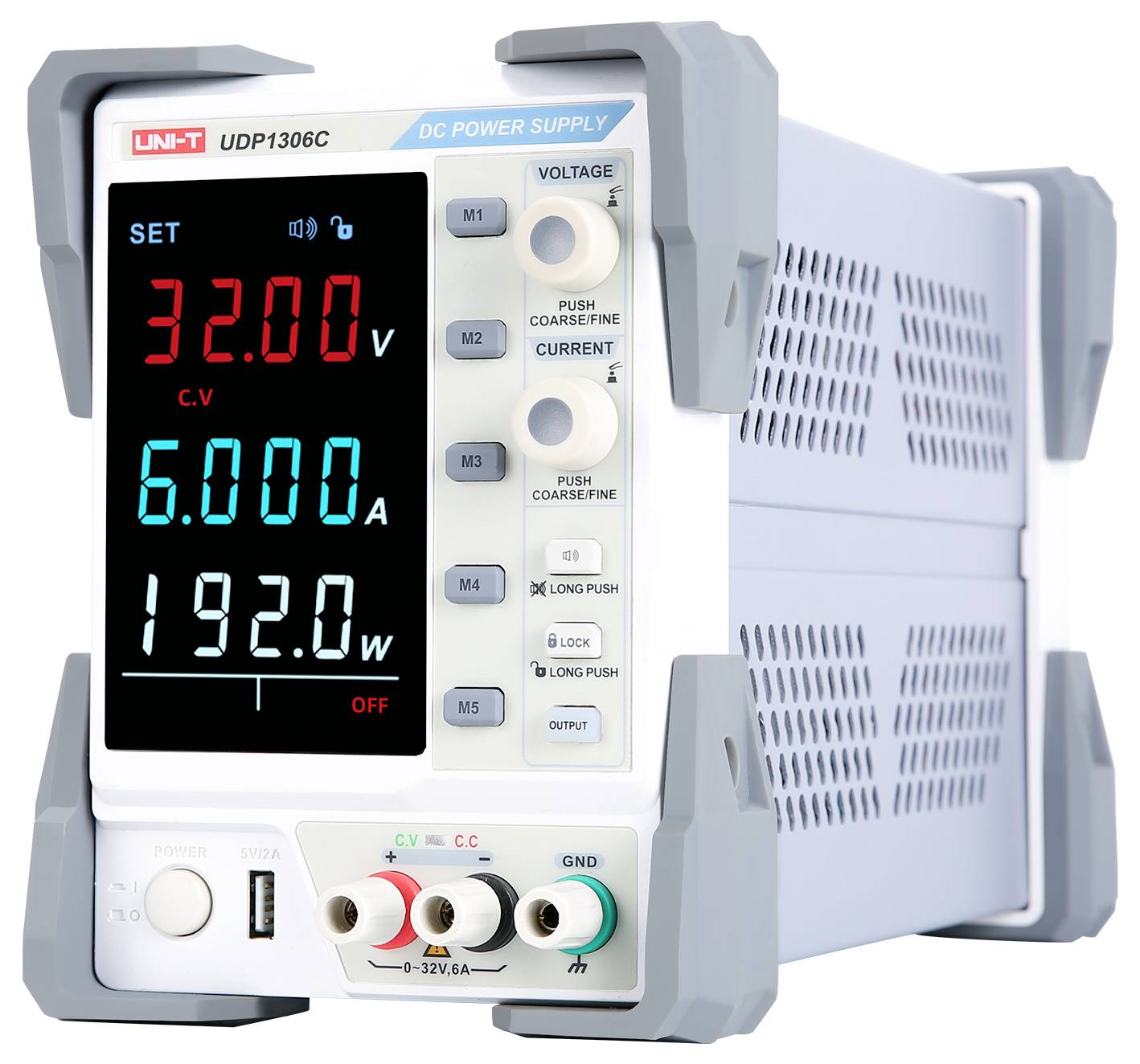

The UDP1306C is a single channel, programmable linear DC power supply. This is a compact and reliable basic-power supply with high efficiency. It is characterized by low ripple and noise behavior, fast transient response as well as excellent line and load control.
This text is machine translated.
This text is machine translated.
Features
- 32 V / 6 A Output: Max. Output voltage 32 V, max. 6 A current, resolution 10 mV / 1 mA
- OVP / OCP / OTP protection: Adjustable overvoltage, overcurrent and overheating protection with automatic shutdown
- Memory function (5 groups): M1–M5 for quick storage and retrieval of settings
- Interfaces & remote control: DIGITAL I/O, RS-232 and USB for SCPI-based remote control

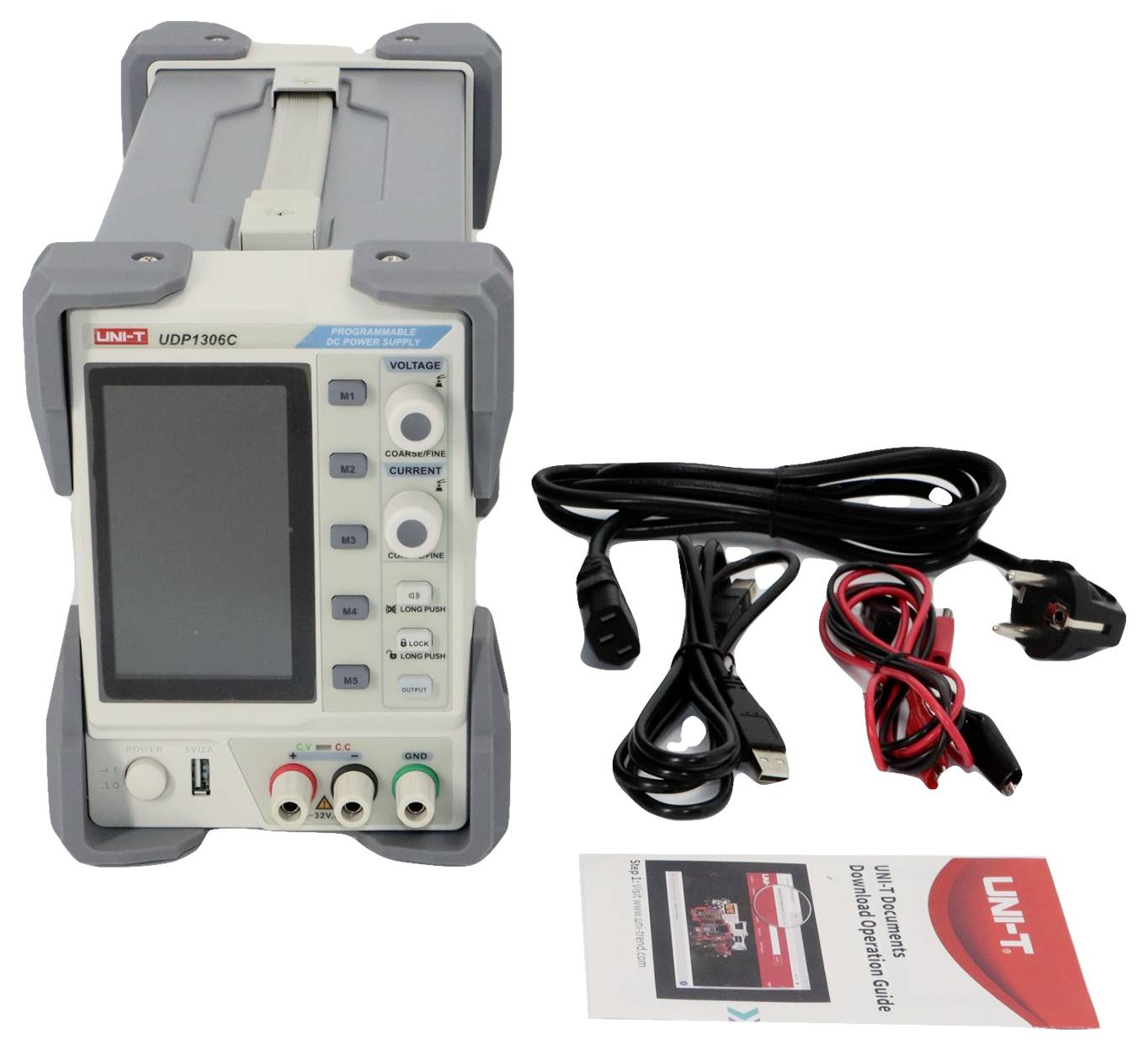

Scope of delivery
- UDP1306C x 1
- Power cable x 1
- USB cable x 1
- Current output cable x 1
