Uni-T UDP4303S Bench PSU (adjustable voltage) 0 - 32 0 - 3 A 297 W USB device, USB host, LAN, RS232 programmable No. of
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T UDP4303S programmable laboratory power supply
- No. of outputs 4 x
- 0 - 32 / 0 - 3 A
- 0 - 32 V / 0 - 3 A
- 0 - 15 V / 0 - 3 A
- 0 - 6 V / 0 - 10 A
- 297 W
- USB device, USB host, LAN, RS232
- programmable
Technical specifications
- 4.3 inch TFT LCD
- Internal series and parallel connection for CH1 and CH2
- 4-wire remote sensing (for all 4 channels)
- List output (up to 512 groups)
- Waveform display
- Recorder, analyzer
- Display
- Type
UDP4303S
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
4 x
297 W
- Technology
Linear regulated PSU
- Interfaces
USB device
USB host
LAN
RS232
- Features
programmable
- Dim
(L x W x H) 445 x 225 x 159.6 mm
Manufacturer's standards (no certificate)
- Input voltage
100 V AC
120 V AC
220 V AC
230 V AC
- Weight
10.5 kg
- Connections
Output connections at the front and back side
Sense connections for 4-wire measurement output ports on the front and rear sides
Sense connections for 4-wire measurement
- Type
Supports 3U, 1/2-rack form factor
- Output
USB device
- Output voltage (max.)
32 V
- Output voltage (min.)
0 V
- Output voltage 2 (max.)
32 V
- Output voltage 2 (min.)
0 V
- Output voltage 3 (max.)
15 V
- Output voltage 3 (min.)
0 V
- Output voltage 4 (max.)
6 V
- Output voltage 4 (min.)
0 V
- Max. output current
3 A
- Output current (min.)
0 A
- Output current 2 (max.)
3 A
- Output current 2 (min.)
0 A
- Output current 3 (max.)
3 A
- Output current 3 (min.)
0 A
- Output current 4 (max.)
10 A
- Output current 4 (min.)
0 A
- Type
Programmable, linear
- Width
225 mm
- Height
159.6 mm
- Length
445 mm
- Max. temperature
40 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3532352 Uni-T UDP4303S Bench PSU (adjustable voltage) 0 - 32 0 - 3 A 297 W USB device, USB host, LAN, RS232 programmable No. of
User & Safety Instructions
User & Safety Instructions 3532352 Uni-T UDP4303S Bench PSU (adjustable voltage) 0 - 32 0 - 3 A 297 W USB device, USB host, LAN, RS232 programmable No. of
User & Safety Instructions 3532352 Uni-T UDP4303S Bench PSU (adjustable voltage) 0 - 32 0 - 3 A 297 W USB device, USB host, LAN, RS232 programmable No. of
User & Safety Instructions 3532352 Uni-T UDP4303S Bench PSU (adjustable voltage) 0 - 32 0 - 3 A 297 W USB device, USB host, LAN, RS232 programmable No. of
Description

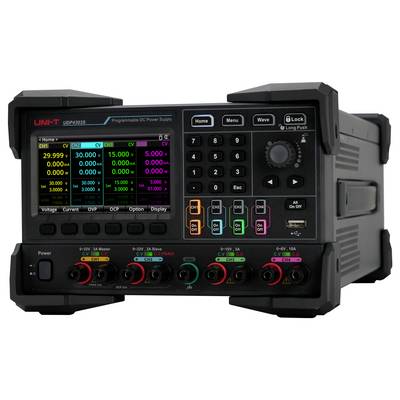

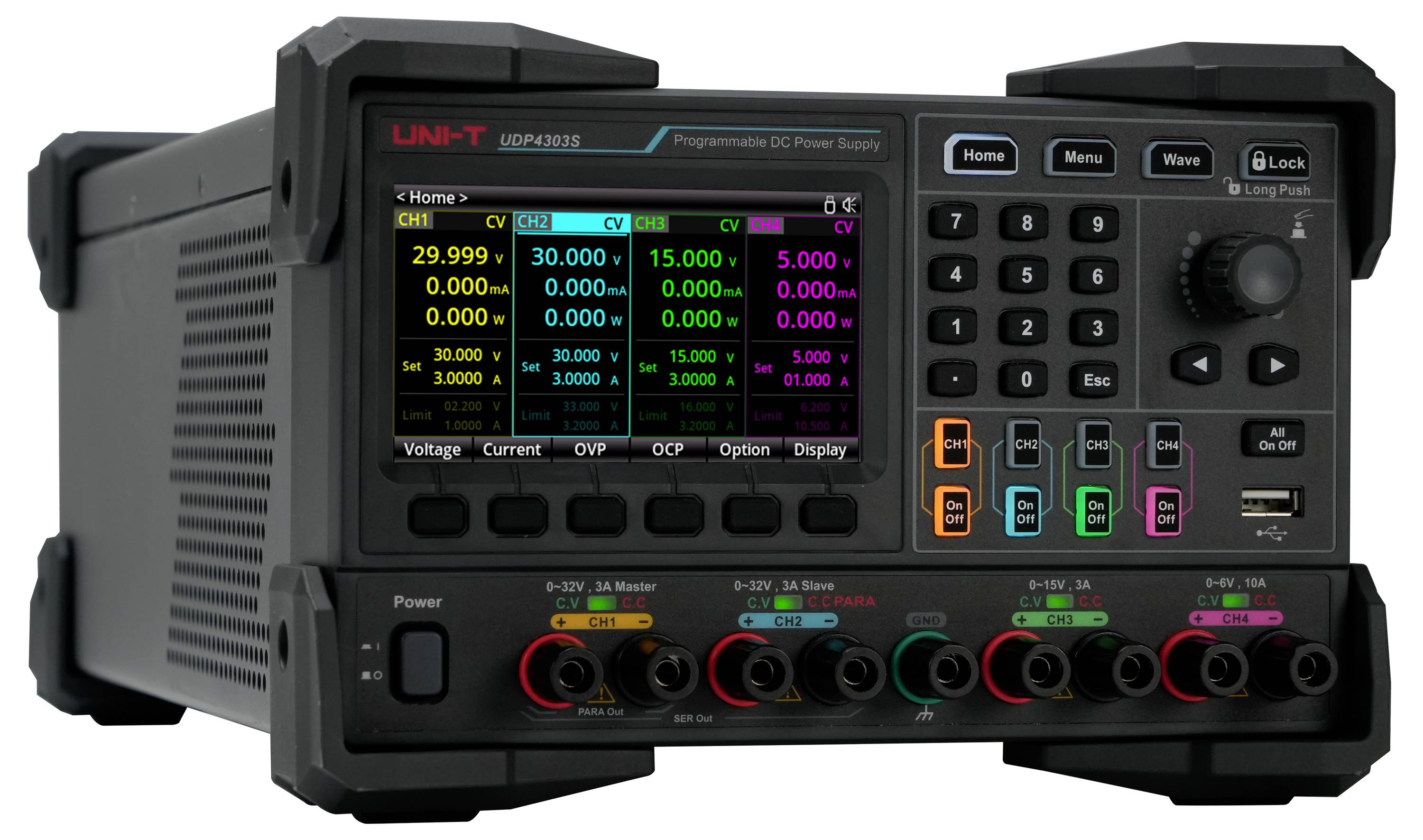

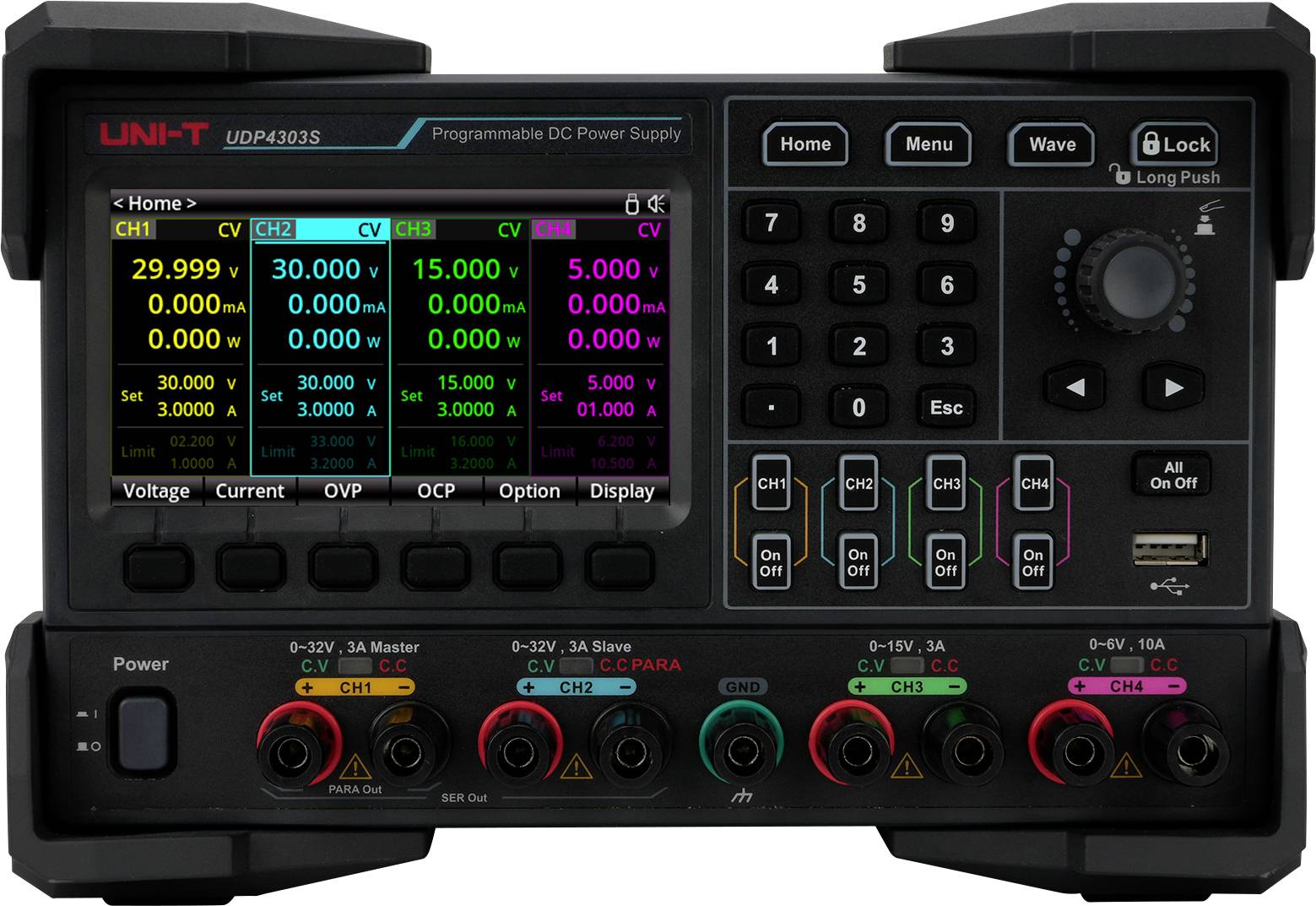

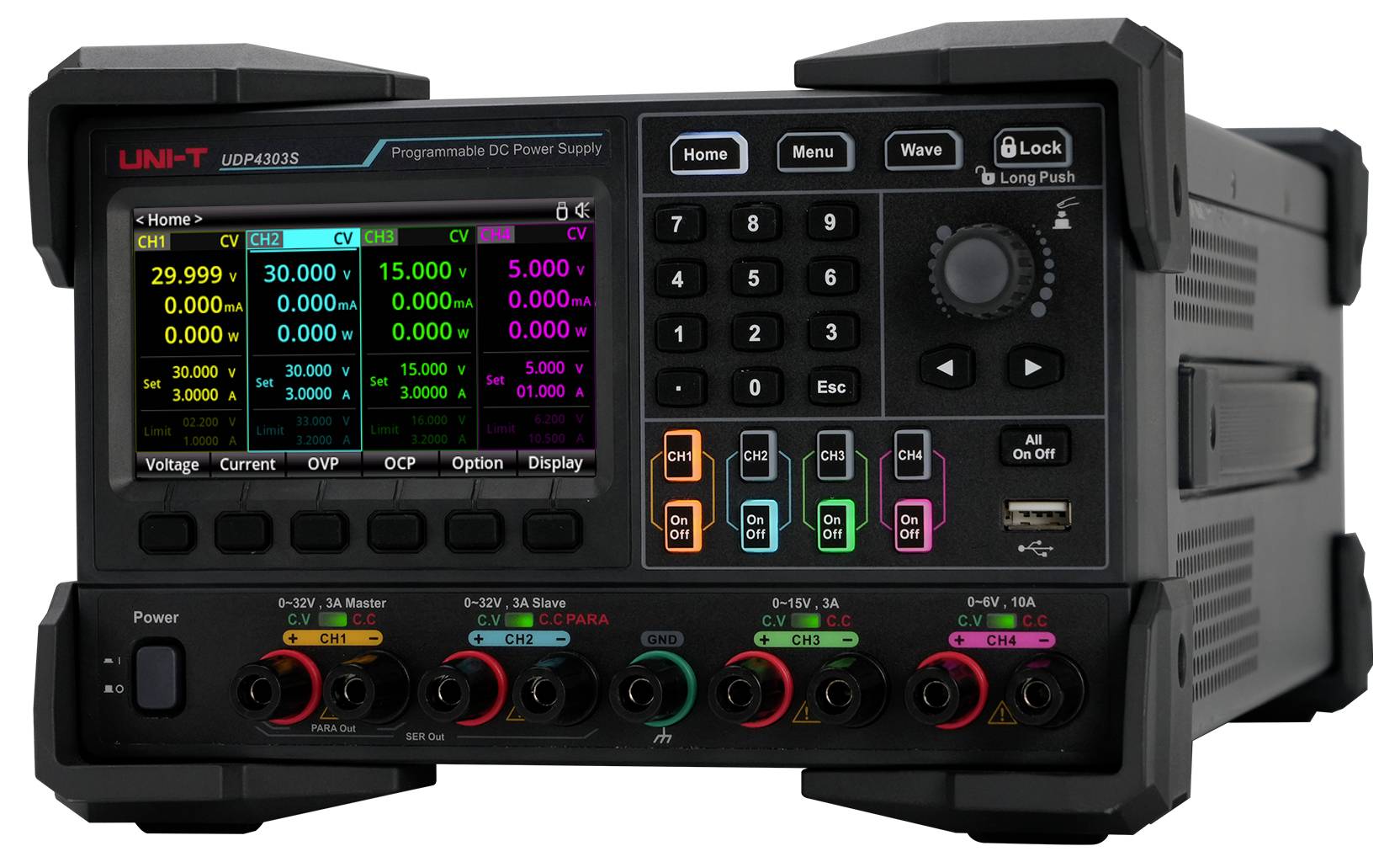

The UDP4303S programmable linear DC laboratory power supply offers four independent outputs: Two with 32 V/3 A, one with 15 V/3 A and one with 6 V/10 A. They are characterized by extremely low load control and minimum remaining ripple. Each channel is galvanically isolated from each other and supports the 4-wire remote sense function for precise voltage control at the load point. The channels 1 and 2 can be switched internally in series or in parallel, WAS the flexibility in different applications increases considerably. In addition, the device has a variety of communication interfaces, including RS232, Ethernet, SPI and a number of digital I/Os that enable a comfortable remote control. The 4.3-inch color display offers a user-friendly interface with extensive features such as list mode, delay and trigger functions, monitoring, data recording, waveform display, initial settings, system settings, language selection and integrated web server. Thus, the UDP4303S is the ideal solution for demanding test environments in development, laboratory and production.
This text is machine translated.
This text is machine translated.
Features
- High performance and precision: 297 W total power over four insulated channels (2× 32 V/3 A, 1× 15 V/3 A, 1× 6 V/10 A) for a stable and reliable power supply.
- High resolution: Current resolution up to 1 µA and voltage resolution up to 1 mV on all channels for accurate control and measurement.
- Precise programming: 1 ms time resolution enables precise and fluid control of dynamic output characteristics.
- Fast sampling rate: 8 kSa/s current sampling rate for recording transient signals and waveform waveforms.
- Versatile operating modes: Supports independent, serial and parallel operation for flexible applications.
- Intuitive operation: 4.3-inch LCD with six user interfaces for easy data display.
- Comprehensive features: Built-in list, trigger, monitoring, delay and recording functions for automated testing.
- Channel tracking: CH1 and CH2 can be synchronized to allow simultaneous adjustment and control.

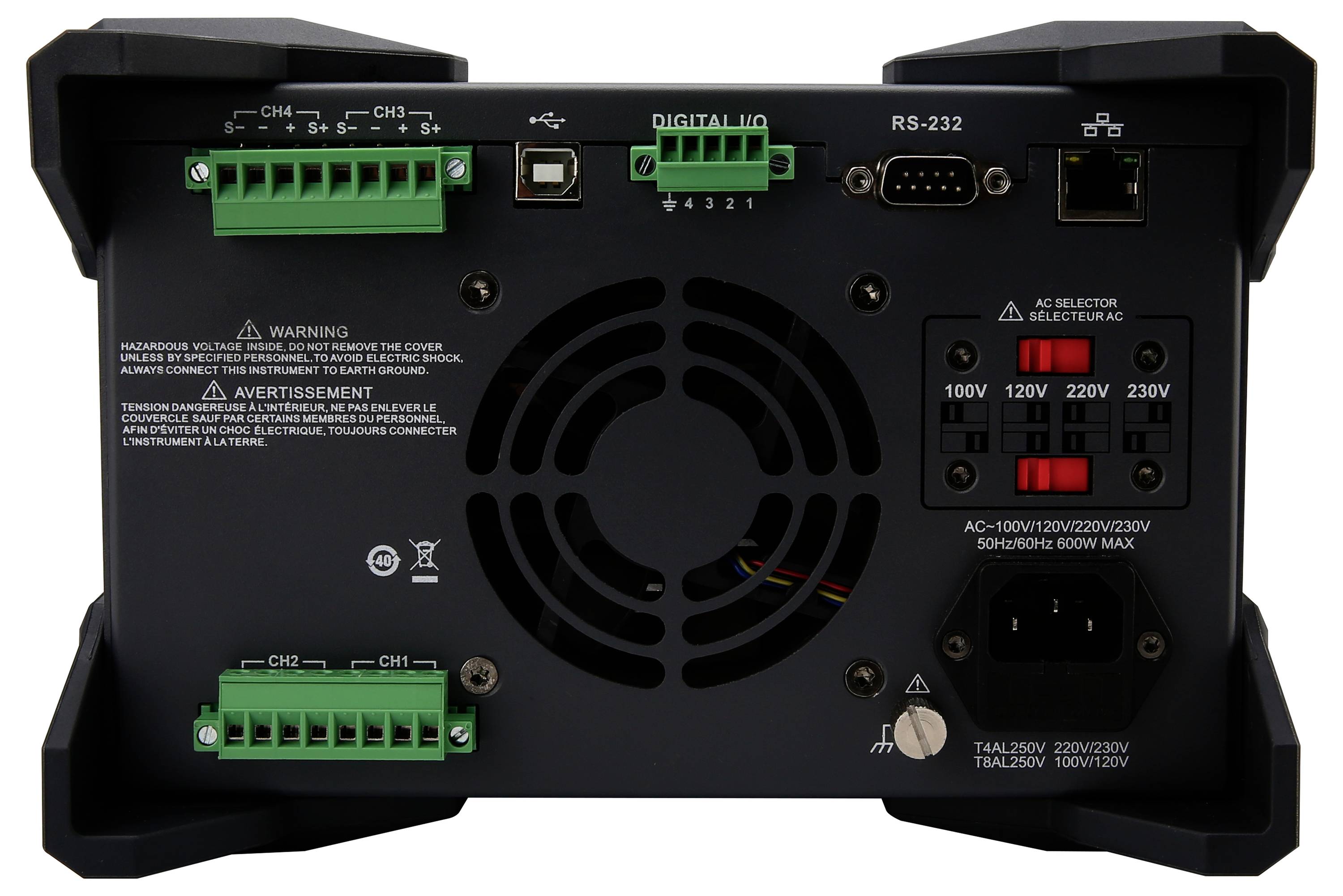

- Advanced connectivity: RS-232, USB host/device, LAN, digital I/O and sense interfaces for easy integration and remote control.
- Safe measurements: Complete channel insulation with protection against polarity reversal, overvoltage and cross-talk.
- Remote compensation: 4-conductor remote sense function compensates for cable losses and improves the measuring accuracy.
Scope of delivery
- 1x UDP4303S (4CH programmable linear power supply)
- 1x power cord
- 1x USB 2.0 printer cable, 1.5 m
- 1x digital IO plug
- 2x Sense plug
- 1x anti-fog agent, 3 g
- 1x calibration certificate
- 1x safety instructions (multilingual)
- 1x user manual.
