Uni-T UDP5160-8 Bench PSU (adjustable voltage) 0.4 - 160 0 - 8 A 400 W USB host, LAN, CAN, Analogue, USB device programm
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
UNI-T programmable laboratory power supply UDP5160-8
- No. of outputs 1 x
- 0.4 - 160 / 0 - 8 A
- 400 W
- USB host, LAN, CAN, Analogue, USB device
- programmable, Autoranger, Master/slave communication protocol
Technical specifications
- TFT LCD color display
- Programmable list mode
- Internal variable resistance (0–15 Ω)
- Discharge function (discharge load)
- External analogue control
- Master-slave series and parallel operation
- Type
UDP5160-8
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
400 W
- Technology
SMPSU
- Interfaces
USB host
LAN
CAN
Analogue
USB device
- Features
programmable
Autoranger
Master/slave communication protocol
- Dim
(L x W x H) 350 x 71 x 124 mm
Manufacturer's standards (no certificate)
- Input voltage
100 V AC
240 V AC
- Weight
3 kg

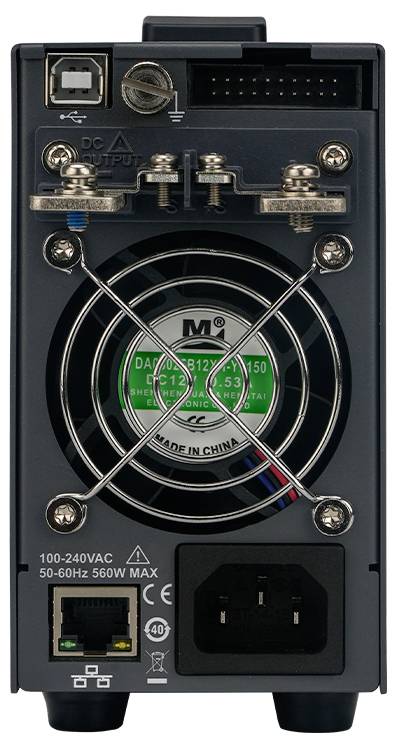

- Connections
Output sockets / terminals on the front (max. 10 A) and back side
USB type B
RJ45 (LAN)
Analogue plug connector
- Type
Desktop unit / rack-enabled
- Output
USB host
- Output voltage (max.)
160 V DC
- Output voltage (min.)
0.4 V DC
- Max. output current
8 A
- Output current (min.)
0 A
- Inputs
AC mains input (auxiliary connector)
- Type
DC laboratory power supply (DC Power supply)
- Width
71 mm
- Height
124 mm
- Length
350 mm
- Residual ripple
100 mV
- Max. temperature
50 °C
- Min. temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 3804353 Uni-T UDP5160-8 Bench PSU (adjustable voltage) 0.4 - 160 0 - 8 A 400 W USB host, LAN, CAN, Analogue, USB device programm
User & Safety Instructions
User & Safety Instructions 3804353 Uni-T UDP5160-8 Bench PSU (adjustable voltage) 0.4 - 160 0 - 8 A 400 W USB host, LAN, CAN, Analogue, USB device programm
User & Safety Instructions 3804353 Uni-T UDP5160-8 Bench PSU (adjustable voltage) 0.4 - 160 0 - 8 A 400 W USB host, LAN, CAN, Analogue, USB device programm
Description

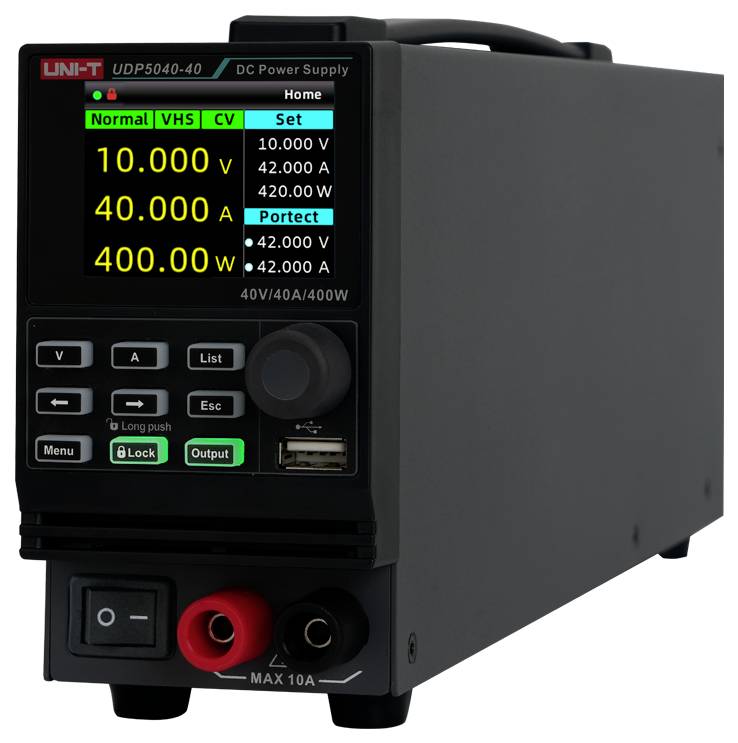

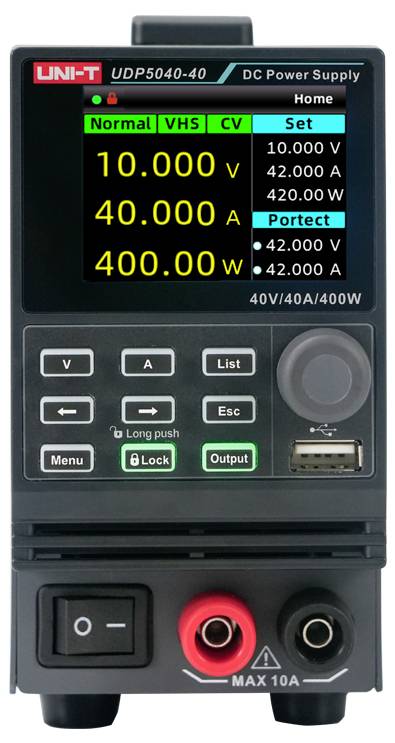

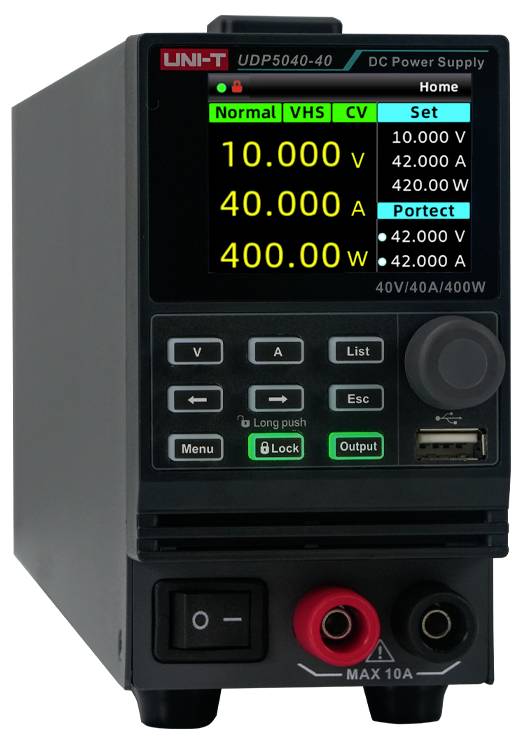

UNI-T programmable switch-mode power supply of the UDP5000 series is characterized by a compact design, high power, versatile functionality, a wide output range, user-friendly operation and flexible usage possibilities. The series comprises five rated output voltages (40 V, 80 V, 160 V, 250 V, 800 V) and four rated output power levels (400 W, 800 W, 1200 W, 2000 W), making up a total of 20 models. The UDP5160-8 is a 400 W power supply from UNI-T's UDP5000 series with an output of 0–160 V / 0–8 A and a setting resolution of 1 mV/1 mA. It combines a compact housing with high output accuracy, wide adjustment range and user-friendly operation making it suitable for laboratory, training and production test applications.
This text is machine translated.
This text is machine translated.
Features
- Serial/Parallel: Supports series operation of up to 2 devices and parallel operation of up to 4 devices.
- Wide output range: Performance ratio of up to 4.0 enables a wider voltage and current range at the same power.
- Adjustable internal resistance: Simulates the internal resistance of different battery types for realistic test applications, adjustable in the range of 0 to 300 Ω.
- Adjustable rise rate: Supports the adjustable rise rate of output voltage and current.
- CC/CV priority mode: CV priority mode for rapid voltage rise, CC priority mode for reduced current overshooting.
- List and Delay function: Can measure external voltage, for flexible applications.
- Remote control: Remote control of the mains adapter via a PC (upper computer) or via web browser.
Scope of delivery
- UDP5160-8 × 1
- Power cord in accordance with the country of destination, 1.8 m × 1
- 4-pin ribbon cable 3.5 m × 1
- USB 2.0 printer cable 1.5 m × 1
- MT-screw M3×0.5×8 mm × 1
- Distributor rail × 1
- Output protection cover × 1
Hints
More models
- UDP5080-20: 400 W total power, 0-80V output voltage, 0-20 A output current
- UDP5040-40: 400 W total power, 0-40V output voltage, 0-40 A output current
- UDP5250-6: 400 W total power, 0-250V output voltage, 0-6 A output current
