Uni-T UDP6953B Bench PSU (adjustable voltage) 0 - 150 0 mA - 10 A 600 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T UDP6953B Programmable laboratory power supply 0 - 150V 0 - 10A 600W 1mV,0.1mA 1-channel
- 0 - 150 / 0 mA - 10 A
- 600 W
Technical specifications
- Type
UDP6953B
- Product type
Bench PSU (adjustable voltage)
600 W
- Dim
(L x W x H) 88 x 215 x 373.7 mm
Manufacturer's standards (no certificate)
- Weight
4 kg
- Output voltage (max.)
150 V
- Output voltage (min.)
0 V
- Max. output current
10 A
- Output current (min.)
0 mA
- Width
215 mm
- Height
373.7 mm
- Length
88 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3400006 Uni-T UDP6953B Bench PSU (adjustable voltage) 0 - 150 0 mA - 10 A 600 W
User & Safety Instructions
User & Safety Instructions 3400006 Uni-T UDP6953B Bench PSU (adjustable voltage) 0 - 150 0 mA - 10 A 600 W
User & Safety Instructions 3400006 Uni-T UDP6953B Bench PSU (adjustable voltage) 0 - 150 0 mA - 10 A 600 W
User & Safety Instructions 3400006 Uni-T UDP6953B Bench PSU (adjustable voltage) 0 - 150 0 mA - 10 A 600 W
Description

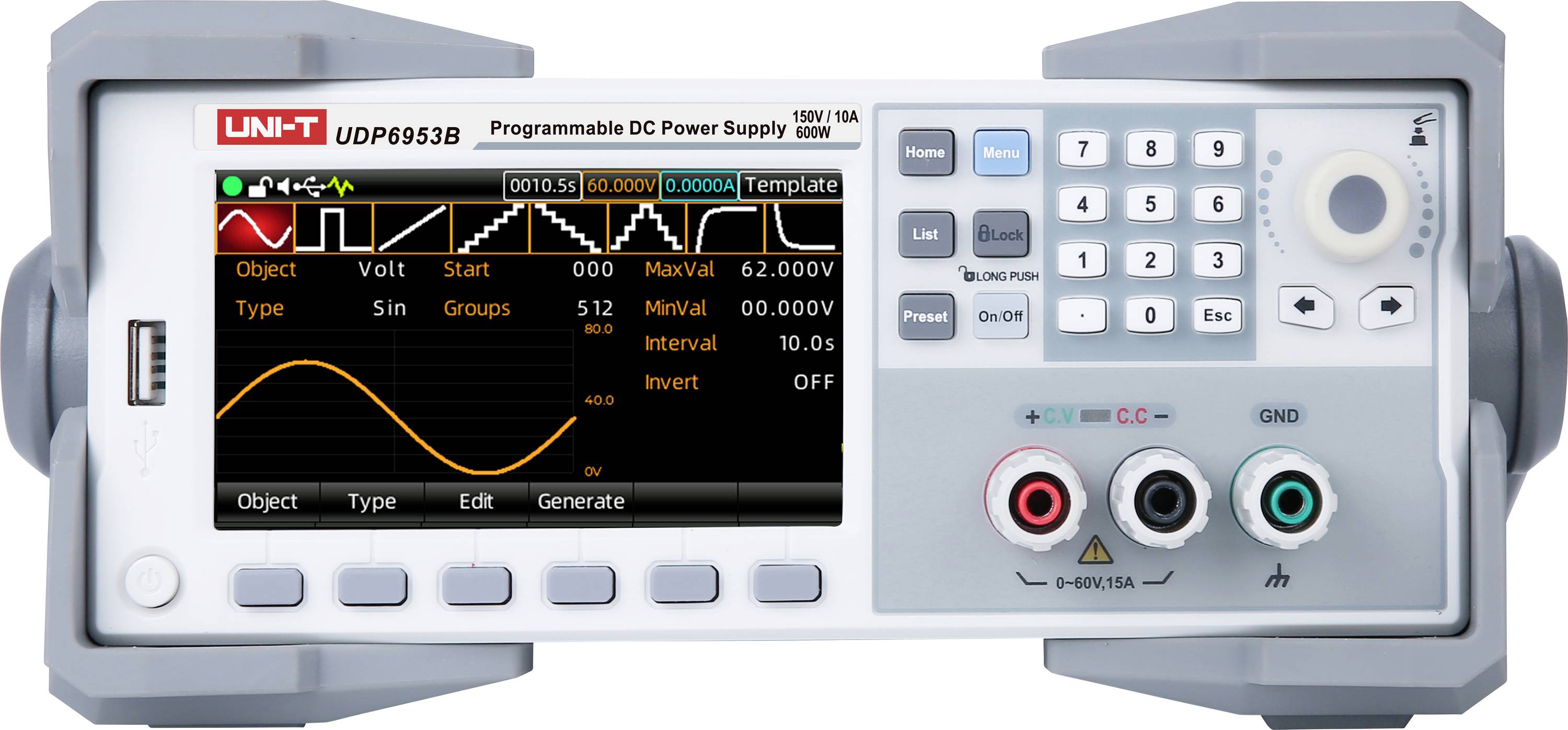

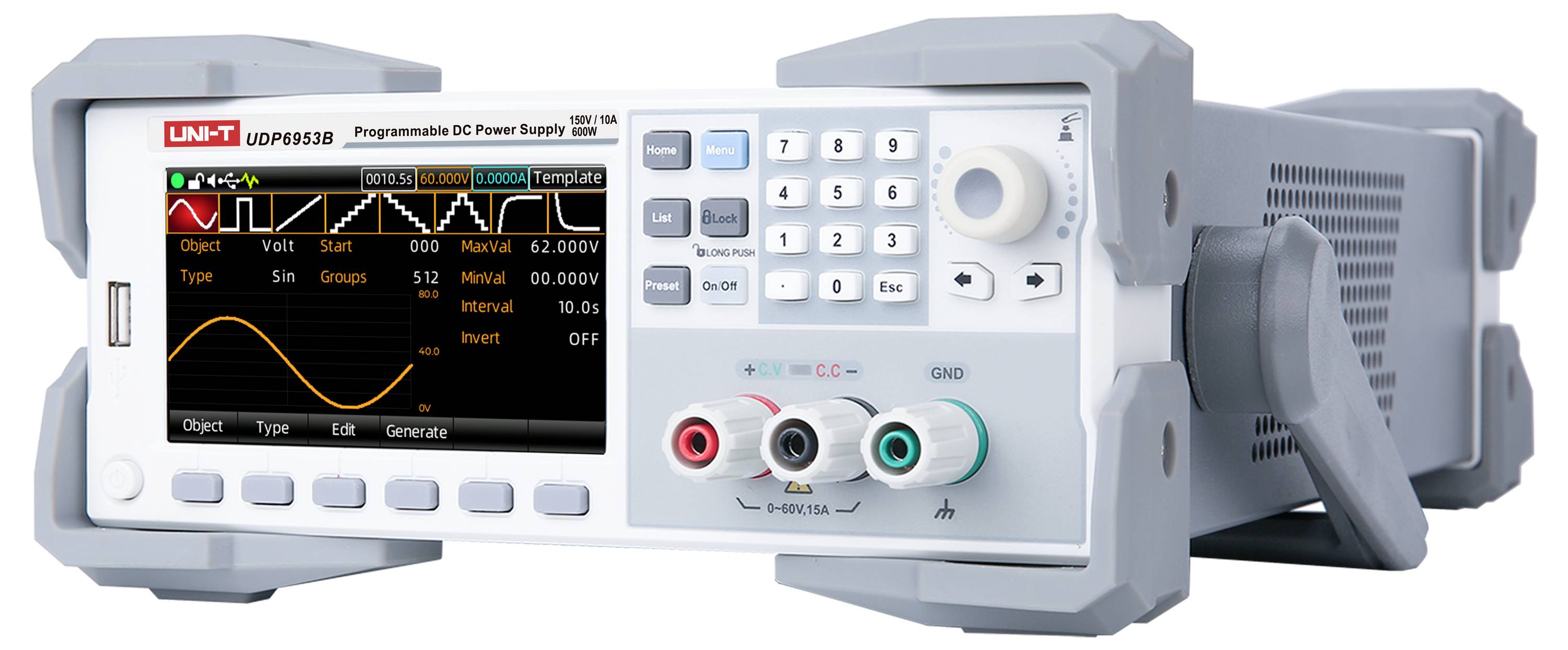

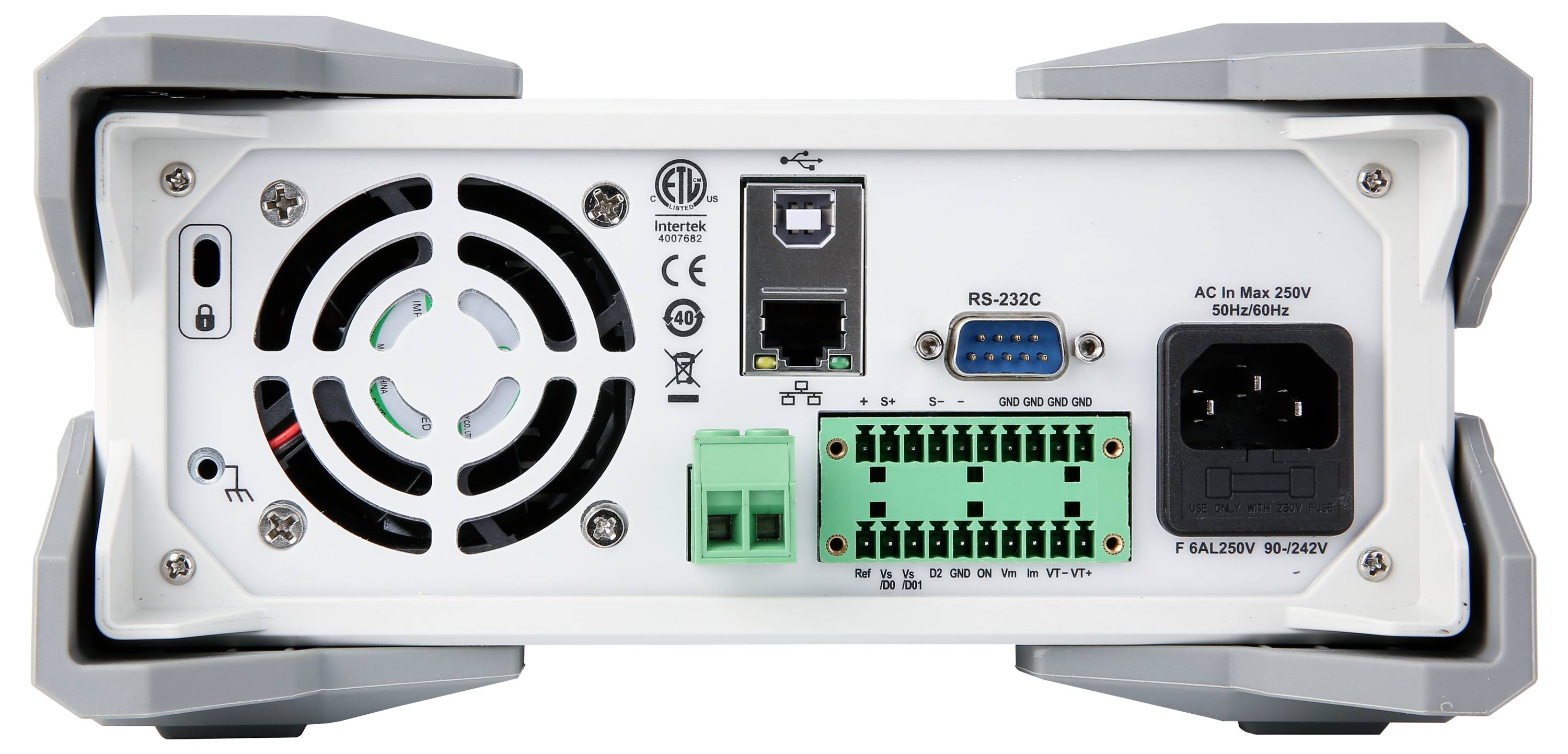

The UDP6953B is a powerful programmable DC power supply with an output that enables flexible voltage and current configurations at fixed power. It supports high voltage & low current or high current & low voltage, saves cost and space. Equipped with RS232, RS485, LAN, USB and analogue interfaces, it supports the SCPI-protocol for remote control and industrial PLC-integration. Ideal for DC/DC converter testing, battery charging and sensor applications, the UDP6953B offers precision, efficiency and reliability for demanding test environments.
This text is machine translated.
This text is machine translated.
Features
- -Remote control: Control and data monitoring via PC software or web access
- - Voltmeter: External voltage measurement for flexible applications
- - Preset function: 18×8 memory locations for frequent tests, which can be accessed at any time
- - Delay function: Automation of on/off tests
- - List function: Fast editing of automated test programs

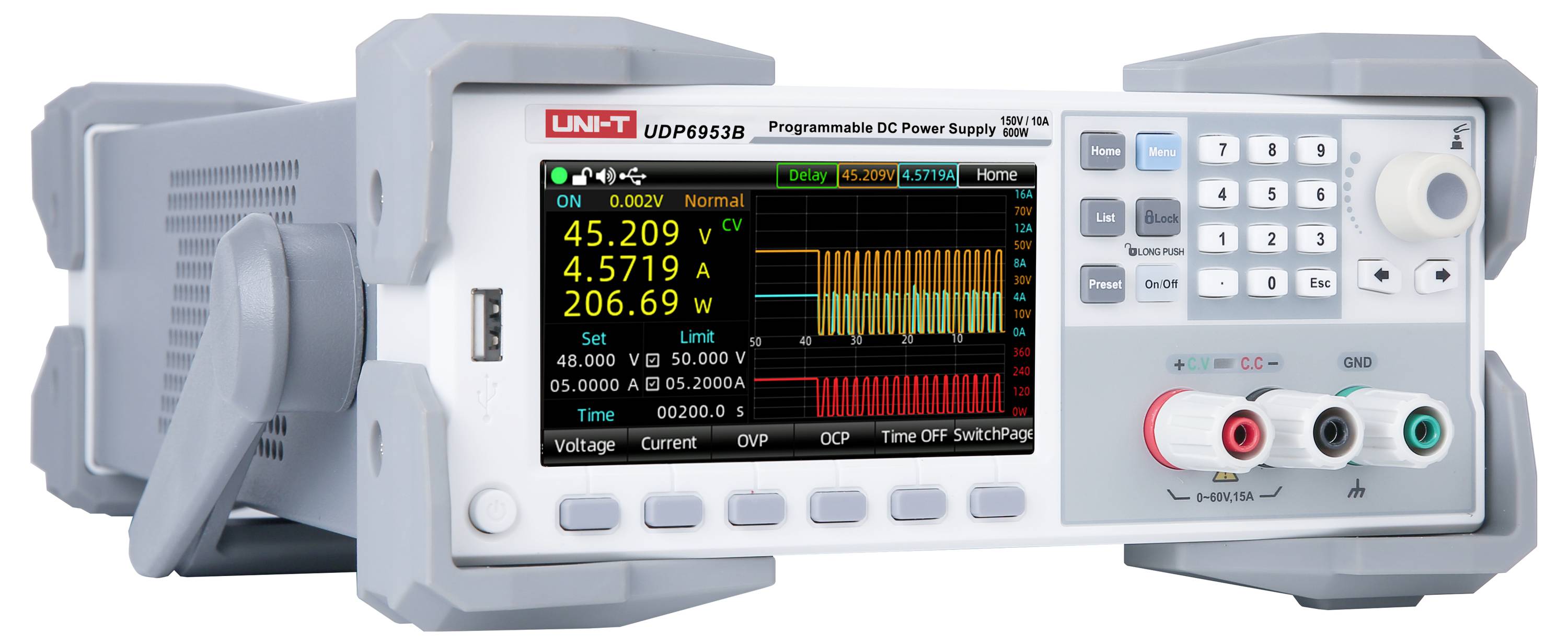

- - Waveform display: Trend diagram for visual representation of changes in measurement data
- - 4.3" color LCD: Clear display of all relevant information
Scope of delivery
- - UDP6953B (1CH, 0-150V, 0-10A, 600W)
- - 3C-Power cord × 1
- - USB data cable × 1
- - Calibration certificate
- - Multilingual safety instructions
- - Brief instructions
Hints
More models
- UDP6922B: Switched-mode power supply, 1 channel, 100 W, output voltage 0~60V, output current 0~5A, Resolution 0.1mV / 0.1mA, adjustment accuracy ≤0.03%+5mV / ≤0.1%+5mA, interfaces RS232, RS485, USB Device, LAN.
- UDP6932B: Switched-mode power supply, 1 channel, 200 W, output voltage 0~60V, output current 0~10A, Resolution 0.1mV / 0.1mA, adjustment accuracy ≤0.03%+5mV / ≤0.1%+10mA, interfaces RS232, RS485, USB Device, LAN.
- UDP6933B: Switched-mode power supply, 1 channel, 200 W, output voltage 0~150V, output current 0~5A, Resolution 1mV / 0.1mA, adjustment accuracy ≤0.04%+30mV / ≤0.1%+10mA, interfaces RS232, RS485, USB device, LAN.
- UDP6942B: Switched-mode power supply, 1 channel, 360 W, output voltage 0~60V, output current 0~15A, Resolution 0.1mV / 0.1mA, adjustment accuracy ≤0.03%+5mV / ≤0.1%+15mA, interfaces RS232, RS485, USB Device, LAN.
- UDP6952B: Switched-mode power supply, 1 channel, 600 W, output voltage 0~60V, output current 0~25A, Resolution 0.1mV / 0.1mA, adjustment accuracy ≤0.03%+5mV / ≤0.1%+25mA, interfaces RS232, RS485, USB Device, LAN.
