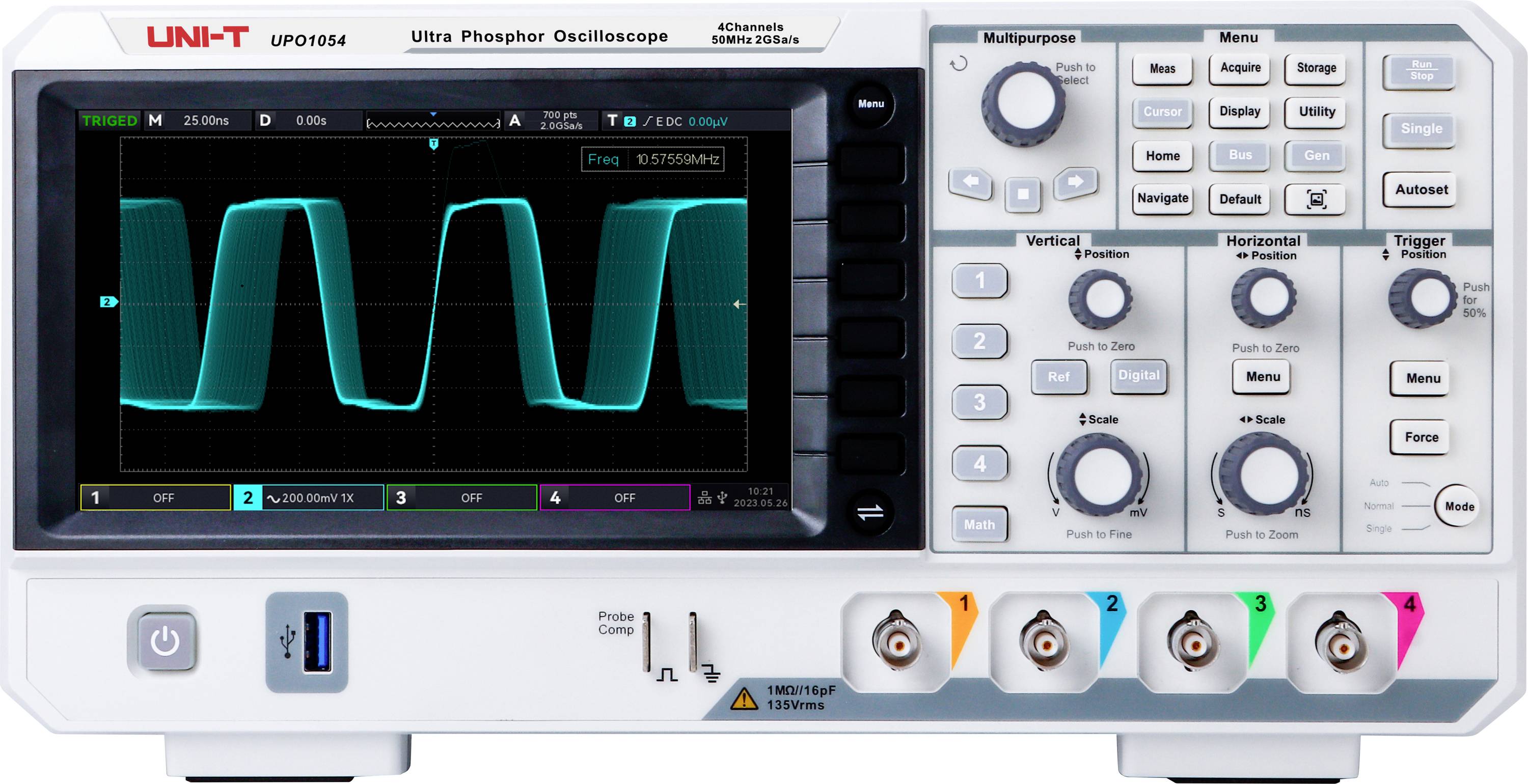

An oscilloscope with a waveform displayed on the screen. The controls are located on the right, including menu and settings buttons.

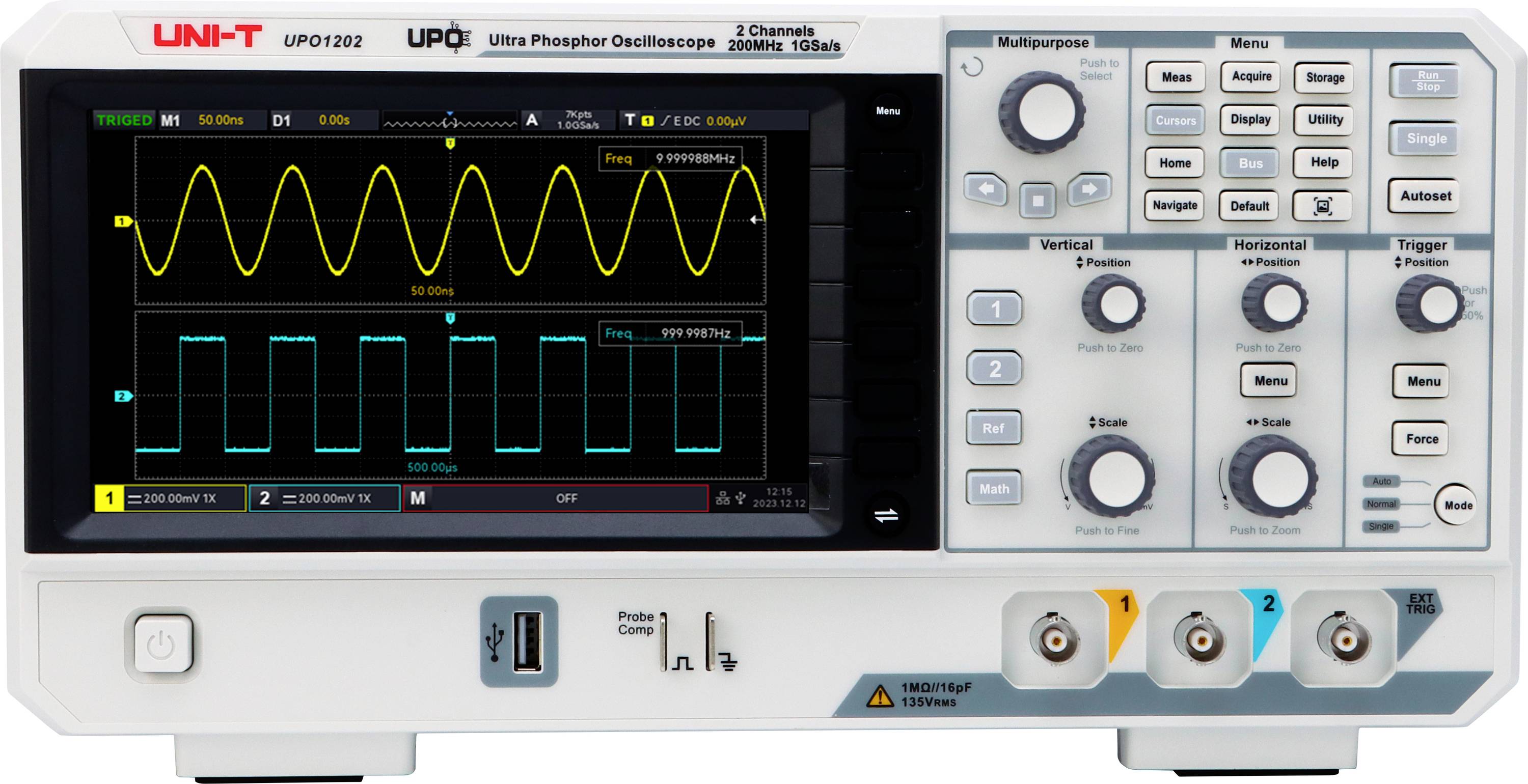

Oscilloscope displays sinusoidal and rectangular waves on the screen, with controls for adjusting scale and trigger performance.

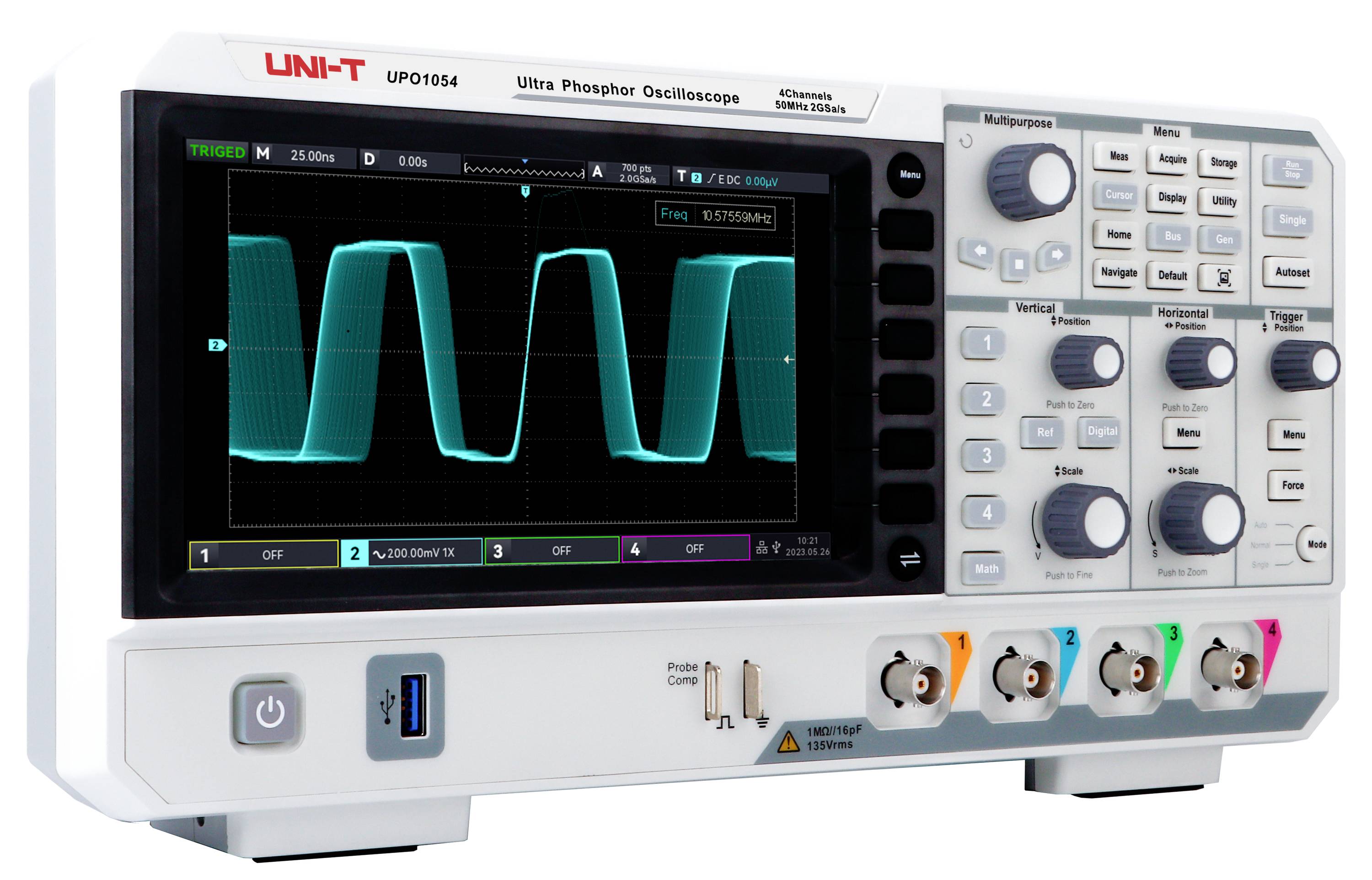

A digital oscilloscope with a display showing a waveform. Controls and ports are located to the right of the display.

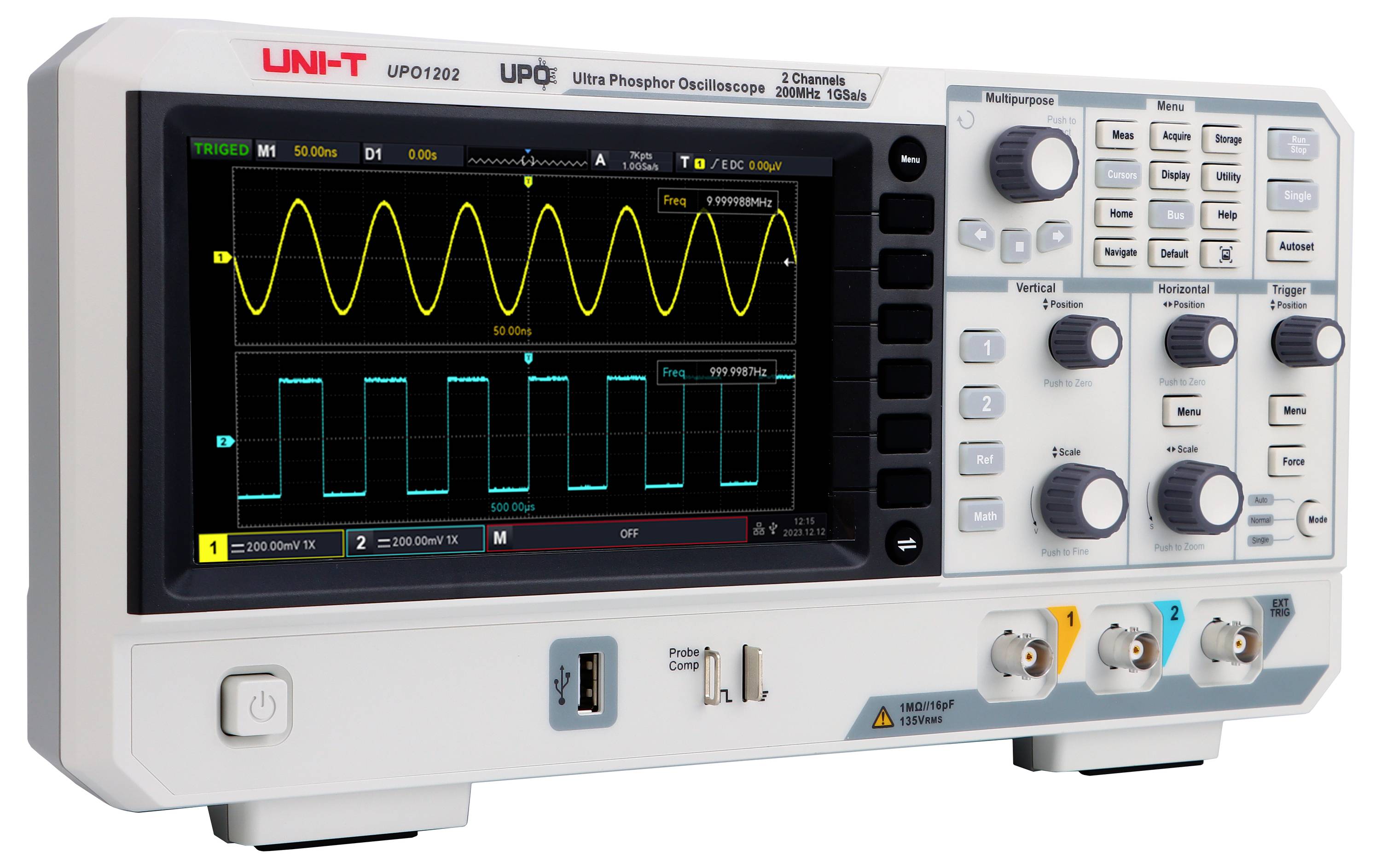

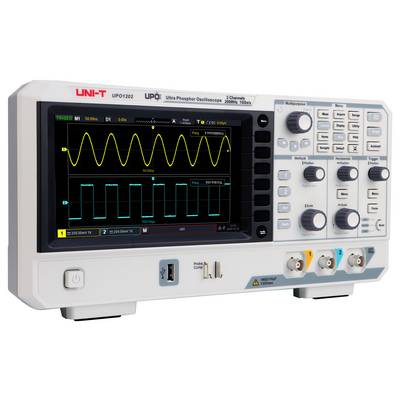

An oscilloscope displays two sinusoidal signals on the screen. Control buttons and connections are located to the right of the display.

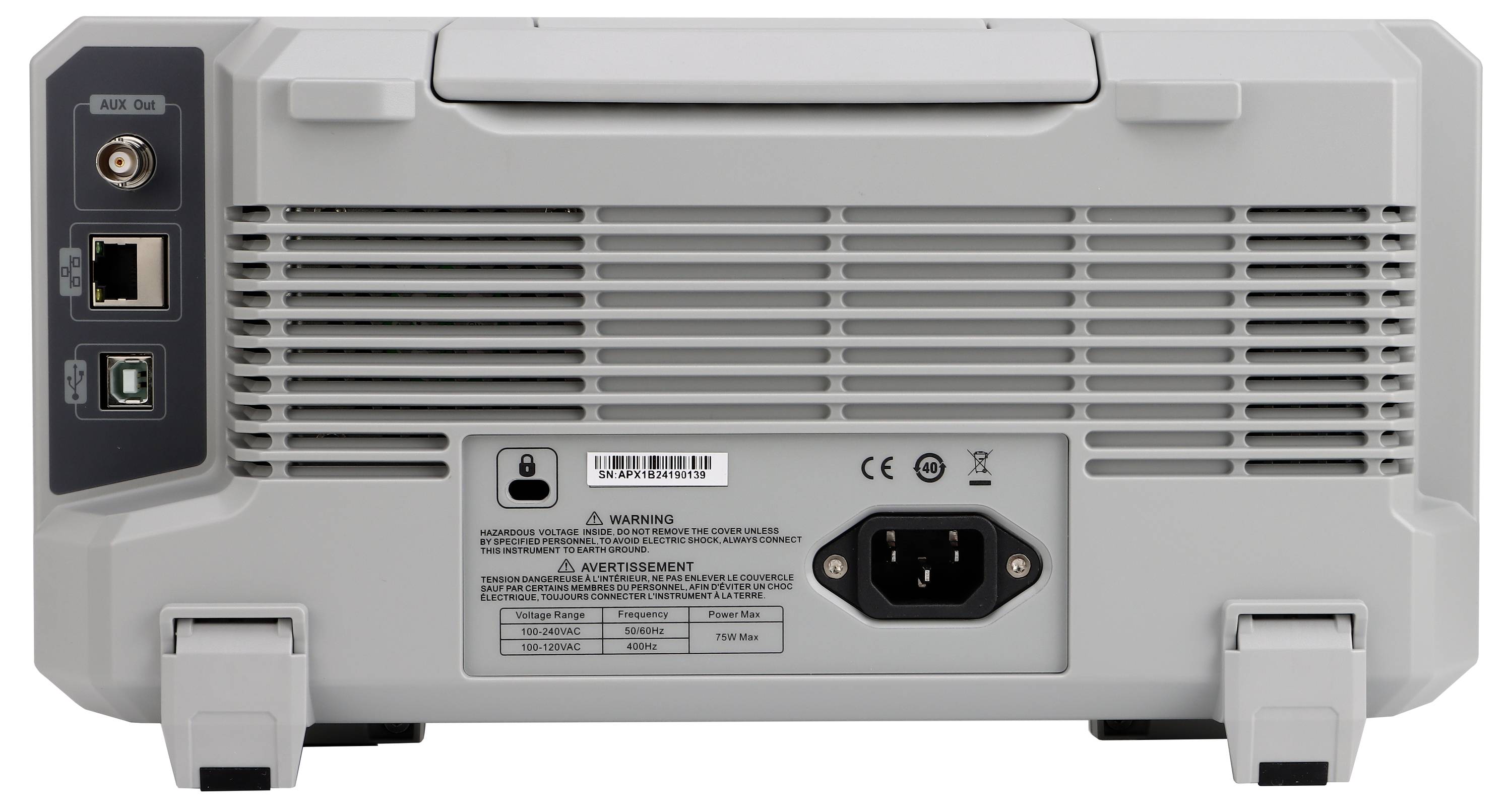

Back of an electronic device with multiple ports, including network and USB connections, and a power socket, on a grey surface.

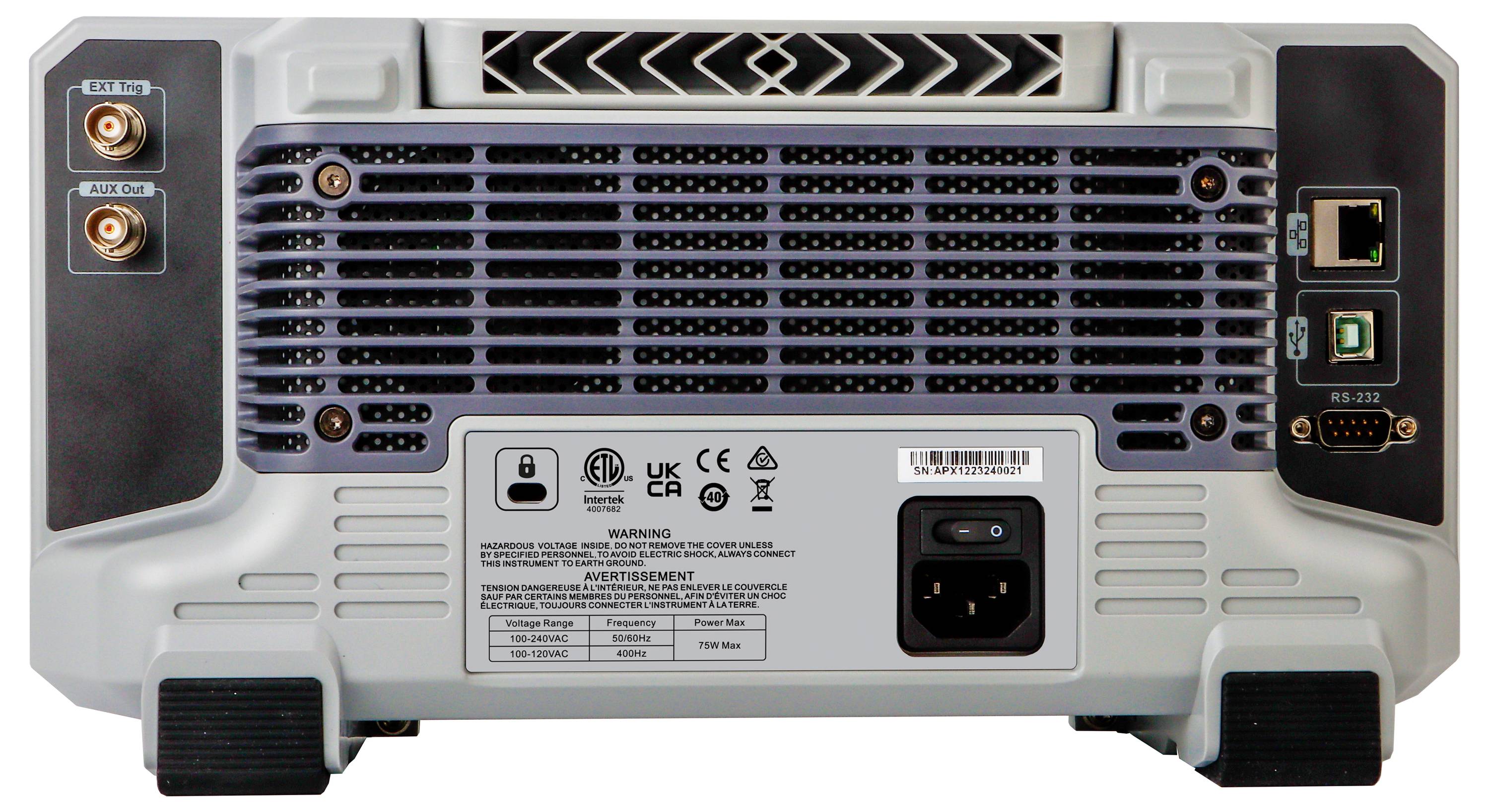

Back of an electrical device with connections for Ethernet cable, power supply, and cooling grilles. Safety instructions are displayed.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

UNI-T UPO1054 Digital Oscilloscope 50 MHz 4 Channel 2 GSa/s 56 Mpts 500.000wfms/s 7" Display Digital memory (DSO)

50 MHz
No. of analogue inputs 4

Technical specifications

Product type: Digital

Bandwidth: 50 MHz

Channel sample rate: 2 GS/s

Oscilloscope features: Digital storage (DSO)

No. of analogue inputs: 4

: Manufacturer's standards (no certificate)

Interfaces: RS232C

Channel memory depth: 56 MP

Type: UPO1054

Documents & Downloads

Datasheet

Datasheet 3399998 Uni-T UPO1054 Digital 50 MHz 2 GS/s 56 MP Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3399998 Uni-T UPO1054 Digital 50 MHz 2 GS/s 56 MP Digital storage (DSO) 1 pc(s)

Description

The UPO1054 digital oscilloscope uses Ultra Phosphorus 2.0 technology. It offers a bandwidth of 50 MHz, a real-time sampling rate of up to 2 GSa/s and is equipped with 4 channels. It also supports an independent DVM module, has extensive trigger and bus decoding functions as well as a complete memory-based hardware real-time decoding. The oscilloscope is suitable for embedded system design, measuring technology, entertainment electronics, automotive electronics, field maintenance and education as well as many other applications.

This text is machine translated.

Features

- Fast Acquire Phosphorus™: Uses original Ultra Phosphorus Display technology for improved signal visualization.
- Real-time hardware recording: Stores up to 120,000 frames for detailed signal tracking.
- 56Mpts long memory depth: Allows long-term waveform recording without distortion at high sampling rates.
- 36 measurement parameters: Supports fast measurement of parameters and statistics, including screen measurement, cursor selection and threshold settings.
- High acquisition rate: 150,000 WFM/s in normal mode, up to 500,000 WFM/s in Fast Acquire mode through innovative digital parallel processing.
- Navigation function: Provides time, marker and segment navigation for fast waveform localization and supports automatic scrolling at adjustable speeds.
- DVM function: Integrated digital voltmeter with overlimit alarm.
- Cursor measurement: Supports simultaneous measurement on CH1, CH2, CH3, CH4, MATH, REF, including simultaneous time and voltage measurement.
- Video format waveform recording: Allows PC playback and analysis to improve user experience.
- Full-memory hardware real-time decoding: 56Mpts memory decodes RS232/UART, I2C and SPI many times faster than conventional software decoding.
- 1Mpts extended FFT: Supports multi-area view, spectral single view, 4 tracks and 4 detector modes, as well as automatic peak measurement for quick identification of spectral key features.

Scope of delivery

- UPO1054 (50 MHz, 4 channels) x 1
- Power cable x 1
- USB cable x 1
- Passive probes UT-P03(60 MHz) x4
- Calibration certificate x 1
- Multilingual safety instructions x 1
- Brief instructions x 1

Hints

More models

- UPO1104: 100 MHz bandwidth, 4 analog channels, 2 GSa/s sampling rate, up to 56 Mpts memory depth, waveform acquisition rate of 500,000 WFM/s.

- UPO1204: 200 MHz bandwidth, 4 analog channels, 2 GSa/s sampling rate, up to 56 Mpts memory depth, waveform acquisition rate of 500,000 WFMs/s.
