Uni-T UPO1102 Digital 100 MHz 1 GS/s 56 MP Multimeter functions 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

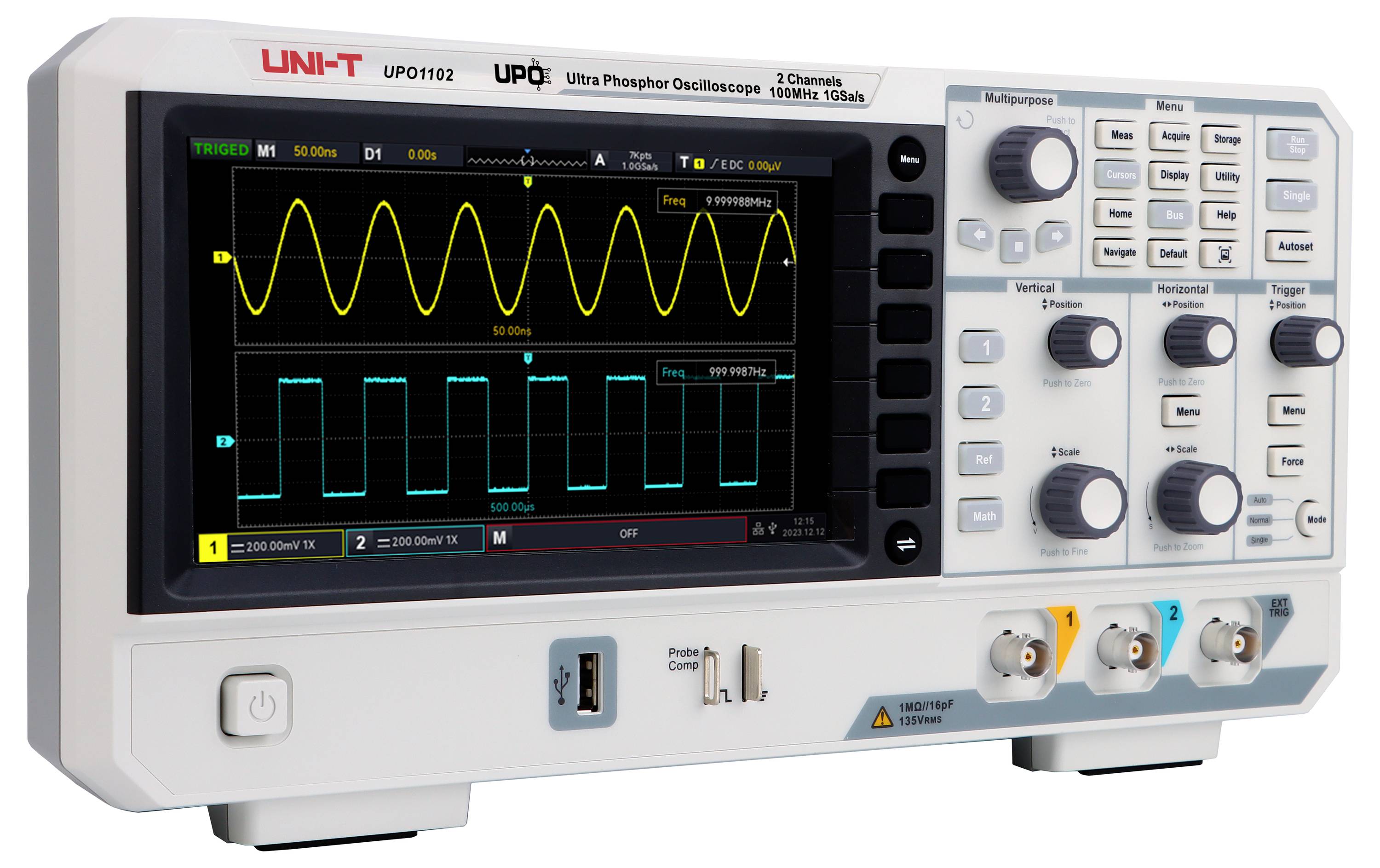

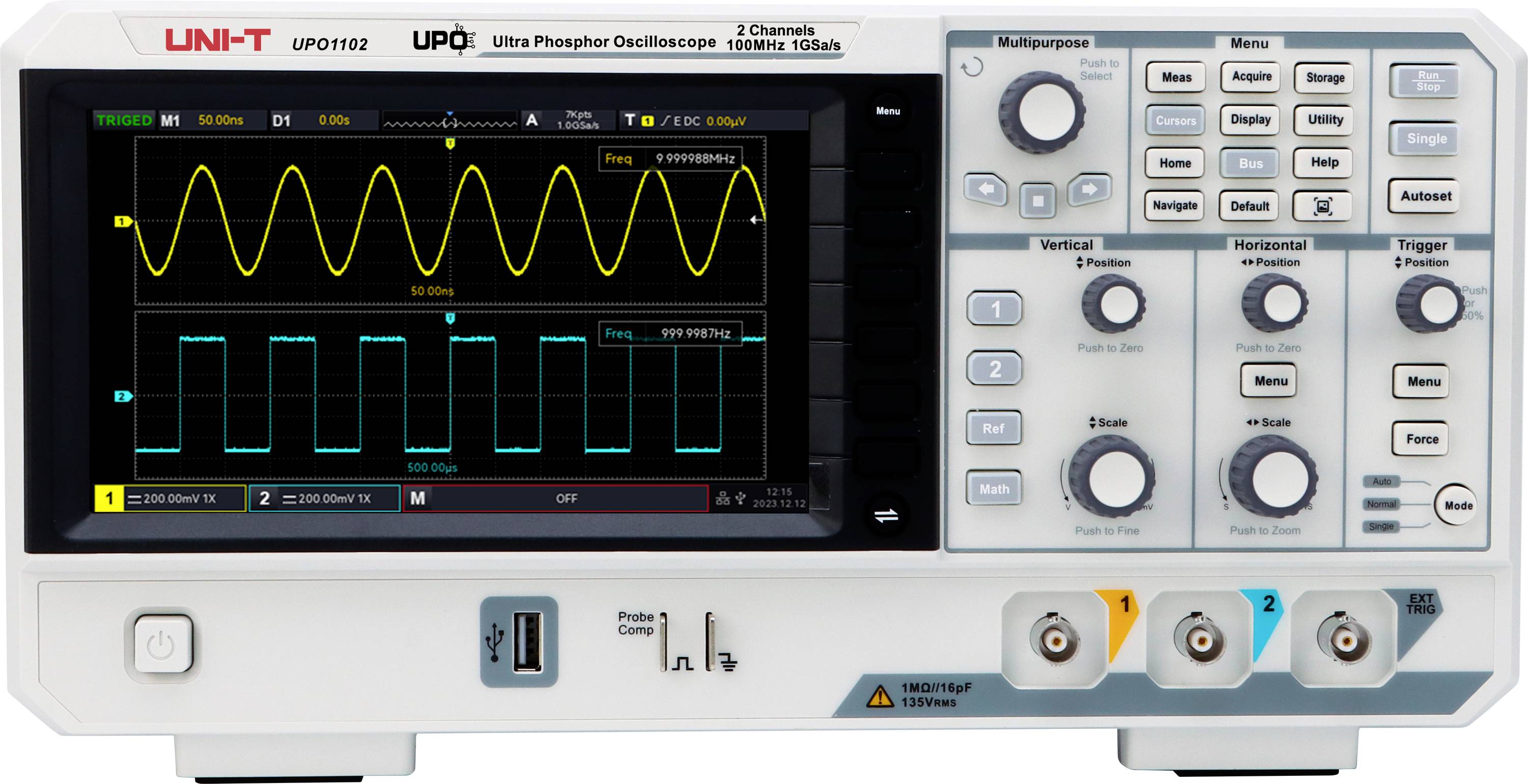

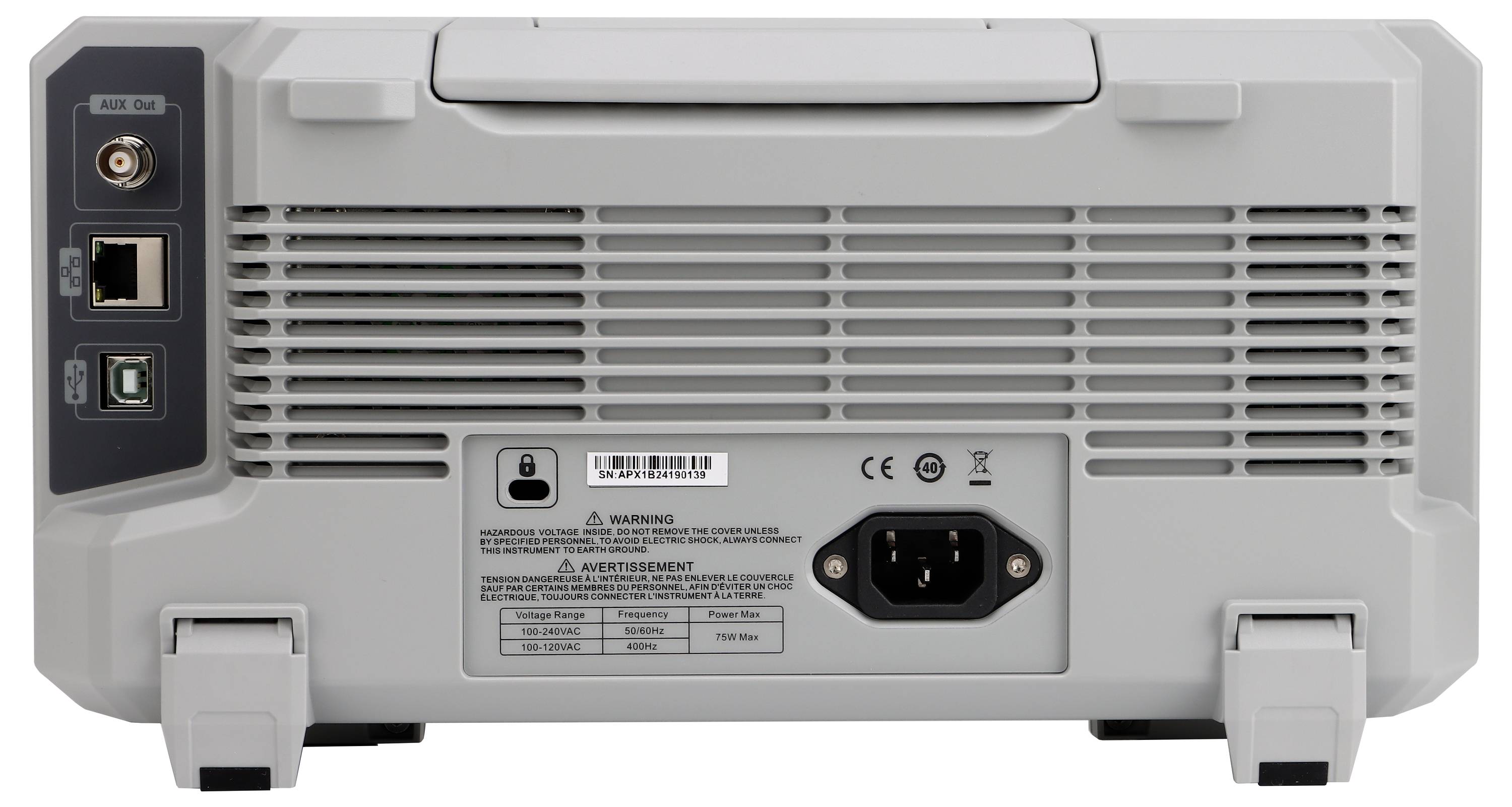

UNI-T UPO1102 digital oscilloscope 100 MHz 2 channel 1 GSa/s 56 Mpts 500,000 wfms/s 7" display digital memory (DSO)
- 100 MHz
- No. of analogue inputs 2
Technical specifications
- Product type
Digital
- Bandwidth
100 MHz
- Channel sample rate
1 GS/s
- Oscilloscope features
Multimeter functions
- No. of analogue inputs
2
Manufacturer's standards (no certificate)
- Interfaces
RS232C
- Channel memory depth
56 MP
- Type
UPO1102
Documents & Downloads
Datasheet
Datasheet 3400000 Uni-T UPO1102 Digital 100 MHz 1 GS/s 56 MP Multimeter functions 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3400000 Uni-T UPO1102 Digital 100 MHz 1 GS/s 56 MP Multimeter functions 1 pc(s)
User & Safety Instructions 3400000 Uni-T UPO1102 Digital 100 MHz 1 GS/s 56 MP Multimeter functions 1 pc(s)
User & Safety Instructions 3400000 Uni-T UPO1102 Digital 100 MHz 1 GS/s 56 MP Multimeter functions 1 pc(s)
Description
The UPO1102 digital oscilloscope uses innovative UNI-T Ultra Phosphorus 2.0 technology with a new design upgrade. It offers deep memory depth, high waveform capture rate, real-time waveform recording and playback as well as a 256-stage grayscale display. It also supports a DVM module, advanced trigger and bus decoding functions, and full memory-based hardware real-time decoding. The oscilloscope is used in embedded system design, measurement systems, industrial and entertainment electronics, automotive electronics, maintenance, Research and development as well as education are widely used.
This text is machine translated.
This text is machine translated.
Features
- - Ultra Phosphorus 2.0: Waveform acquisition rate of up to 100,000 WFM/s in normal mode and up to 500,000 WFM/s in fast Acquire mode.
- - Long memory depth: 56Mpts memory depth for comprehensive frequency range information at high sampling rates.
- - Multi-Scopes 2.0: Allows separate time base and voltage grid display for two channels so that two different signals can be monitored simultaneously in one window.
- - Full-memory hardware real-time decoding: Real-time decoding with 56Mpts memory depth for RS232/UART, I2C and SPI, 100x faster than conventional software decoding, for significantly higher analysis efficiency.
- - 1M points extended FFT: In-depth frequency range analysis with multi-area view, single spectral view and multidimensional signal visualization. Offers 4 tracks and different detector modes for versatile analysis and automatic peak measurement to quickly identify key spectral features.
Scope of delivery
- - UPO1102 (100 MHz, 2 channels) x 1
- - Power cable x 1
- - USB cable x 1
- - Passive probes UT-P04 (100 MHz) x2
- - Calibration certificate x 1
- - Multilingual safety instructions x 1
- - Brief instructions x 1
Hints
More models
- UPO1202: 200 MHz bandwidth, 2 analog channels, 1 GSa/s sampling rate, up to 56 Mpts memory depth, waveform acquisition rate of 500,000 WFMs/s.
Software option
- UPO1002X-1MT2M: 100 MHz upgrade to 200 MHz bandwidth.
