Uni-T UPO1104 Digital 100 2 kSa/s 56 MP 8 Bit Multimeter functions 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

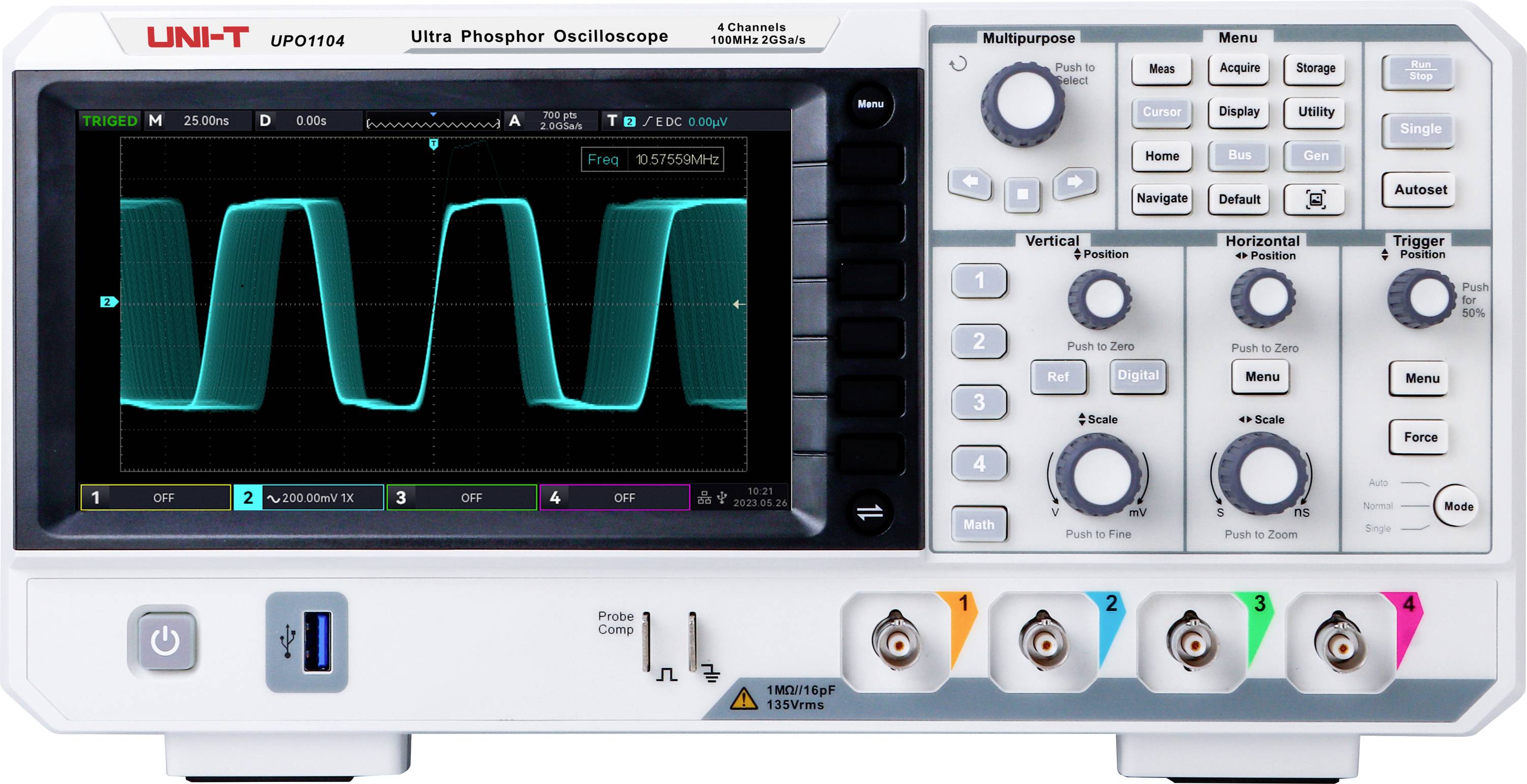

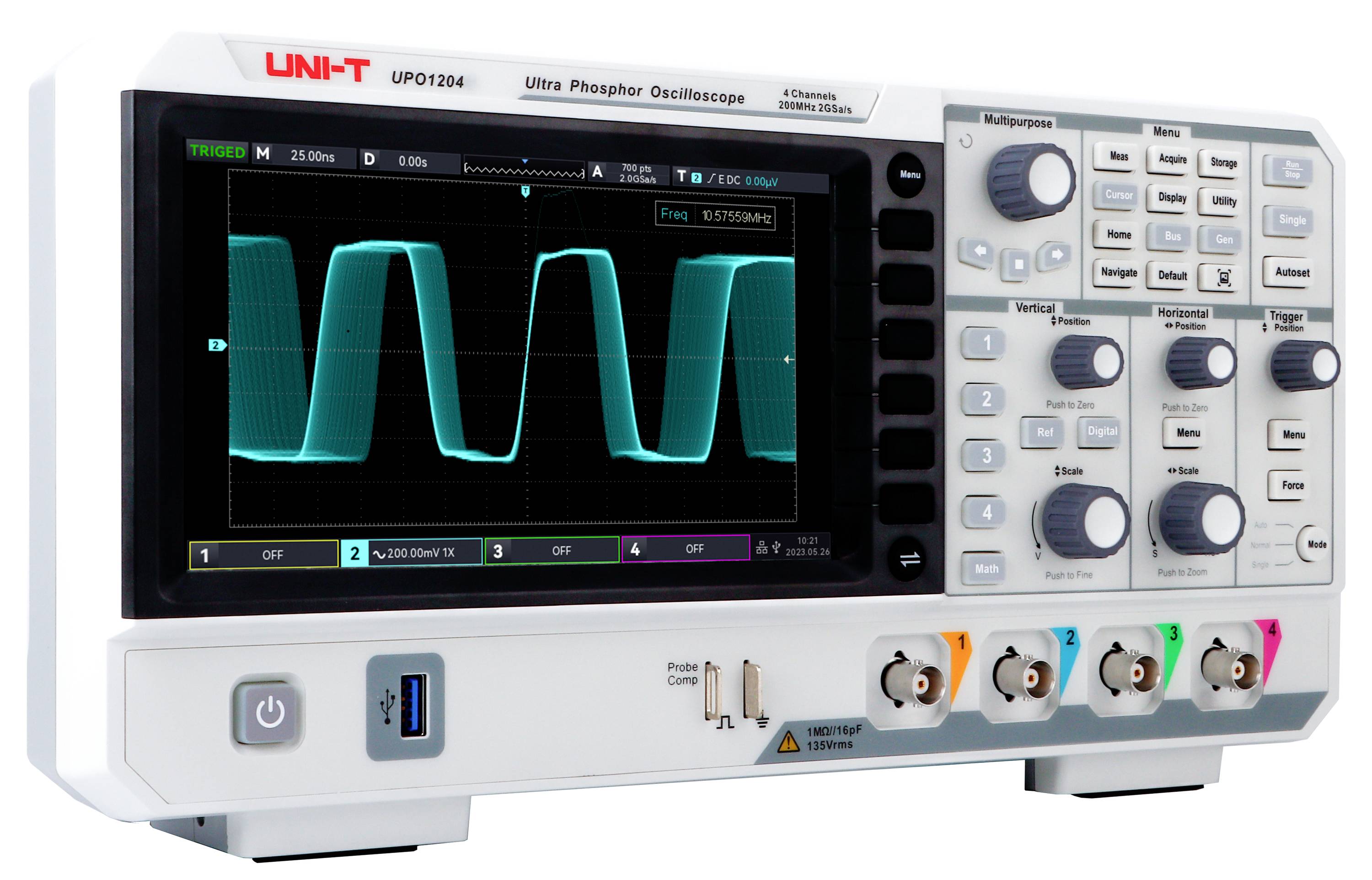

UNI-T digital phosphorus oscilloscope UPOV 1104
- 100
- No. of analogue inputs 4
Technical specifications
- Ultra Phosphorus 2.0 technology
- Integrated 4-bit DVM (digital voltmeter)
- 7-digit hardware frequency counter
- Serial bus decoding (RS232/UART, I²C, SPI) as standard
- Product type
Digital
- Bandwidth
100
- Channel sample rate
2 kSa/s
- Displays
7" (17.8 cm) color TFT-LCD, WVGA
- Resolution
8 Bit
- Screen size
7 inch
- Oscilloscope features
Multimeter functions
- Time base
1ns/div to 1000 s/div
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- Reading category
CAT I
CAT II 300 V
- Vertical deflection
500 µV/div to 20 V/div
- Input impedance
1 MΩ
- Input coupling
DC AC GND
- Input voltage
400 V AC
- Power supply (details)
100 - 240 V AC
- Dim
(L x W x H) 110 x 336 x 170 mm
- Weight
2.45 kg
- No. of digital inputs (max.)
0
- Display
800 x 480 p
- Calibration service
Factory standard (ISO/DKD calibration optional via measurement lab service provider)
- Width
336 mm
- Height
170 mm
- Length
110 mm

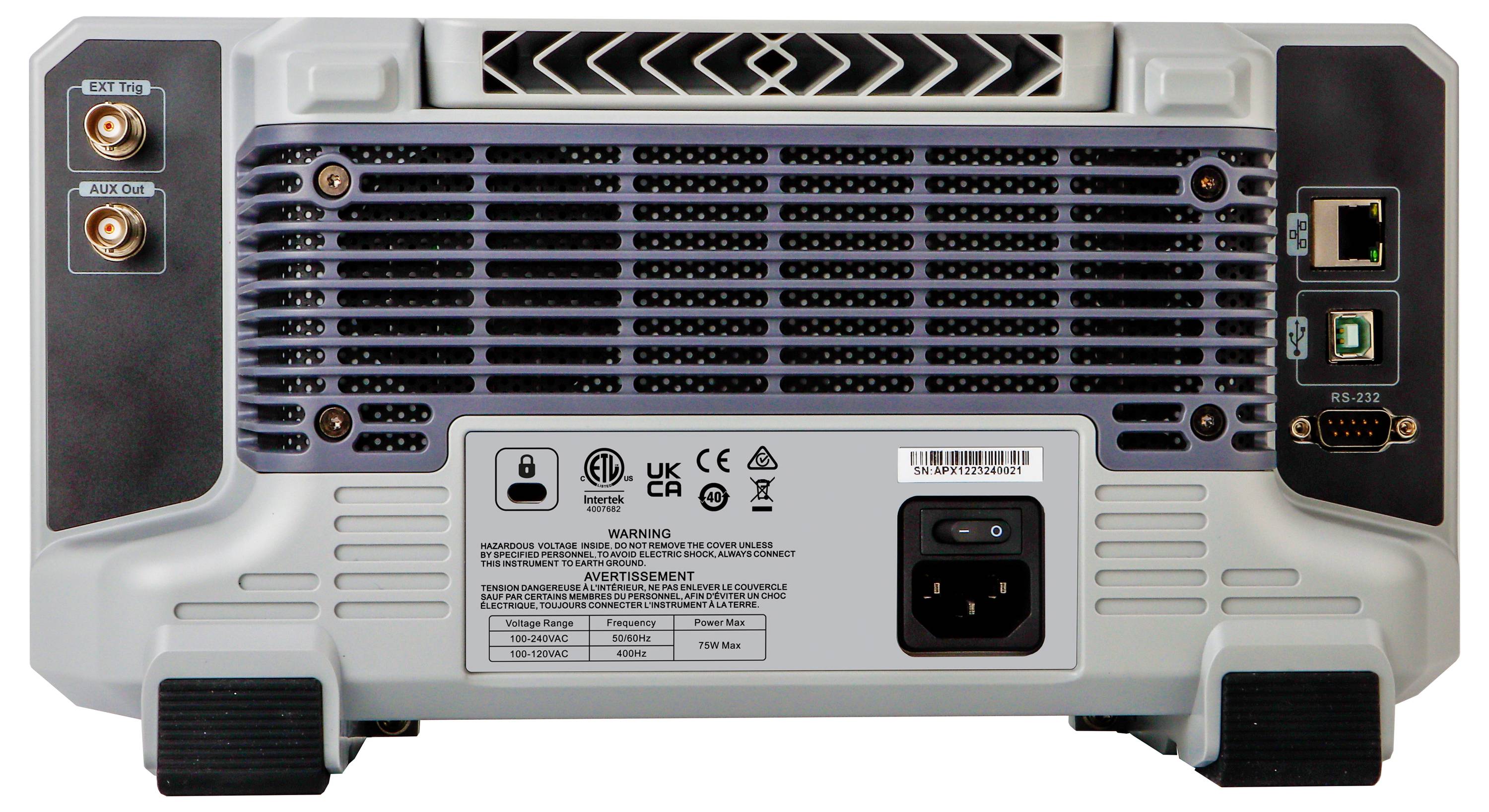

- Interfaces
USB host
USB device
LAN
- Channel memory depth
56 MP
- Type
UPO1104
Documents & Downloads
Datasheet
Datasheet 3812388 Uni-T UPO1104 Digital 100 2 kSa/s 56 MP 8 Bit Multimeter functions 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3812388 Uni-T UPO1104 Digital 100 2 kSa/s 56 MP 8 Bit Multimeter functions 1 pc(s)
Description
The UPO1104 digital oscilloscope uses the Ultra Phosphorus 2.0 technology. It offers a bandwidth of 100 MHz, a real-time sampling rate of up to 2 GSa/s and is equipped with 4 channels. It also supports an independent DVM module, has extensive trigger and bus decoding functions as well as a complete memory-based hardware real-time decoding. The oscilloscope is suitable for embedded system design, measuring technology, entertainment electronics, automotive electronics, field maintenance and education as well as many other applications.
This text is machine translated.
This text is machine translated.
Features
- Bandwidth 100 MHz
- Channels: 4 analogue
- Real-time 2 GSa/S sampling rate
- Rise time: Less than 3.5 ns
- 56 Mpts memory depth
- Waveform rate 500,000 WFM/s
- Input impedance (1 MOhm ± 2 %) || (16 pF ± 2 pF)
- Display: 7" TFT LCD
Scope of delivery
- UPO1104 (100 MHz, 4 channels) x 1
- Power cable x 1
- USB cable x 1
- Passive probes UT-P04(100 MHz) x4
Hints
More models
- UPO1054: 50 MHz bandwidth, 4 analog channels, 2 GSa/s sampling rate, up to 56 Mpts memory depth, waveform acquisition rate of 500,000 WFMs/s.
- UPO1204: 200 MHz bandwidth, 4 analog channels, 2 GSa/s sampling rate, up to 56 Mpts memory depth, waveform acquisition rate of 500,000 WFMs/s.
