Uni-T UT-M26 Logic probe 20 V
EAN:
Part number:
Item no:
Highlights & Details
UNI-T UT-M26, 16-channel logic analyzer probe for MSO1000HD-series
- Bandwidth
Technical specifications
- Input channels: 16
- Threshold range ±20 V
- Threshold accuracy: ±(100 mV + 3% of threshold)
- Maximum signal voltage ±20 V
- Minimum signal voltage 500 mV
- Minimum recognizable pulse width: 5 ns
- Input impedance 101 kΩ ± 1%
- Input capacity 9 pF ± 1 pF
- Product type
Logic probe
- Nominal voltage
20 V
- Type
Logic analyzer probe head (16-channel digital probe)
Manufacturer's standards (no certificate)
- Weight
0.7 kg
- Cable length
100 cm
- Reading category
CAT I
- Compatible with (details)
UNI-T oscilloscope of the series MSO1000HD
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3841578 Uni-T UT-M26 Logic probe 20 V
Description
The UT-M26 is a powerful 16-channel logic analyzer probe, which connects digital bus signals and signals of the tested with the high-resolution oscilloscopes of the MSO1000HD series. Thanks to 16 clearly identified color and numbered signal and ground channels as well as three flexible connection methods, the UT-M26 can be used easily and reliably in different test scenarios. Two independently configurable digital buses with individual settings for clock, bit width, display format and jitter suppression enable precise signal analysis.
This text is machine translated.
This text is machine translated.
Scope of delivery

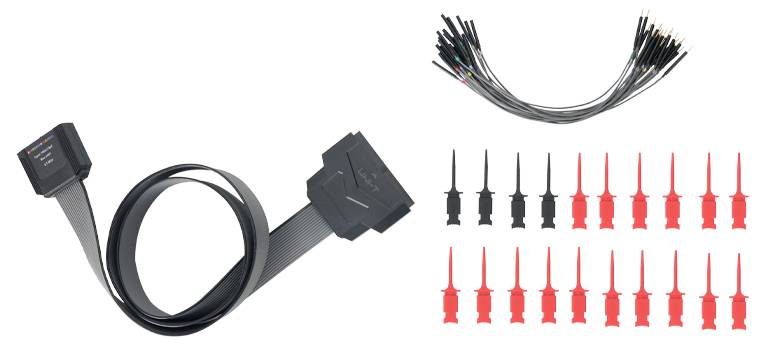

- Main cable x1
- x20 Measuring leads
- Hook terminals (grabber) x20
- x1 Carrying Case
