Uni-T UT-P20 High-voltage probe 250 MHz
EAN:
Part number:
Item no:
Highlights & Details
UNI-T passive probe 100:1 250MHz 1500V
- Bandwidth 250 MHz
Technical specifications
- Passive probe (100:1)
- Voltage: 1500 V
- Product type
High-voltage probe
- Bandwidth
250 MHz
Manufacturer's standards (no certificate)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3415525 Uni-T UT-P20 High-voltage probe 250 MHz
Description
The UT-P20 is an oscilloscope probe with low input capacitance and high voltage, developed and calibrated for use with devices that have a input impedance of 1 MQ, bypassed with 20 pF
However, it can be compensated for use with devices with an input capacitance of 10 to 30 pF.
This text is machine translated.
However, it can be compensated for use with devices with an input capacitance of 10 to 30 pF.
This text is machine translated.

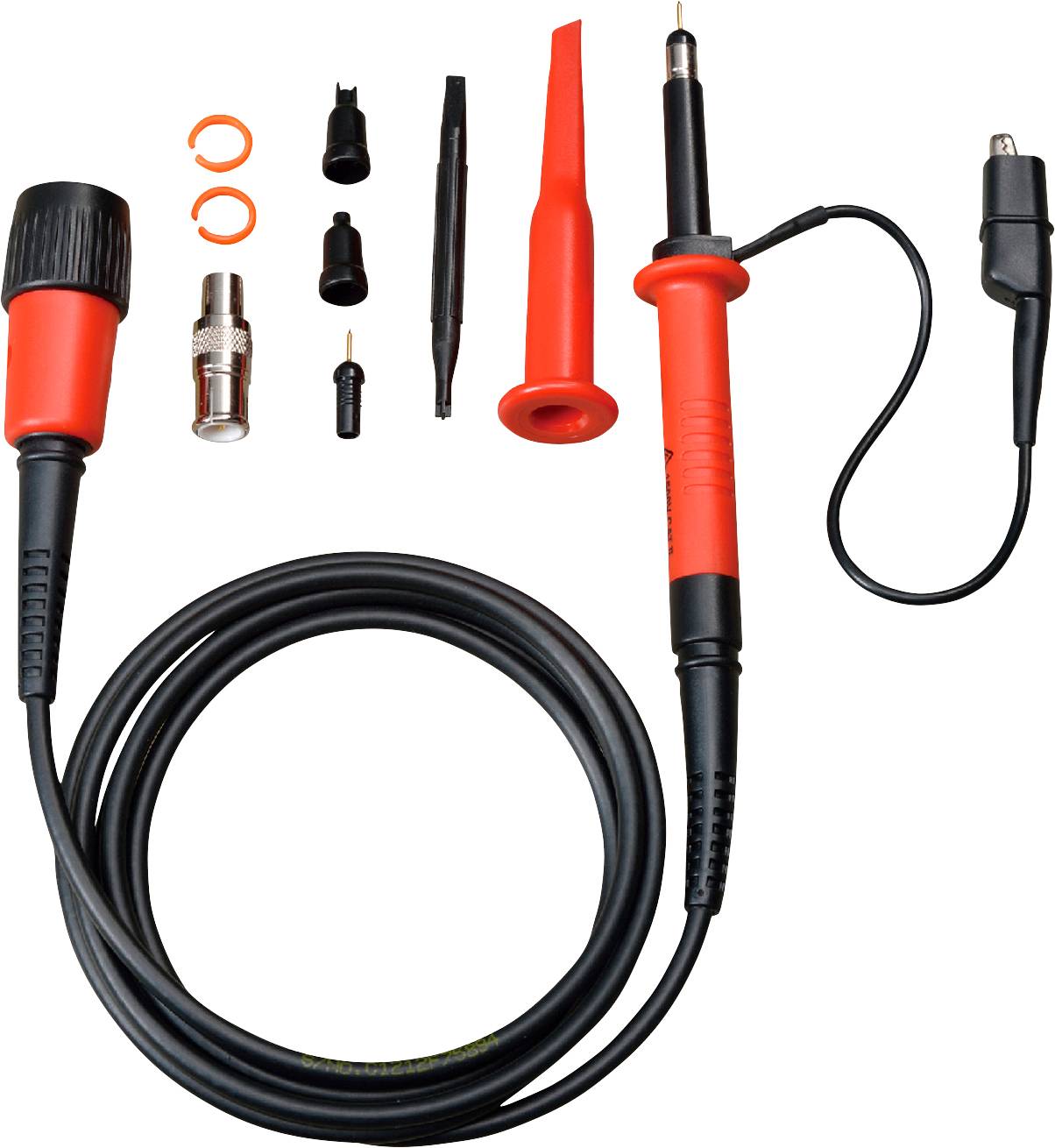

Scope of delivery
- - Operating Instructions
- - Channel identification clip
- - Spring hook
- - Ground line
- - Insulating tip
- - IC tip
- - Adjustment tool
- - Measuring tip
- - BNC adapter
