Uni-T UT-P21 High-voltage probe 50 MHz
EAN:
Part number:
Item no:
Highlights & Details
UNI-T high-voltage probe 1000:1 40MHz 10000 V/DC 7000Vrms/AC
- Bandwidth 50 MHz
Technical specifications
- Passive high-voltage probe (1000:1)
- Voltage DC 15 kVrms/AC 10 kV (sine wave)
- Product type
High-voltage probe
- Bandwidth
50 MHz
Manufacturer's standards (no certificate)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3415528 Uni-T UT-P21 High-voltage probe 50 MHz
Description
The UT-P21 is a high-precision passive high-voltage probe, Ideal for safe and reliable measurements in high-voltage applications. With a maximum operating voltage of DC 10 kV / AC 7 kV RMS and a bandwidth of 40 MHz, it enables precise signal acquisition with minimum distortion. Thanks to 1:1000 attenuation ratio, 100 MΩ input impedance and low input capacity (3.0 pF), it is perfect for power electronics, high voltage tests and system analyzes.
The UT-P21 complies with IEC 61010 safety standards and ensures highest safety during measurements. Its 2 meter cable provides flexible handling, while the integrated compensation capacitor (5 pF - 50 pF) provides maximum measurement accuracy. Developed for professionals in research, industry and development, the UT-P21 offers a reliable solution for demanding test environments.
This text is machine translated.
The UT-P21 complies with IEC 61010 safety standards and ensures highest safety during measurements. Its 2 meter cable provides flexible handling, while the integrated compensation capacitor (5 pF - 50 pF) provides maximum measurement accuracy. Developed for professionals in research, industry and development, the UT-P21 offers a reliable solution for demanding test environments.
This text is machine translated.
Scope of delivery

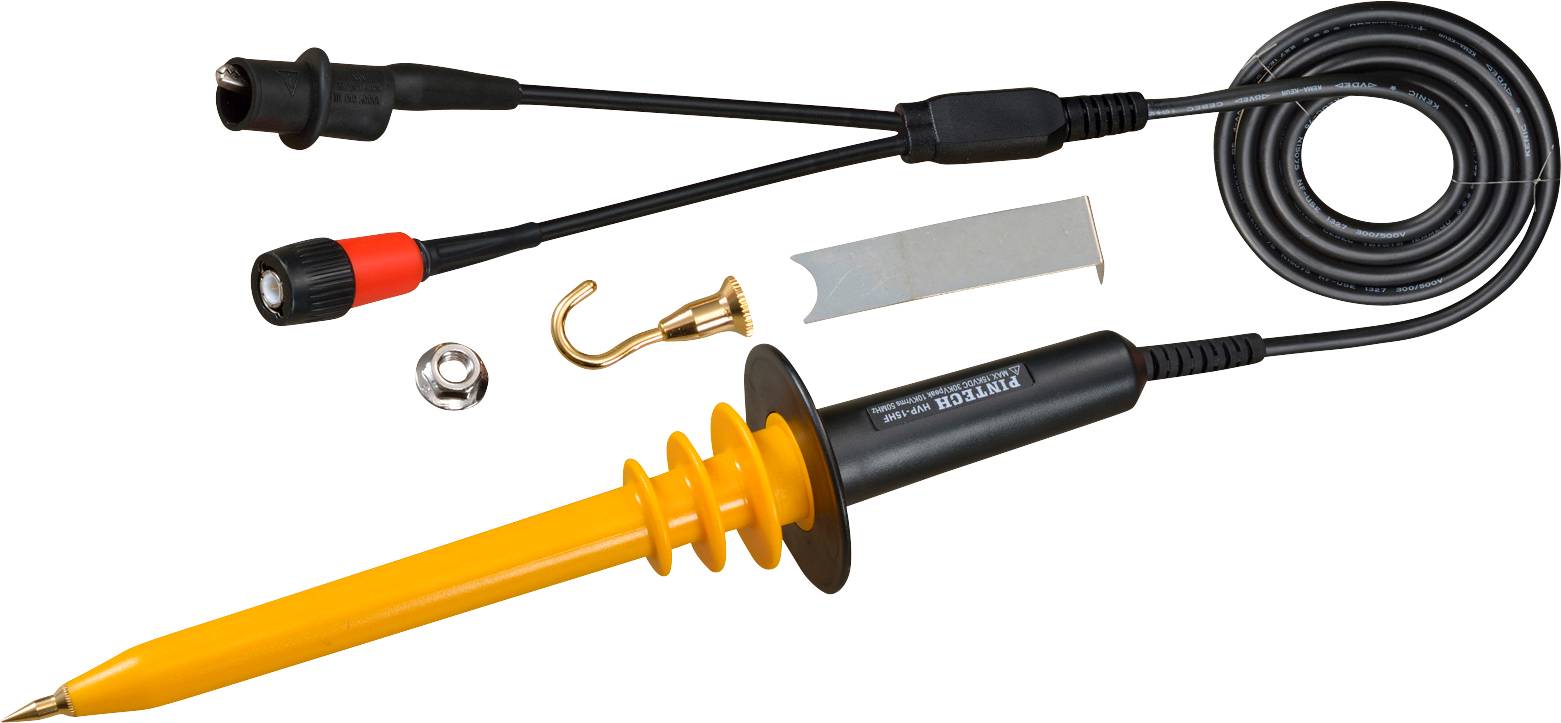

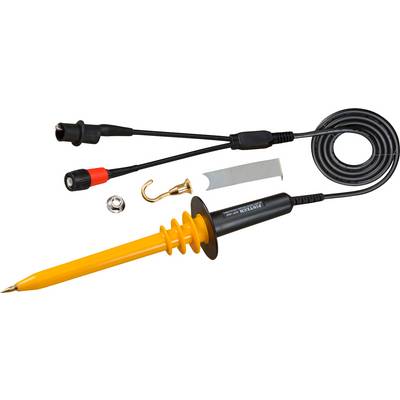

- - UNI-T UT-P21 HIGH VOLTAGE PROBE
- - Ground cable
- - Probe tip
- - Operating Instructions
Hints
1. Do not measure until the ground cable is properly connected.
2. Under no circumstances should the earth cable be connected to a high voltage source or the tip of the high voltage probe be grounded.
3. Before switching on the high-voltage power supply, make sure that no part of the body contacts the high-voltage part.
4. For measurements above DC10KV or AC7KV, do not continue reading for more than 1 minute to avoid overheating that could affect the accuracy of the measurement. Wait approximately 5 minutes before taking the measurement again.
5. Before removing the ground, make sure that the high voltage probe tip is not near the high voltage supply.
