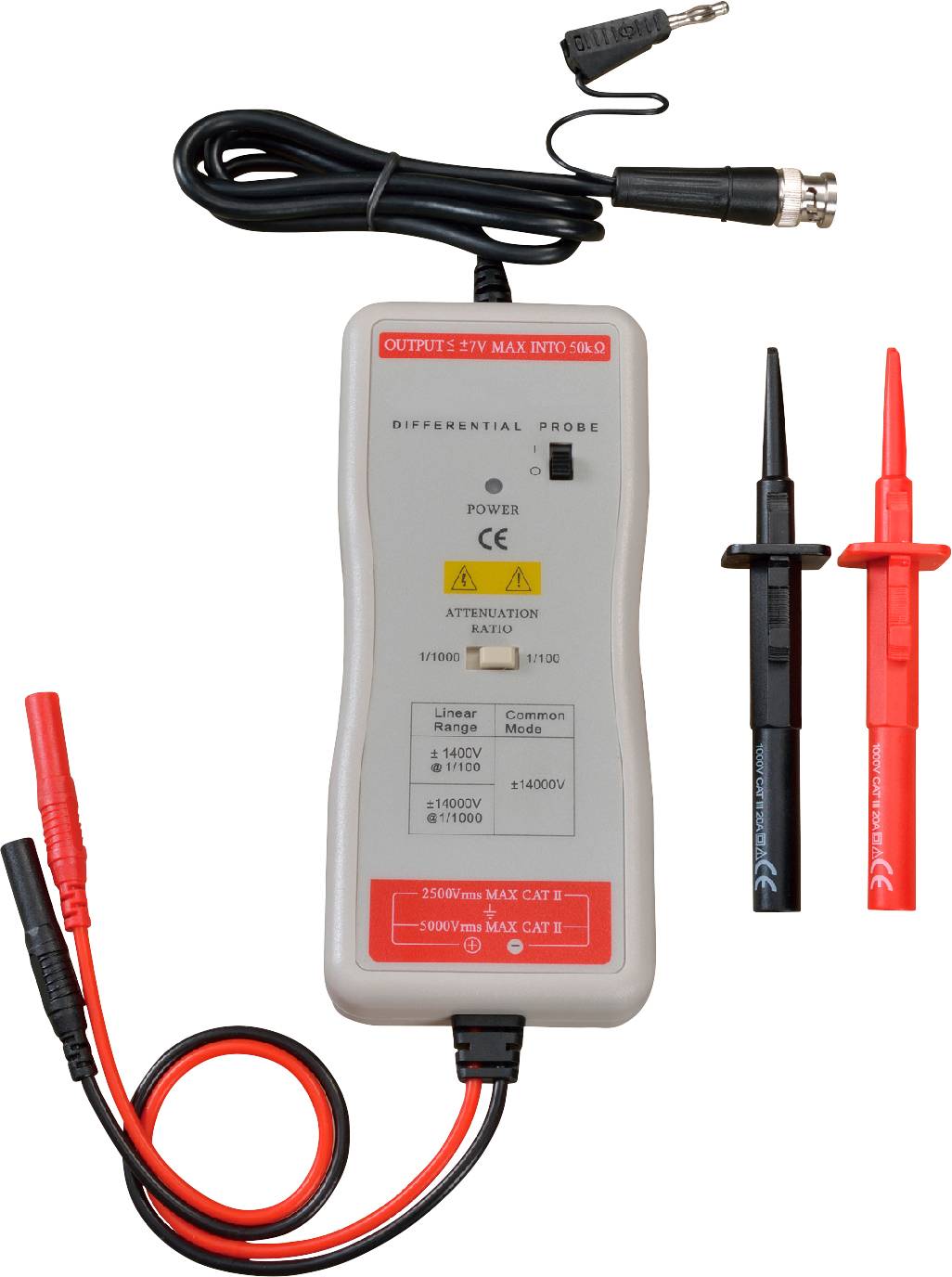

Uni-T UT-P33 Differential probe 50 MHz, 70 MHz
EAN:
Part number:
Item no:
Highlights & Details
UNI-T Differential probe Active Probe 1000:1.100:1 70,50MHz 14000V
- Bandwidth 50 MHz, 70 MHz
Technical specifications
- Product type
Differential probe
- Bandwidth
50 MHz
70 MHz
Manufacturer's standards (no certificate)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3415540 Uni-T UT-P33 Differential probe 50 MHz, 70 MHz
Description
The differential probe UT-P33 offers a safe option for the measurement of differential voltages for all oscilloscope models. It can convert high differential voltages (≤14KVp-p) into low voltages (≤7V) and display them on the oscilloscope. Their bandwidth is up to 120 MHz and is suitable for Ideal performance tests, development and maintenance.
The UT-P33 is designed for use with oscilloscopes with an impedance of 1 MΩ. In combination with a load of 50 Ω, the damping doubles. The UT-P33 is recommended to use with our manufactured PL-10 to extend the measurement capabilities of the meter and to allow more accurate measurements. (The accuracy of the oscilloscope is 1%, while the DMM is less than 1%.)
This text is machine translated.
The UT-P33 is designed for use with oscilloscopes with an impedance of 1 MΩ. In combination with a load of 50 Ω, the damping doubles. The UT-P33 is recommended to use with our manufactured PL-10 to extend the measurement capabilities of the meter and to allow more accurate measurements. (The accuracy of the oscilloscope is 1%, while the DMM is less than 1%.)
This text is machine translated.
Scope of delivery
- - UNI-T UT-P33 DIFFERENTIAL PROBE
- - Mains cable
- - Power adapter
- - Test leads with probe tips (red/black)
- - Operating Instructions
Hints
The actual vertical deviation in V/div corresponds to the attenuation factor multiplied by the range of the vertical deviation selected on the oscilloscope. It doubles when a 50 Ω load is used.
