Uni-T UT-P40 Probe
EAN:
Part number:
Item no:
Highlights & Details
UNI-T current probe 50mV/A, 5mV/A 0.4A, 60A 100kHz/DC 600 Vrms
- Bandwidth
Technical specifications
- Maximum working current - 60A
- Frequency range - DC to 100 kHz (-3dB)
- Current range - 5mV/A; 50mV/A.
- Product type
Probe
- Slew rate
2.5 ms
Manufacturer's standards (no certificate)
- Weight
310 g
- Width
36 mm
- Height
67 mm
- Length
231 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3415544 Uni-T UT-P40 Probe
Description

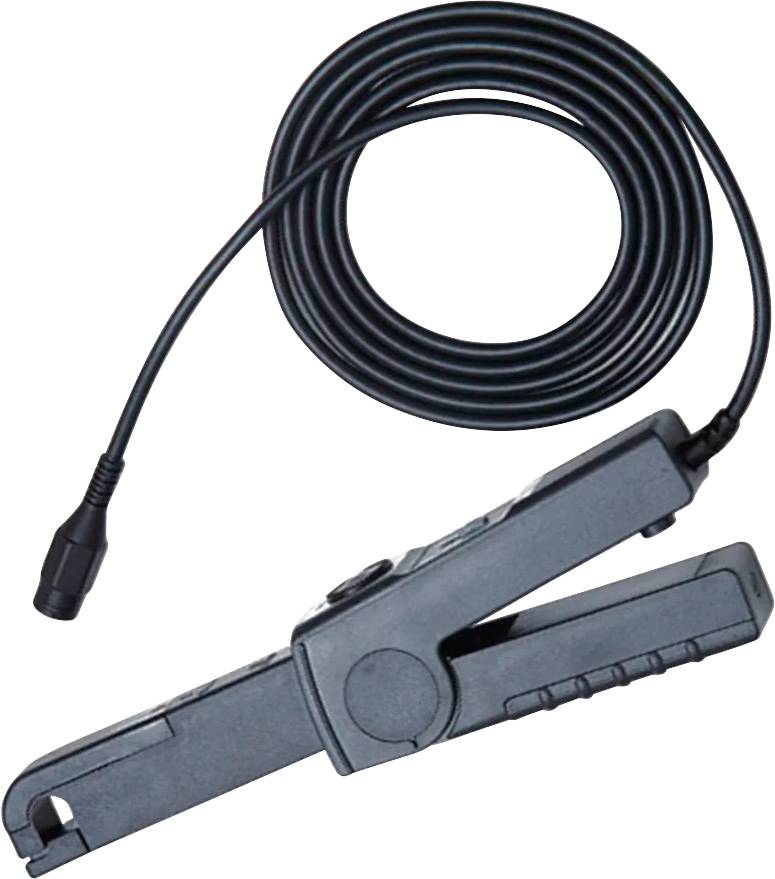

The UT-P40 is a powerful AC / DC current probe, which converts a conventional oscilloscope in a high precision current meter. It allows the display and analysis of AC and DC signals up to 60 A with a frequency range from DC to 100 kHz. The two selectable measurement ranges (5 mV/A & 50 mV/A) offer flexible adjustment to different applications.
The compact design with 2 meter cable length simplifies the handling and enables precise current measurements. An integrated zero point adjustment ensures exact calibration, while the overload display protects against measurement errors. The UT-P40 is Ideal for electronic development, laboratory applications, industrial tests and circuit analyzes.
This text is machine translated.
The compact design with 2 meter cable length simplifies the handling and enables precise current measurements. An integrated zero point adjustment ensures exact calibration, while the overload display protects against measurement errors. The UT-P40 is Ideal for electronic development, laboratory applications, industrial tests and circuit analyzes.
This text is machine translated.
Scope of delivery
- - UT-P40 current probe
- (Measuring device with BNC connection for current measurement)
- - 9V battery x1 PCs
- - User manual
Hints
To prevent fire or injury.
Connect and disconnect properly.
Observe all connection values.
Replace batteries properly.
Do not operate without covers.
Avoid exposed circuits.
Do not operate the device if there are suspected faults.
Do not use in wet or damp environments.
Do not operate the device in explosive environments.
Keep product surfaces clean and dry.
