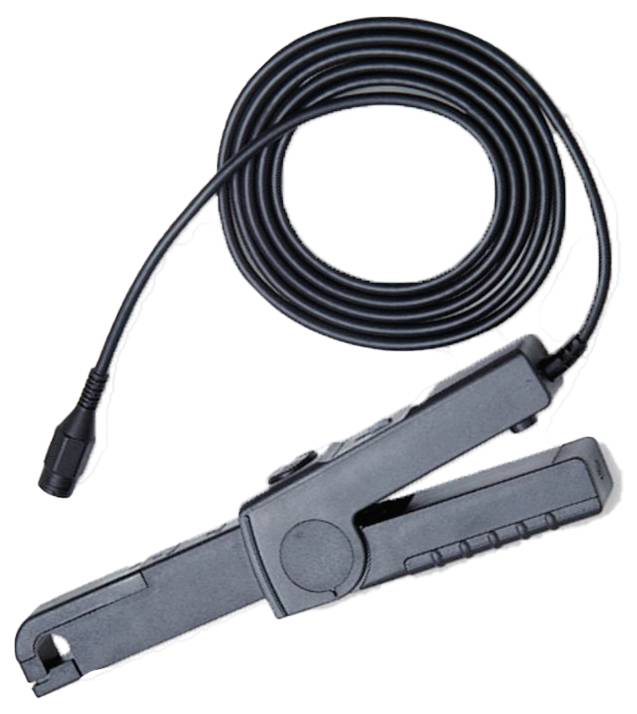

Uni-T UT-P41 Probe 100 kHz
EAN:
Part number:
Item no:
Highlights & Details
UNI-T current probe 100mV/A, 10mV/A 50mA, 100A 100kHz/DC 600Vrms
- Bandwidth 100 kHz
Technical specifications
- Product type
Probe
- Bandwidth
100 kHz
Manufacturer's standards (no certificate)
- Weight
330 g
- Cable length
2 m
- Width
67 mm
- Height
46 mm
- Length
231 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3415547 Uni-T UT-P41 Probe 100 kHz
Description
The UT-P41 current probe is a probe for oscilloscopes that use a Hall effect cell to measure DC or AC without altering the installation (without shutting down the circuit). It can measure currents from 0.2 A to 100 A.
This text is machine translated.
This text is machine translated.
Scope of delivery
- - UT-P41 current probe (measuring device for measuring current with BNC connection)
- - 9V battery x1 PCs
- - User manual
Hints
For maintenance, please contact your dealer or manufacturer. The manufacturer shall not be liable for accidents caused by repairs not performed by his service or authorized repair center.
- Jaw surfaces: It is important to keep the jaw surfaces clean at all times. Clean it and lightly lubricate it to prevent rust formation. Do not leave the clamp lying in very damp locations and do not expose it to water directly.
- Handles and housings: Clean with a cloth or a sponge dampened with soapy water. Flush them in the same way without allowing water to reach the clamp, and then dry them with a cloth or air flow.
- To obtain the power of the clamp, it is recommended to carry out a check or recalibration every year.
