Uni-T UT-PD1500 Differential probe 1.5 GHz 10:1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T UT-PD1500, Active Differential Probe, 1.5 GHz bandwidth
- 10:1
- Bandwidth 1.5 GHz
Technical specifications
- -Bandwidth (-3dB): 1.5 GHz
- -Rise time: ≤245 hp
- -Input capacitance: ≤1 pF
- -Input resistance: 200 kΩ ± 2 % (differential)
- Output impedance: 50 Ω
- -Attenuation ratio: 10:1 ± 5%
- -Input dynamic range: 8 Vpp (±4 V DC or peak AC)
- -Common-mode range: ±15 V (DC to 100 Hz), ±2.5 V (>100 Hz)
- -Offset range: ±4 V.
- -Maximum input voltage: ±30 V (DC + peak AC)
- -Common clock suppression: >40 dB @1 MHz, >40 >dB @30 MHz, 30 dB @1 GHz
- -Probe noise: 7 mVrms
- Product type
Differential probe
- Bandwidth
1.5 GHz
- Divider voltage ratio
10:1
- Type
Active differential probe
Manufacturer's standards (no certificate)
- Weight
95 g
- Cable length
1.2 m
- Compatible with (details)
UNI-T OSCILLOSCOPE SERIES MSO8000HD, MSO7000X, UPOV 7000L, MSO5000HD, MSO3000HD, MSO3000X
- Width
19.33 mm
- Height
18.30 mm
- Length
103.50 mm
Documents & Downloads
Datasheet
Datasheet 3841579 Uni-T UT-PD1500 Differential probe 1.5 GHz 10:1
User & Safety Instructions
User & Safety Instructions 3841579 Uni-T UT-PD1500 Differential probe 1.5 GHz 10:1
Description
The UT-PD1500 is a high-frequency active differential probe for the analysis of modern high-speed signals. It is suitable for design, verification and debugging of fast serial buses such as I2C, SPI, CAN/CAN-FD, LIN, serial ATA, Ethernet (GbE), USB 2.0, and FireWire (1394b), as well as signal integrity, jitter, and eye graph analysis. The probe recognizes attenuation factor and impedance automatically and can be easily controlled via front-end buttons (oscilloscope run/stop, display delete, force trigger).
This text is machine translated.
This text is machine translated.

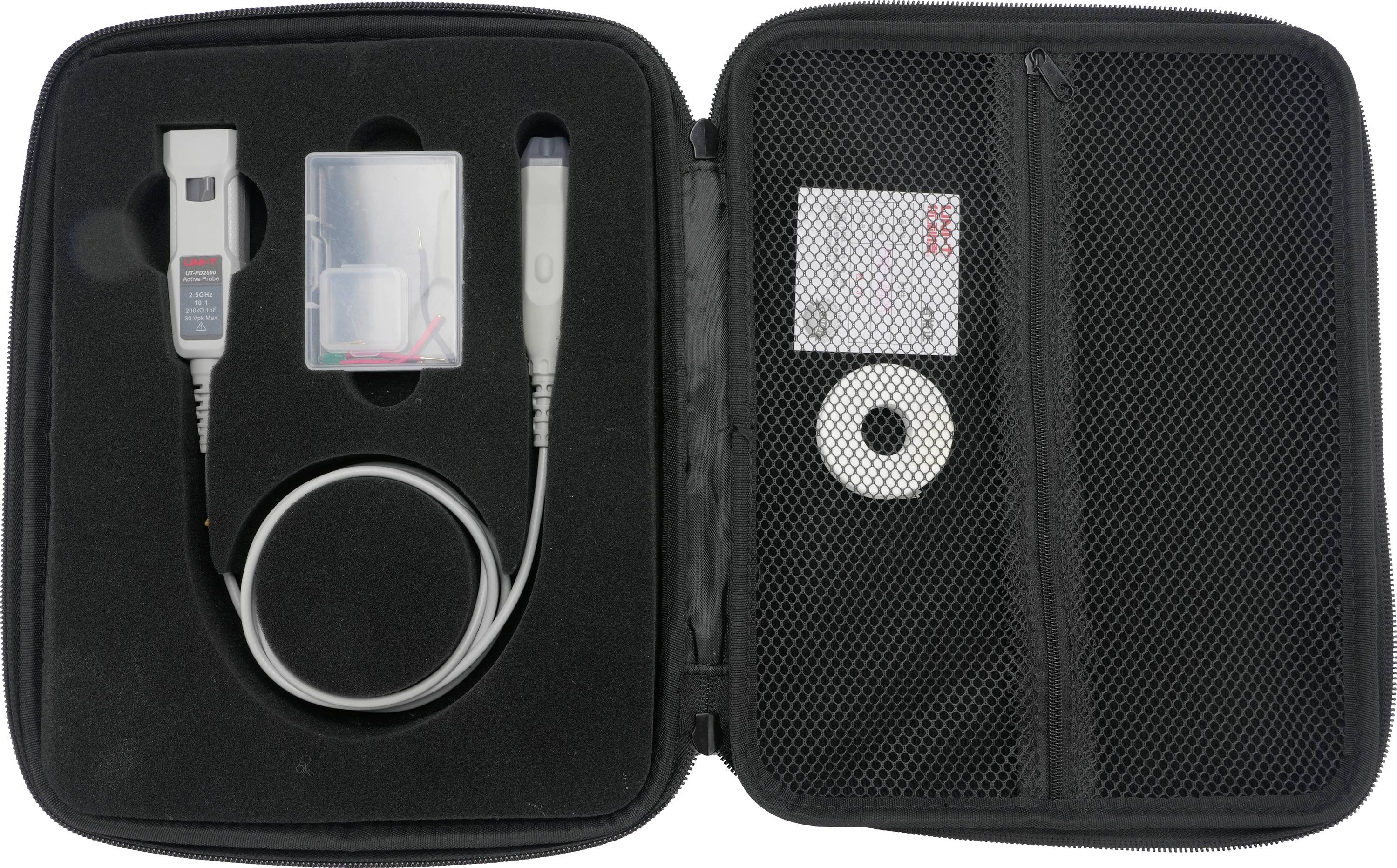

Scope of delivery
- Active differential probe UT-PD1500 x1
- Pluggable extension cables (red/black) x5 each
- Soldered extension cables x5
- Curved needle (adjustable) x5
- Double tip needle x5
- Impedance needle straight x3, curved x3
- Tinned copper wire x1
- Probe box x2
- Accessories box x1
- Marking ring x8
