Uni-T UT-RB60 Spectrum analyzer 6 GHz
EAN:
Part number:
Item no:
Technical specifications
- Material: Aluminium alloy
- Operating temperature -40 °C - +70 °C
- Product type
Spectrum analyzer
- Bandwidth
6 GHz
- No. of analogue inputs
3
- Inputs
N type (socket)
- Dim
(W x H) 112 mm x 61 mm
- Weight
0.15 kg
- Width
112 mm
- Height
61 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3532383 Uni-T UT-RB60 Spectrum analyzer 6 GHz
Description
The UT-RB60 is used in conjunction with the UNI-T UTS3000T+ series to measure S11 parameters such as return loss, reflection coefficient and standing wave ratio (VSWR) on the test specimen.
Area of application
• S11 measurements on passive components such as filters, amplifiers and mixers
• Antenna frequency and VSWR measurement
This text is machine translated.
Area of application
• S11 measurements on passive components such as filters, amplifiers and mixers
• Antenna frequency and VSWR measurement
This text is machine translated.

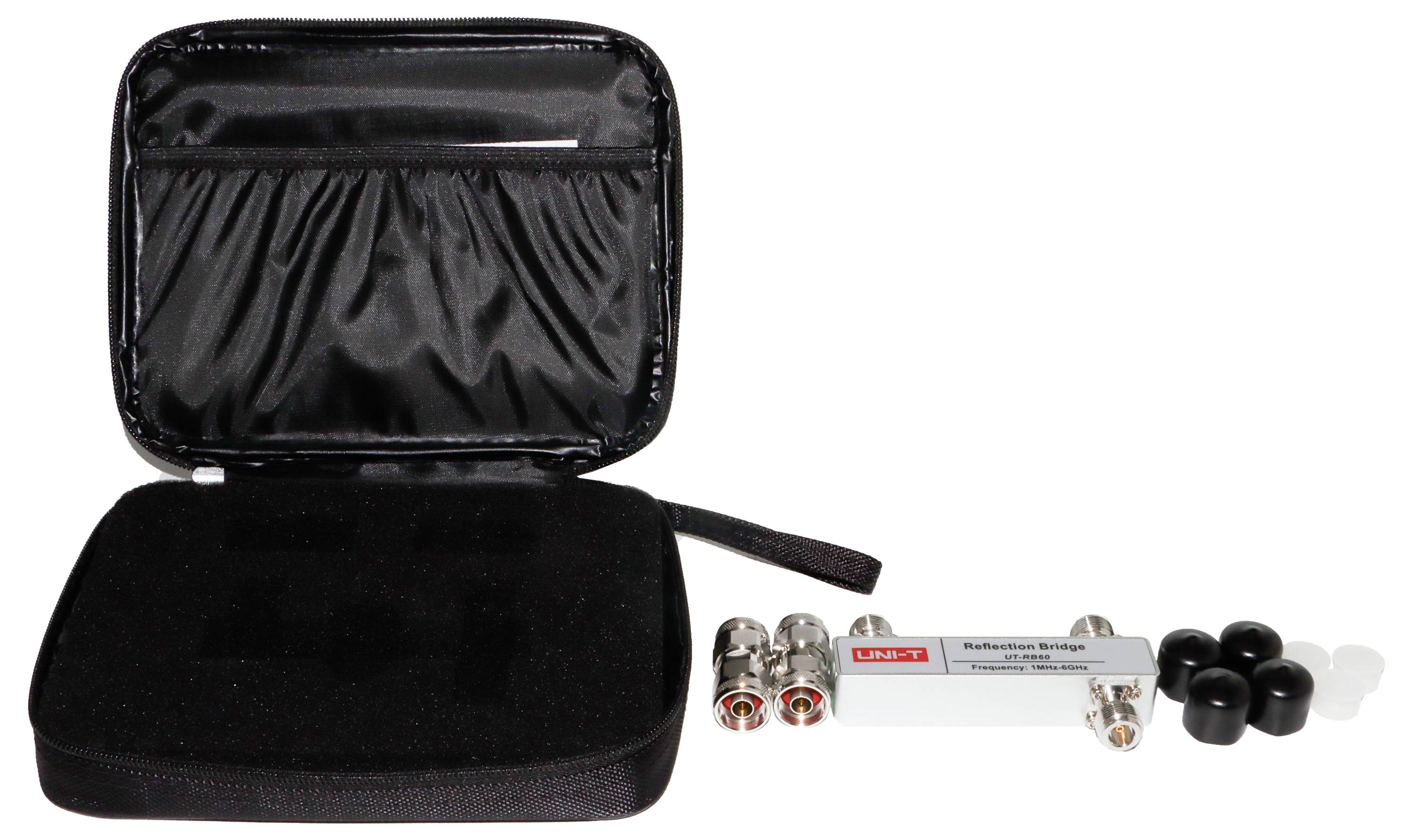

Scope of delivery

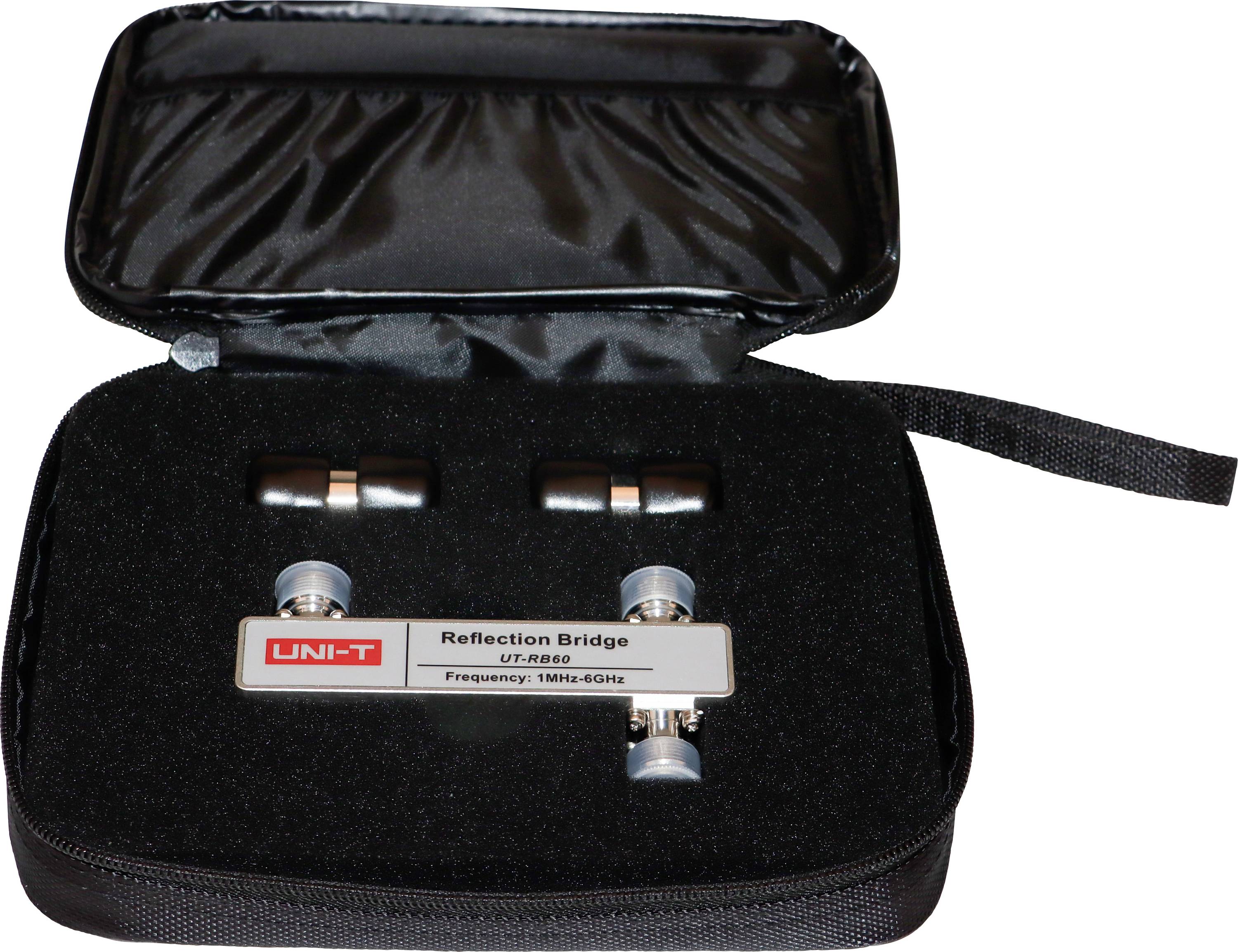

- 1 × Reflection bridge UT-RB60 (frequency range: 1 MHz – 6 GHz, N-socket)
- 2 × N-Double plug (N-Plug/N-Plug) Adapter
- 1 PCs UTS-BAG01 (230 × 180 × 45 mm, UTS3000T+ Series Black Bag)
- 1x user manual
