Uni-T UT8803E Bench multimeter Digital, Analogue Screen back-lighting, Continuity tester, Capacitance testing, Data Hold
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UT8803E
- CAT II 600 V
Technical specifications
- Real effective value (True RMS):
- LCR measuring functions (INDUCTANCE & D/Q-factor/quality)
- Transistor test (hFE) & thyristor test (SCR)
- Diodes- & Continuity check
- Relative value measurement (REL)
- MAX/MIN/HOLD MEMORY
- Automatic range selection (auto ranging)
- Voltage reading range DC (min.)
0.01 mV
- Product type
Bench multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.01 mV
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
20 A
- A AC reading range (min.)
0.1 A
- Amperage reading range AC (max.)
20 A
- Reading range - resistance
0.1 Ω to 60 MΩ
- Reading range - capacity
6 nF to 60 mF
- Inductivity reading range
600 µH bis 100 H
- Frequency reading range
600 Hz to 20 MHz
- Temperature
-40 °C to +1000 °C. °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.3 %
- Measurement type (details)
True RMS
- Frequency range
600 Hz to 20 MHz
- Interfaces
USB
- Power supply (details)
100 V - 240 V AC
- Height
110 mm
- Width
320 mm
- Length
265 mm
- Weight
3.09 kg
Manufacturer's standards (no certificate)
- Reading category
CAT II 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
UT8803E
- Display
Digital
Analogue
- Display (counts)
6000
- Dim
(L x W x H) 265 x 320 x 110 mm
- Calibration service
Factory standard
- Temperature reading range (max.)
1000 °C
- Temperature reading range (min.)
-40 °C
- Reading frequency
3 measurements / second (sampling rate)
- Features
Screen back-lighting
Continuity tester
Capacitance testing
Data Hold function
- Interfaces
USB 2.0 port B
IP20
Documents & Downloads
Datasheet
Datasheet 3812394 Uni-T UT8803E Bench multimeter Digital, Analogue Screen back-lighting, Continuity tester, Capacitance testing, Data Hold
User & Safety Instructions
User & Safety Instructions 3812394 Uni-T UT8803E Bench multimeter Digital, Analogue Screen back-lighting, Continuity tester, Capacitance testing, Data Hold
Description

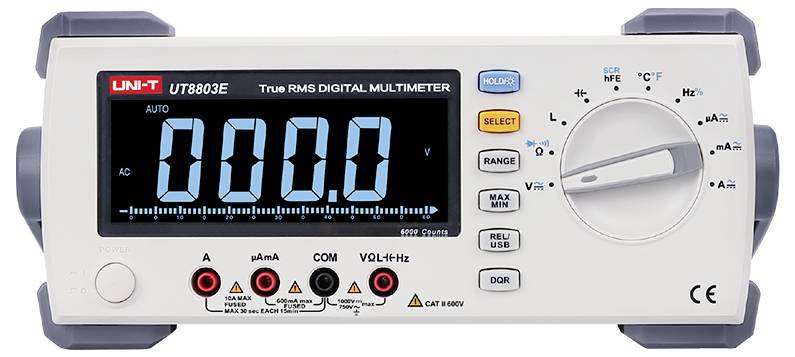

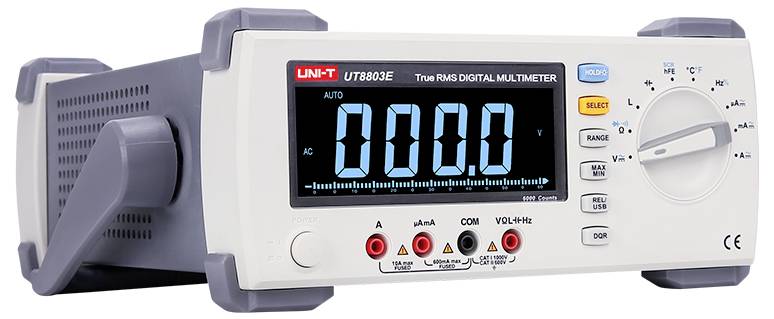

The UT8803E is a digital desktop multimeter with 6000 counts, 3⅚-digit display, automatic range selection and mains operation. The large display with large digits and backlight is particularly clear and easy to read. With full functional scope, overload protection for all areas and a standalone design it offers an especially good performance. The device measures AC-/DC-voltage, AC-/DC-current, resistance, frequency, capacitance, Inductance, transistor HFE, diodes (LED), thyristors (SCR) as well as continuity testing. It therefore meets the requirements of users with its multi-functionality, high accuracy and automatic operation.
This text is machine translated.
This text is machine translated.
Features
- Measurement resolution: 3⅚-digit
- Fastest measurement rate 3 rdgs/s.
- Frequency response 100 kHz
- DC voltage accuracy (annual): 0.3%
- USB port
Scope of delivery
- UT8803E x 1
- User manual (DVD-R) x 1
- Test tips x 1 pair
- Alligator clips
- Test lead x 1 pair
- Power cable x 1
- Software DVD x 1
- USB cable x 1
- Guarantee card x 1
Hints
More models
- UT8804E: 4⅚ digit resolution, 3 rdgs/s measurement rate, 100 kHz frequency response, 0.025 % DC accuracy, USB device interface
- UT8805E: 5½-digit resolution, 5,000 rdgs/s measurement rate, 100 kHz frequency response, 0.015 % DC accuracy, USB device / USB host / LAN / RS-232 interfaces
- UT8806E: 6½ digit resolution, 10,000 rdgs/s measurement rate, 300 kHz frequency response, 0.0035% DC accuracy, USB (Device & Host) / LAN / RS-232C interfaces
- UT8806EG: 6½-digit resolution, 10,000 rdgs/s measurement rate, 300 kHz frequency response, 0.0035 % DC accuracy, USB (Device & Host) / LAN / RS-232C / GPIB interfaces
