Uni-T UT8806E Bench multimeter Digital Water-jet proof (IP65) CAT I 1000 V, CAT II 300 V Display (counts): 2000000
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UT8806E
- CAT I 1000 V, CAT II 300 V
Technical specifications
- Display: 4.3-inch TFT LCD
- Voltage reading range DC (min.)
200 mV
- Product type
Bench multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
200 mV
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
2 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
200 µA
- Amperage reading range AC (max.)
10 kA
- Reading range - resistance
20 Ω to 1 GΩ
- Reading range - capacity
2 nF - 100 mF
- Frequency reading range
3 Hz -1 MHz
- DC resistance
10 MΩ
- AC resistance
1 MΩ
- Basic accuracy
0.0015 %
- Measurement type (details)
True RMS
- Interfaces
USB 2.0 Host
LAN
RS232C
- Power supply (details)
90 - 264 V AC
- Height
113.2 mm
- Width
225 mm
- Length
378.24 mm
- Weight
3.39 kg
Manufacturer's standards (no certificate)
- Reading category
CAT I 1000 V
CAT II 300 V
- Voltage metering
DC
AC
- Current reading
AC/DC
- Type
UT8806E
- Display
Digital
- Display (counts)
2000000
- Dim
(L x W x H) 378.24 x 225 x 113.2 mm
- Temperature reading range (max.)
1000 °C
- Temperature reading range (min.)
-200 °C
- Reading frequency
3 Hz -1 MHz
- Features
Water-jet proof (IP65)
- Interfaces
USB
IP65
Documents & Downloads
Datasheet
Datasheet 3532384 Uni-T UT8806E Bench multimeter Digital Water-jet proof (IP65) CAT I 1000 V, CAT II 300 V Display (counts): 2000000
User & Safety Instructions
User & Safety Instructions 3532384 Uni-T UT8806E Bench multimeter Digital Water-jet proof (IP65) CAT I 1000 V, CAT II 300 V Display (counts): 2000000
User & Safety Instructions 3532384 Uni-T UT8806E Bench multimeter Digital Water-jet proof (IP65) CAT I 1000 V, CAT II 300 V Display (counts): 2000000
User & Safety Instructions 3532384 Uni-T UT8806E Bench multimeter Digital Water-jet proof (IP65) CAT I 1000 V, CAT II 300 V Display (counts): 2000000
Description

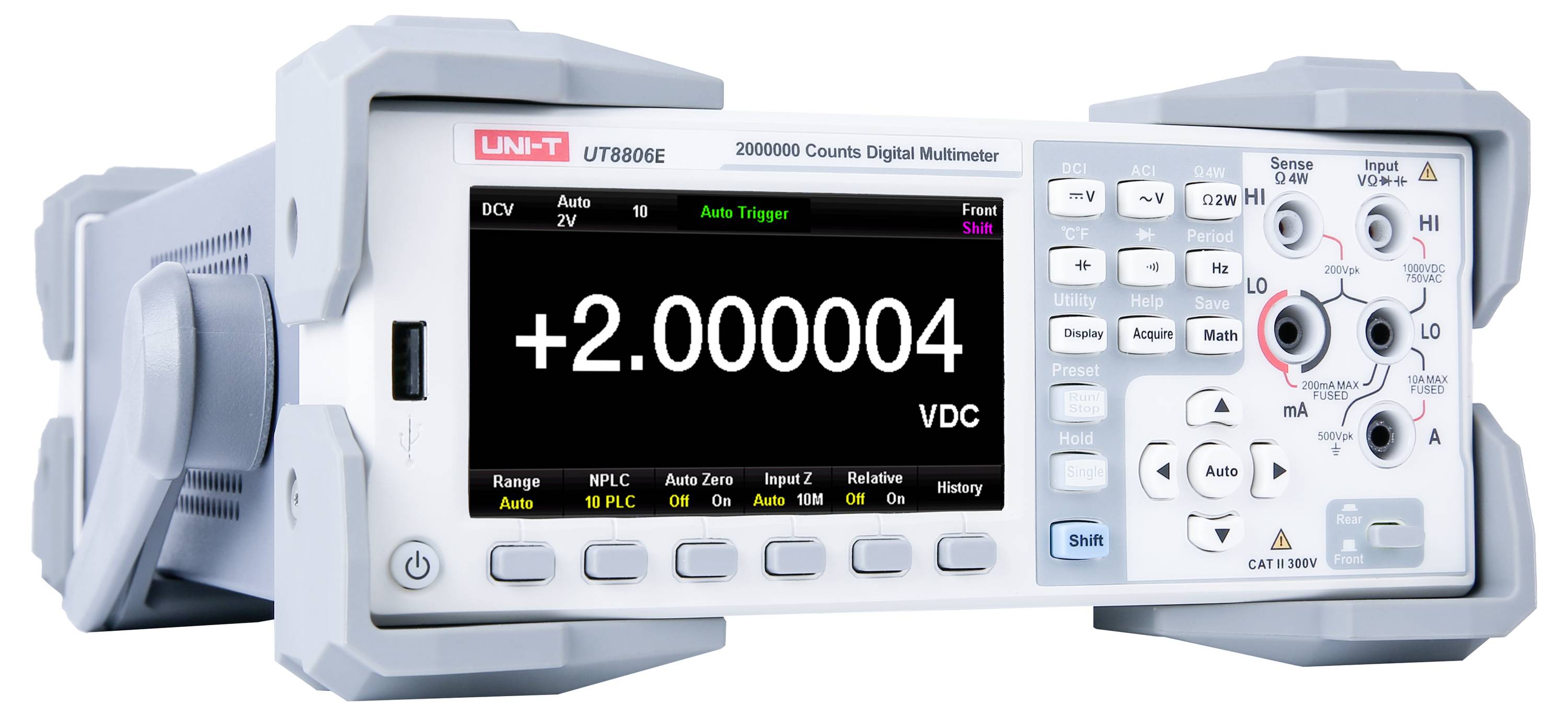

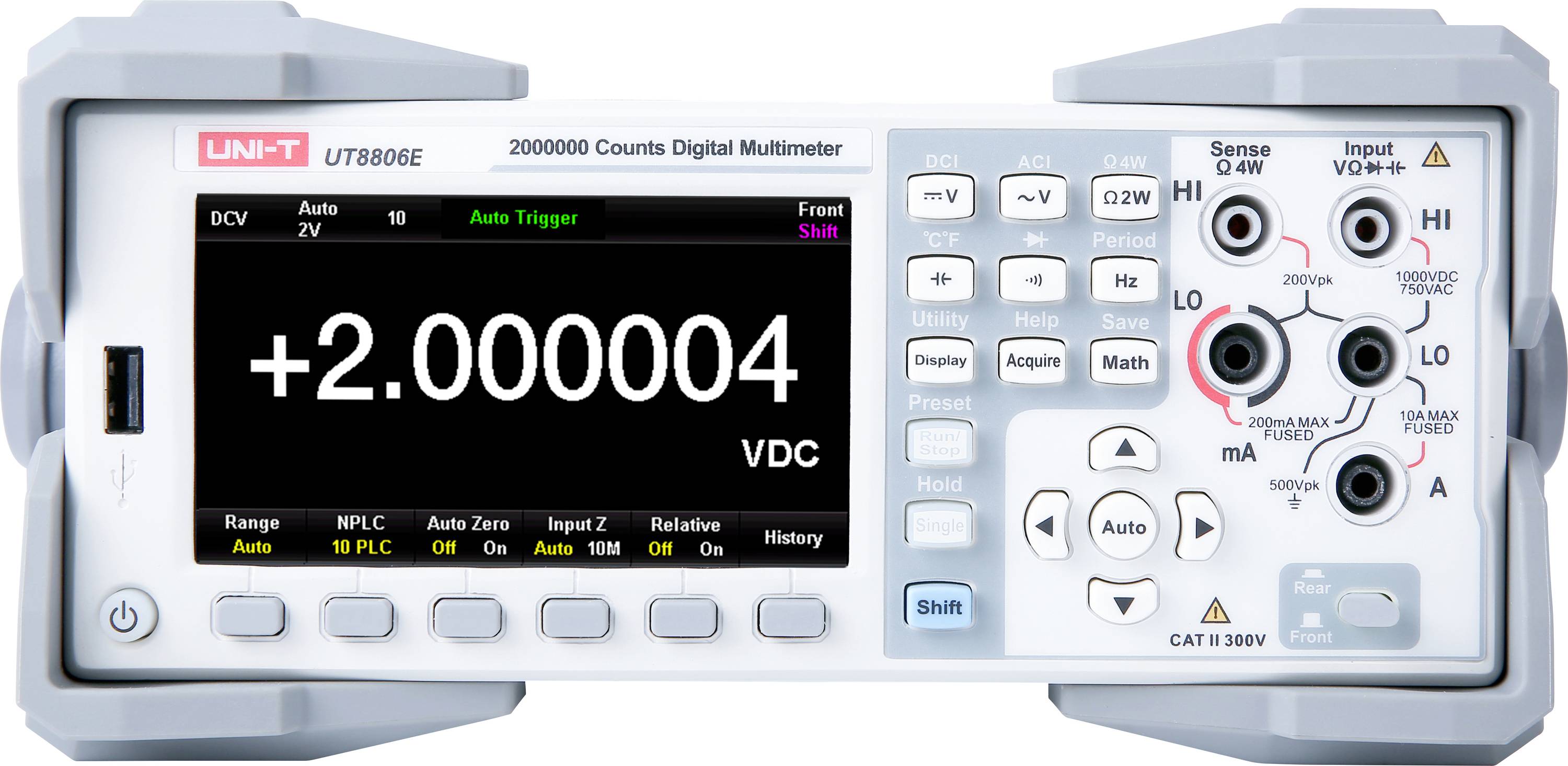

The UT8806E is a 6½-digit desktop digital multimeter with up to 2,000,000 counts and convinces through high accuracy, versatility and complete automation. Along with the basic measurement functions the device also supports mathematical operations as well as capacity and temperature measurement. Equipped with a 4.3-inch TFT color display (480 × 272) and LAN, USB, RS-232C and optional GPIB interfaces, the UT8806E Ideal is suitable as a laboratory instrument or for high-precision measurements in automated test systems.
This text is machine translated.
This text is machine translated.
Features
- True 6½-digit resolution
- Minimum integration time: 0.006 PLC.
- Dual-display function for simultaneous display of two features of the same input signal
- DC voltage measurement range 200 mV to 1000 V.
- DC current measurement range 2 μA to 10 A.
- True RMS, AC voltage measurement range 200 mV to 750 V.
- True-RMS, AC current measuring range 200 μA to 10 A
- Impedance 20 Ω to 1 GΩ, 2-conductor and 4-lead measurement
- Capacity measuring range 2 nF to 200 mF
- Frequency range 20 Hz to 1 MHz
- continuity check and diode test
- Temperature measurement with integrated cold junction compensation for thermocouples
- Multiple mathematical functions: Maximum, minimum, average, standard deviation, PASS/FAIL rating, dBm, dB, relative measurement, histogram, trend graph and bar graph
- USB-connection for storing data and configurations

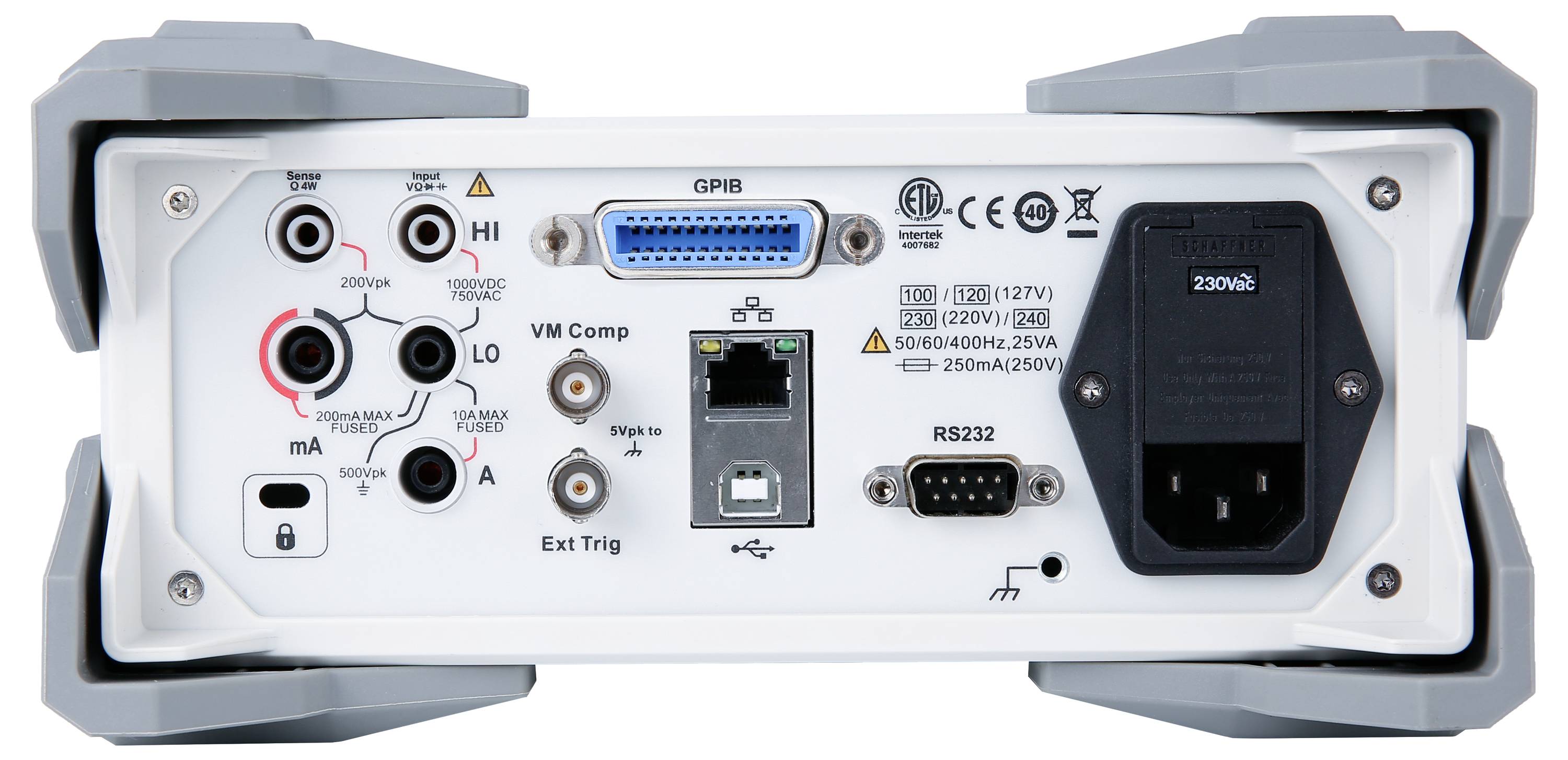

- Supports USB, RS-232C, LAN and GPIB (optional) interfaces
- Supports USB-TMC, IEEE 488.2, VXI11 and SCPI
- Compatible with the latest SCPI instruction set of popular digital multimeters
- Recording and storage of historical measurement results
- 32 GB NAND flash for storing system configurations and test data
- Menu and online help system available in Chinese and English
- PC control software for remote monitoring and data analysis
Scope of delivery
- 1x UT8806E (Digital multimeter, 2,000,000 counts)
- 1x power cord
- 1x USB 2.0 printer cable, 1 m
- 1x RS232 interface cable (socket to socket)
- 1x UT-L41 Alligator short-circuit test lead, red and black
- 1x UT8805 test leads, red and black
- 1x temperature sensor type K
- 1x anti-fog agent, 3 g
- 1x calibration certificate
- 1x safety instructions (multilingual)
- 1x quick start guide (English)
