Uni-T UTD1050CL Digital 50 MHz 200 MSa/s 12 KP 8 Bit Multimeter functions 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

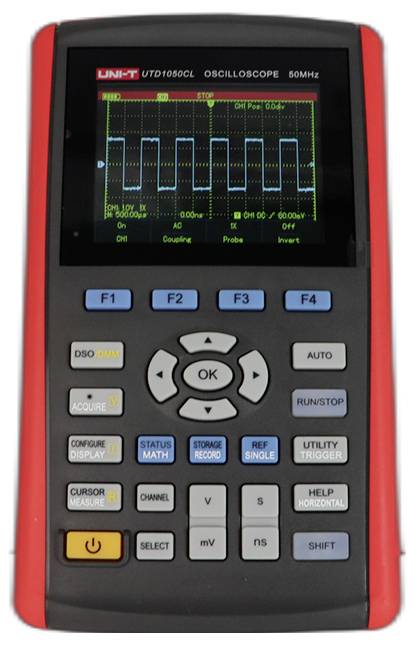

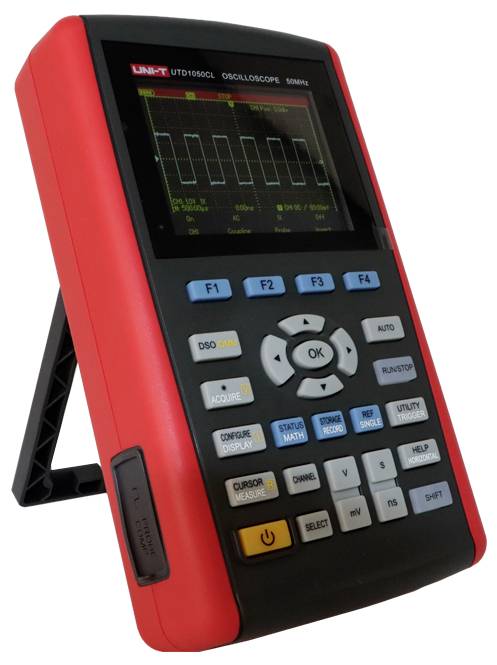

UNI-T hand-held oscilloscope UTD1050CL
- 50 MHz
- No. of analogue inputs 1
Technical specifications
- Integrated digital multimeter (DMM)
- Operation via accumulators
- 22 automatic signal measurements
- USB interface
- Trend recorder / curve memory
- Product type
Digital
- Bandwidth
50 MHz
- Channel sample rate
200 MSa/s
- Displays
3.5 inch TFT LCD, color display, 320 x 240 pixels, multimeter display up to 3999 counts
- Resolution
8 Bit
- Screen size
3,5 inch
- Oscilloscope features
Multimeter functions
- Time base
5 ns/div to 50 s/div
- No. of analogue inputs
1
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Vertical deflection
5 mV/div to 20 V/div
- Input impedance
1 MΩ
- Input coupling
DC AC GND
- Input voltage
300 V
- Power supply (details)

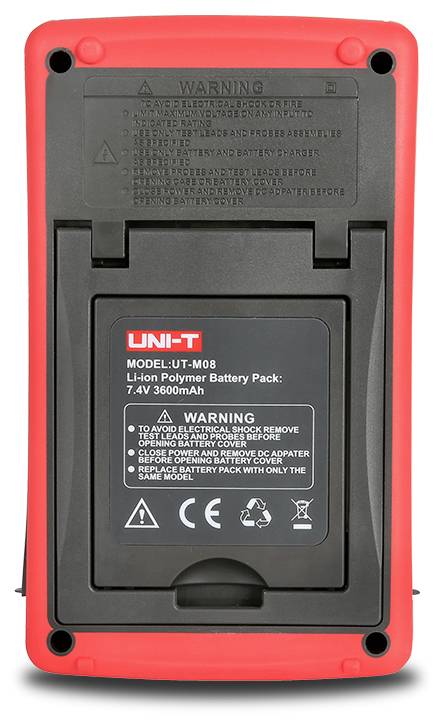

Built-in Li-ion battery (7.4 V / 3600 mAh, approx 8 hours run time) or AC power supply (DC 9 V / 4 A, input 100–240 V AC, 50/60 Hz)
- Dim
(L x W x H) 49 x 118 x 199 mm
- Weight
0.9 kg
- Display
320 x 240 p
- Calibration service
Factory standard
- Width
118 mm
- Height
199 mm
- Length
49 mm
- Interfaces
Mini USB
- Channel memory depth
12 KP
- Type
UTD1050CL
Documents & Downloads
Datasheet
Datasheet 3812397 Uni-T UTD1050CL Digital 50 MHz 200 MSa/s 12 KP 8 Bit Multimeter functions 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3812397 Uni-T UTD1050CL Digital 50 MHz 200 MSa/s 12 KP 8 Bit Multimeter functions 1 pc(s)
Description
The UTD1050CL is an economical handheld digital storage oscilloscope with a bandwidth of 50 MHz and a sampling rate of 2000 MSa/s. It integrates an oscilloscope, a multimeter, a trend diagram and a waveform recording function. The compact and portable design offers the user a unique visual and operational experience. With trigger types such as flank, pulse width, video and slope, this series offers versatile functionality. It can be powered via an external power supply or built-in lithium batteries, making WAS it a popular portable measuring instrument for engineers.
This text is machine translated.
This text is machine translated.
Features
- Bandwidth 50 MHz
- Channels: 1
- Sampling rate 200MSa/s
- Rise time: Less than 7ns
- Memory depth: 12kpts
- Display : 3.5 inch TFL LCD
Scope of delivery
- UTD1050CL (50 MHz, 1 channel) x 1
- USB cable x 1
- Passive probes UT-H03(60 MHz) x 1
- Power distributor UT-M07(10 A) x 1
- USB cable x 1
- Mains adapter x 1
- Multimeter test leads x 1 pair
Hints
More models
- UTD1050DL: 50 MHz bandwidth, 2 analog channels, 250 MSa/s sampling rate, up to 12kpts memory depth
- UTD1025CL: 25 MHz bandwidth, 1 analog channel, 200 MSa/s sampling rate, up to 12kpts memory depth
