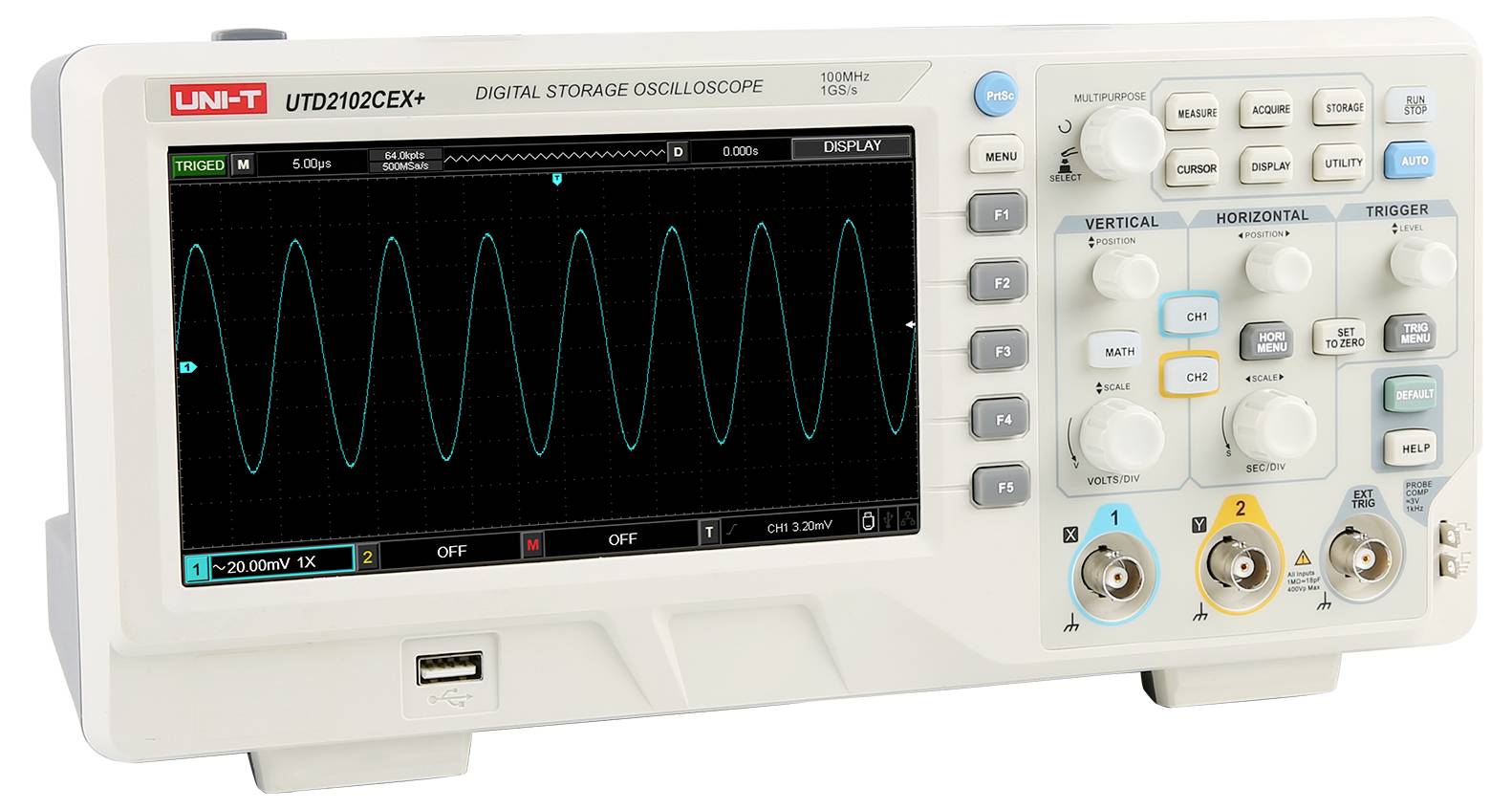

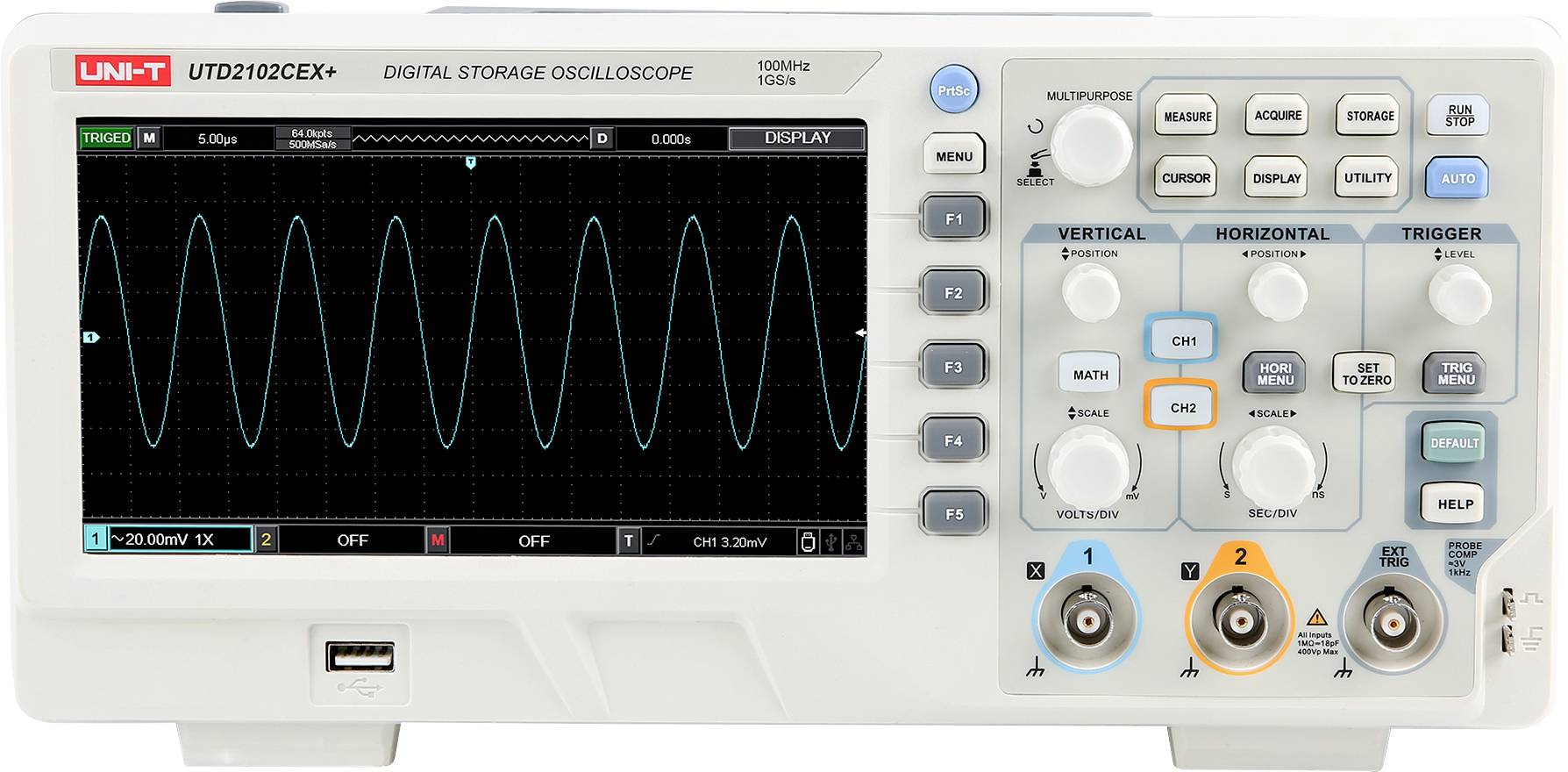

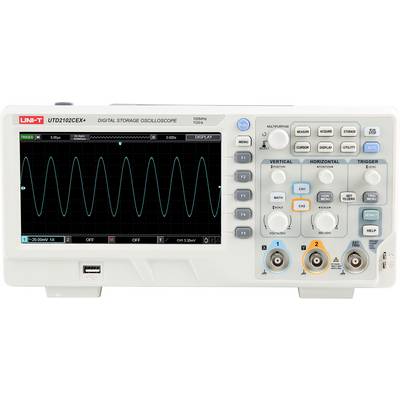

Uni-T UTD2102CEX+ Digital 100 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T UTD2102NEX+ digital oscilloscope 100 MHz 2-channel 1 GSA/s 64 kpts ≥5000wfs/ 7" display Digital memory (DSO)
- 100 MHz
- No. of analogue inputs 2
Technical specifications
- Product type
Digital
- Bandwidth
100 MHz
- Channel sample rate
1 GS/s
- Oscilloscope features
Digital storage (DSO)
- No. of analogue inputs
2
Manufacturer's standards (no certificate)
- Channel memory depth
64 KP
- Type
UTD2102CEX+
Documents & Downloads
Datasheet
Datasheet 3400003 Uni-T UTD2102CEX+ Digital 100 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3400003 Uni-T UTD2102CEX+ Digital 100 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)
User & Safety Instructions 3400003 Uni-T UTD2102CEX+ Digital 100 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)
Description
The UTD2102TEX+ is a powerful oscilloscope designed for precise and efficient signal analyzes. It offers a number of extended functions and enables a flexible measurement of different signals.
The UTD2102CES+ features multiple trigger modes, 34 automatic measurement functions, and mathematical operations for detailed signal processing. The optimized user interface improves control and increases work efficiency, so that even complex signal measurements can be handled with ease.
This text is machine translated.
The UTD2102CES+ features multiple trigger modes, 34 automatic measurement functions, and mathematical operations for detailed signal processing. The optimized user interface improves control and increases work efficiency, so that even complex signal measurements can be handled with ease.
This text is machine translated.
Features
- - Extended display area & versatile square wave options: The UTD2000MEX+ series offers a 8div × 16div display area and a new AUTOSET strategy that facilitates complex testing.
- - Multi-lingual & flexible square wave output: Supports 9 languages and offers square wave signals with 10 Hz, 100 Hz, 1 kHz and 10 kHz for selection.
- - Various measurement and waveform recording functions : 34 automatic measurements and waveform recording with up to 1000 frames allow detailed analysis through playback and storage functions.

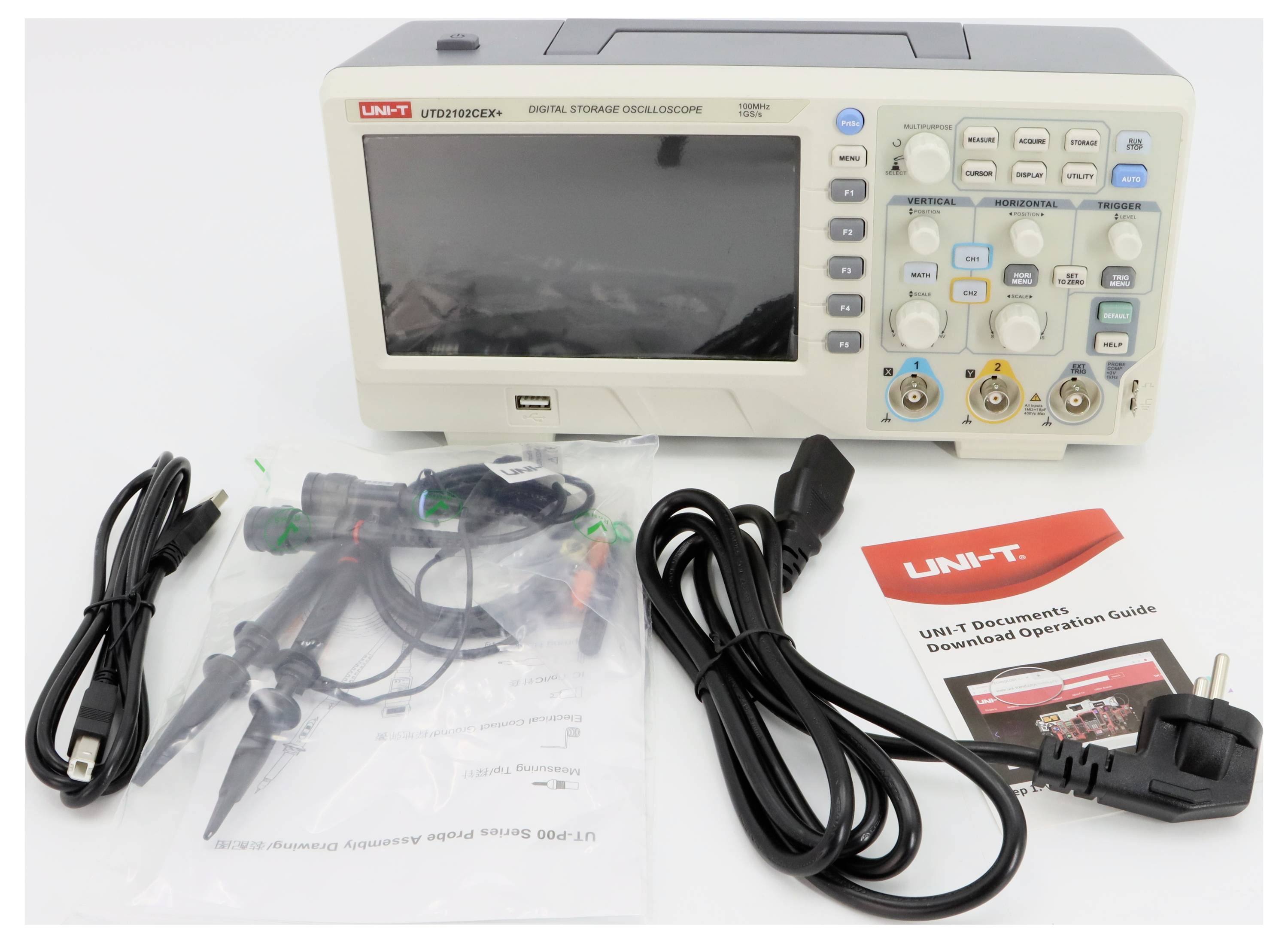

Scope of delivery
- - UTD2102CES+ (100 MHz, 2 channels) x 1
- - Power cord × 1
- - USB CABLE (UT-D14) × 1
- - Passive probes (100 MHz, UT-P04) × 2
- - Calibration certificate
- - Multilingual safety instructions
- - Brief instructions
Hints
More models
- UTD2202TEX+: 200 MHz bandwidth, 2 channels, 1 GSa/s sampling rate, 64 kpts memory depth, 5,000 WWFMs/s waveform capture rate.
- UTD2052CES+: 50 MHz bandwidth, 2 channels, 1 GSa/s sampling rate, 64 kpts memory depth, 5,000 WFMs/s waveform capture rate.
