Uni-T UTD2202CEX+ Digital 200 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

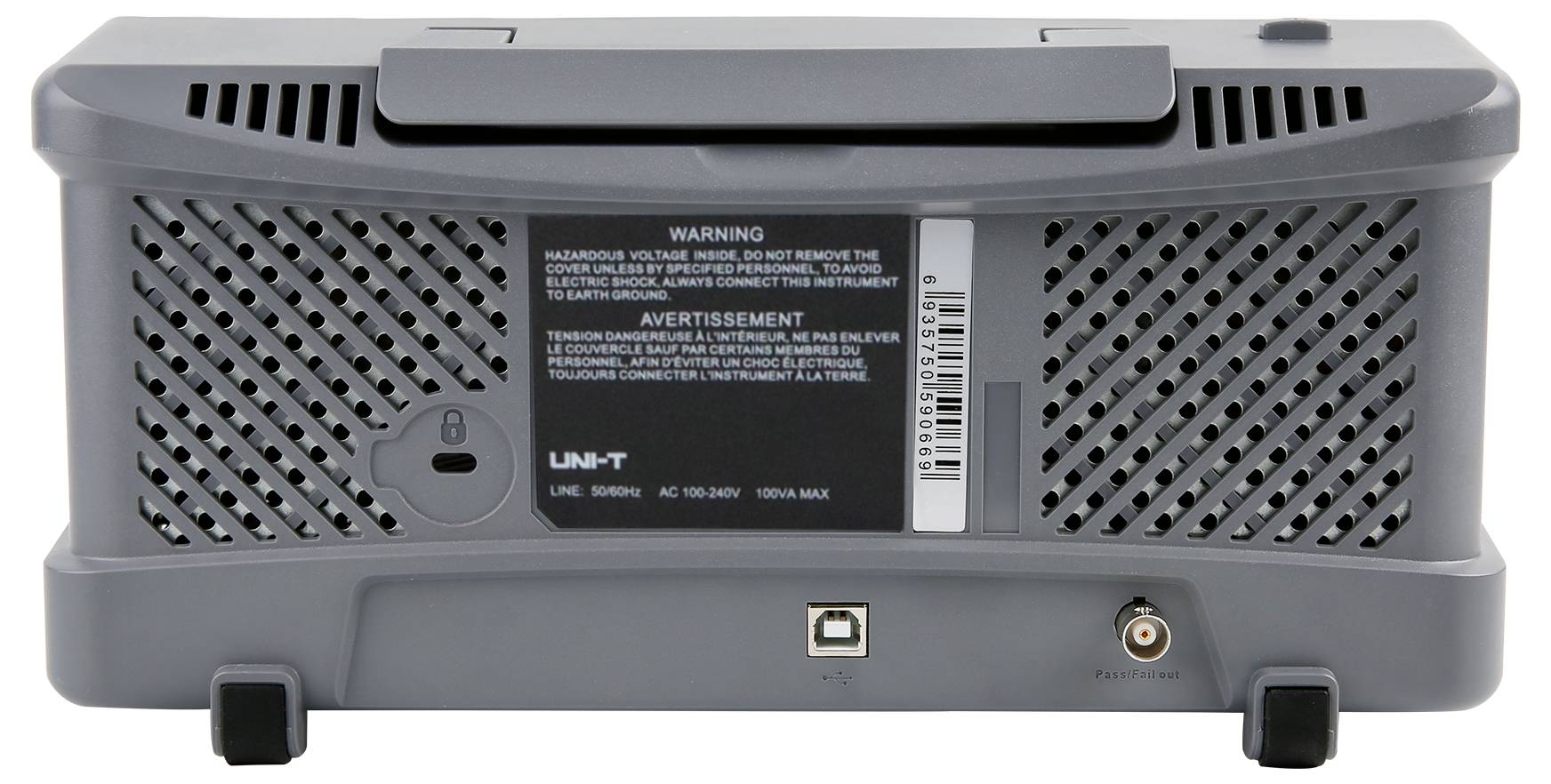

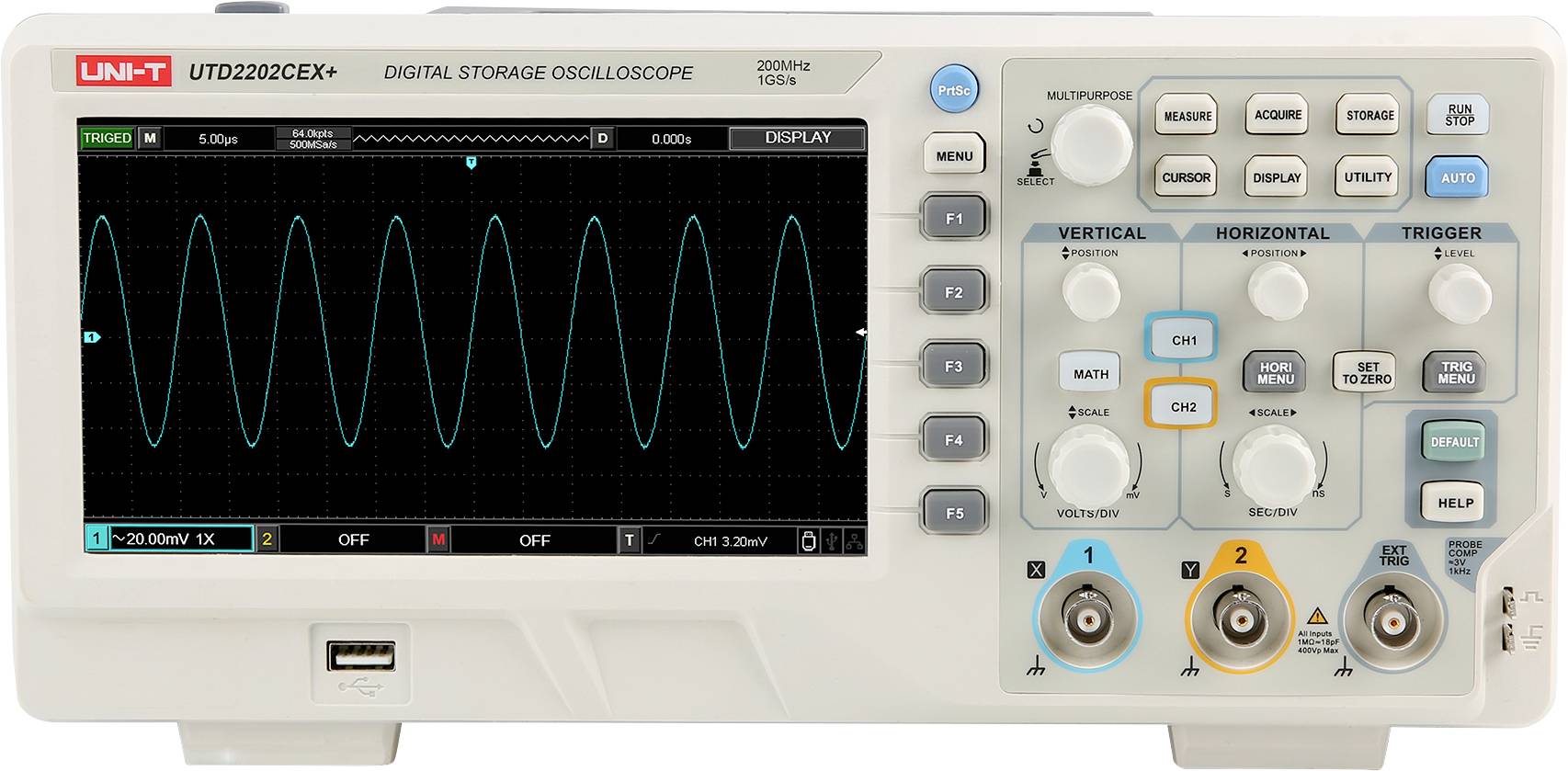

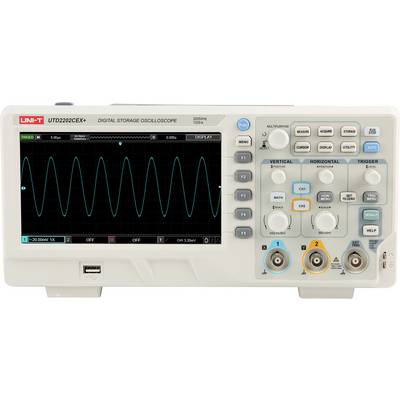

UNI-T UTD2202TEX+ Digital oscilloscope 200 MHz 2 channel 1 GSA/s 64 kpts ≥5000wfs/ 7" display Digital memory (DSO)
- 200 MHz
- No. of analogue inputs 2
Technical specifications
- Product type
Digital
- Bandwidth
200 MHz
- Channel sample rate
1 GS/s
- Oscilloscope features
Digital storage (DSO)
- No. of analogue inputs
2
Manufacturer's standards (no certificate)
- Channel memory depth
64 KP
- Type
UTD2202CEX+
Documents & Downloads
Datasheet
Datasheet 3400002 Uni-T UTD2202CEX+ Digital 200 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3400002 Uni-T UTD2202CEX+ Digital 200 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)
User & Safety Instructions 3400002 Uni-T UTD2202CEX+ Digital 200 MHz 1 GS/s 64 KP Digital storage (DSO) 1 pc(s)
Description
The UTD2202TEX+ is a powerful oscilloscope developed for precise and efficient signal analyzes. It offers a number of extended functions and enables a flexible measurement of different signals.
The UTD2202TEX+ has a variety of trigger modes, 34 automatic measurement functions as well as mathematical operations for detailed signal processing. The optimized user interface improves control and increases work efficiency, so that even complex signal measurements can be handled with ease.
This text is machine translated.
The UTD2202TEX+ has a variety of trigger modes, 34 automatic measurement functions as well as mathematical operations for detailed signal processing. The optimized user interface improves control and increases work efficiency, so that even complex signal measurements can be handled with ease.
This text is machine translated.
Features
- - Extended display area & versatile square wave options: The UTD2000MEX+ series offers a 8div × 16div display area and a new AUTOSET strategy that facilitates complex testing.
- - Multi-lingual & flexible square wave output: Supports 9 languages and offers square wave signals with 10 Hz, 100 Hz, 1 kHz and 10 kHz for selection.
- - Various measurement and waveform recording functions : 34 automatic measurements and waveform recording with up to 1000 frames allow detailed analysis through playback and storage functions.
Scope of delivery
- - UTD2202TEX+ (200 MHz, 2 channels) x 1
- - Power cord × 1
- - USB CABLE (UT-D14) × 1
- - Passive probes (200 MHz, UT-P05) × 2
- - Calibration certificate
- - Multilingual safety instructions
- - Brief instructions
Hints
More models
- UTD2102CES+: 100 MHz bandwidth, 2 channels, 1 GSa/s sampling rate, 64 kpts memory depth, 5,000 WWFMs/s waveform capture rate.
- UTD2052CES+: 50 MHz bandwidth, 2 channels, 1 GSa/s sampling rate, 64 kpts memory depth, 5,000 WFMs/s waveform capture rate.
