Uni-T UTG2122X Mains-powered 120 Hz (max) 2-channel Arbitrary, Rectangle, Pulse, Ramp, Noise
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T UTG2122X arbitrary function generator 120MHz 2-channel 625MS/s 64Mpts 4.3″ TFT-LCD
- Maximum output frequency: 120 MHz
- - Sampling rate: 625 MSa/s.
- - Vertical resolution: 16 bits
- - Channels: 2
- - Arbitrary waveform length: 64 Mpts
- - Display: 4.3″ TFT LCD
Technical specifications
- Product type
Mains-powered
- Frequency range
120 Hz (max)
- Signal output types
Arbitrary
Rectangle
Pulse
Ramp
Noise
- Frequency range (sine)
1 μHz bis 120 MHz
- Frequency range square wave
1 μHz bis 50 MHz
Manufacturer's standards (no certificate)
- Internal modulation
2 mHz to 1 MHz
- Dim
(W x H) 215 mm x 103 mm
- Weight
2.5 kg
- No. of channels
2-channel
- Max. frequency
120 Hz
- Width
215 mm
- Height
103 mm
- Voltage supply
Mains
- Type
UTG2122X
Documents & Downloads
Datasheet
Datasheet 3400013 Uni-T UTG2122X Mains-powered 120 Hz (max) 2-channel Arbitrary, Rectangle, Pulse, Ramp, Noise
User & Safety Instructions
User & Safety Instructions 3400013 Uni-T UTG2122X Mains-powered 120 Hz (max) 2-channel Arbitrary, Rectangle, Pulse, Ramp, Noise
User & Safety Instructions 3400013 Uni-T UTG2122X Mains-powered 120 Hz (max) 2-channel Arbitrary, Rectangle, Pulse, Ramp, Noise
User & Safety Instructions 3400013 Uni-T UTG2122X Mains-powered 120 Hz (max) 2-channel Arbitrary, Rectangle, Pulse, Ramp, Noise
Description

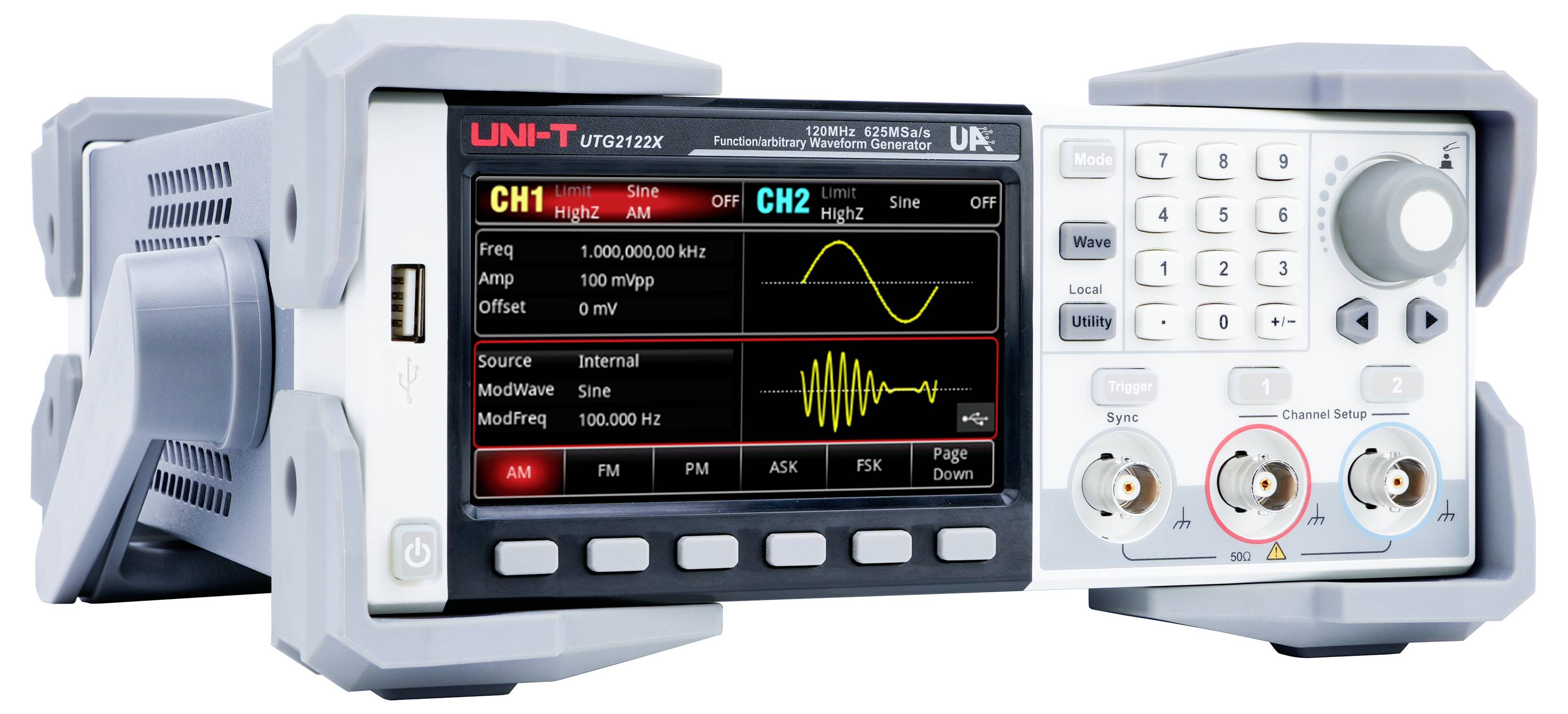

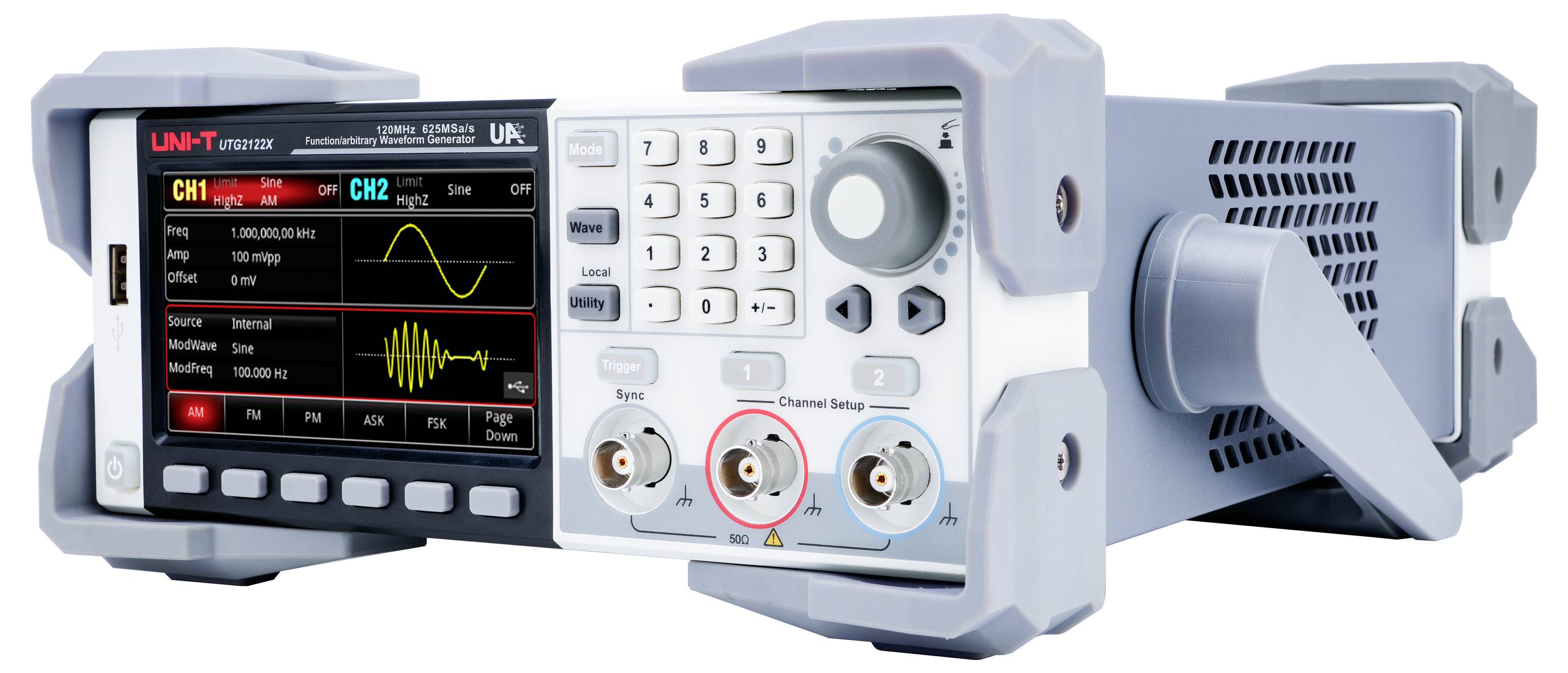

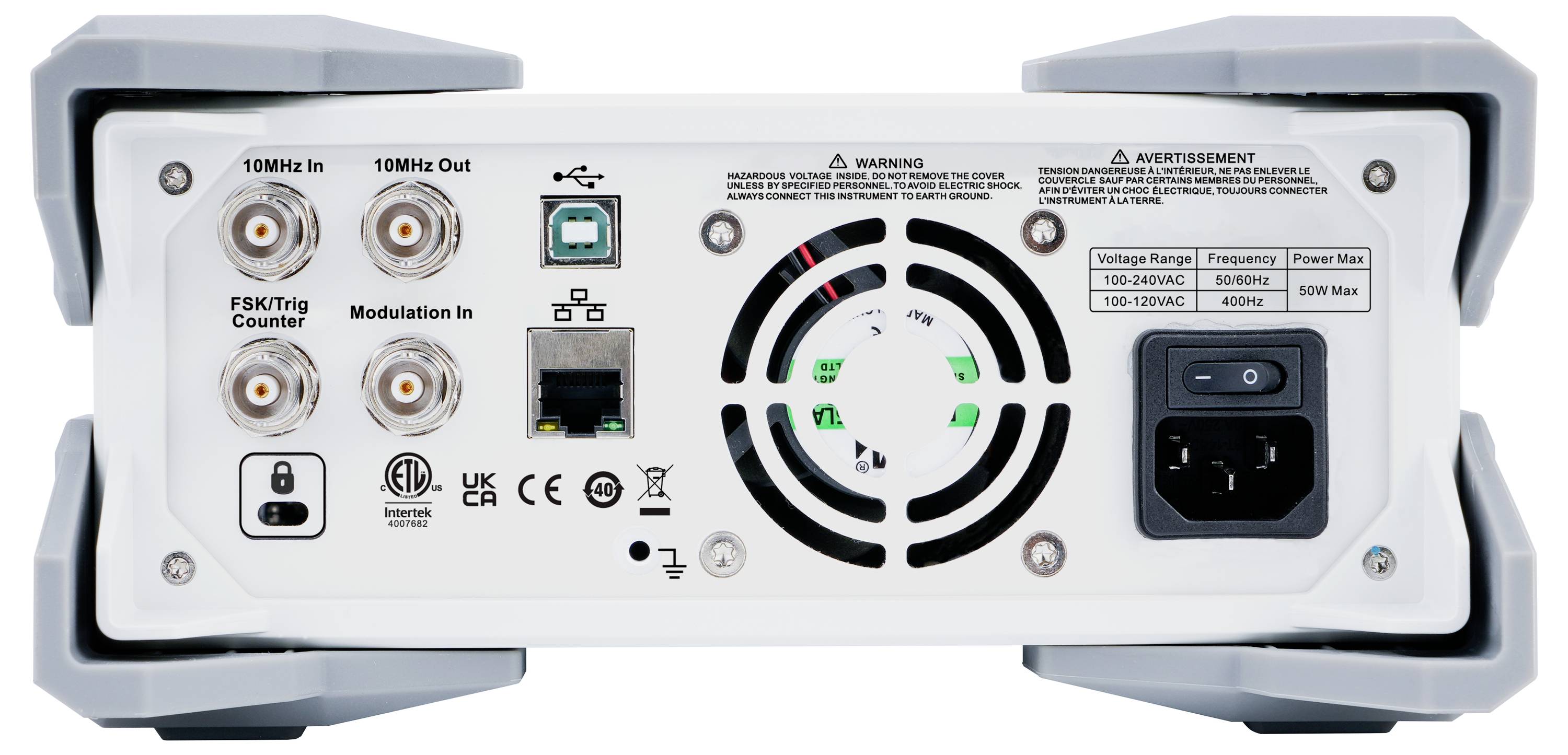

The UTG2122X is a function/arbitrary waveform generator based on Direct Digital Synthesis (DDS) technology that ensures accurate and stable waveform output with a resolution of up to 1 μHz. It offers a maximum output frequency of 120 MHz, a sampling rate of 625 MSa/s and 16-bit resolution for precise signal generation. With 2 channels, a 64 Mpts arbitrary waveform length and a 4.3″ TFT LCD touch screen, the UTG2122X offers an intuitive user interface and excellent signal quality, Ideal for testing and learning applications.
This text is machine translated.
This text is machine translated.
Features

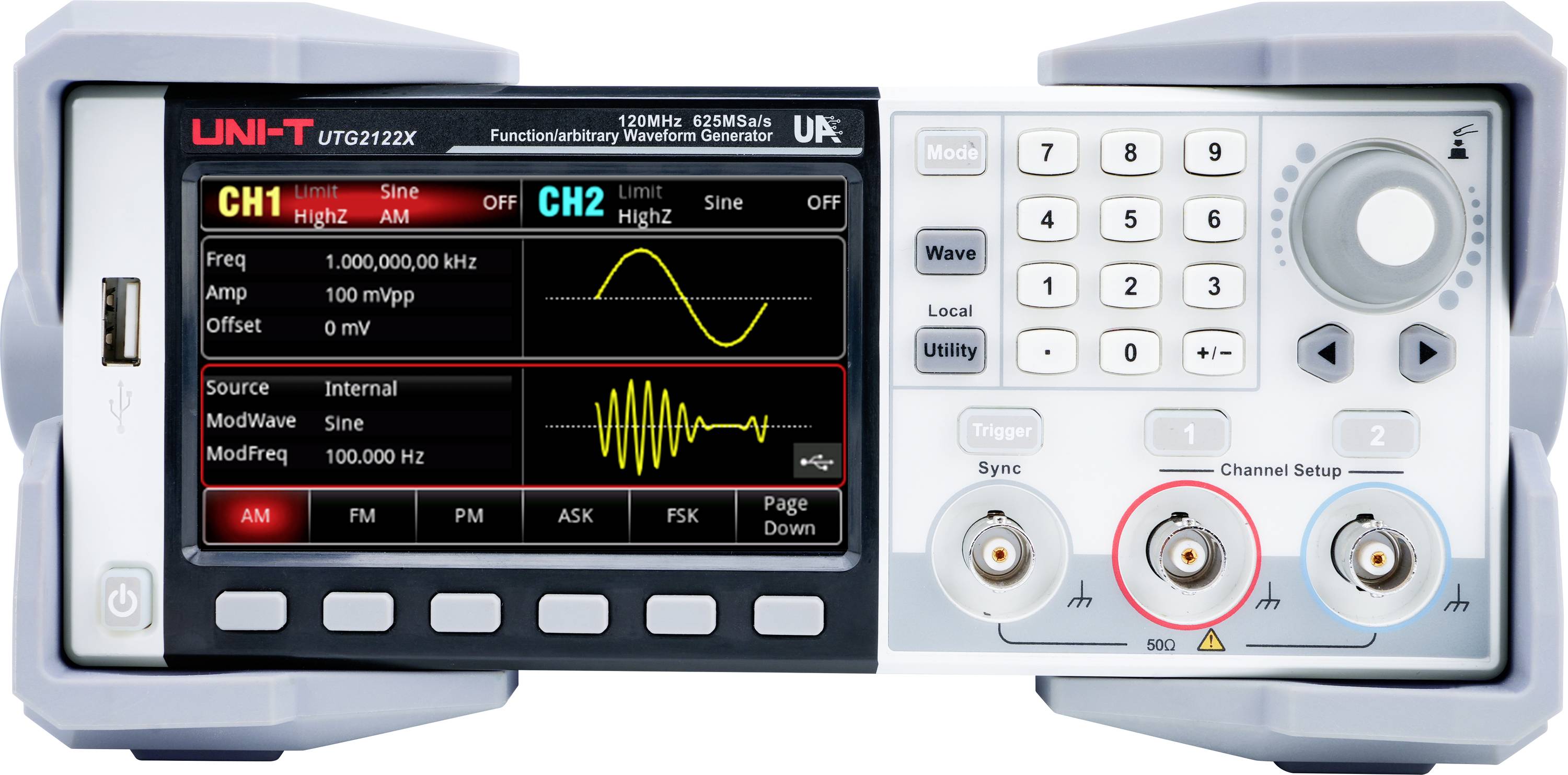

- - 4.3″ touch display: High-resolution 4.3-inch touch screen for faster and more convenient control of the unit.
- - Equivalent power on both channels: High amplitude output – both channels offer a full amplitude of 20 Vpp at frequencies up to 20 MHz.

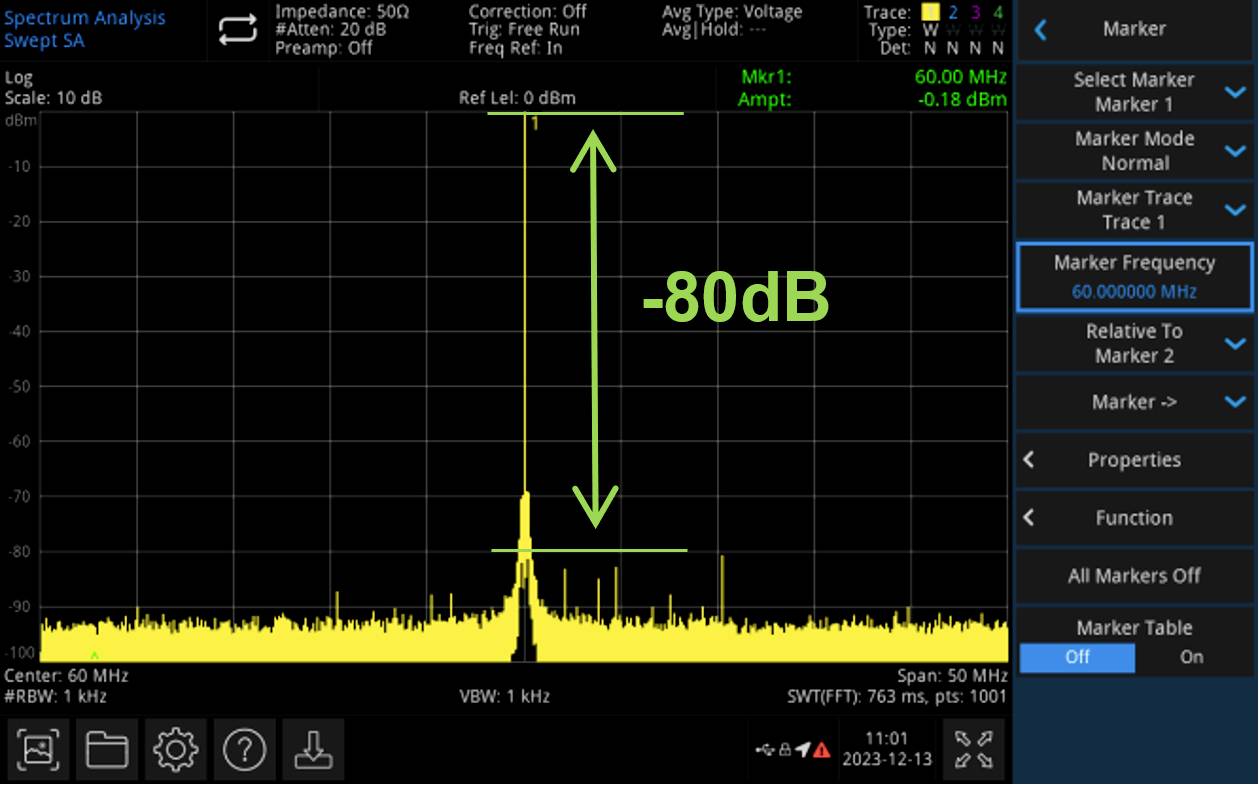

- - Low distortion: Excellent harmonic distortion with a free dynamic range of -80 dBc.

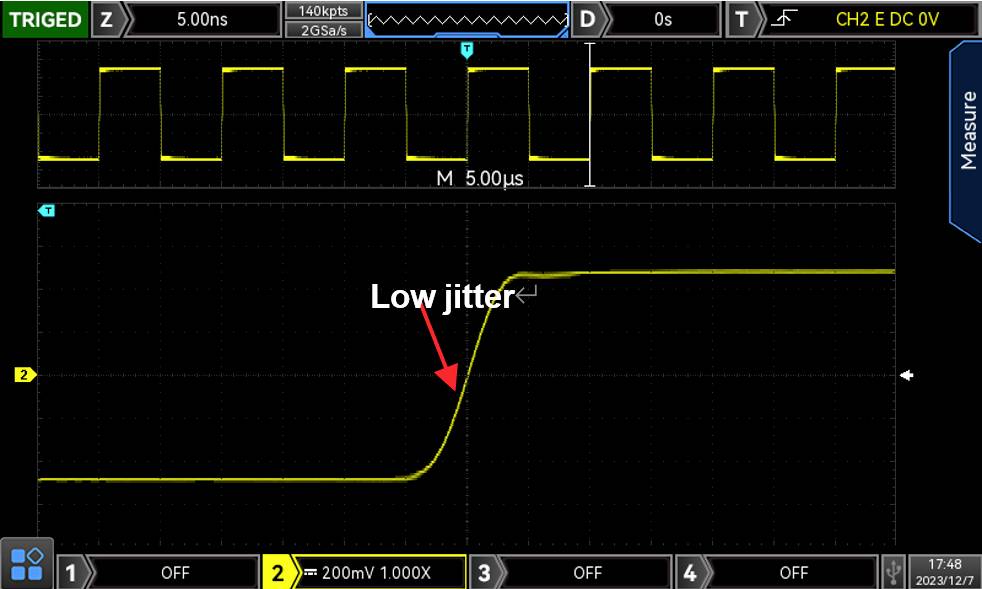

- - Low jitter: Advanced digital scanning technology ensures stable and accurate signal output.

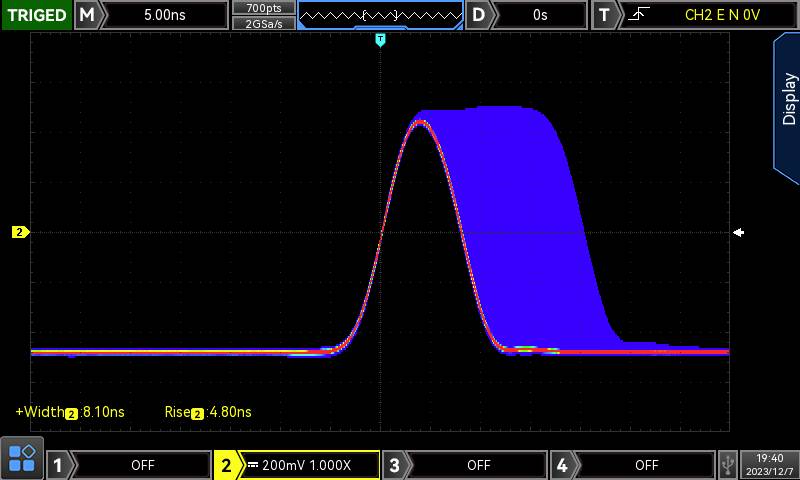

- - Fast edge control: The new generation of high-precision, wide dynamic pulse shafts offers a minimum pulse width of 8 ns. The pulse width can be finely adjusted with a minimum step width of 100 HP and enables the generation of higher harmonics.
- - High Signal-to-Noise Distance (SNR): A small signal overlay with a large DC component reduces output noise and increases signal-to-noise ratio (SNR). (The CH1 signal in the figure is generated by the UTG2000X series.)
- - Versatile modulation modes: Support for 15 modulation types, including AM, FM, PM, DSB-DG66:DG70AM, ASK, FSK, PSK, 3FSK, 4FSK, BPSK, QPSK, OSK, SUM, QAM AND PWM.
- - Channel merge: Signals can be combined by SUM function or channel stacking to produce adjustable SNR signals and Dual tone multifrequency signals.
- - Arbitrary wave editor: The arbitrary wave editor allows you to create individual waveforms by inserting standard waves or drawing freely.
Scope of delivery
- - UTG2122X (2CH, 120MHz)
- - Power cord × 1
- - USB cable × 1
- - BNC cable × 1
- - BNC cable with red and black alligator clips × 1
- - Multilingual safety instructions
- - Brief instructions
- - Calibration certificate
Hints
More models
- UTG2082X: 80 MHz output frequency, 625 MSa/s sampling rate, 16-bit resolution, 2 channels, 64 Mpts arbitrary waveform length, 4.3″ TFT-LCD touch screen.
- UTG2062X: 60 MHz output frequency, 625 MSa/s sampling rate, 16-bit resolution, 2 channels, 64 Mpts arbitrary waveform length, 4.3″ TFT-LCD touch screen.
