Name: Uni-T UTG4104X Mains-powered 1 µHz - 100 MHz 4-channel Sinus, Rectangle, Ramp, Triangle, Noise, Arbitrary
Brand: Uni-T
SKU: 3837317

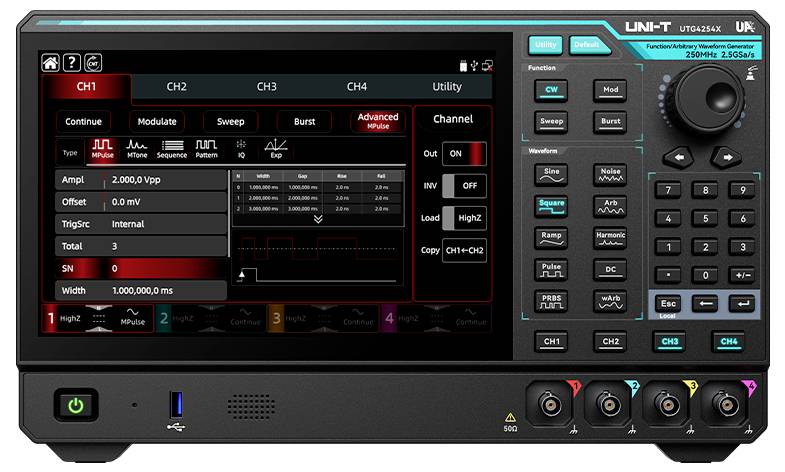

Front panel of a UNI-T arbitrary waveform generator with screen showing CH1 pulse output settings and channel controls.

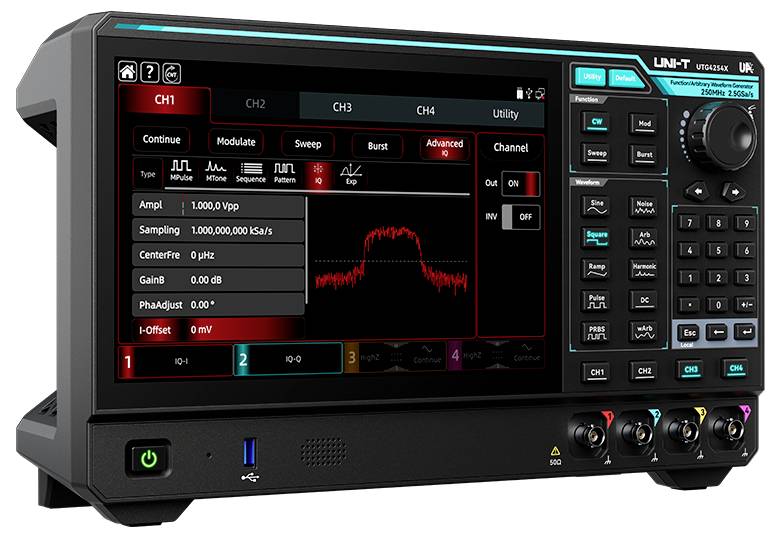

Digital oscilloscope showing channel 1 waveform settings and a red pulse-shaped signal on the display, with control buttons and input ports on the right.

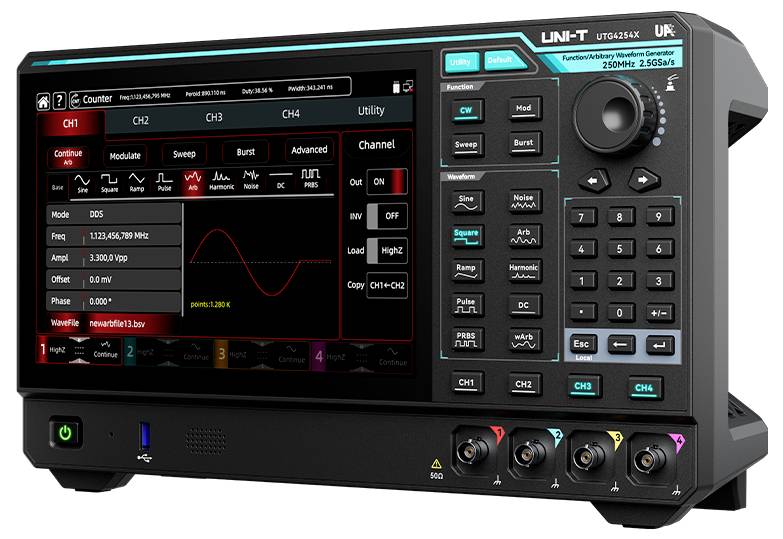

A UNI-T signal generator, shown front view with touchscreen displaying a red waveform and control buttons/knobs for adjusting output channels.

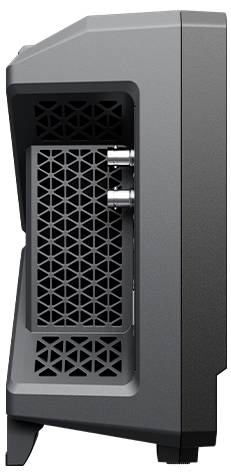

Close-up of the side of a gray electronic device with a black vented grille and two exposed silver connectors.

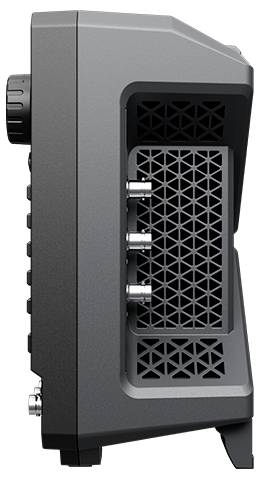

Side view of a compact gray electronic device with vented grille, adjustment knob, and cable connectors on the side.

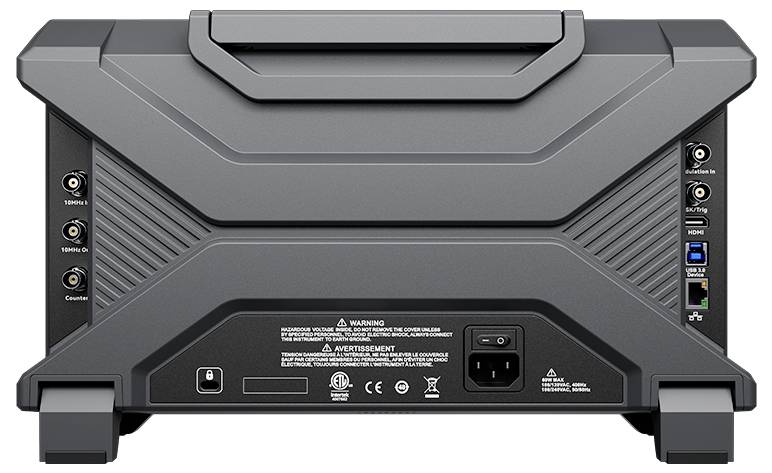

Back view of a rugged flat-panel monitor, showing power input, control buttons, USB and video ports, and a stand base.<br>

1/6

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNI-T function generator UTG4104X, 100MHz, 4-channel, arbitrary

Maximum output frequency: 100 MHz
Sampling rate 2.5 GSa/s
16-bit vertical resolution
Channels: 4
Arbitrary waveform length: 128 Mpts
Display: 10.1-inch TFT LCD touch screen

Technical specifications

10.1-inch capacitive touchscreen
4 independent Channels full power
Noise Overlay (SNR)
Digital protocol output (SPI, I2C, UART)
Advanced functions (multi-pulse, multi-tone, sequence, pattern, I/Q, expression)
Product dimension depth: 106 mm
50 Ω output impedance (typical)
Memory depth: 8 Pts up to 128 Mpts/CH (expandable to 256 Mpts/CH via PC software)

Signal output type: Sine, square, ramps/triangle, pulse, harmonic, Noise, PRBS, DC, Arbitrary

Product type: Mains-powered

Frequency range: 1 µHz - 100 MHz

Signal output types: Sinus
Rectangle
Ramp
Triangle
Noise
Arbitrary

Frequency range (sine): 1 µHz – 100 MHz

Distortion factor (sine): 0,07 %

Frequency range square wave: 1 µHz – 50 MHz

Square wave slew rate: 2 ns

Display: LCD

Frequency range triangle: 1 µHz – 20 MHz (Rampenwelle) Hz

ARB frequency range: 1 µHz – 50 MHz (DDS-Modus) Hz

: Manufacturer's standards (no certificate)

Wobble function: Yes (Sweep: Linear, logarithmic, list, step)

Internal modulation: AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK BPSK, QPSK, OSK, PWM, SUM

External modulation: AM, FM, PM, DSB-AM, ASK FSK, PSK, OSK, PWM, SUM

VCF: Yes

Trigger (synchronous): Internal, External (rising/falling edge), Manual

Gate (asynchronous): Yes (Gated Burst Mode)

Frequency reading (external): Yes (built-in frequency counter 100 MHz – 800 MHz, 8 digits/s)

Dim: (W x H) 361 mm x 209 mm

Weight: 4.5 kg

No. of channels: 4-channel

Max. frequency: 100 MHz

Min. frequency: 1 µHz

Features: incl. cycle counter

Calibration service: Factory calibration without certificate

Reading category: CAT II

Width: 361 mm

Height: 209 mm

Interfaces: USB device
USB host
LAN
HDMI

Voltage supply: 230 V/AC

Type: UTG4104X

Documents & Downloads

Datasheet

Datasheet 3837317 Uni-T UTG4104X Mains-powered 1 µHz - 100 MHz 4-channel Sinus, Rectangle, Ramp, Triangle, Noise, Arbitrary

User & Safety Instructions

User & Safety Instructions 3837317 Uni-T UTG4104X Mains-powered 1 µHz - 100 MHz 4-channel Sinus, Rectangle, Ramp, Triangle, Noise, Arbitrary

Description

The UTG4104X delivers 100 MHz output frequency on four equivalent channels at 2.5 GSa/s sampling rate and 16-bit vertical resolution. The DDS technology produces precise, stable signal shapes with fast rectangular signals. It supports comprehensive analogue and digital modulation types, PRBS, sweep and burst operation as well as the extended signal forms Multi-Pulse, Sequence, Multi-Tone, IQ and Pattern. With 128 Mpts arbitrary memory, integrated signal form editor, frequency counter and 10.1-inch TFT LCD touch screen, the device is versatile in development, training and general electronic testing.

This text is machine translated.

Features

Low-distortion signal output: Interference-free dynamic range of -80 dBc and low jitter for clean, stable signals
Quick edge time: Flank time up to 2 ns, minimum pulse width ≥3 ns, fine adjustment in 100-PS steps, Face time per pulse adjustable
Four independent channels: Simultaneous output on all channels for parallel and multi-device testing
Channel coupling & signal addition: Frequency, amplitude and phase can be freely coupled, outputs can be combined (e.g. CH1 = CH1 + CH2 + CH3 + CH4)
4-channel synchronization: Change to one channel automatically transfers to the other three
One-Click SNR: Overlaying Gauss Noise for direct evaluation of immunity
15 MODULATION TYPES: AM, DSB-AM, FM, PM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, QAM, PWM, TOTAL
Digital protocol output: SPI, I²C and UART
Hardware frequency counter with a measurement range from 100 MHz to 800 MHz
Arbitrary signal editor: Over 200 integrated signal shapes, processing on the device or at the PC by character and mathematical functions
Standard extended signal shapes: Multi-pulse, multi-tone, sequence, pattern, IQ and Exp

Scope of delivery

UTG4104X x1
Power cable x1
USB data cables x1
BNC cable x4

Hints

More models

-UTG4254X: 4 channels, 250MHz output frequency, 2.5 GSa/s sampling rate, 16-bit vertical resolution, 128 Mpts arbitrary waveform length, 10.1-inch TFT LCD touch screen

-UTG4164X: 4 channels, 160MHz output frequency, 2.5 GSa/s sampling rate, 16-bit vertical resolution, 128 Mpts arbitrary waveform length, 10.1-inch TFT LCD touch screen
