Name: Uni-T UTG4202A Mains-powered 1 µHz - 200 MHz 2-channel Arbitrary
Brand: Uni-T
SKU: 3757392

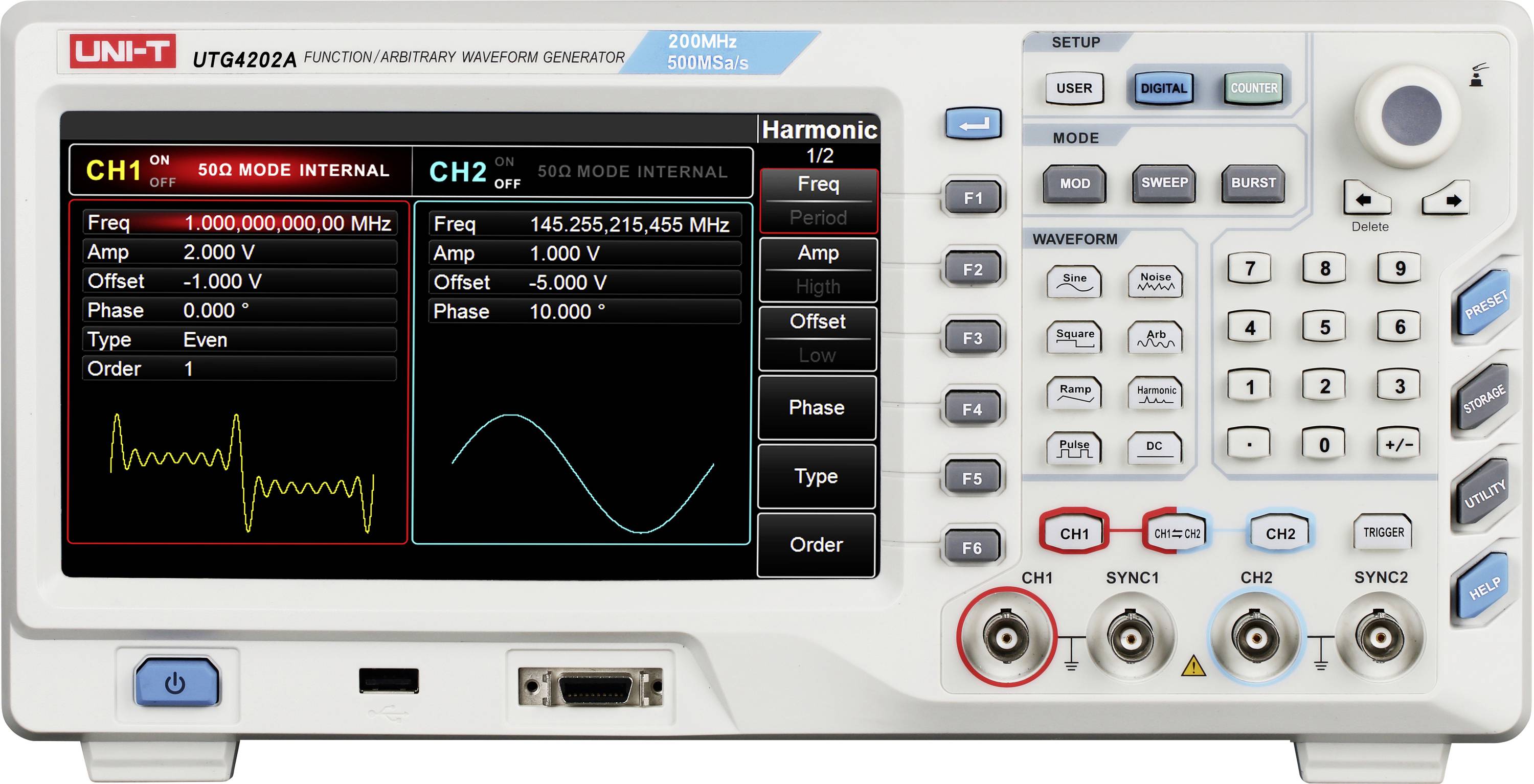

Front view of a UNI-T UTG4024 waveform generator showing dual-channel settings and waveform displays on the screen, with CH1 highlighted in red and CH2 in blue.

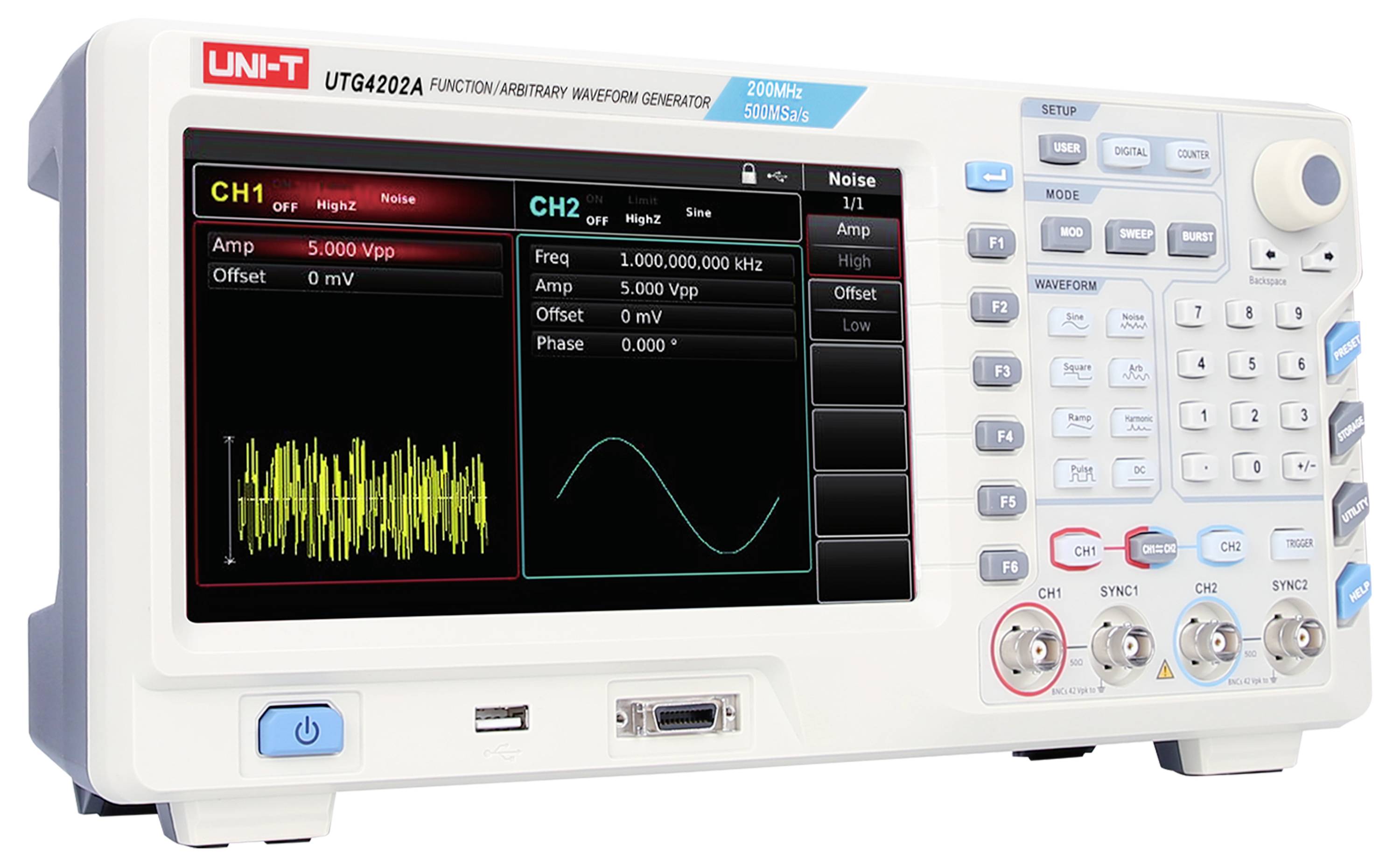

Front view of a UNI-T UTG4202A arbitrary waveform generator showing CH1 and CH2 signal settings and waveform displays on the screen.

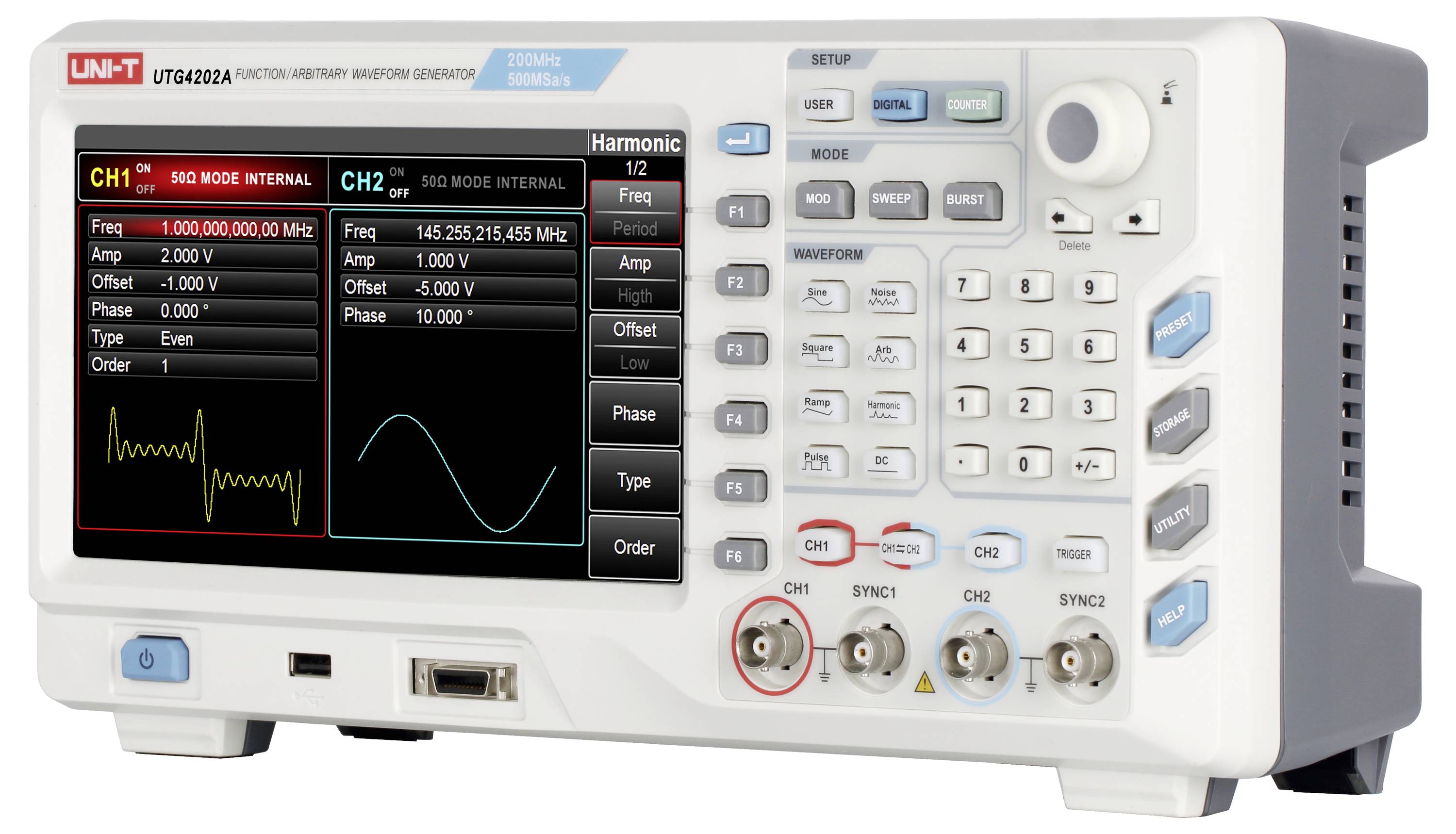

Front panel of a UNI-T function/arbitrary waveform generator with two output channels, waveform display, numeric keypad, control buttons, and BNC output connectors.

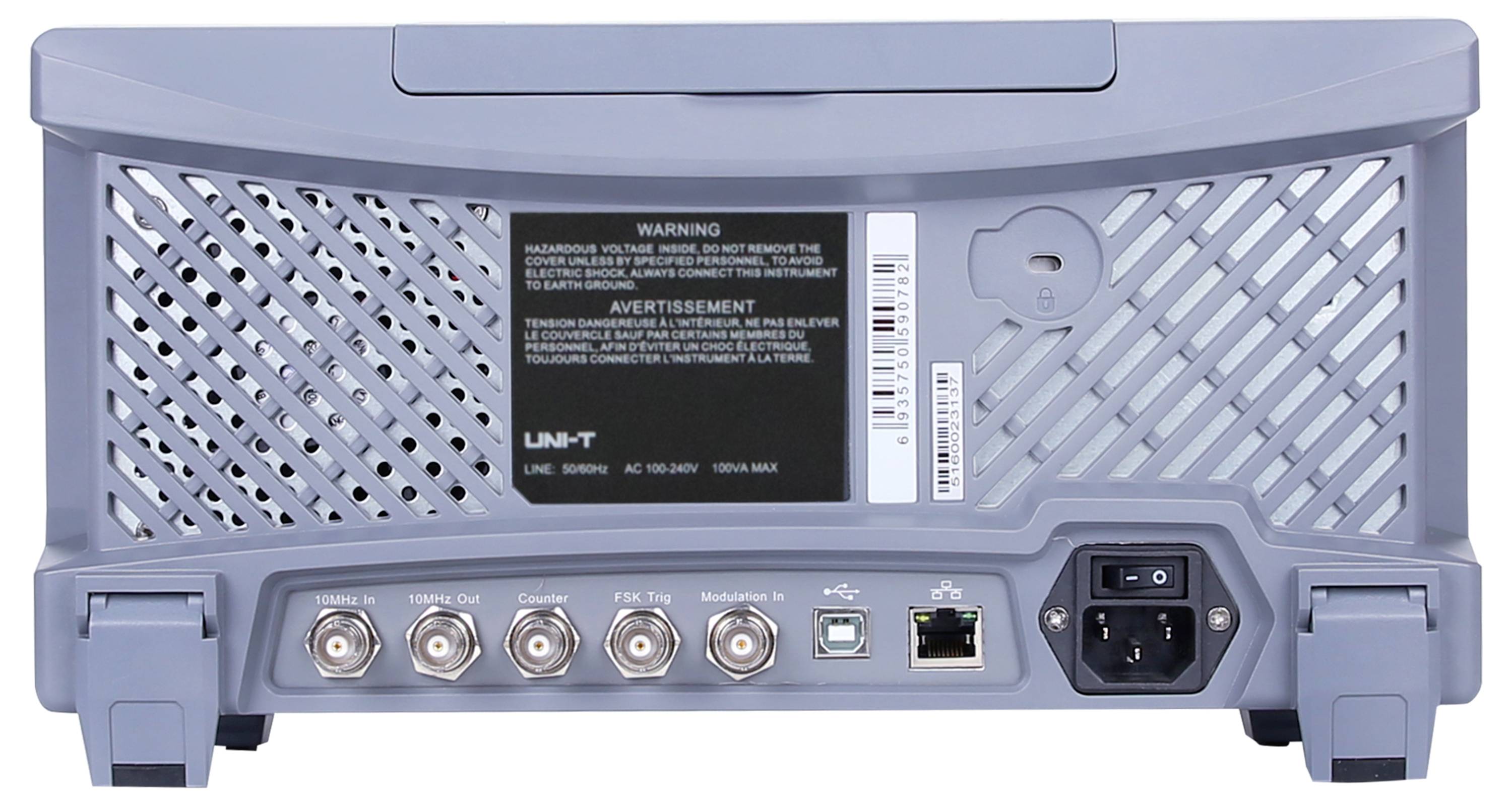

Back of a gray electronic test instrument with ventilation grilles, warning label, coax and USB/Ethernet ports, and power inlet/switch.

1/4

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNI-T UTG4202A arbitrary function generator 200MHz 2-channel 500MSa/S 32Mpts8″ TFT LCD

Maximum output frequency: 200 MHz
Sampling rate 500MSa/s
16-bit vertical resolution
Channels: 2
Arbitrary waveform length: 32 Mpts
Display: 8" TFT LCD

Technical specifications

8-inch (20.3 cm) TFT color LCD, WVGA (800 x 480)
16-bit vertical resolution
Digital protocol output (UART, I2C, SPI)

Signal output type: Sine, square, ramp, harmonic waves, pulse, Noise, DC voltage and arbitrary

Product type: Mains-powered

Frequency range: 1 µHz - 200 MHz

Signal output types: Arbitrary

Frequency range (sine): 1 µHz bis 200 MHz

Distortion factor (sine): 0,2 %

Frequency range square wave: 1 µHz bis 60 MHz

Square wave slew rate: 5 ns

Display: LCD

Frequency range triangle: 1 µHz bis 5 MHz

ARB frequency range: 1 µHz bis 50 MHz

: Manufacturer's standards (no certificate)

Wobble function: Supports linear and logarithmic frequency sweep

Internal modulation: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, TOTAL, QAM

External modulation: AM, FM, PM, ASK, FSK, PSK, PWM, SUM

VCF: Implemented via external analogue modulation input

Trigger (synchronous): Internal, External and Manual

Gate (asynchronous): Supported in gating mode (burst) via external digital modulation interface

Frequency reading (external): Integrated 6-bit frequency counter, range from 100MHz to 800MHz

Dim: (W x H) 336 mm x 164 mm

Weight: 3.5 kg

No. of channels: 2-channel

Max. frequency: 200 MHz

Min. frequency: 1 µHz

Features: Modulation

Width: 336 mm

Height: 164 mm

Interfaces: USB device
USB host
LAN

Voltage supply: 230 V/AC

Type: UTG4202A

Documents & Downloads

Datasheet

Datasheet 3757392 Uni-T UTG4202A Mains-powered 1 µHz - 200 MHz 2-channel Arbitrary

User & Safety Instructions

User & Safety Instructions 3757392 Uni-T UTG4202A Mains-powered 1 µHz - 200 MHz 2-channel Arbitrary

Description

The UTG4202A is used in a wide range of applications and integrates multiple signal forms, including function generator, arbitrary signal generator, pulse generator, harmonic generation, and analogue and digital modulation sources. It offers a high sampling rate of up to 500 MSa/s as well as a maximum waveform length of up to 32 Mpt. UTG4202A uses Direct Digital Synthesizer Technology (DDS) to generate stable, accurate and distortion-free signals. A user-friendly interface with a high-resolution 8-inch display as well as a sophisticated control panel layout ensure efficient and convenient operation.

This text is machine translated.

Features

Various modulation types: Supports AM, FM, PM as well as digital modulations like ASK, FSK, PSK, QAM and many more
Harmonic output function: Up to 16 harmonious, freely adjustable (order, amplitude, phase)
32 Mpts memory depth & 7 GB memory: Large arbitrary wave form memory depth and extensive internal memory
Sweep function: Linear and logarithmic sweep mode
Digital interfaces (optional): SPI, I²C and UART support

Scope of delivery

UTG4202A x 1
Power cable x 1
USB cable x 1
BNC-BNC feed-through cable × 4

Hints

More models

- UTG4082A: 80 MHz output frequency, 500 MSa/s sampling rate, 16-bit resolution, 2 channels, 32 Mpts arbitrary waveform length, 8″ TFT-LCD touch screen.

- UTG4122A: 120 MHz output frequency, 500 MSa/s sampling rate, 16-bit resolution, 2 channels, 32 Mpts arbitrary waveform length, 8″ TFT LCD.

- UTG4162A: 160 MHz output frequency, 500 MSa/s sampling rate, 16-bit resolution, 2 channels, 32 Mpts arbitrary waveform length, 8″ TFT-LCD touch screen.
