Buy Uni-T UTG9354T Mains-powered 350 MHz (max) 4-channel Arbitrary, Rectangle, Pulse, Ramp, Noise, Sinus

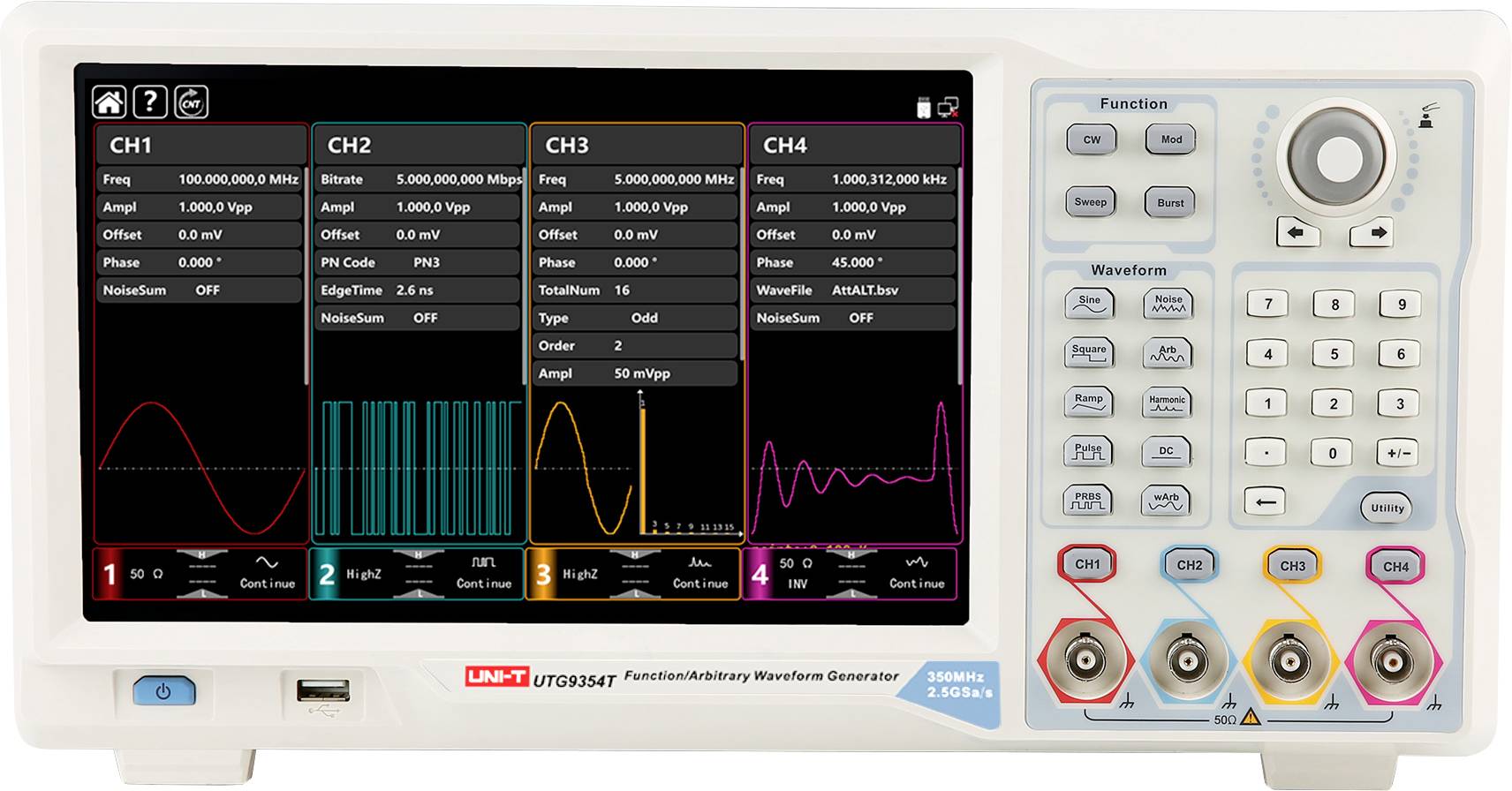

Four-channel (CH1-CH4) function/arbitrary waveform generator. Displays different waveforms and parameters on the screen.

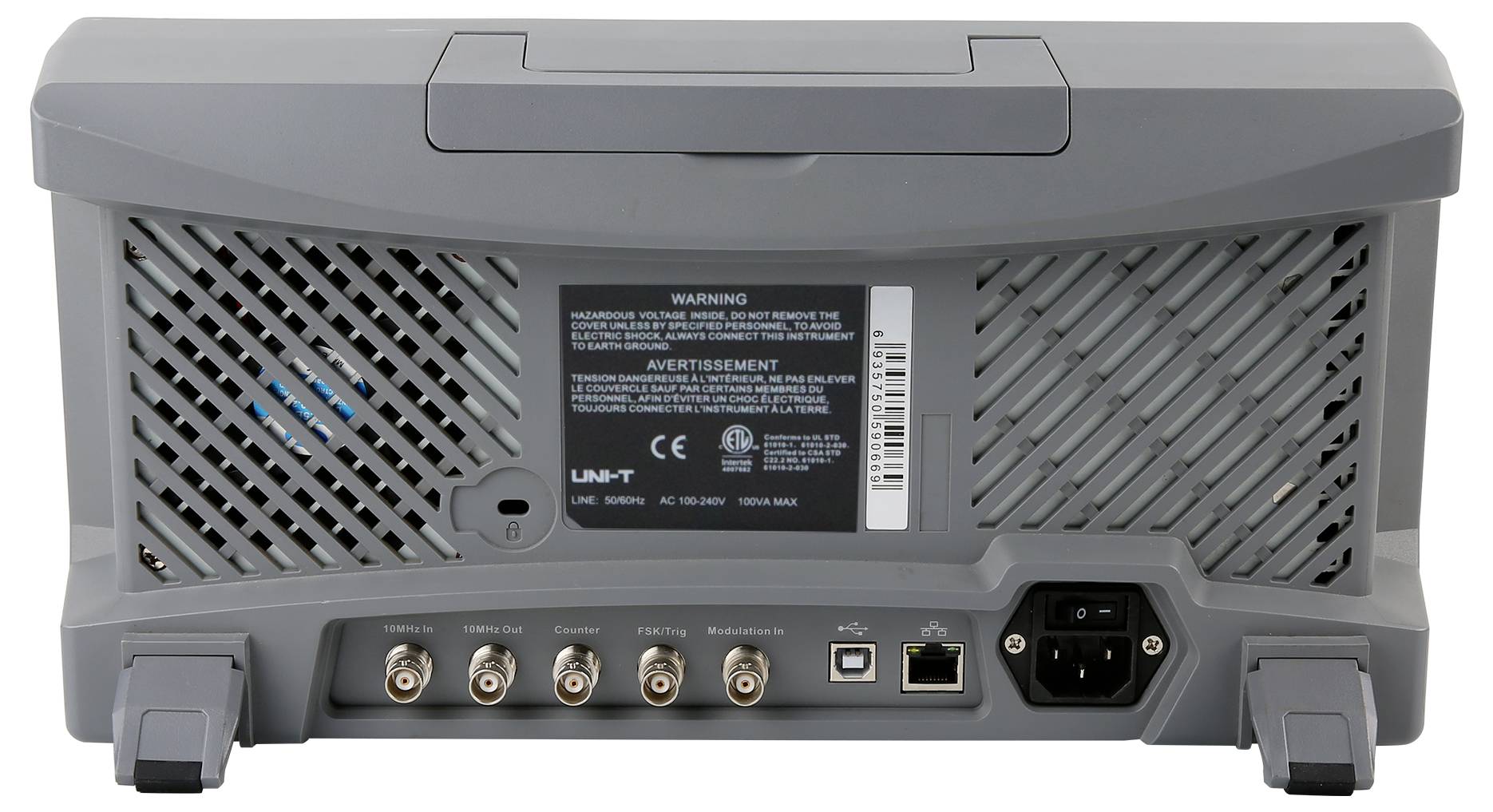

Back of a grey electronic device with multiple interfaces and cable connections, ventilation slots, and warning labels.

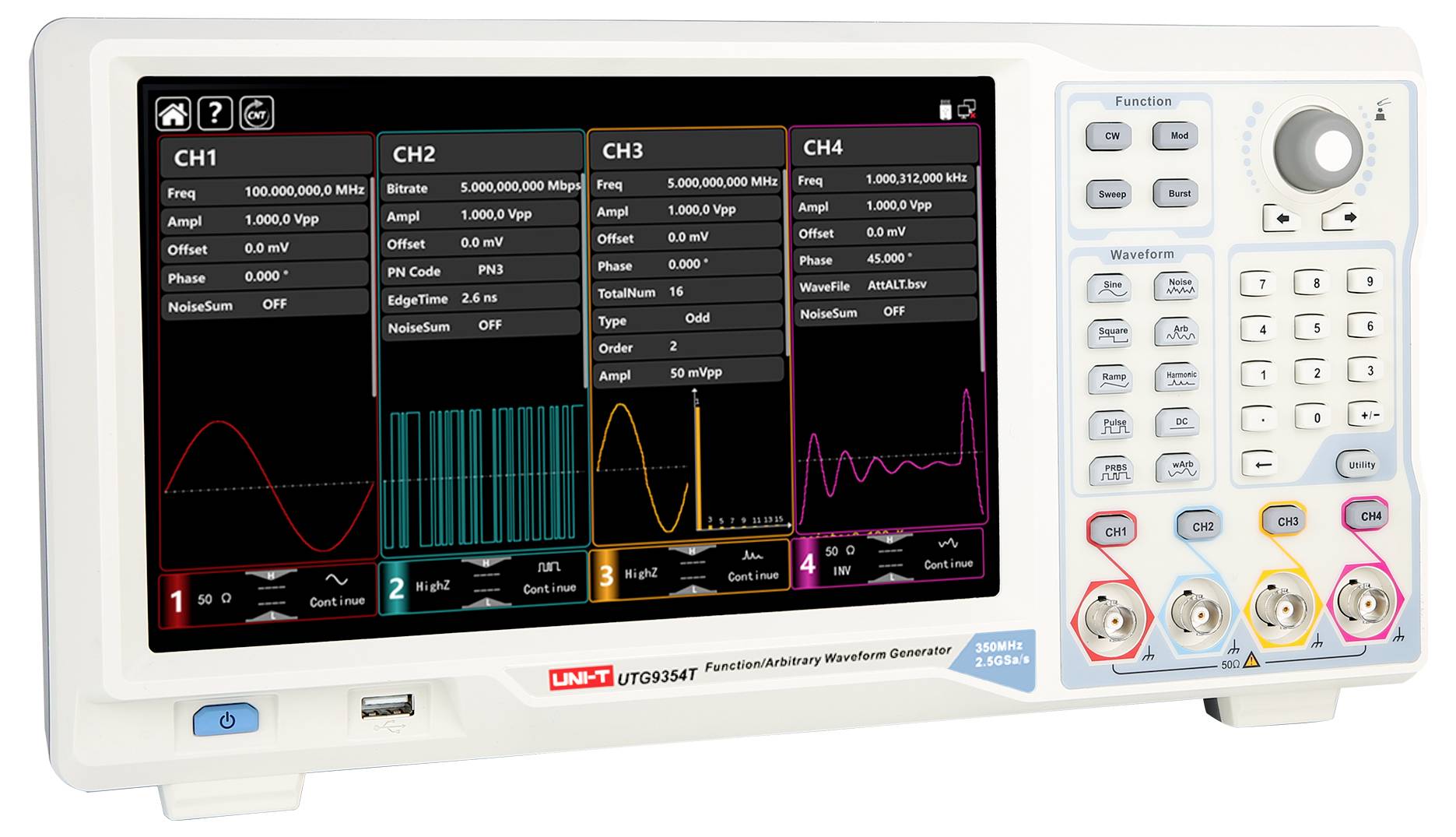

A multi-channel function generator displaying frequency and amplitude measurements. Main functions located on the right-hand side.

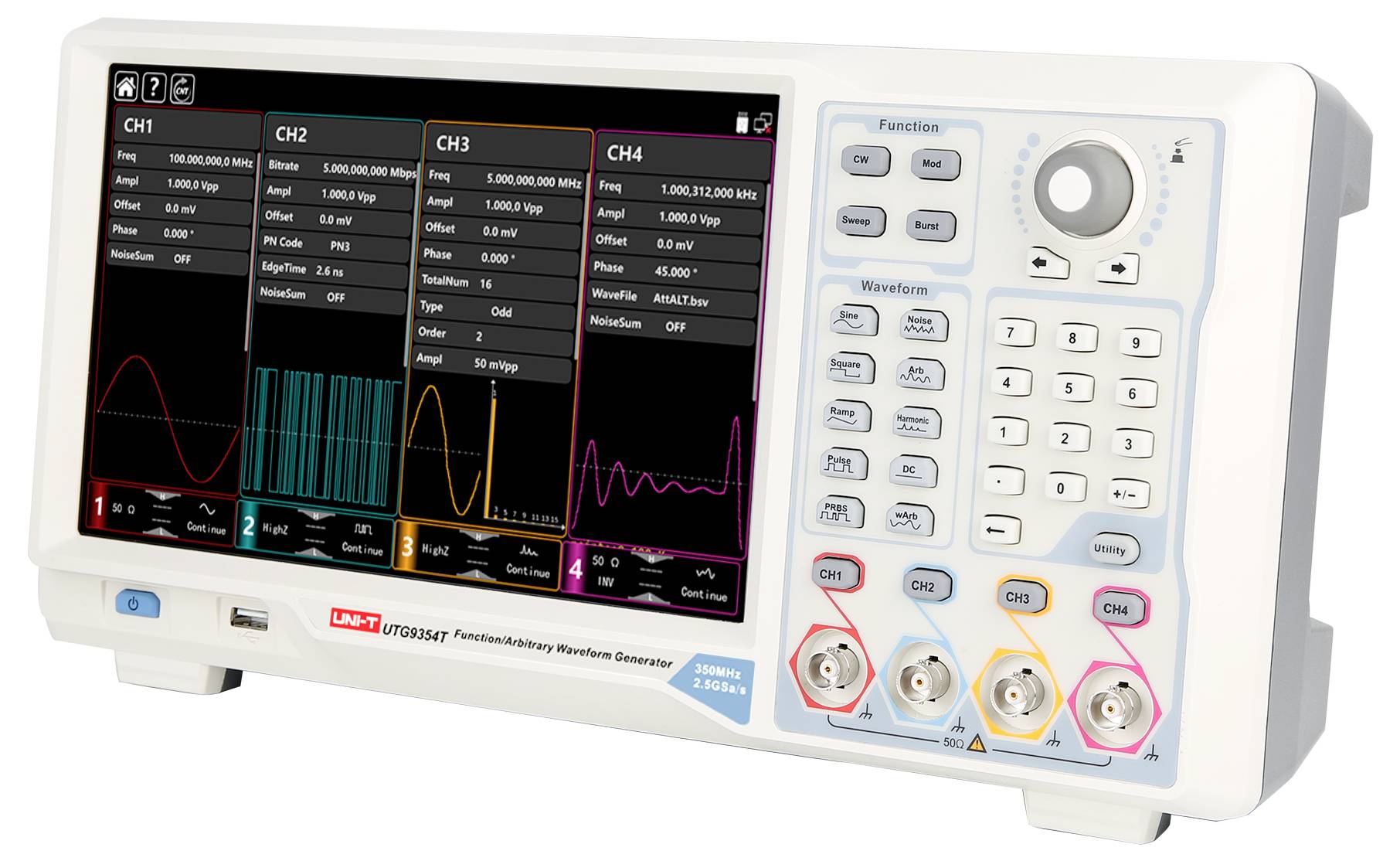

A four-channel function generator displays different wave signals and parameters on the screen. The device has buttons and ports.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

UNI-T UTG9354T arbitrary function generator 350MHz 4-channel 2.5GSA/S 64Mpts10.1″ TFT LCD

Maximum output frequency: 350 MHz
- Sampling rate: 2.5 GSa/s.
- Vertical resolution: CH3 & CH4: 16-bit, CH1 & CH2: 14-bit
- Channels: 4
- Arbitrary waveform length: 64 Mpts
- Display: 10.1-inch TFT LCD

Technical specifications

Product type: Mains-powered

Frequency range: 350 MHz (max)

Signal output types: Arbitrary
Rectangle
Pulse
Ramp
Noise
Sinus

: Manufacturer's standards (no certificate)

Dim: (W x H) 220 mm x 350 mm

Weight: 5 kg

No. of channels: 4-channel

Max. frequency: 350 MHz

Width: 220 mm

Height: 350 mm

Voltage supply: Mains

Type: UTG9354T

Documents & Downloads

Datasheet

Datasheet 3403918 Uni-T UTG9354T Mains-powered 350 MHz (max) 4-channel Arbitrary, Rectangle, Pulse, Ramp, Noise, Sinus

User & Safety Instructions

User & Safety Instructions 3403918 Uni-T UTG9354T Mains-powered 350 MHz (max) 4-channel Arbitrary, Rectangle, Pulse, Ramp, Noise, Sinus

Description

The UTG9354T is a 4-channel waveform generator with a maximum output frequency of 350 MHz and a sampling rate of up to 2.5 GSa/s. It possesses a 16-bit/14-bit vertical resolution and a 64 Mpts arbitrary wave form length, WAS ensures a precise and stable signal generation. Fitted with a 10.1-inch TFT LCD touch screen, the UTG9354T offers an intuitive user interface and ergonomic design that improves the user experience and work efficiency.

This text is machine translated.

Features

- 10.1-inch touchscreen: The UTG9354T features a 10.1 1280×800 capacitive touchscreen and a new UI design that provides intuitive operation and enhanced user experience.
- 4-channel output & 4 sweep modes: Standard 4-channel output for simultaneous generation of various signals. In addition to linear and logarithmic sweep modes, the UTG9354T offers two new modes:
Step mode: Precise, step-by-step adjustments
List mode: Defined values or points for precise control of signal generation
- 8-digit frequency counter: Measures frequencies from 100 mHz to 800 mHz with high precision and analyzes parameters such as frequency, period, duty cycle and positive and negative pulse widths.
- Versatile modulation modes & arbitrary waveforms: Supported AM, FM, PM, DSB-AM, QAM, ASK, FSK, PSK, PWM and more for teaching and communication system testing. Contains over 200 pre-defined waveform for applications in technology, biomedical, standards and mathematics.
- Protocol output: Supports SPI, I2C and UART, Ideal for versatile digital interface tests.
- PRBS and SNR function:
- PRBS generator for checking bit error rates in high-speed data transmissions
- SNR function to superimpose Gaussian noise to evaluate device immunity

Scope of delivery

- UTG9354T (4CH, 350MHz)
- Power cord × 1
- USB data cable × 1
- BNC cable × 4
- Multilingual safety instructions
- Brief instructions
- Calibration certificate

Hints

More models

- UTG9604T: Waveform generator, 600 MHz output frequency, 2.5 GSa/s sampling rate, 16-bit vertical resolution, 4 channels, 64 Mpts arbitrary wave form length, 10.1-inch TFT LCD touch screen.

- UTG9504T: Waveform generator, 500 MHz output frequency, 2.5 GSa/s sampling rate, 16-bit/14-bit vertical resolution, 4 channels, 64 Mpts arbitrary wave form length, 10.1-inch TFT LCD touch screen.
