Name: Uni-T UTG9504T Mains-powered 500 MHz (max) 4-channel Arbitrary, Ramp, Pulse, Sinus, Noise, Rectangle
Brand: Uni-T
SKU: 3400012

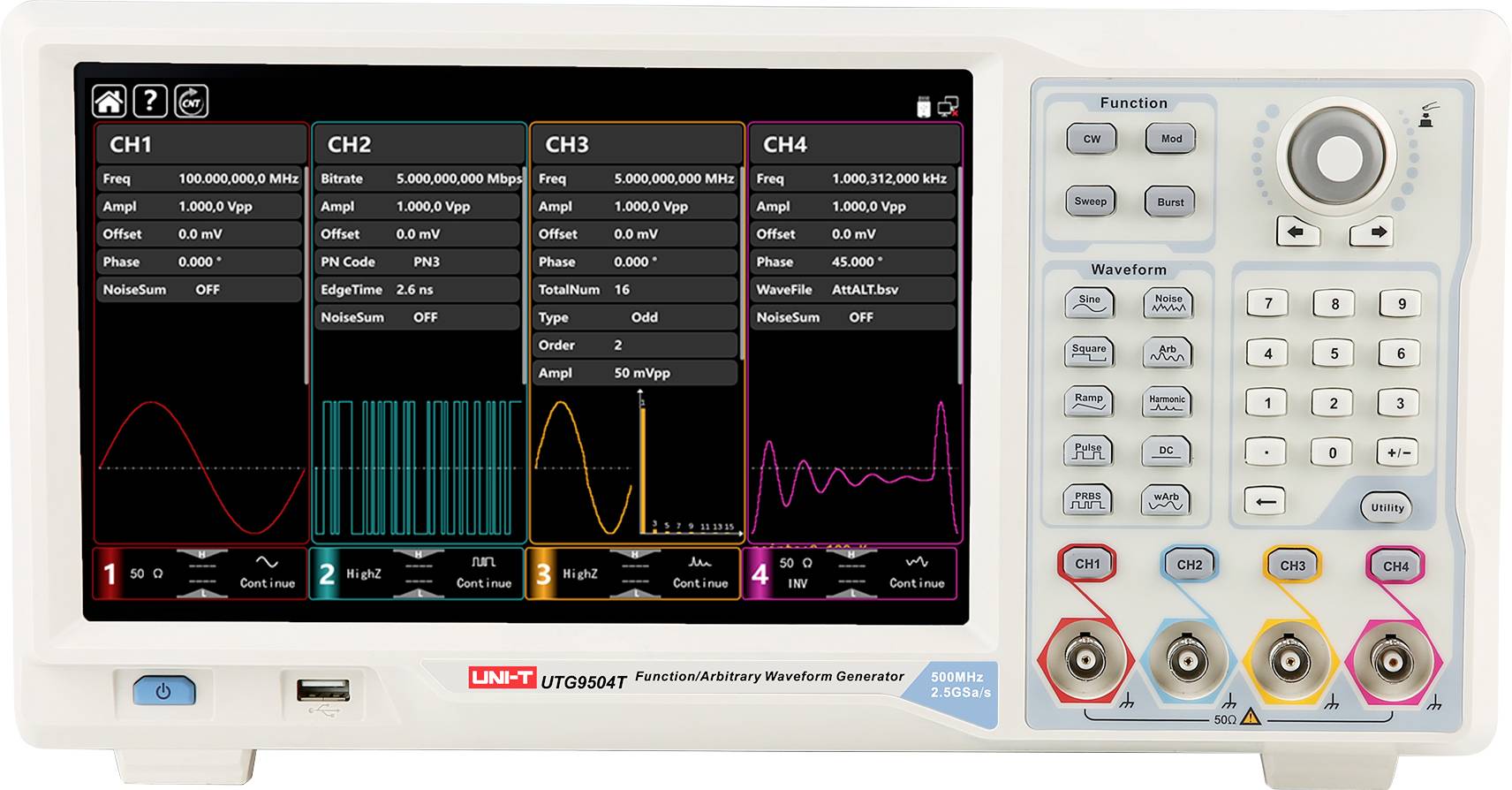

Electronic device with a screen that displays various wave signals in real time. It has multiple ports and controls.

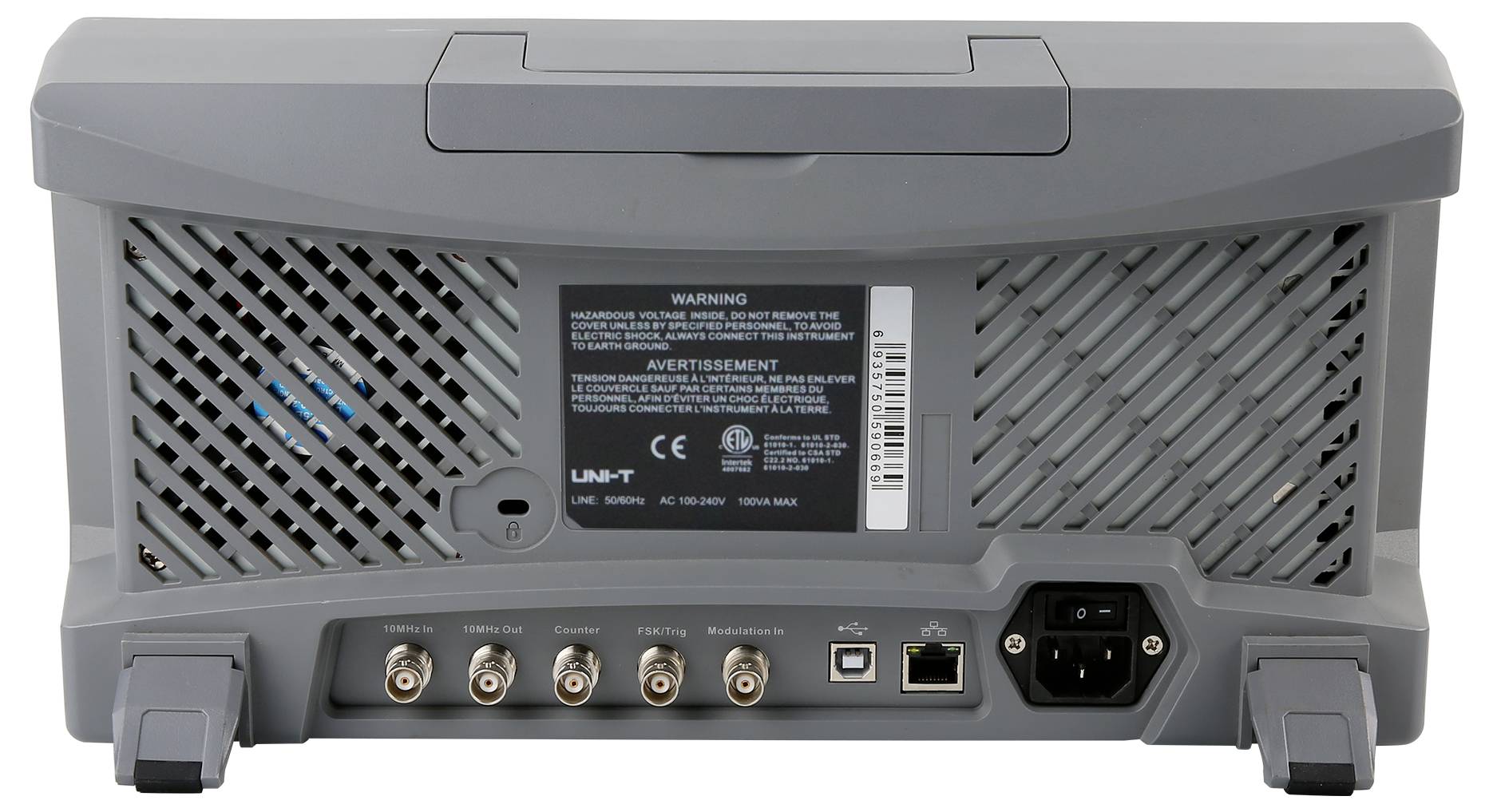

The image shows the back of an electronic device with multiple connection options and a ventilation grille.

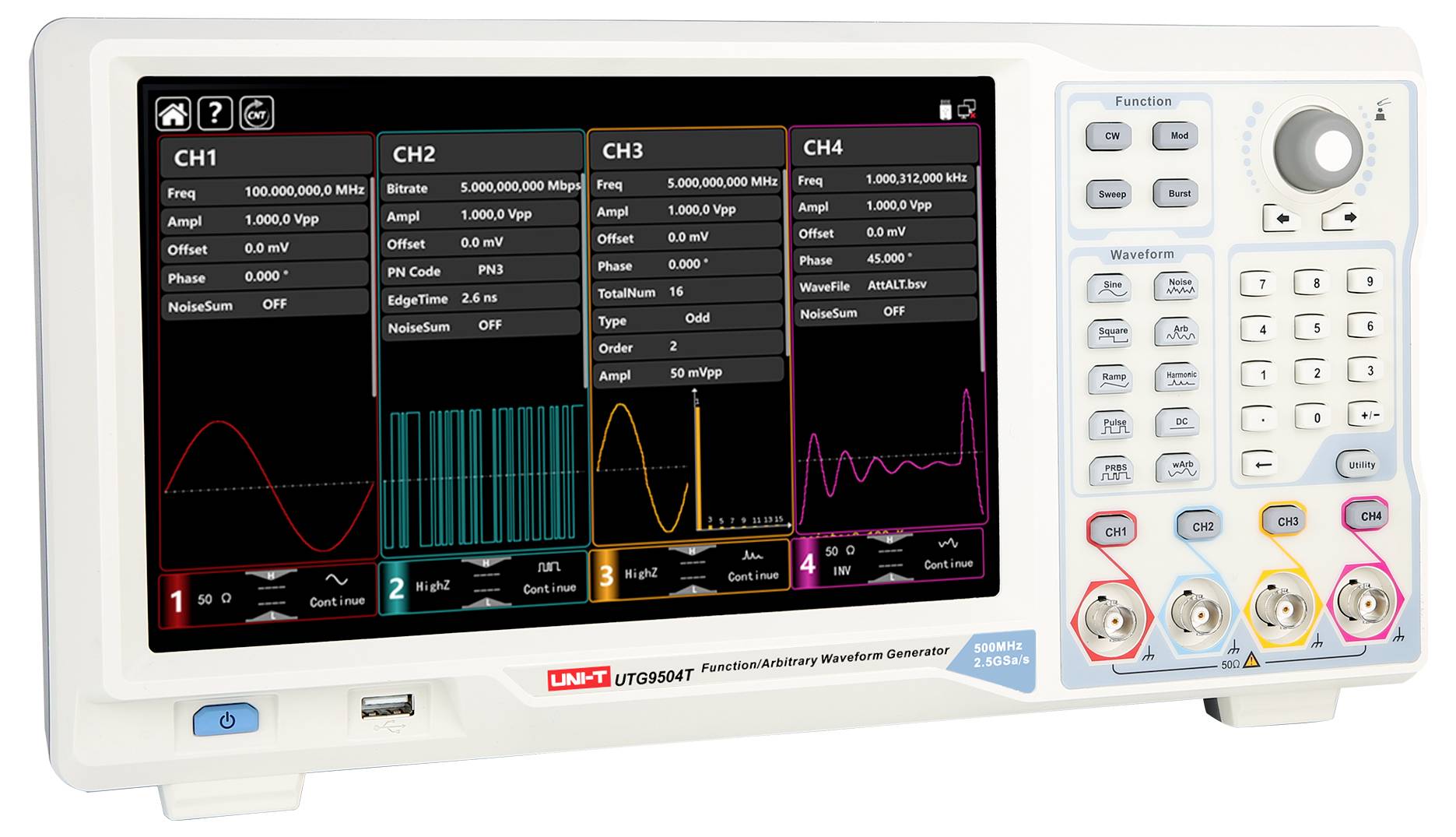

Function generator with display indicator. Shows three channels with settings for frequency, amplitude, and waveform. Control elements on the right.

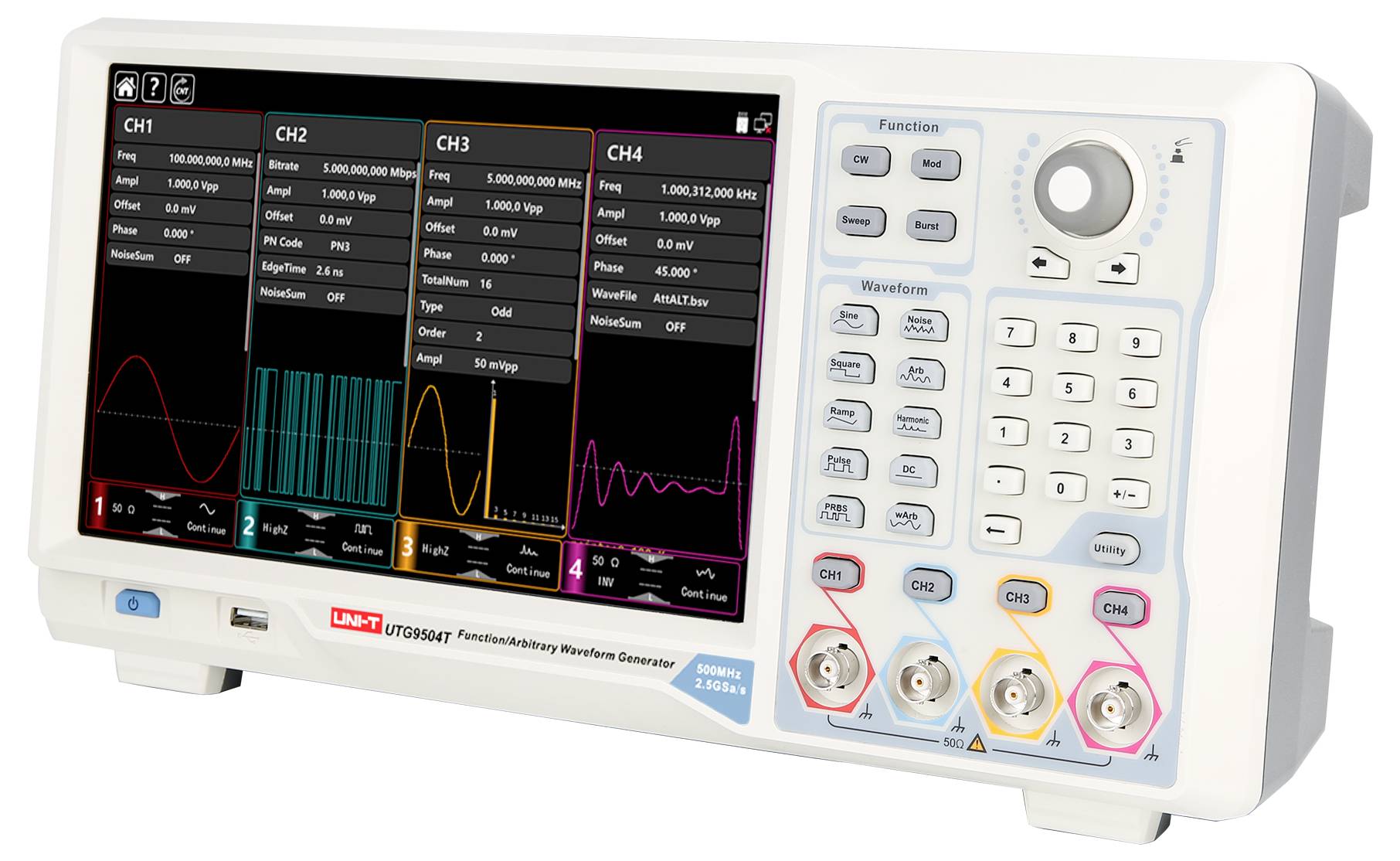

Electronic measuring device with colour display showing waveforms on four channels. Numerous control buttons and connections on the right.

1/4

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNI-T UTG9504T arbitrary function generator 500MHz 4-channel 2.5GSA/S 64Mpts10.1″ TFT LCD

Maximum output frequency: 500 MHz
- Sampling rate: 2.5 GSa/s.
- Vertical resolution: CH3 & CH4: 16-bit, CH1 & CH2: 14-bit
- Channels: 4
- Arbitrary waveform length: 64 Mpts
- Display: 10.1-inch TFT LCD

Technical specifications

Product type: Mains-powered

Frequency range: 500 MHz (max)

Signal output types: Arbitrary
Ramp
Pulse
Sinus
Noise
Rectangle

Display: Touchscreen

: Manufacturer's standards (no certificate)

Dim: (W x H) 220 mm x 350 mm

Weight: 5 kg

No. of channels: 4-channel

Max. frequency: 500 MHz

Features: incl. cycle counter
Modulation

Width: 220 mm

Height: 350 mm

Interfaces: UART
I²C

Voltage supply: Mains

Type: UTG9504T

Documents & Downloads

Datasheet

Datasheet 3400012 Uni-T UTG9504T Mains-powered 500 MHz (max) 4-channel Arbitrary, Ramp, Pulse, Sinus, Noise, Rectangle

User & Safety Instructions

User & Safety Instructions 3400012 Uni-T UTG9504T Mains-powered 500 MHz (max) 4-channel Arbitrary, Ramp, Pulse, Sinus, Noise, Rectangle

Description

The UTG9504T is a 4-channel waveform generator with a maximum output frequency of 500 MHz and a sampling rate of up to 2.5 GSa/s. It possesses a 16-bit/14-bit vertical resolution and a 64 Mpts arbitrary wave form length, WAS ensures a precise and stable signal generation. Fitted with a 10.1-inch TFT LCD touch screen, the UTG9504T offers an intuitive user interface and ergonomic design that improves the user experience and work efficiency.

This text is machine translated.

Features

- 10.1-inch touchscreen: The UTG9504T features a 10.1 1280×800 capacitive touchscreen and a new UI design that provides intuitive operation and enhanced user experience.
- 4-channel output & 4 sweep modes: Standard 4-channel output for simultaneous generation of various signals. In addition to linear and logarithmic sweep modes, the UTG9504T offers two new modes:
Step mode: Precise, step-by-step adjustments
List mode: Defined values or points for precise control of signal generation
- 8-digit frequency counter: Measures frequencies from 100 mHz to 800 mHz with high precision and analyzes parameters such as frequency, period, duty cycle and positive and negative pulse widths.
- Versatile modulation modes & arbitrary waveforms: Supported AM, FM, PM, DSB-AM, QAM, ASK, FSK, PSK, PWM and more for teaching and communication system testing. Contains over 200 pre-defined waveform for applications in technology, biomedical, standards and mathematics.
- Protocol output: Supports SPI, I2C and UART, Ideal for versatile digital interface tests.
- PRBS and SNR function:
- PRBS generator for checking bit error rates in high-speed data transmissions
- SNR function to superimpose Gaussian noise to evaluate device immunity

Scope of delivery

- UTG9504T (4CH, 500MHz)
- Power cord × 1
- USB data cable × 1
- BNC cable × 4
- Multilingual safety instructions
- Brief instructions
- Calibration certificate

Hints

More models

- UTG9604T: Waveform generator, 600 MHz output frequency, 2.5 GSa/s sampling rate, 16-bit vertical resolution, 4 channels, 64 Mpts arbitrary wave form length, 10.1-inch TFT LCD touch screen.

- UTG9354T: Waveform generator, 350 MHz output frequency, 2.5 GSa/s sampling rate, 16-bit/14-bit vertical resolution, 4 channels, 64 Mpts arbitrary wave form length, 10.1-inch TFT LCD touch screen.
