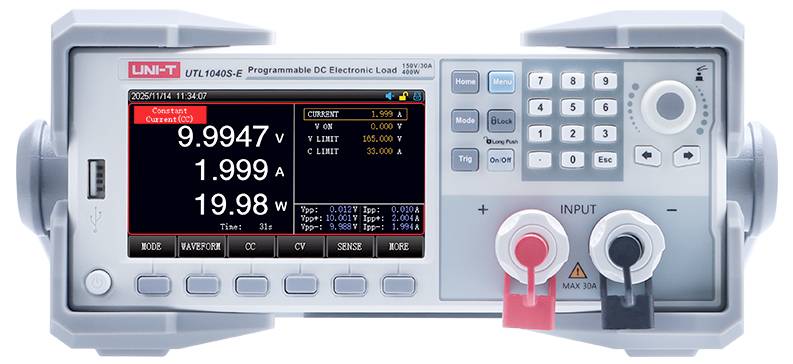

Uni-T UTL1040S-E Electrical load 40 A 400 W
EAN:
Part number:
Item no:
Highlights & Details
UNI-T DC electronic load UTL1020S
- Channels: 1
- Voltage 0-150 V.
- Current 0-30 A.
- Output: 400 W
- Resolution 0.1 mV/0.1 mA
Technical specifications
- Type
UTL1040S-E
- Input voltage
0 - 150 V DC
- Product type
Electrical load
- Min. input voltage
0 V
- Input voltage (max.)
150 V
- Load input current (max.)
40 A
- Max. non-stop power rating
400 W
- Dim
(W x H x D) 214 x 89 x 354 mm
- Weight
5.8 kg
Manufacturer's standards (no certificate)
- Inputs
Channels: 1
- Width
214 mm
- Height
89 mm
- Depth
354 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763160 Uni-T UTL1040S-E Electrical load 40 A 400 W
Description
UTL1040S-E is a new generation of intelligent, large-format, and cost-effective electronic loads. The synchronous sampling rate of up to 500 kHz, combined with high-performance DSP processing and the integrated, self-adjusting waveform display for voltage and current, allows for convenient transient tests as well as versatile intelligent simulations and analyzes. The fast, efficient and visualized LIST-programmable automated test modes cover most requirements in research, development and test environments.
This text is machine translated.
This text is machine translated.
Features
- -15 test modes: For a wide range of application scenarios
- -Ripple measurement & waveform display: For more accurate power supply testing and intuitive observation
- -Auto-List test: Programmable, automated test sequences
- -Battery mode: Measurement and recording of charging and discharging curves
- Load-behavior test (Load Effect Test): Automatic measurement and determination of results according to specifications
- -Safety function test: Check OCP/OVP and response times
Scope of delivery
- UTL1040S-e x 1
- Power cable x 1
- RS232 communication cable x 1
- Spare fuse x 2
- User manual x 1
- Calibration certificate x 1
- Multilingual safety instructions x 1
