Uni-T UTS3084T Spectrum analyzer Manufacturer's standards (no certificate) 80 MHz 16 Bit Spectrum analyzer
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T UTS3084T Spectrum analyzer with 8.4 GHz bandwidth
- Frequency range: 9 kHz – 8.4 GHz
- RBW:1 Hz – 3 MHz
- Phase noise: 98 dBc/Hz @10 kHz
- DANL: 161 dBm
- Tracking generator: Standard
- Scan points: 40,001
- 10.1" TFT LCD (touchscreen)
Technical specifications
- Display: 4.3" TFT LCD with WVGA resolution (480 x 272)
- Product type
Spectrum analyzer
- Bandwidth
80 MHz
- Channel sample rate
200 MSa/s
- Resolution
16 Bit
- No. of analogue inputs
2
Manufacturer's standards (no certificate)
- Power consumption
20 W
- Dim
(W x H) 215 mm x 103 mm
- Weight
2.2 kg
- Oscilloscope features
Spectrum analyzer
- Width
215 mm
- Height
103 mm
- Interfaces
USB host
USB device
- Channel memory depth
4 KP
Documents & Downloads
Datasheet
Datasheet 3757396 Uni-T UTS3084T Spectrum analyzer Manufacturer's standards (no certificate) 80 MHz 16 Bit Spectrum analyzer
User & Safety Instructions
User & Safety Instructions 3757396 Uni-T UTS3084T Spectrum analyzer Manufacturer's standards (no certificate) 80 MHz 16 Bit Spectrum analyzer
Description
The UTS3084T enables measurements up to a frequency of 8.4 GHz. They offer a wide frequency band coverage and are characterized by an excellent performance. The series is based on a sophisticated fully digital IF technology. It provides a variety of analysis functions as well as up to 40,001 sampling points and thus supports a more precise and efficient frequency range analysis. Moreover, UTS3084T is equipped with a 10.1-inch touch-screen that enables a comfortable and user-friendly operation. The devices are suitable for function, end-of-line and quality tests in electronics manufacturing as well as for applications in wireless communication, in HF and microwave training, in EMC pre-tests, in semiconductor measurement technology and in many other areas of application.
This text is machine translated.
This text is machine translated.
Features

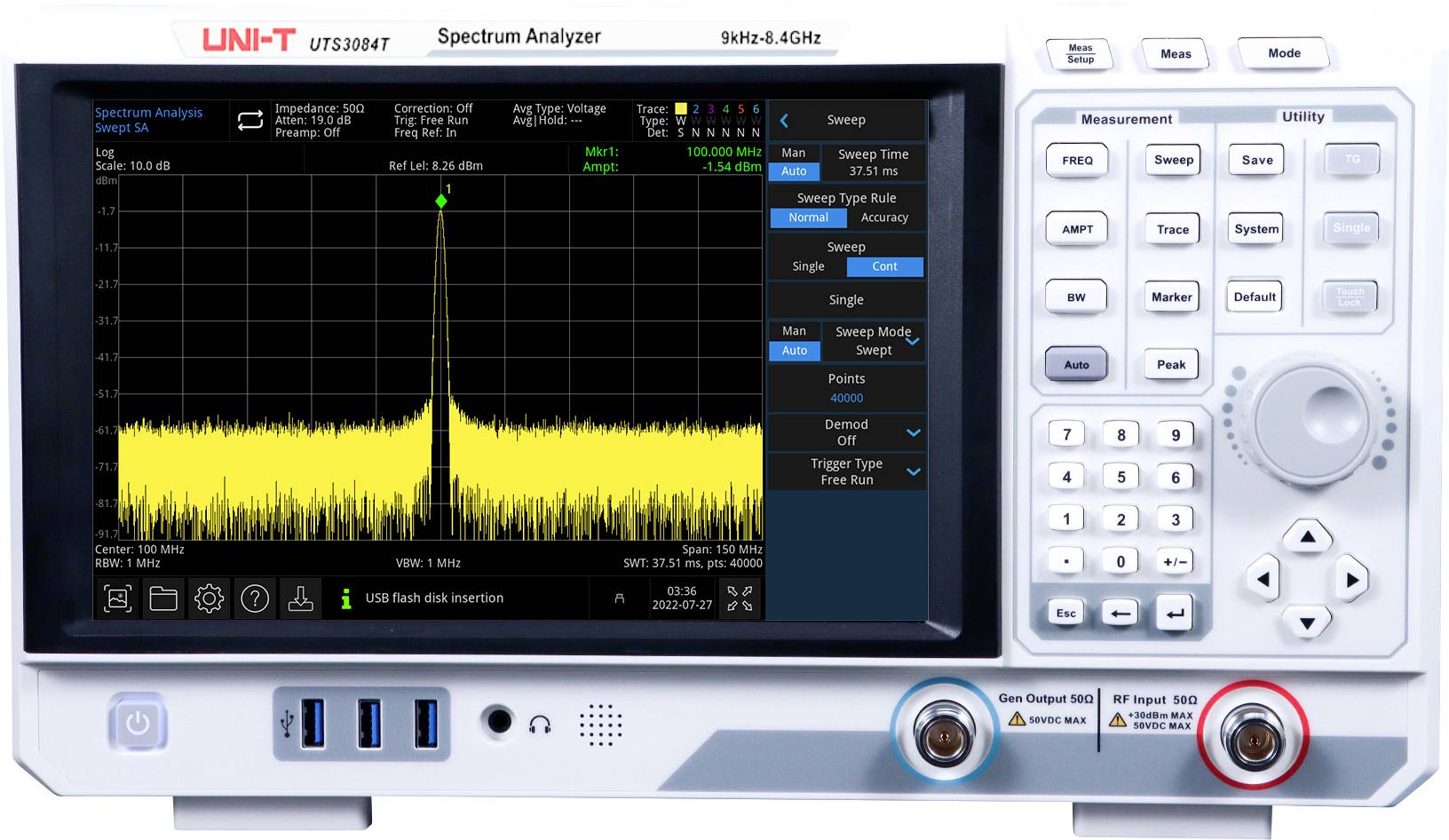

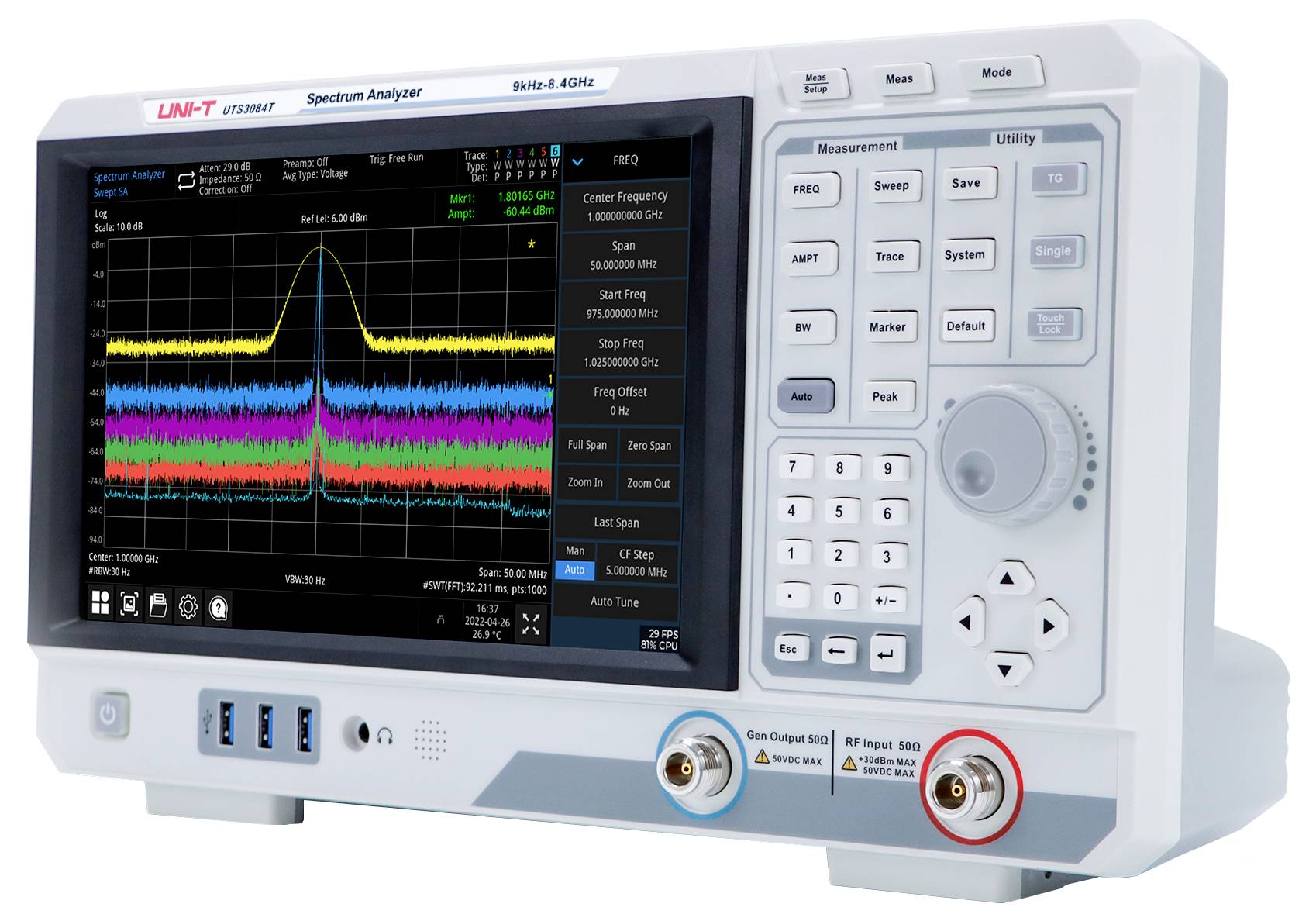

- Multi-Touch HD display for intuitive operation: 10.1-inch Multi-Touch HD capacitive display with fast menu navigation and gesture control (drag, zoom, scale) for easy operation.
- High sensitivity for low signal analysis: With a DANL of up to -161 dBm, the UTS3000B series enables accurate detection of even very weak signals.

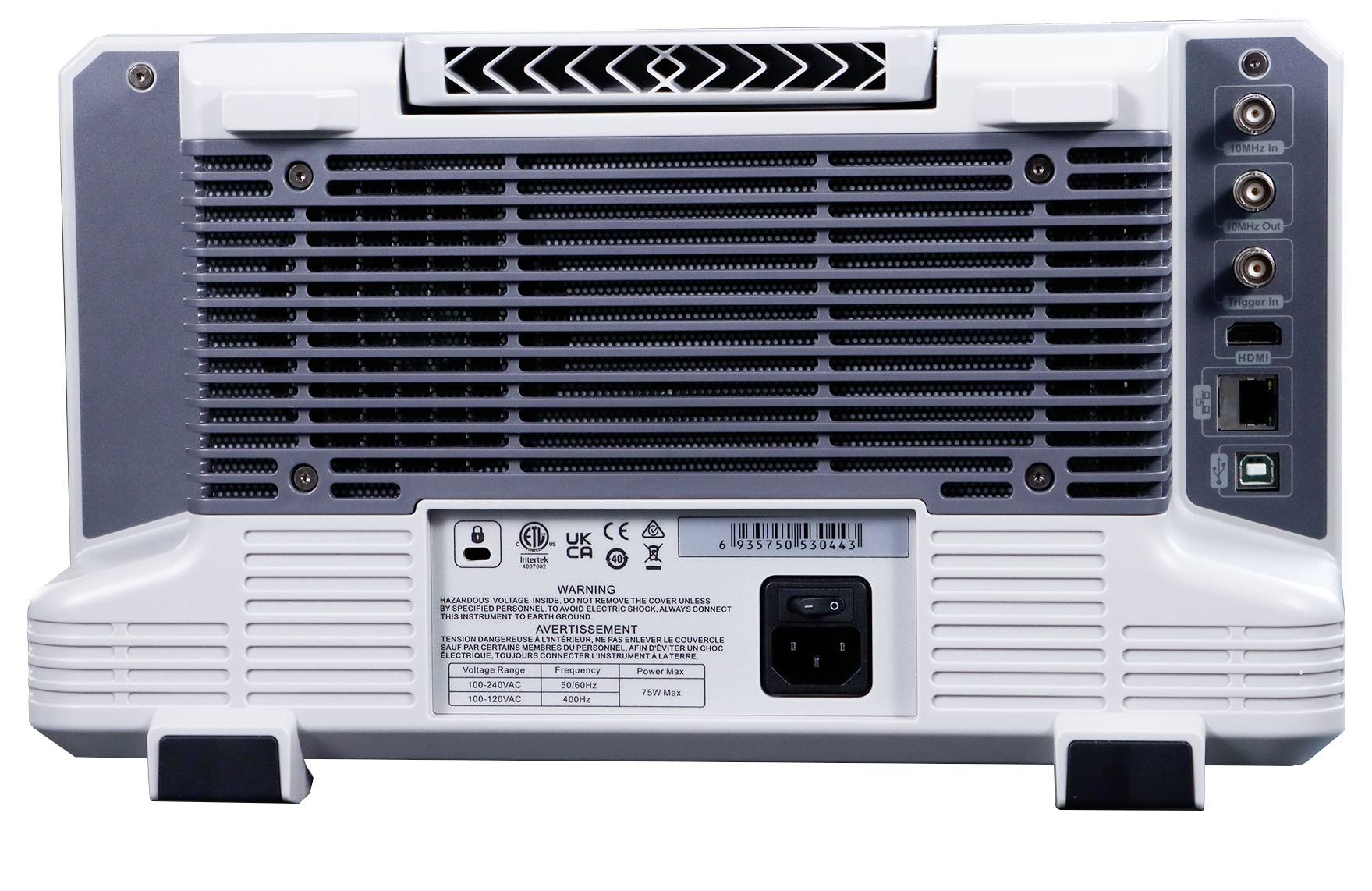

- Removable dust filter for high reliability: The removable dust filter simplifies the cleaning and protects the device reliably against dust, whereby short-circuits and damages are avoided.

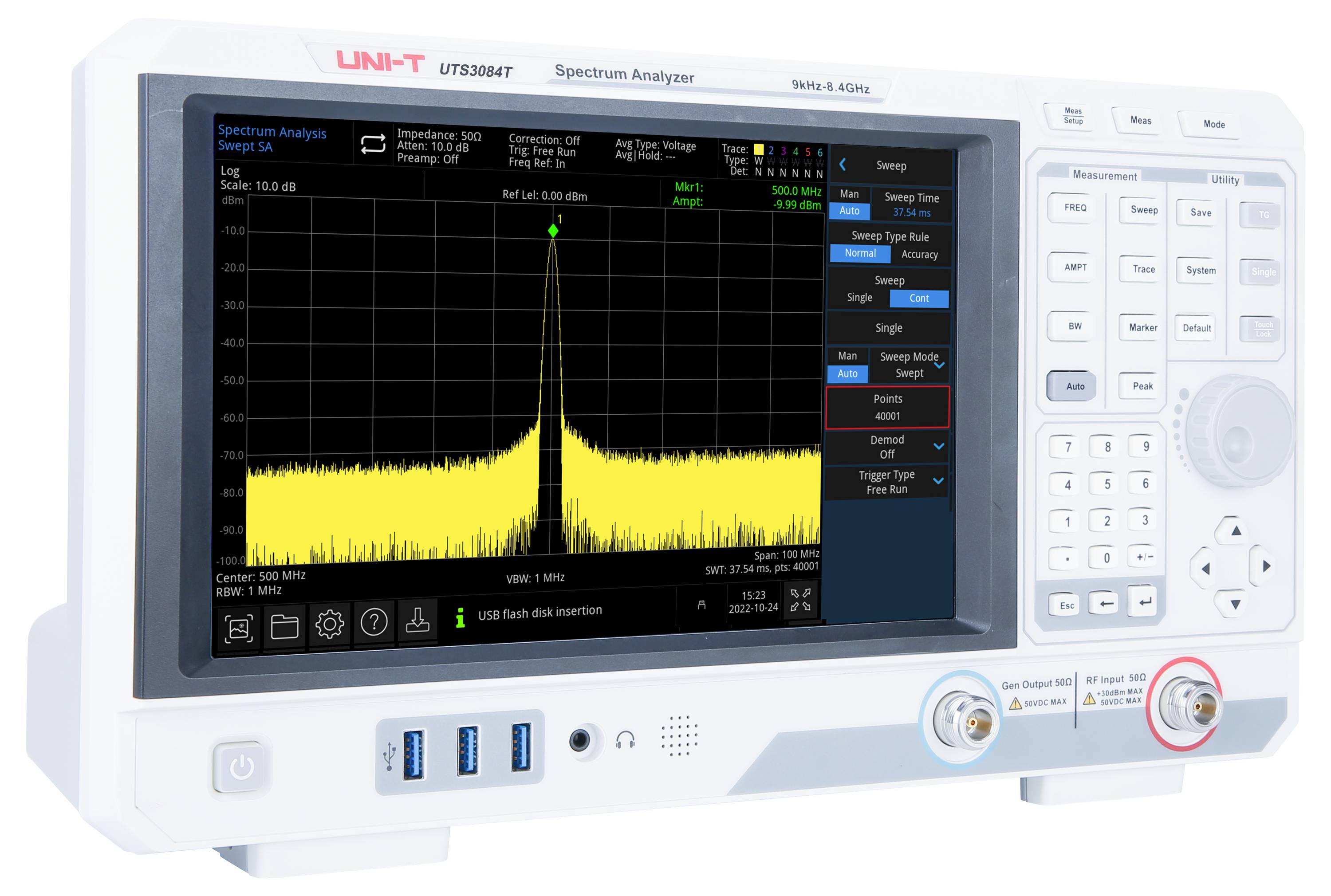

- Up to 40,001 sweep points for higher resolution: High number of scan points provide better frequency resolution and simplify the detection of hard to find signals.
- Excellent selectivity: Permits precise separation of adjacent signals with different amplitudes.
- EMI Pre-Compliance Support – Combined with optional accessories and near-field probes, EMC issues can be identified at an early stage and development time reduced.
Scope of delivery
- UTS3084T x 1
- Power cable x 1
- USB cable x 1
Hints
Software options:
UTS3000-EMI: EMI SOFTWARE
UTS3000-AMK: Advanced measurement functions
UTS3000-AMA: Option for analog demodulation measurement
Other models:
-UTS3084T+: 9 kHz – 8.4 GHz frequency range, 1 Hz – 3 MHz RBW, –98 dBc/Hz @10 kHz phase noise, –161 dBm DANL, tracking generator, reflection measurement, 40,001 scan points, 10.1 inch TFT LCD (touch screen)
