Uni-T UTx325 180700300025X IR camera 2x, 4 x 25 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UNI-T UTx325Thermal imaging monocula384x288 10.5° x 7.9° 50Hz 25mm lens
- - IR resolution: 384 × 288
- - Display: 1280 × 960, 0.4" LCOS

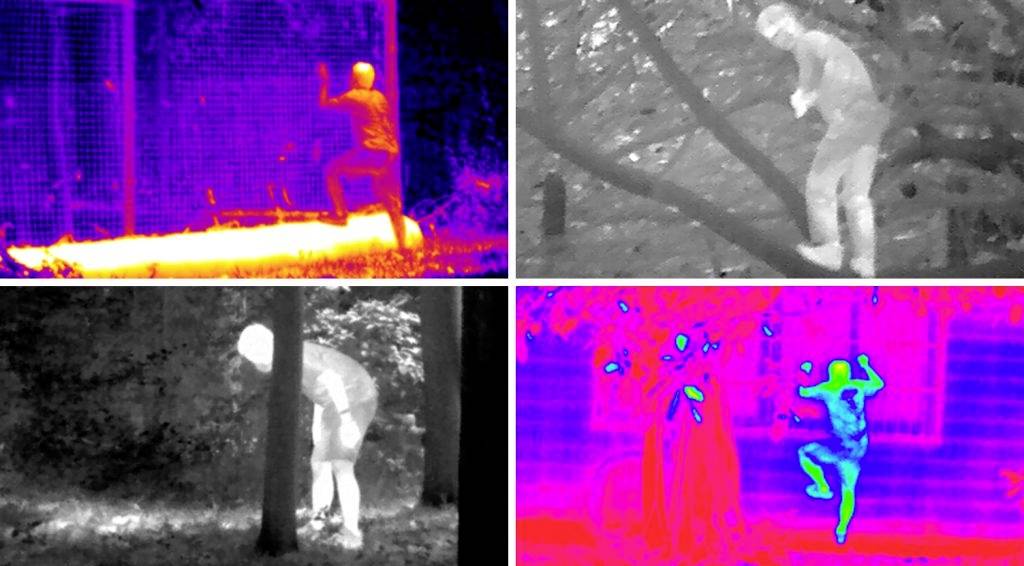

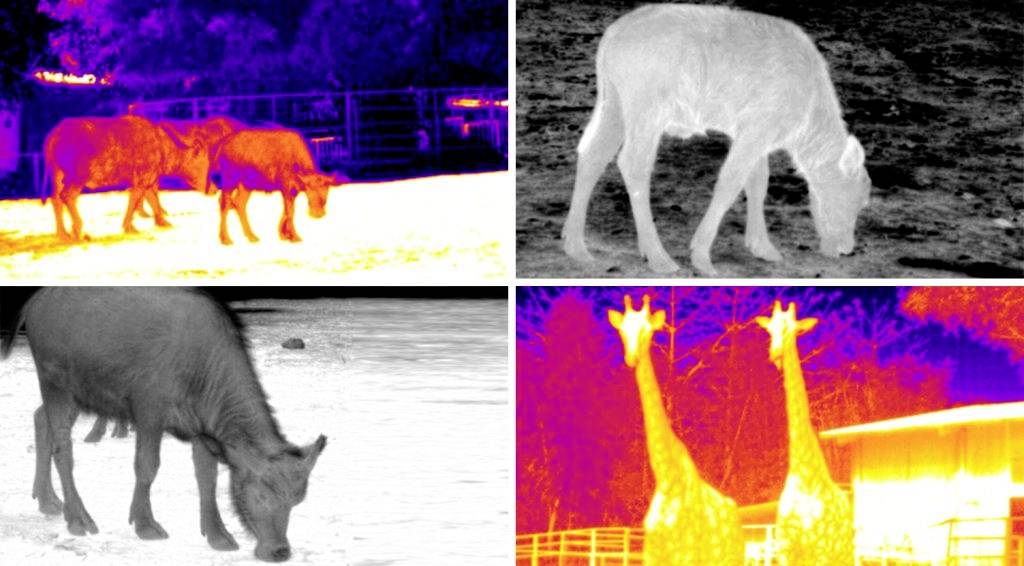

- - Color schemes: 5 options (Blackhot, Whitehot, Hottest, Ironbow, Rainbow)
- - Protection class: IP67
- - Fall-safe up to 2 m.
Technical specifications
- Detector resolution - 384 x 288
- Image frequency - 50Hz
- Spectral range - 8~14μm
- Storage capacity - 16 GB internal
- Protection - IP67, 2m fall protection
- Product type
IR camera
- Magnification
2x, 4 x
- Lens Ø
25 mm
- Dim
(L x W x H) 207.6 x 62 x 62 mm
- Resolution
1280 x 960
- Type
Monocular
- Weight
428 g
- Width
62 mm
- Height
62 mm
- Length
207.6 mm
- Power supply
Built-in rechargeable battery
Documents & Downloads
Datasheet
Datasheet 3400018 Uni-T UTx325 180700300025X IR camera 2x, 4 x 25 mm
User & Safety Instructions
User & Safety Instructions 3400018 Uni-T UTx325 180700300025X IR camera 2x, 4 x 25 mm
Description

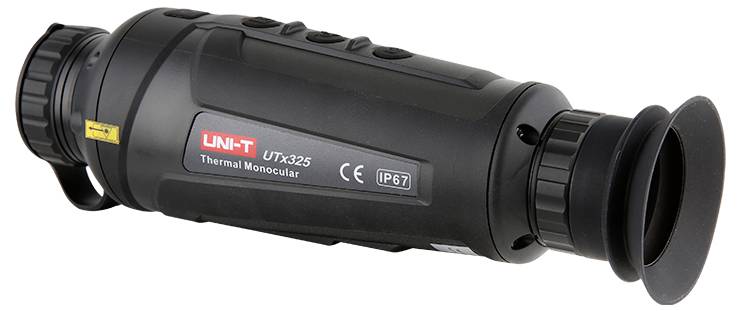

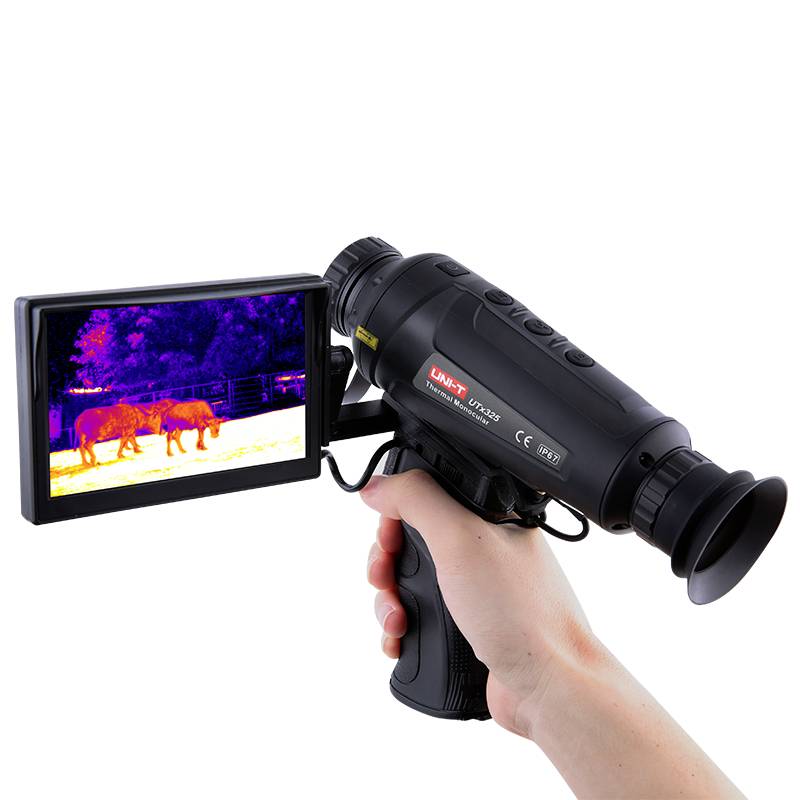

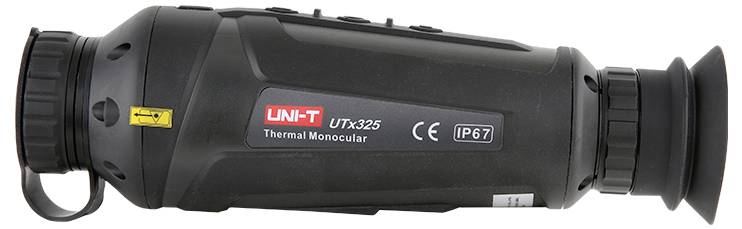

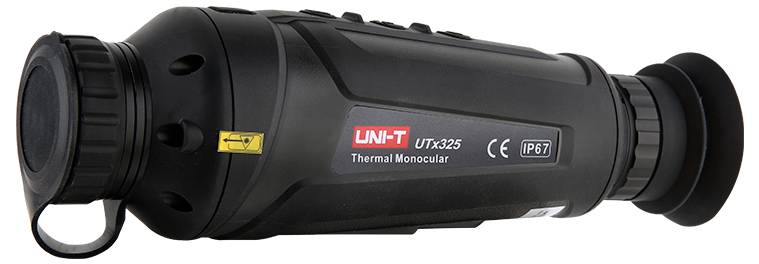

The UTx325 is a lightweight, portable thermal monocular that is equipped with a 384 × 288 infrared detector and a 1280 × 960 0.4" LCOS display. It enables you to take photos, save data and connect to an external screen for viewing.
With a frame rate of 50 Hz, moving objects can be observed without delay. The hot-Spot-tracking function enables a precise locating and tracking of heat sources.
The UTx325 is suitable for a wide range of applications including outdoor observation, hunting, navigation, security, Camping and search as well as law enforcement.
This text is machine translated.
With a frame rate of 50 Hz, moving objects can be observed without delay. The hot-Spot-tracking function enables a precise locating and tracking of heat sources.
The UTx325 is suitable for a wide range of applications including outdoor observation, hunting, navigation, security, Camping and search as well as law enforcement.
This text is machine translated.
Scope of delivery
- Thermal imaging ocular x 1
- User manual × 1
- USB cable × 1
