Name: UNITREE Robot accessories 1157 Version: Component
Brand: UNITREE
SKU: 3804277

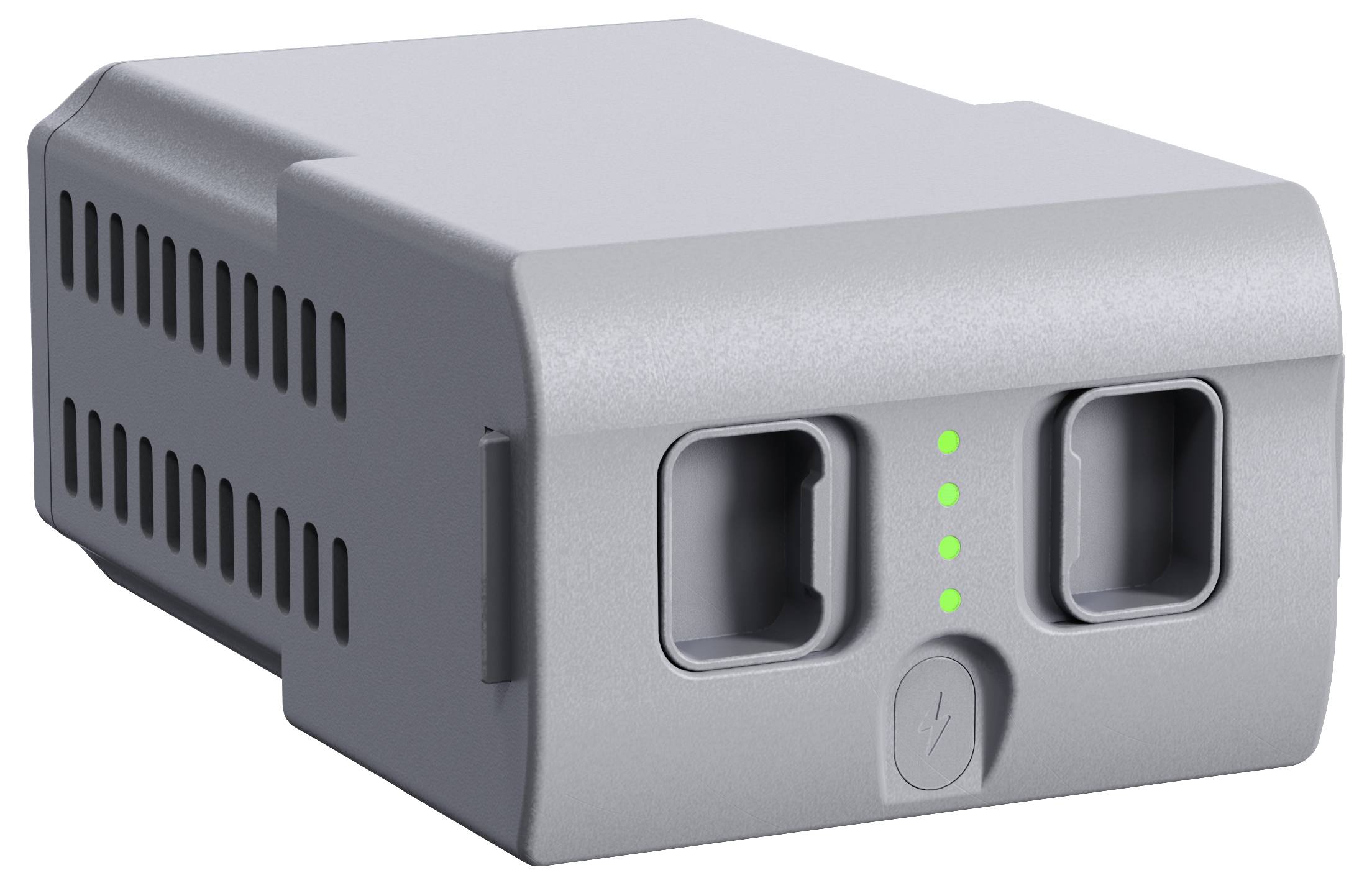

Gray electronic device with two front ports, four green indicator lights, and a power button on the front panel.

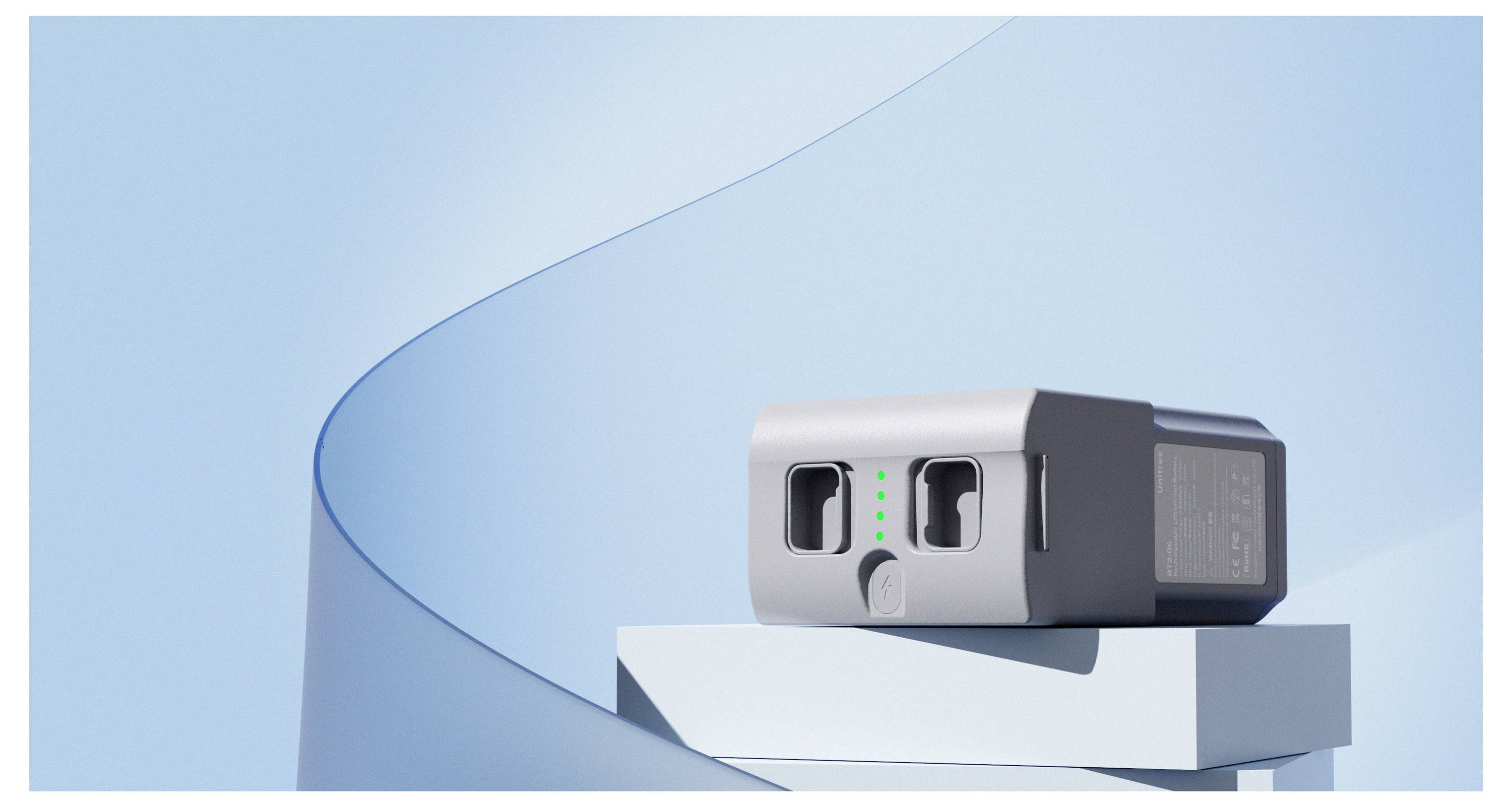

A small gray electric plug adapter rests on a white pedestal against a blue gradient background with a curved translucent ribbon-like shape.

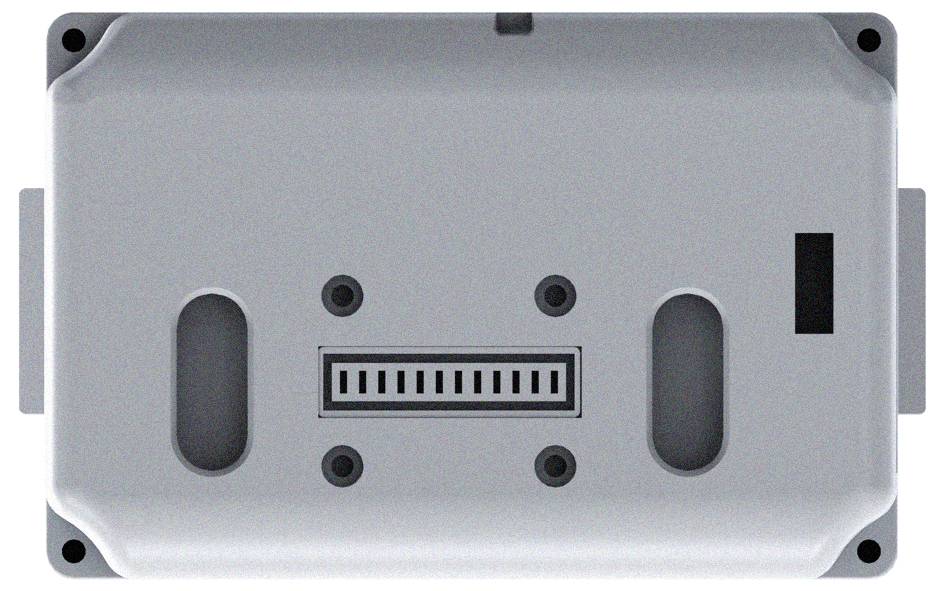

Gray electronic device housing with central connector port, side slots, and corner screw holes, shown from the back or underside.

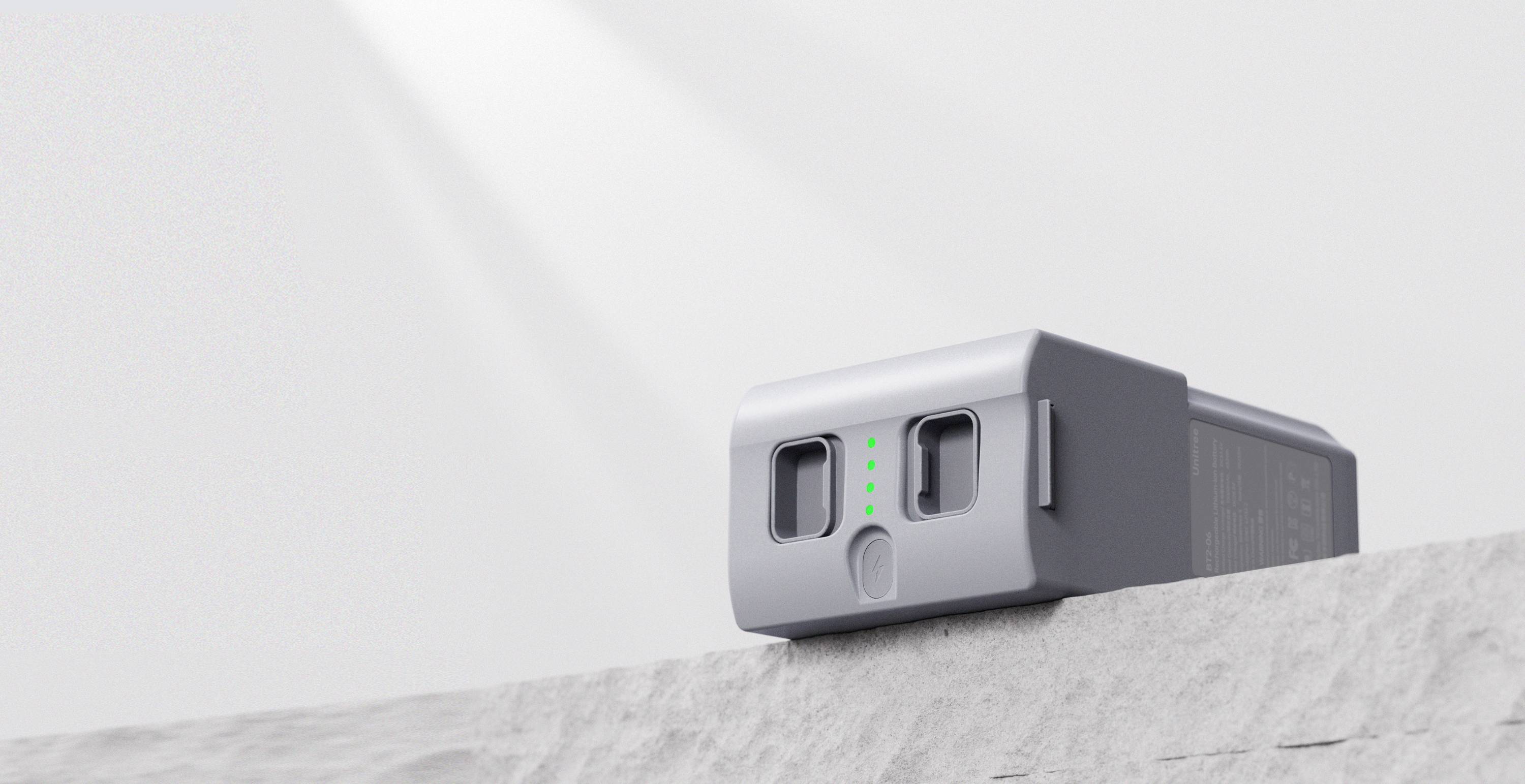

Small gray electronic device with two front openings and green indicator lights sitting on a ledge or rooftop against a bright sky.

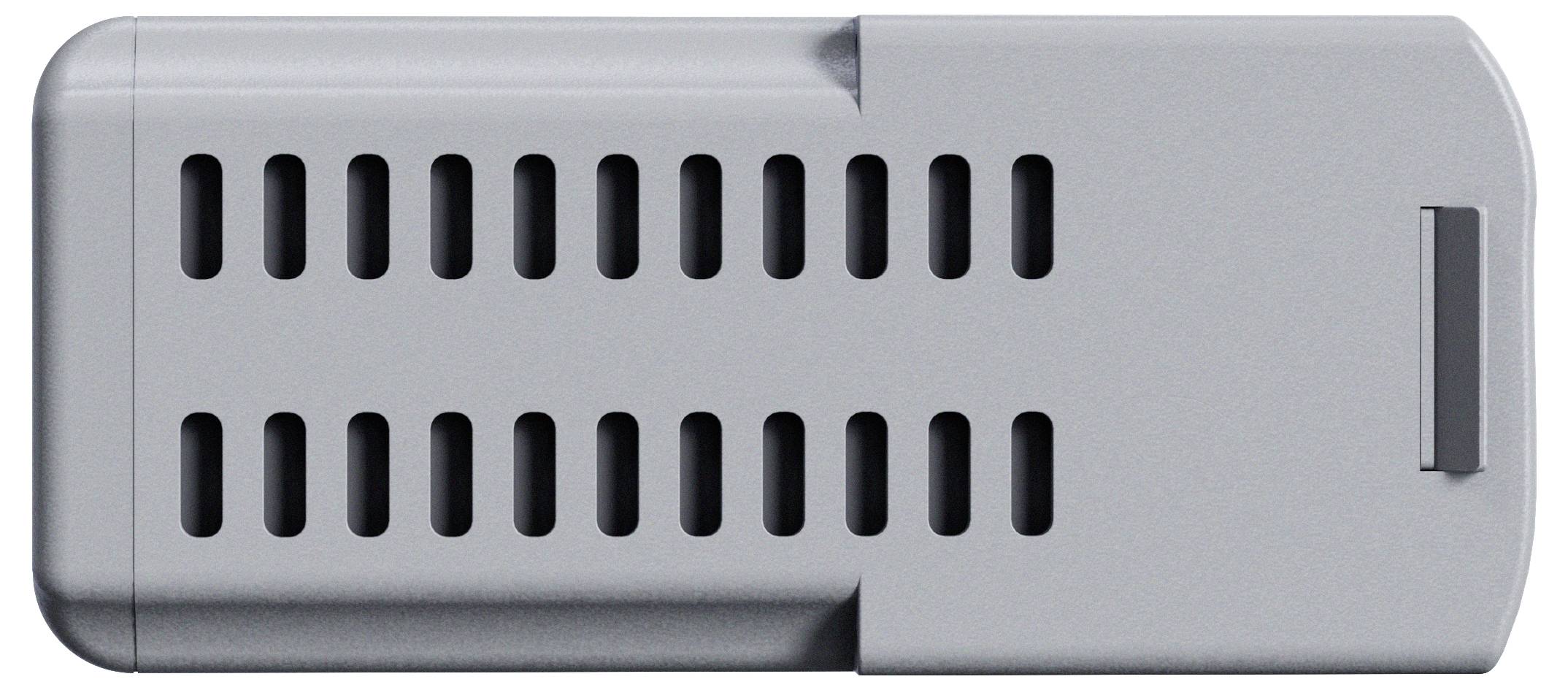

Gray rectangular electronic device with ventilation slots and a small side latch, shown on a white background.

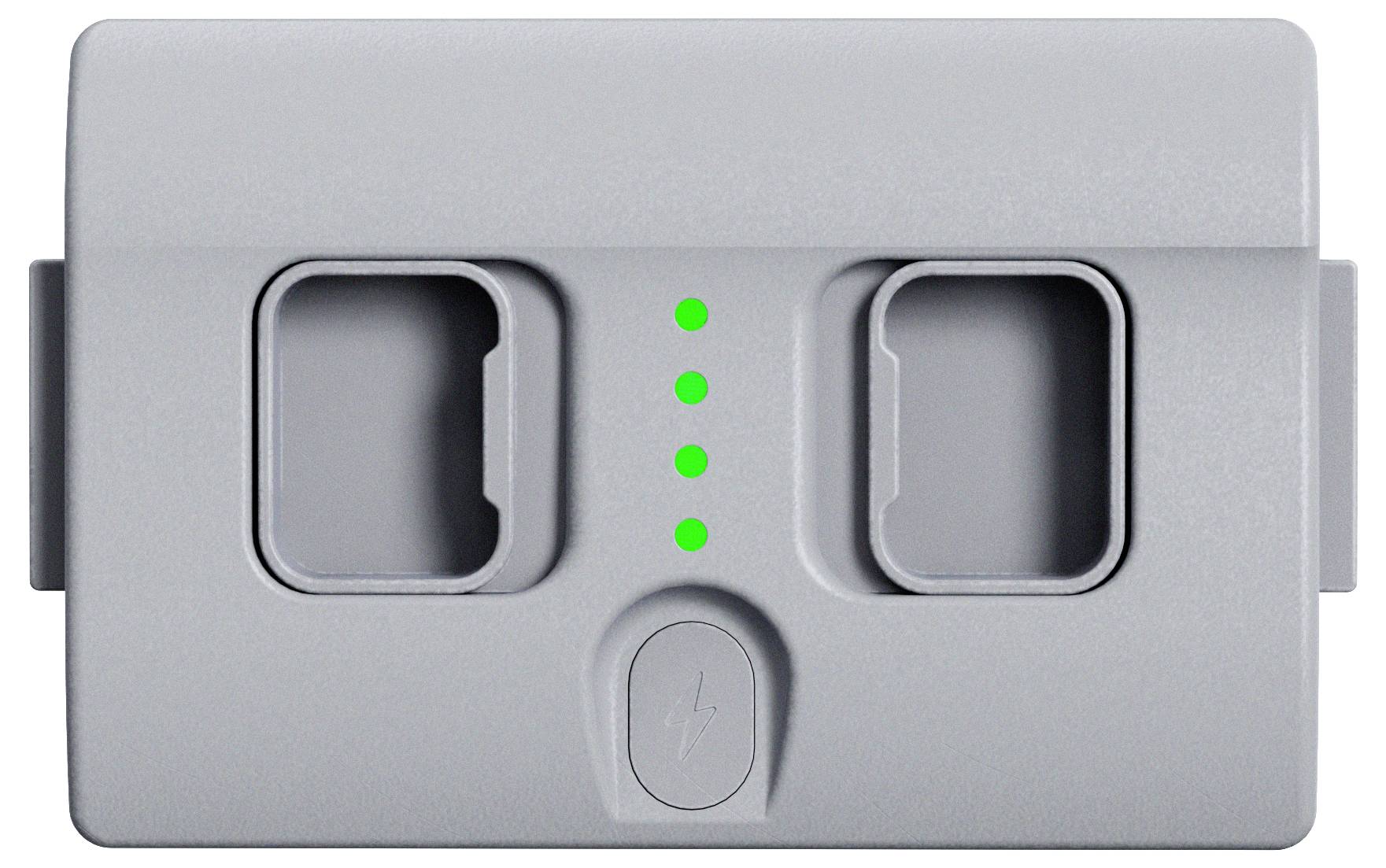

Gray rectangular device with two side-by-side slots, four green indicator lights in the center, and a small oval button below.

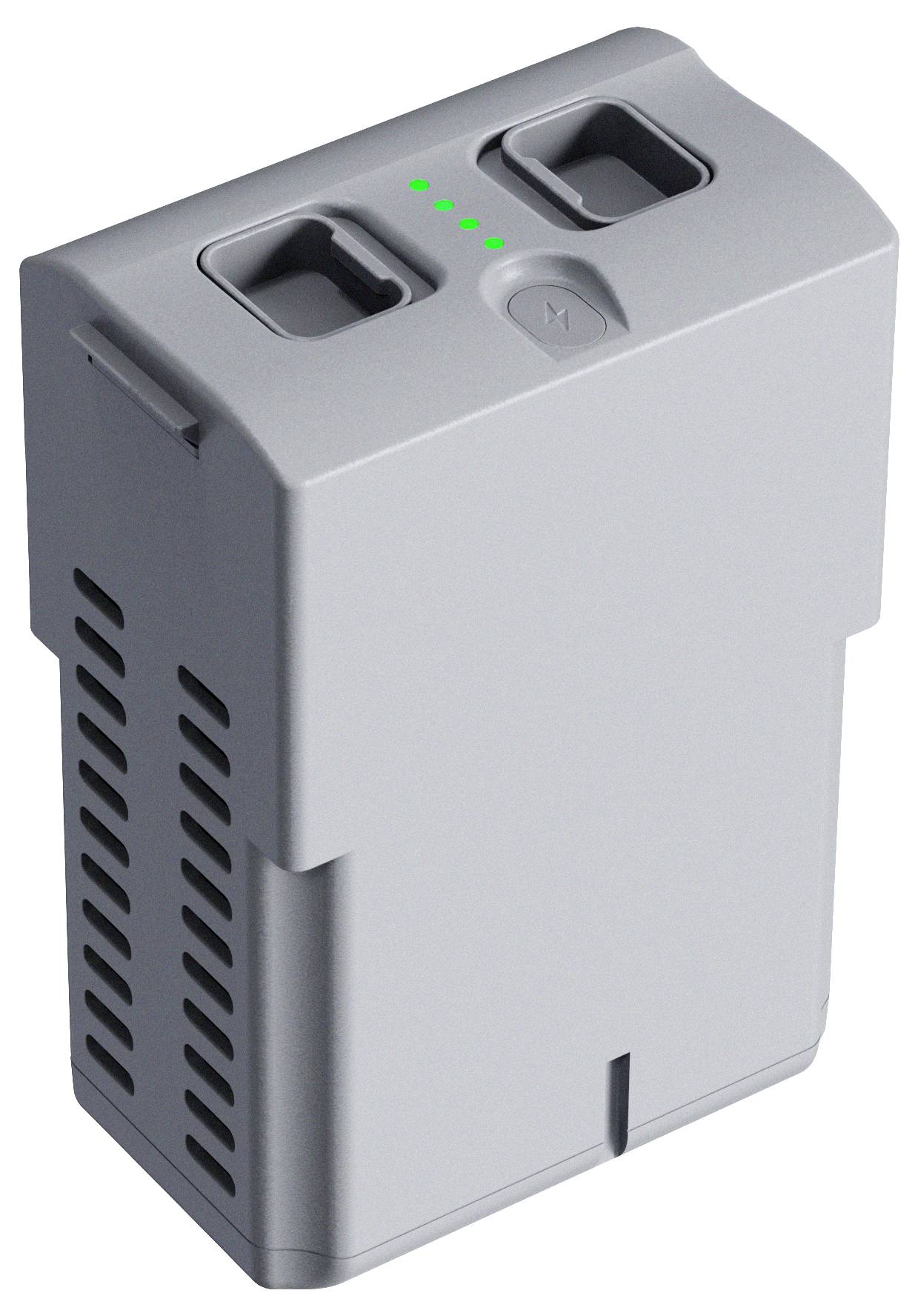

Silver rechargeable battery pack with two slots, a central button, and four green charge indicator lights on top.

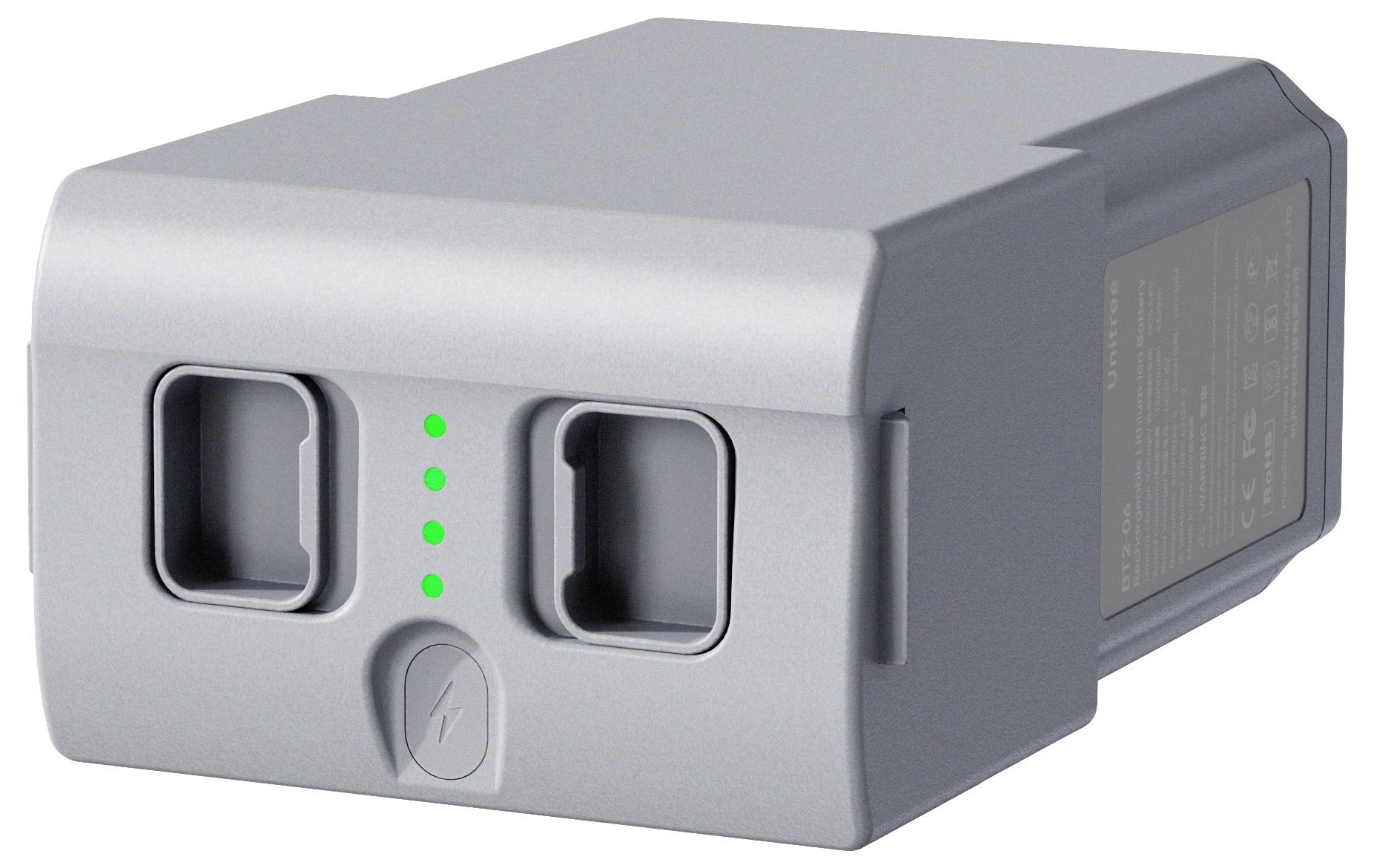

Gray rechargeable battery pack with two connector ports, four green indicator lights, and a power button on the front<br>

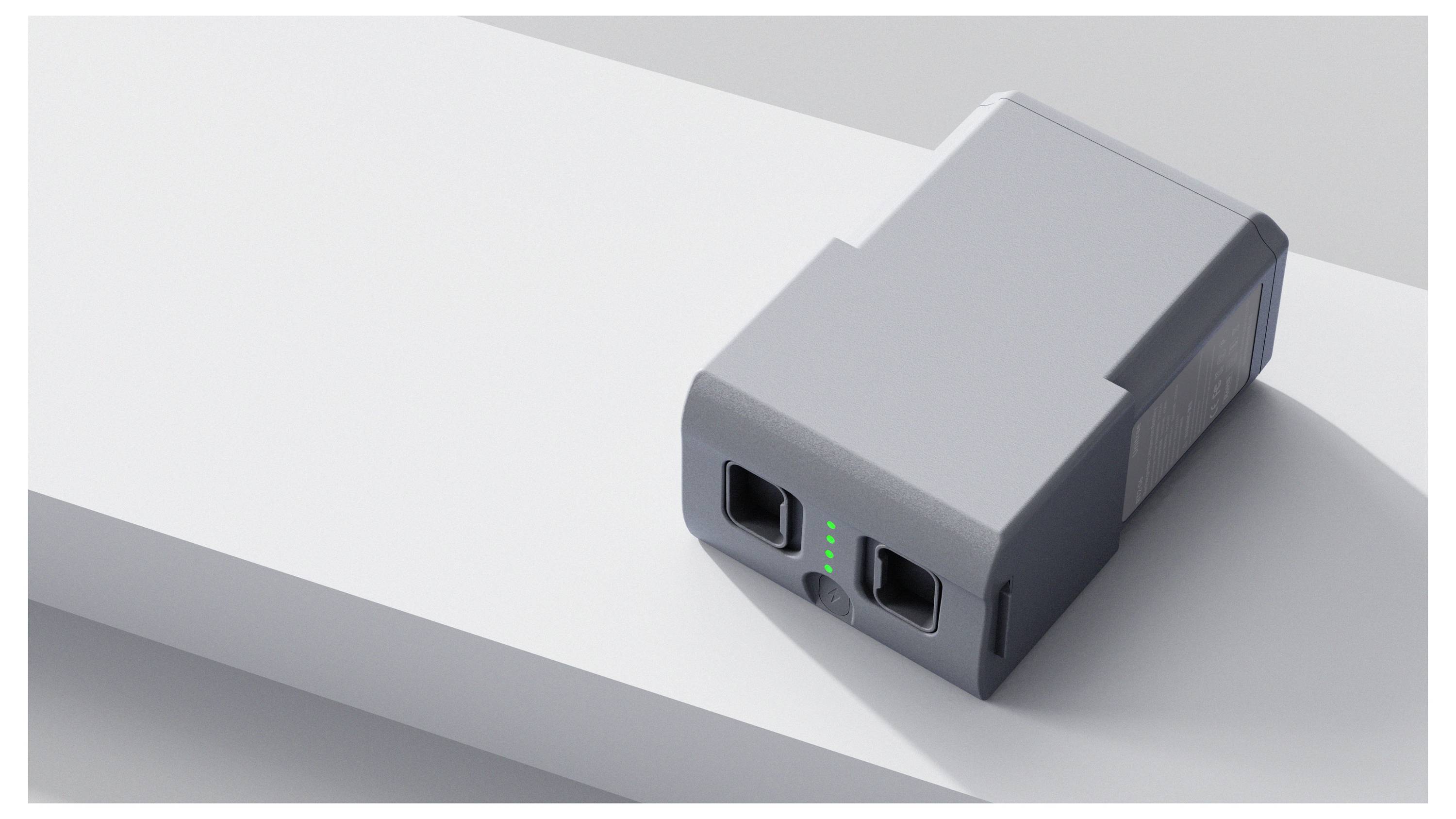

Compact gray power bank with two USB ports and four green LED charge indicators on a white surface.

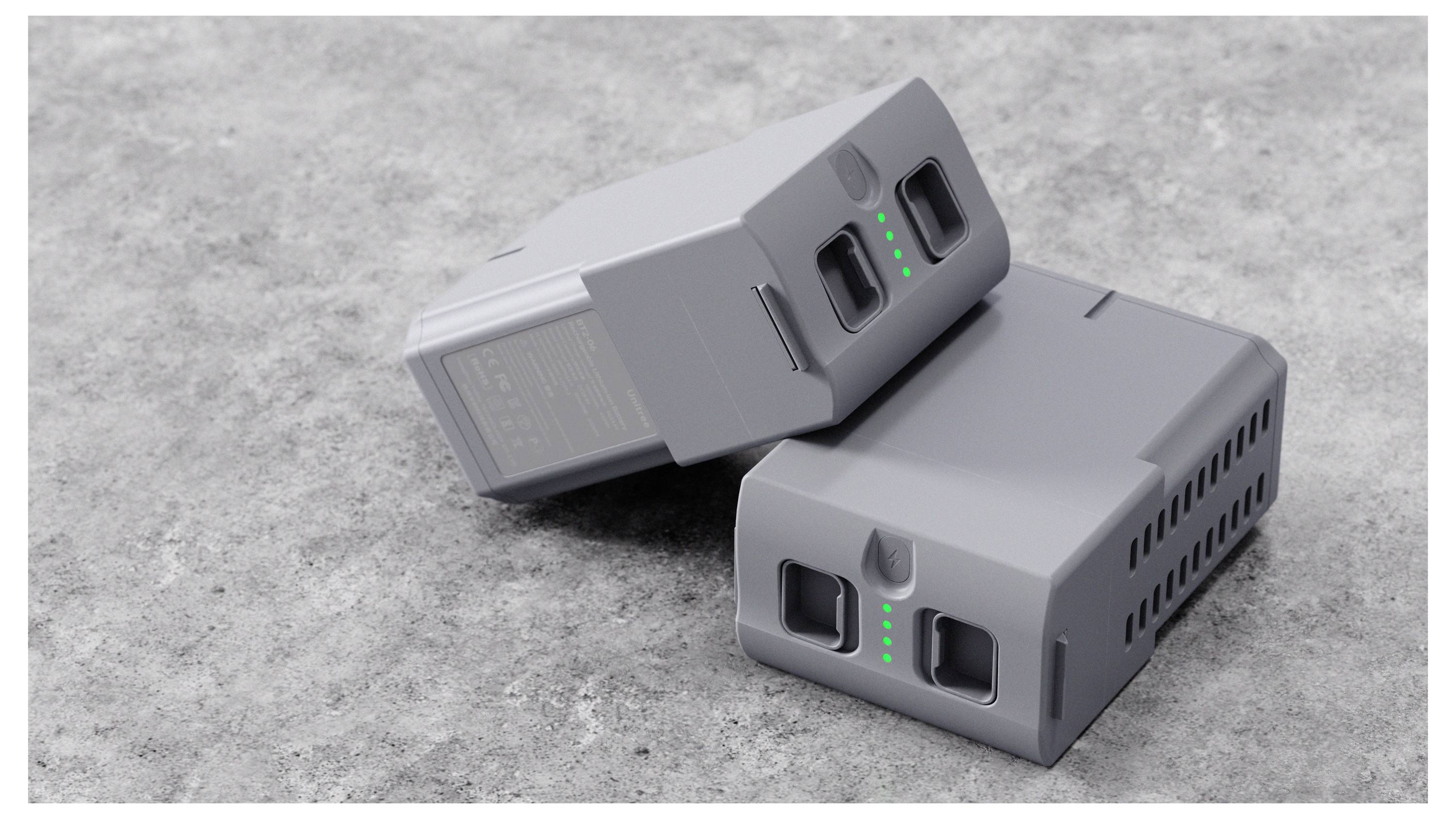

Two gray rechargeable battery packs lying on a concrete surface, each with charging ports and small green indicator lights.

1/10

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Robot accessories

Version: Component

Dim: (L x W x H) 120 x 80 x 182 mm

Height: 182 mm

Length: 120 mm

Width: 80 mm

Manufacturer part #: GO2 Battery 8000mAh

Documents & Downloads

Information

Test Summary Report 3804277 UNITREE Robot accessories 1157 Version: Component

Conformity certificate

Conformity certificate 3804277 UNITREE Robot accessories 1157 Version: Component

Security datasheet

Security datasheet 3804277 UNITREE Robot accessories 1157 Version: Component

Description

Product size: 120mm*80mm*182mm
Nominal voltage DC 29.6V
End-of-charge voltage DC 33.6V
Charging current: 3.5A
Nominal capacity 8000mAh, 236.8Wh

This text is machine translated.

Features

The high capacity of the battery allows your UNITREE GO2 a running time, which justifies your expectations. This powerful battery enables the robot to fully utilize its capabilities and capabilities, thereby managing longer exploration missions or more demanding tasks.
The UNITREE GO2 battery is a reliable companion for your robotics projects, be it in education, research or industry. The high capacity of the battery ensures a continuous current supply and enables you to fully experience your creative ideas in the robotics.
No matter, whether you want to use the UNITREE GO2 battery as a spare battery or as an upgrade for your robot - this powerful energy storage is the perfect choice for enhancing the endurance and the efficiency of your UNITREE GO2.
Specifications:
Product size: 120mm*80mm*182mm
Nominal voltage DC 29.6V
End-of-charge voltage DC 33.6V
Charging current: 3.5A
Nominal capacity 8000mAh, 236.8Wh
Standard: IS 16046(Part 2)/IEC 62133-2
Self-developed battery management system (BMS)
Functions:
Performance display,
Self-discharge protection of the battery compartment,
Balance charging protection, overload protection,
Over-discharge protection,
Short circuit protection,
Battery charging recognition protection
Delivery scope
1x UNITRONIC ® Go2 Spare battery 8000mAh

Scope of delivery

1x Go2 battery 8000mAh (BT2-05)

Hints

Prescribed Use

All information, documentation, materials and products provided by MYBOTSHOP GmbH are intended exclusively for research, development and education purposes.

The robots are provided for research, development and education purposes only and are not intended for use as finished consumer products.

Important note on regulatory requirements

The robot offered is an incomplete machine within the meaning of Directive 2006/42/EC (Machinery Directive). The robot is therefore not intended to be commissioned as a complete machine on its own.

Where applicable, the party that integrates the robot into a machine or plant or supplements it to a complete machine shall be responsible for ensuring that the completed machine meets all relevant legal and regulatory requirements before it is placed on the market or put into service.
