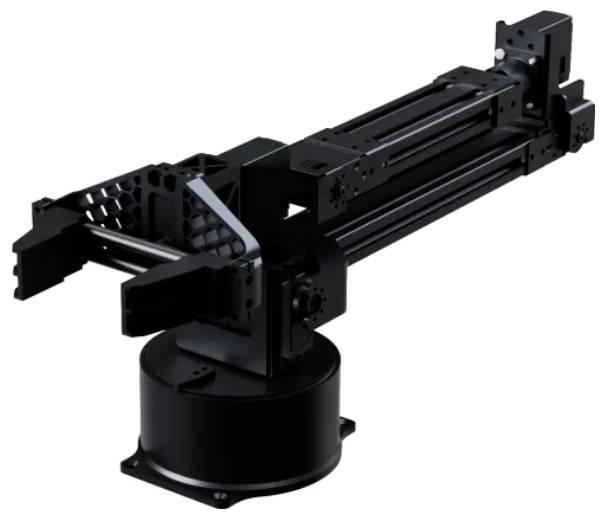

UNITREE GO2 Servo Robotic Arm | UNITREE Robotics
- UNITREE GO2 Servo Robotic Arm | Load: 500g | Degree of Freedom: 6 | Arm span
- 600mm | interface RJ45 (ETH)
- This text is machine translated.
Technical specifications
- Product type
Robot accessories
- Version
Component
- Manufacturer part #
Go2 Servo Robotic Arm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3804275 UNITREE Robot accessories 1167 Version: Component
Description
Features
- The UNITRONIC Go2 Servo Robotic Arm is a highly developed and powerful addition to the UNITREE Go2 Robot. With its impressive specifications and features, it offers versatile applications and opens up completely new perspectives for robot control.
- Degree of freedom and load: With a total of 6 degrees of freedom, the Servo Robotic Arm enables a precise and flexible movement. The robust construction enables an ideal load of up to 500g so that it can carry and handle a variety of objects without any problem.
- Arm span: The UNITREE GO2 Servo Robotic Arm offers a maximum arm span of 600mm (without the length of the clamping jaws) and 715mm (including the length of the clamping jaws). This enables the robot arm to operate over longer distances and ensure an optimum range.
- Power consumption and power: The robotic arm requires a 24 V power supply with a maximum current of 5A, with continuous operation of 2.5A recommended. With an impressive 60W power, it is designed for long operating times and efficient performance.
- Interface: The UNITREE GO2 Servo Robotic Arm has a DC5.5-2.1 power supply interface. A control communication interface RJ45 (ETH) is available for the control system. This allows the robotic arm to be seamlessly integrated into the control system of the UNITREE GO2, allowing WAS smooth communication and precise control.
- Developed for UNITREE GO2: The Servo Robotic Arm was specially developed for applications on the UNITREE GO2. The seamless integration and optimized functionality offer an extended range of applications and open up new horizons for your robot projects.
- Specification:
- Degree of freedom: 6
- Load: 500g (ideal weight) 3. Maximum arm span
- 600mm (without the length of the clamping jaws, subject to minor deviations in the case of subsequent structural changes); 715mm (including the length of the clamping jaws )"
- CURRENT CONSUMPTION: 24V 2.5A (MAX 5A)
- Interface: DC5.5-2.1 Power: 60W
- Control interface: RJ45 control communication interface (ETH)
- Joint parameter
- J1 ±135°
- J2 ±90°
- J3 ±90°
- J4 ±135°
- J5 ±90°
- ±135°"
- Delivery scope
- 1x UNITRONIC ® Go2 servo Robotic arm
Scope of delivery
- 1x Go2 Servo Robotic Arm D1
- 1x mounting accessories
Hints
Prescribed Use
All information, documentation, materials and products provided by MYBOTSHOP GmbH are intended exclusively for research, development and education purposes.
The robots are provided for research, development and education purposes only and are not intended for use as finished consumer products.
Important note on regulatory requirements
The robot offered is an incomplete machine within the meaning of Directive 2006/42/EC (Machinery Directive). The robot is therefore not intended to be commissioned as a complete machine on its own.
Where applicable, the party that integrates the robot into a machine or plant or supplements it to a complete machine shall be responsible for ensuring that the completed machine meets all relevant legal and regulatory requirements before it is placed on the market or put into service.
