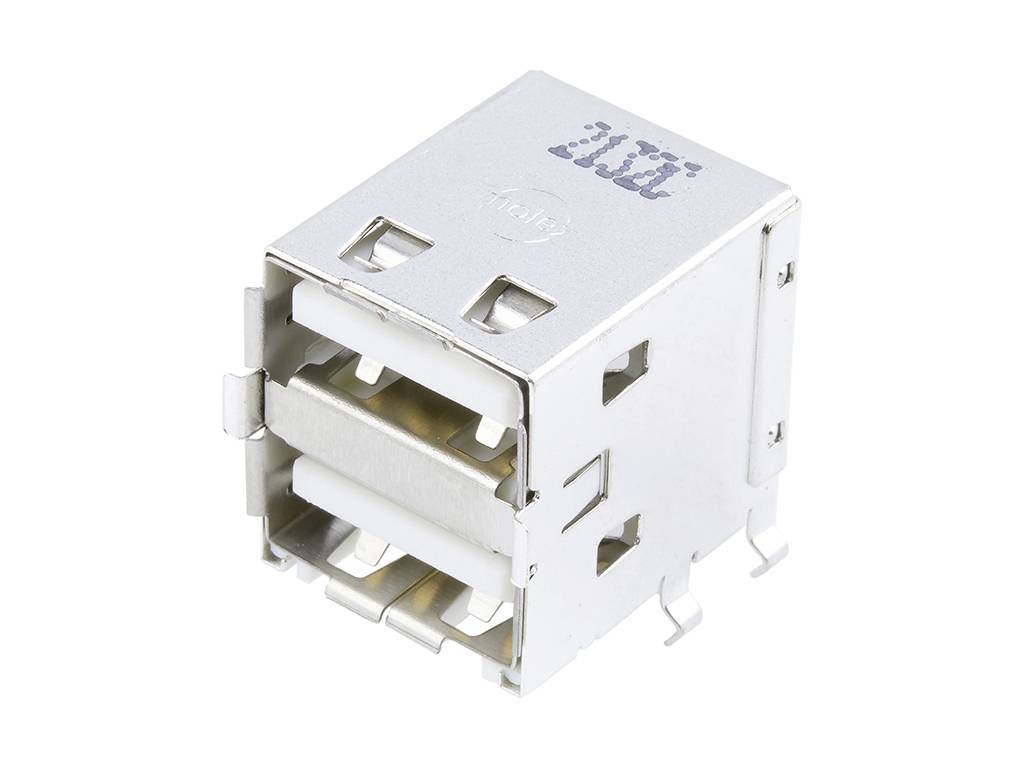

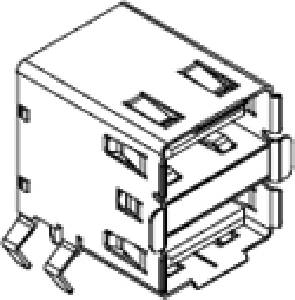

Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 672984091 Molex Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tray
Product type
USB connector
Connector type
Socket
Number of pins
8
USB type
A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
150
-
€ 1.50
60
7% = € 0.11
€ 1.39
100
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 24.00
Number
Minimum order quantity: 150
Multiple: 150
Total (€ 1.34 / piece)
€ 1.55
-14 %
€ 201.00
plus VAT.
14-day return policy included
Highlights & Details
Universal Serial Bus
- Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Dual Stacked, Type A, 0.76µm Gold (Au) Plating, White Housing, with 4 Beveled Metal Pins, Lead-Free
- This text is machine translated.
Our service for you
Technical specifications
- Application: Cable to PCBNumber of rows: 2Min. Coating - Plug-in range: 0.762 µmInputs: 2Recommended PCB thickness is 1.60 mmLength of soldering pins 2.80 mmMaterial - Coating Crimp range: TinMaterial - Coating Plug-in area: GoldPitch - Crimp range 2.00 mm, 2.50 mmPitch - mating range 2.00 mm, 2.50 mmRetention force PCB: YesCoded to counterpart: Yes
- Packaging type
Tray
- Type
Molex MOL Micro Solutions
- Product type
USB connector
- Connector type
Socket
- Type
Right-angled
- Number of pins
8
- USB type
A
- Connection
Soldering
- Connection
Front-panel mounting
- Manufacturer part #
672984091
- Factory colour
White
- Content
1 pc(s)
- Nominal voltage (details)
30 V DC
- Nominal current (details)
1.5 A
- RoHS-compliant
Yes
- Features
+ shielding
encodable
+ locking mechanism
- Max. temperature
+50 °C
- Min. temperature
0 °C
- Engineering Part No
67298-4091
- Engineering Series Name
USB A R/A RCPT 2 POR
- Engineering Series No
67298
Documents & Downloads
Datasheet
Datasheet 2449851 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 672984091 Molex Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2449851 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 672984091 Molex Content: 1 pc(s)
Circuit diagramm
Circuit diagramm 2449851 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 672984091 Molex Content: 1 pc(s)
Description
Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Dual Stacked, Type A, 0.76µm Gold (Au) Plating, White Housing, with 4 Beveled Metal Pins, Lead-Free
