USB 3.0 cable and connector with cover for front mounting, black, showing the connector and open cover.

USB 3.0 cable and connector with cover for front mounting, black, showing the connector and open cover.

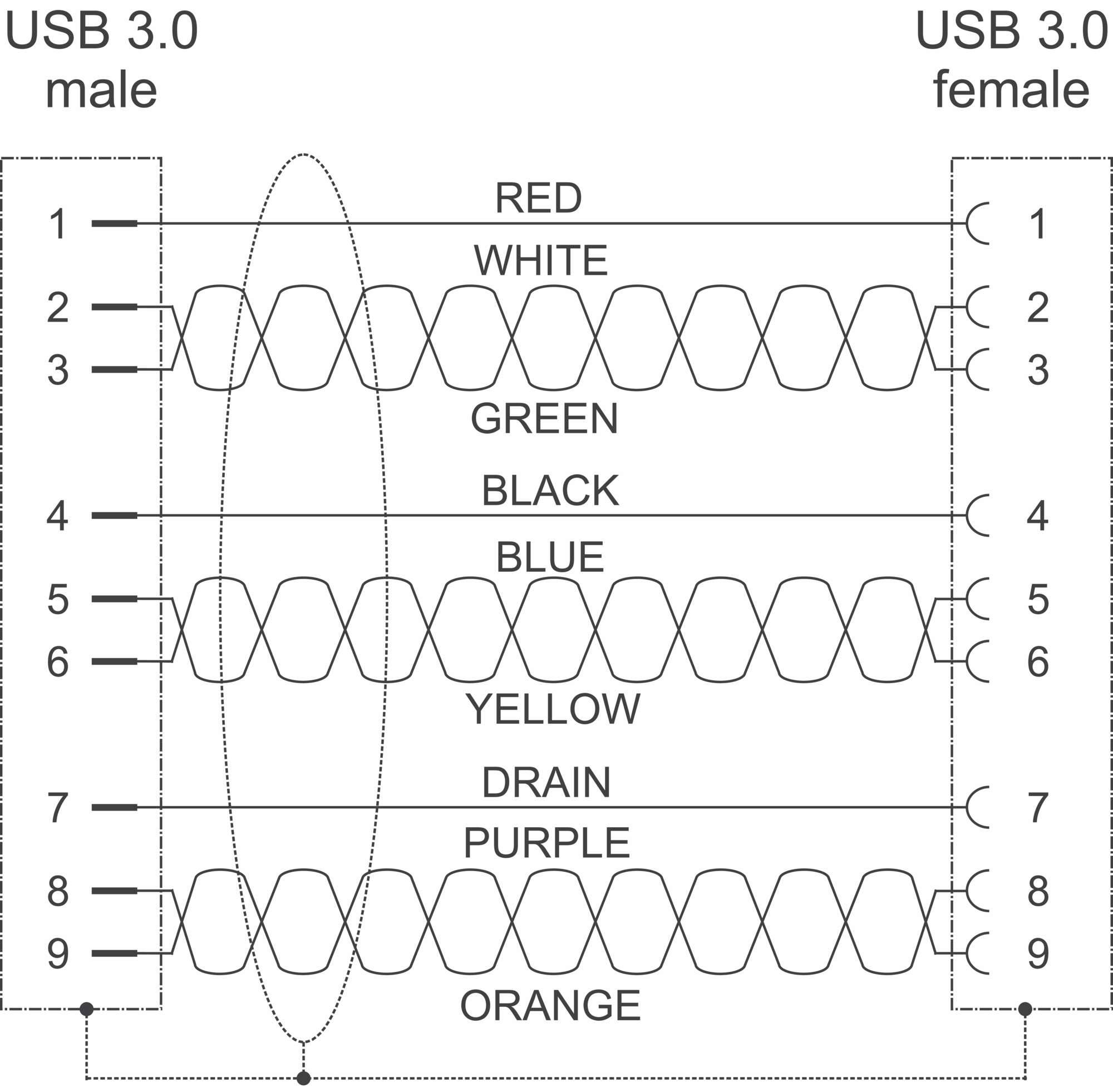

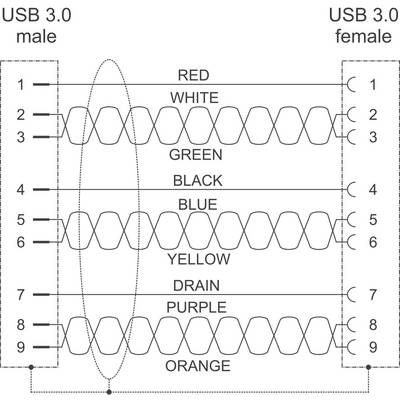

Diagram of the USB 3.0 Cable Connection with Colour Coding: Red, White, Green, Blue, Yellow, Drain, Purple, Orange. Shows Male-Female Pin Assignment.

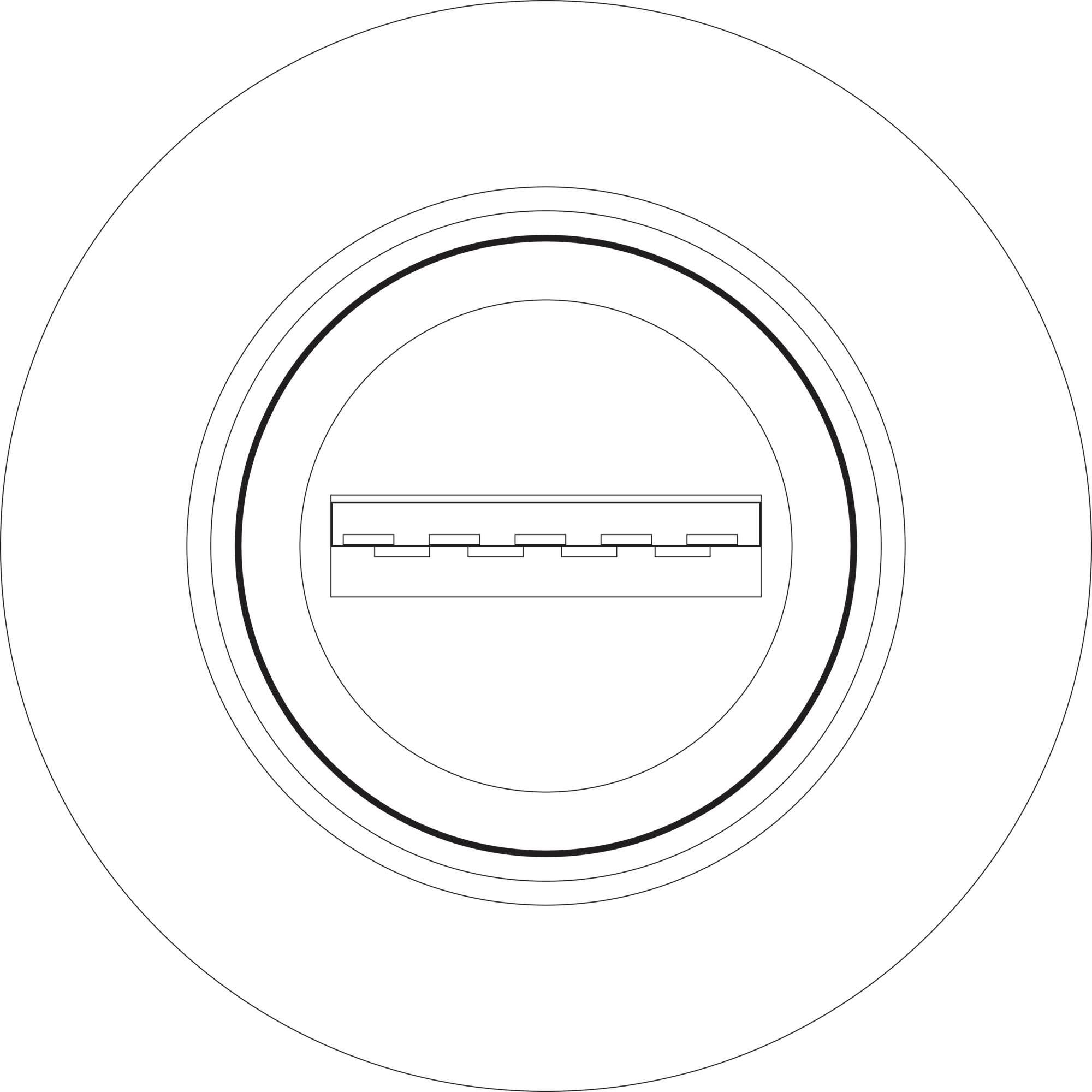

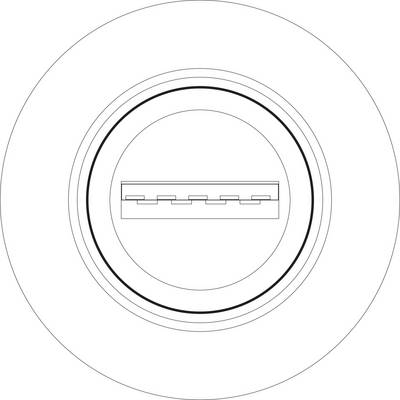

A circular graphic with a central, rectangular element resembling a chain, surrounded by two concentric circles.

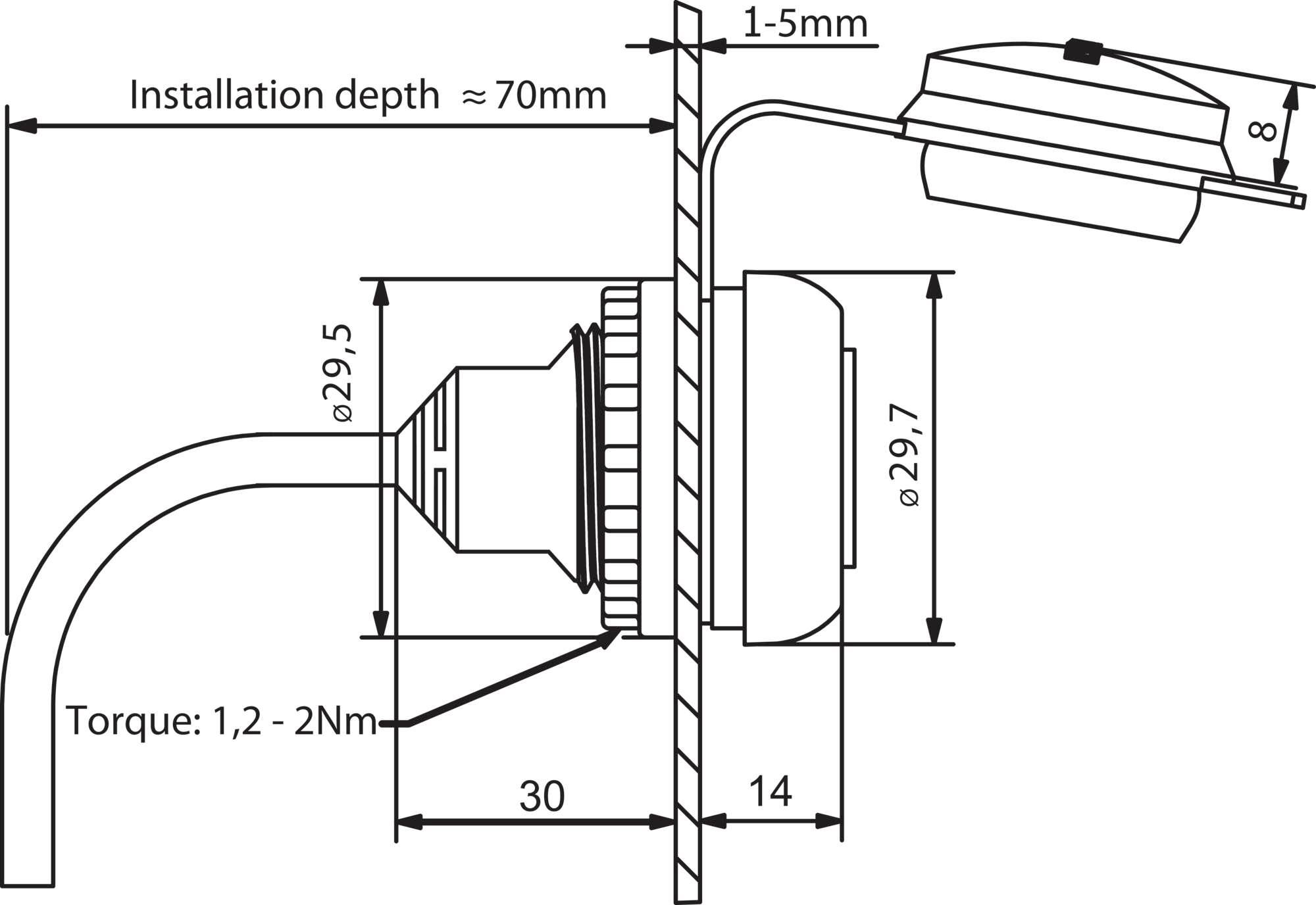

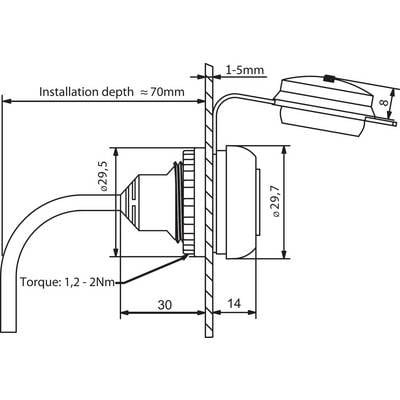

Technical drawing of a valve installation, showing dimensions for installation depth ≈ 70 mm, torque 1.2-2 Nm.

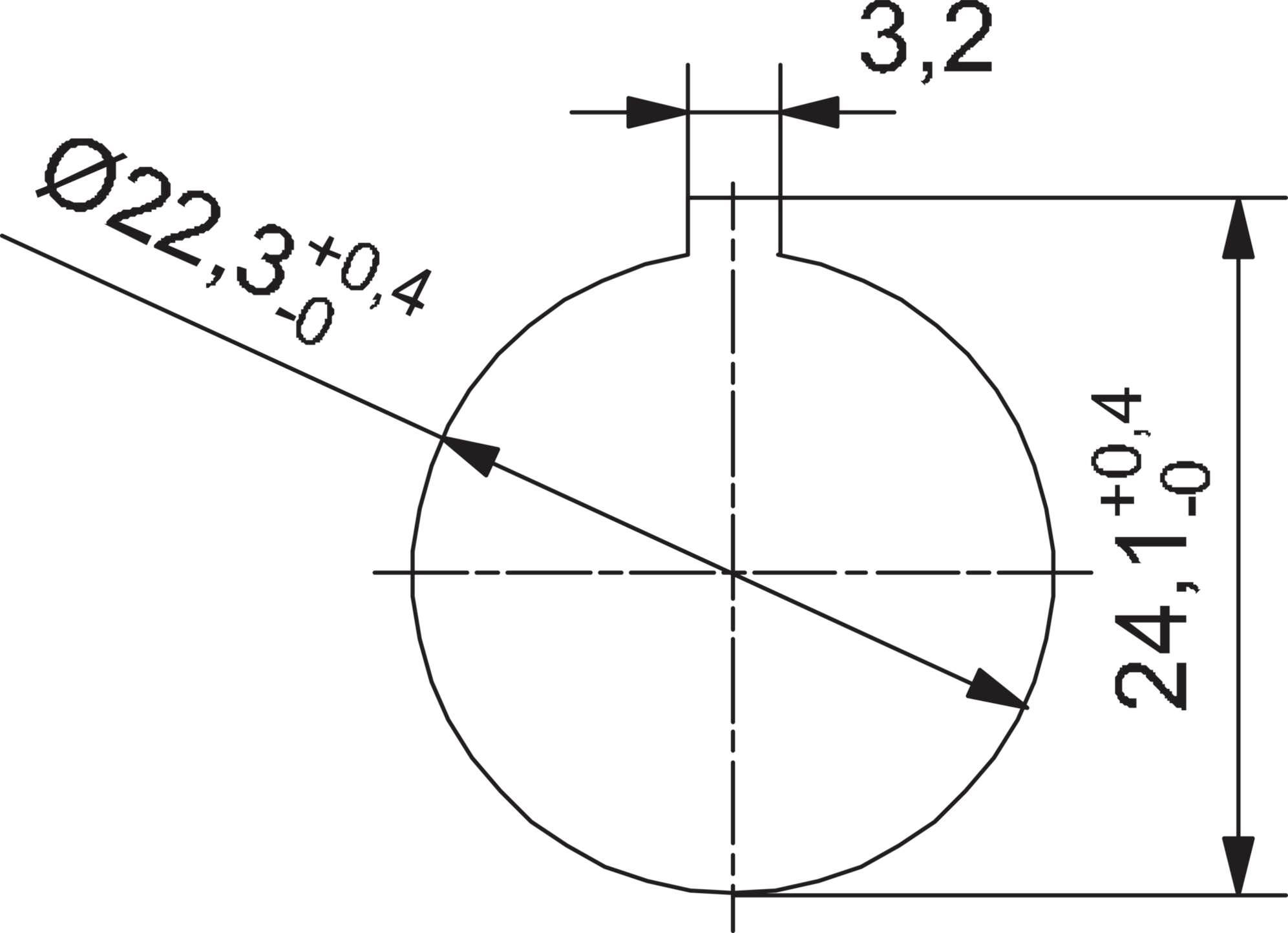

Technical drawing of a circle with diameters: Ø22.3 +0.4/-0 and 24.1 +0.4/-0; bore hole 3.2.

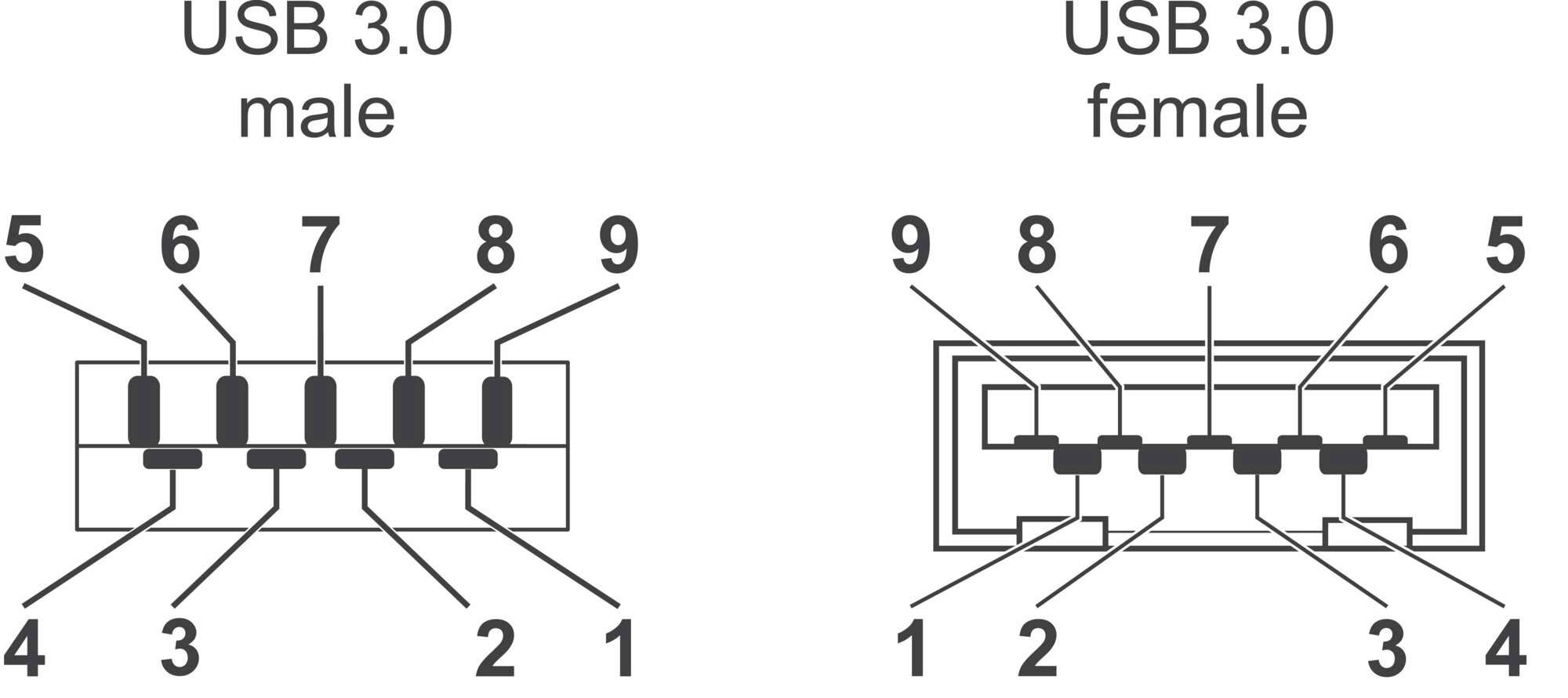

'USB 3.0 Plug and Socket': Diagram shows the pin configuration of USB 3.0 plug (male) and socket (female). Pins 1-9 are numbered.

1/6

Lütze

Datasheet (PDF)

Deutsch (Deutschland)

33 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 25.20 / piece)

€

Report legal concerns

Technical specifications

Type: 490113.0080

Cable length: 0.80 m

Content: 1 pc(s)

Type A: USB 3.2 1st Gen port A (USB 3.0)

Type B: USB 3.2 1st Gen connector A (USB 3.0)

Connector standard: USB 3.2 1st Gen (USB 3.0)

: IP20 (when connected)
IP65 (closed)

Manufacturer part #: 490113.0080

Material (details): Socket: PVC, plug: PBT, cover: TPU

Bore Ø: 22.3 mm

Connector type: Socket, built-in

Connection: For front mounting with thread M22

Contact material: CuSn, gold plated

Temperature range: -25 - +80 °C

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 409418 USB 3.0 mounting socket Socket, built-in 490113.0080 490113.0080 Lütze Content: 1 pc(s)

Conformity certificate

European union

Conformity certificate 409418 USB 3.0 mounting socket Socket, built-in 490113.0080 490113.0080 Lütze Content: 1 pc(s)

Description

With captive protective cap.
