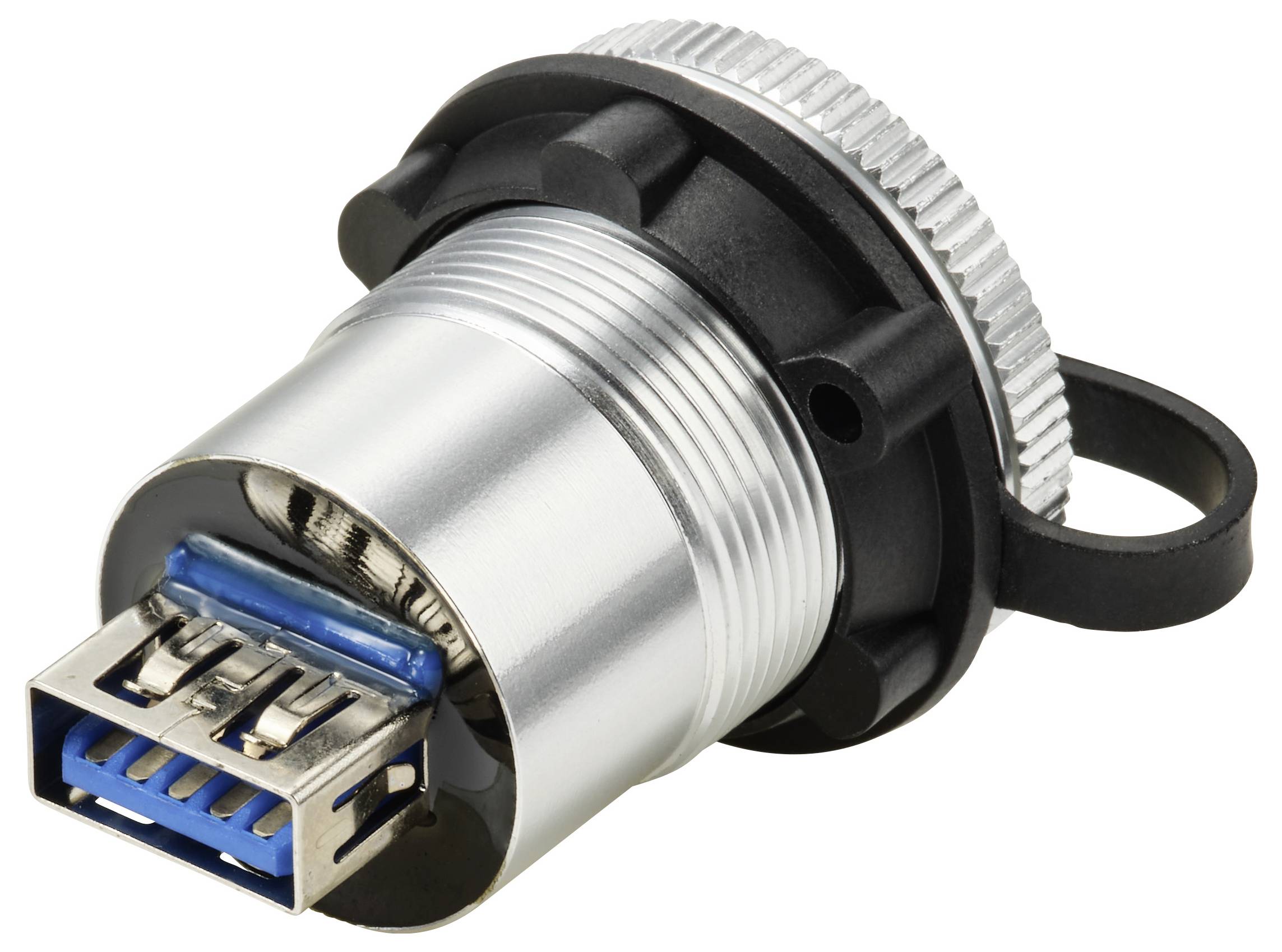

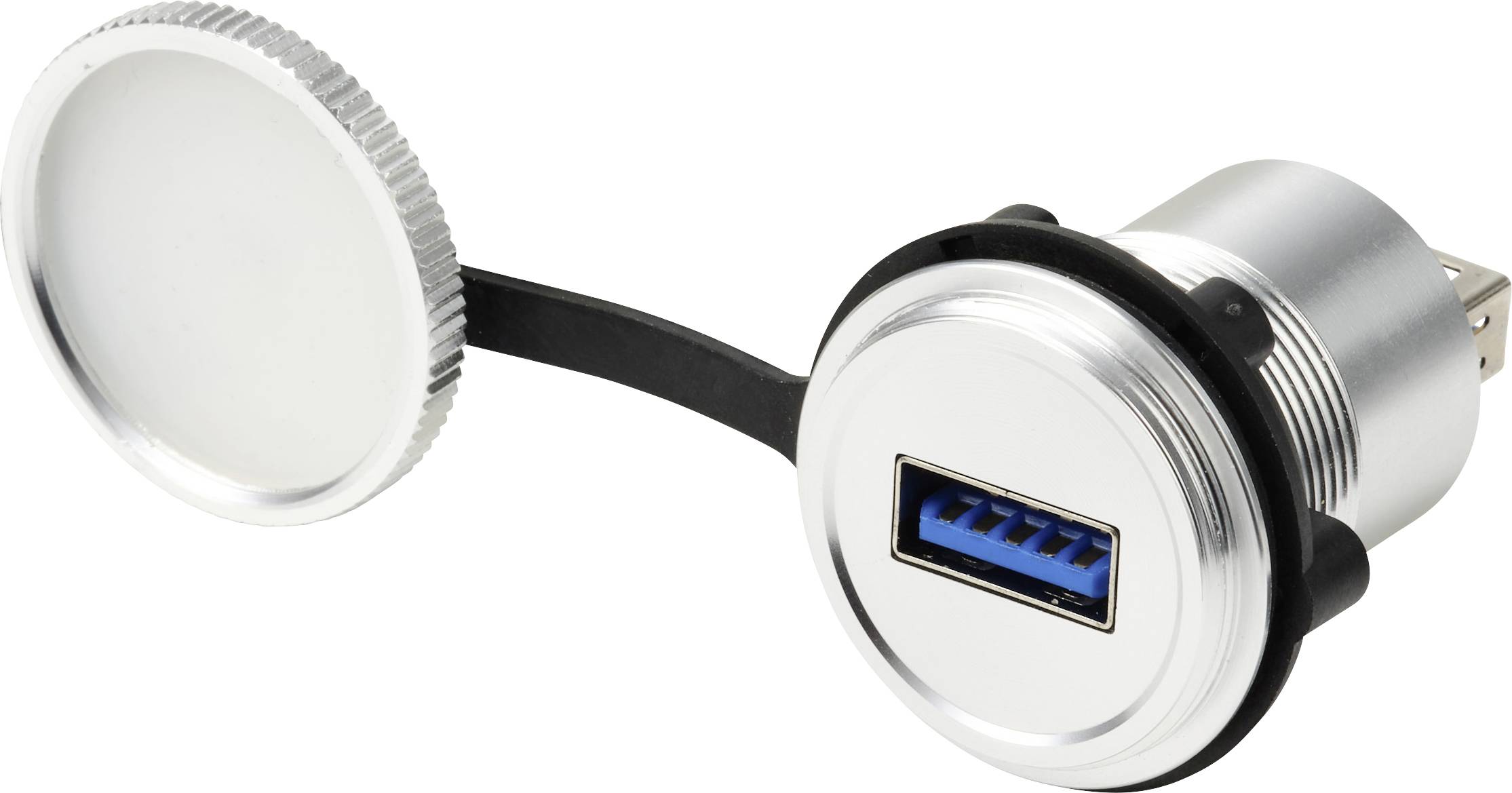

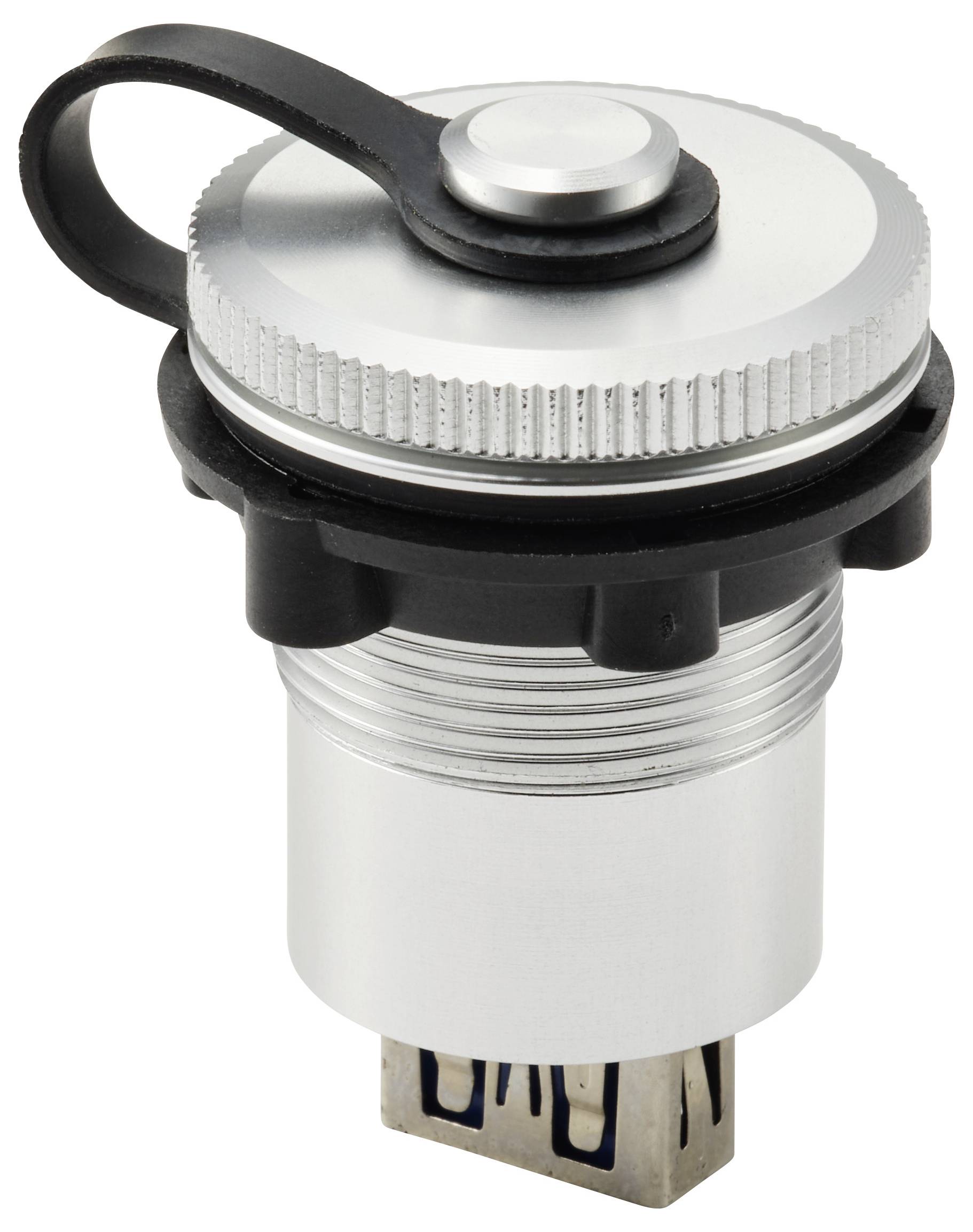

USB 3.0 panel jack, female/female, 22 mm, IP67, metal, silver Socket TC-14378424 TRU COMPONENTS Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket
Connector type
Socket
USB type
A
Type
TC-14378424
Type
USB 3.0 panel jack
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Technical specifications
- Type
TC-14378424
- Type
USB 3.0 panel jack
- Product type
Socket
- Connector type
Socket
- USB type
A
- Type A
USB 3.0 A socket
- Type B
USB 3.0 A socket
- Mounting hole diameter
22 mm
- Case material
Aluminium alloy
- Manufacturer part #
TC-14378424
- Factory colour
Silver
- Content
1 pc(s)
- Nominal voltage (details)
5 V DC
- Nominal current (details)
900 mA
- Width
28 mm
- Length
43.8 mm
- RoHS-compliant
Yes
IP67
- Max. temperature
+55 °C
- Min. temperature
-20 °C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3594606 USB 3.0 panel jack, female/female, 22 mm, IP67, metal, silver Socket TC-14378424 TRU COMPONENTS Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3594606 USB 3.0 panel jack, female/female, 22 mm, IP67, metal, silver Socket TC-14378424 TRU COMPONENTS Content: 1 pc(s)
Description
Scope of delivery
- USB 3.0 panel jack
- Cover
- Plastic nut
