Buy USB-C® 3.0 Female to Female Back Mount Receptacle (Threaded) TC-E10T-FT3-PRF TC-13543608 TRU COMPONENTS Content: 1 pc(s)

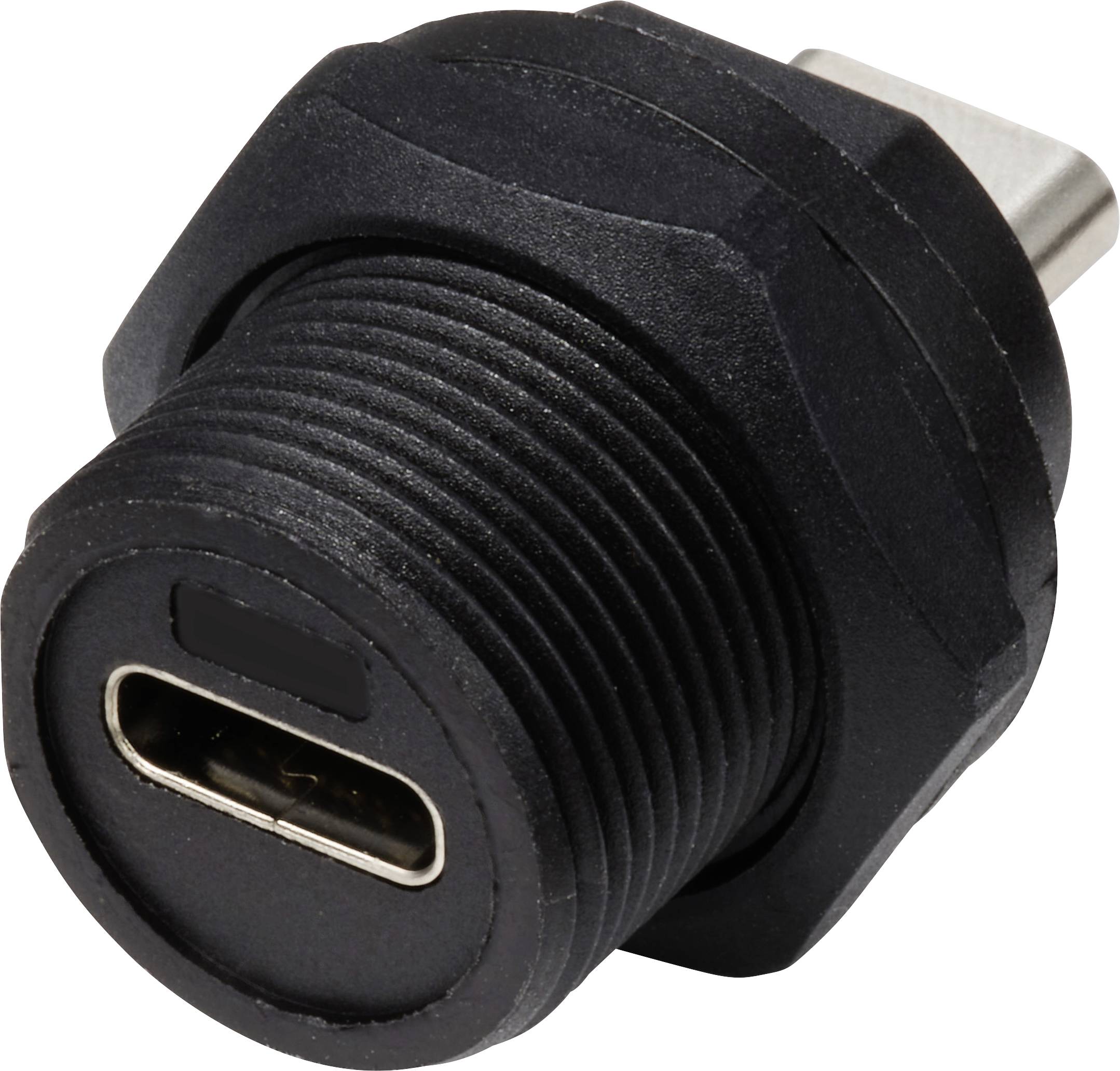

A black USB-C port adapter with a round, ridged casing, suitable for installation in devices or wall panels.

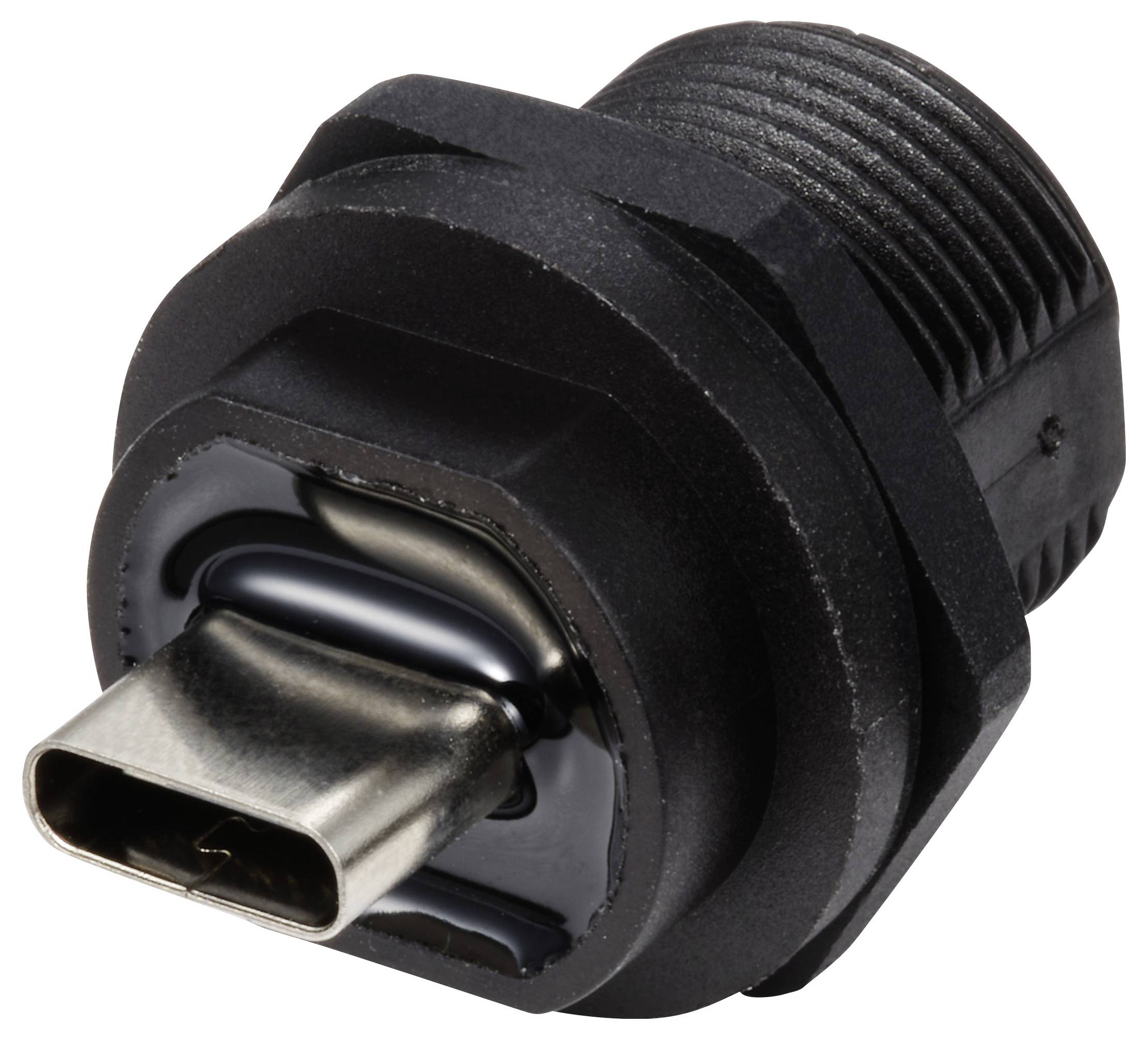

A black USB-C plug with threading for panel mounting, showing the front side with the socket for a cable connection.

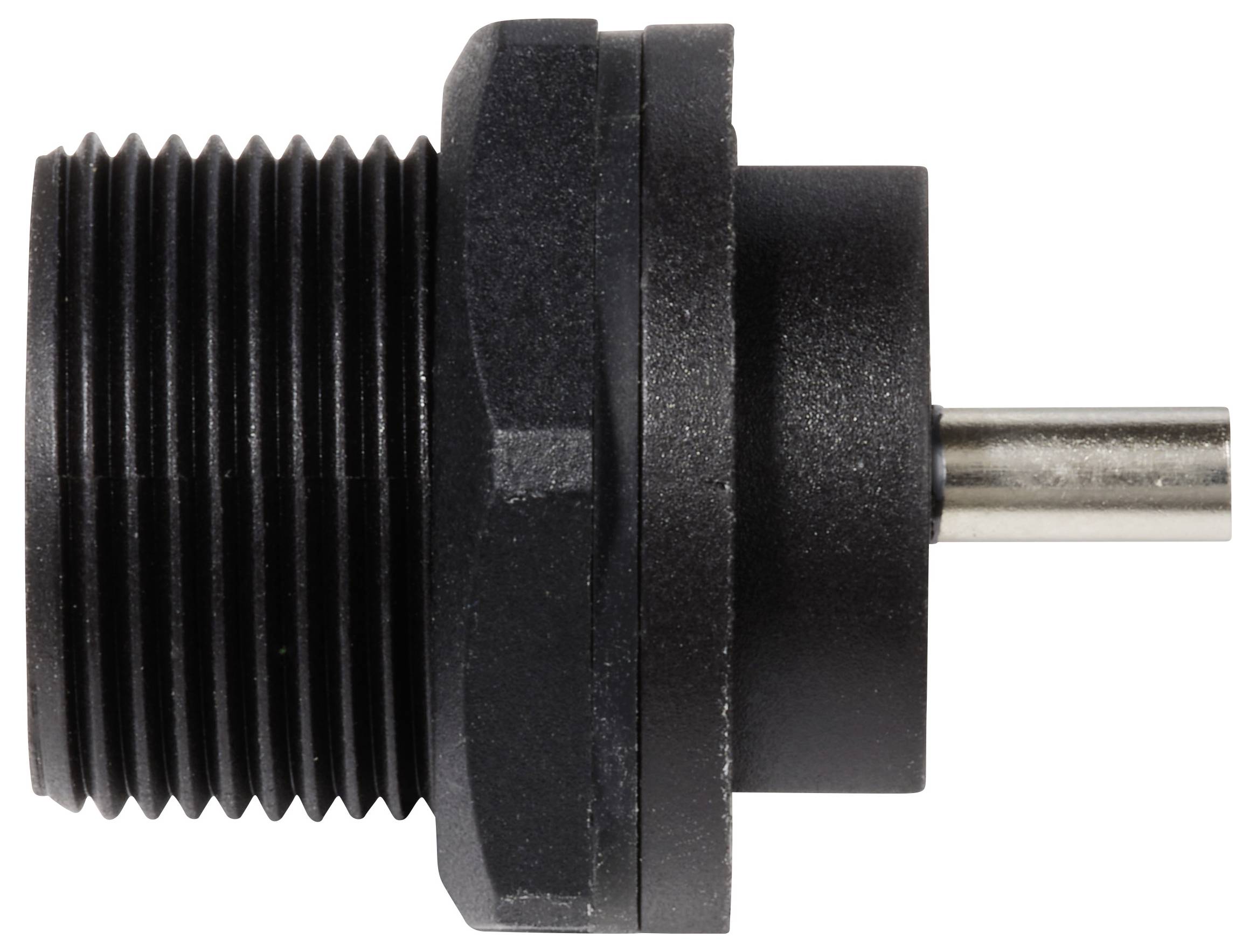

'Black-grey cylindrical sensor or plug with thread and metal pin for industrial applications.'

Diagram showing dimensions of a cylindrical connector. Displays diameter of 20.5 mm and 15.8 mm, thread 5/8''-27UNS.

1/4

Product type

USB connector

Number of pins

Connector standard

USB-C® 3.0 socket

Type

TC-E10T-FT3-PRF

Pins

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

152 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 8.39 / piece)

€ 8.39

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type: TC-E10T-FT3-PRF

Product type: USB connector

Pins: 16

Number of pins: 16

Connector standard: USB-C® 3.0 socket

Connection: USB Typ C®

Connection: PCB

Type A: USB-C® 3.0 socket

Type B: USB-C® 3.0 socket

Mounting hole diameter: 15.8 mm

Case material: PA

Manufacturer part #: TC-13543608

Factory colour: Black

Industrial packaging: Yes

Content: 1 pc(s)

Contact material: Copper alloy

Material: Plastic
Copper
Steel
PVC

Nominal voltage (details): 30 V

Nominal current (details): 3 A

Length: 26.7 mm

RoHS-compliant: Yes

: IP67

Max. temperature: 80 °C

Min. temperature: -25 °C

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Connector standard

Number of pins

USB-C® 3.0 Female to Female Back Mount Receptacle (Threaded) TC-E10T-FT3-PRF TC-13543608 TRU COMPONENTS Content: 1 pc(s)

Item no:3385902

This article

USB-C® 3.0 socket

USB Type-C® 3.0 Male to Male Overmolded Cable (Threaded) Cable 0.5 m TC-E10T-MT3-MWA/NWA-0.5PV-S Plastic waterproof cable assembly TC-13543584 TRU COMPONENTS Content: 1 pc(s)

Item no:3385896

USB-C® 3.0 plug

USB-C® 3.1 Male to Male Overmolded Cable (Threaded) Cable 0.5 m TC-E10T-MT3.1-MWA/NWA-0.5PV-S Plastic waterproof cable assembly TC-13543588 TRU COMPONENTS Content: 1 pc(s)

Item no:3385897

USB-C® 3.1 plug

USB-C® 3.0 Male to USB Male Overmolded Cable (Threaded) Cable 0.5 m TC-E10T-MT3-MWA/MU3-NWA-0.5PV-S Plastic waterproof cable assembly TC-13543592 TRU COMPONENTS Content: 1 pc(s)

Item no:3385898

USB-C® 3.0 Male to Female Back mount Receptacle Overmolded Cable (Threaded) Cable 0.5 m TC-E10T-FT3-PWF/MT3-NWA-0.5PV-S Plastic waterproof cable assembly TC-13543596 TRU COMPONENTS Content: 1 pc(s)

Item no:3385899

USB-C® 3.1 Male to Female Back mount Receptacle Overmolded Cable (Threaded) Cable 0.5 m TC-E10T-FT3.1-PWF/MT3.1-NWA-0.5PV-S Plastic waterproof cable assembly TC-13543600 TRU COMPONENTS Content: 1 pc(s)

Item no:3385900

USB-C® 3.0 Female Back mount Receptacle to USB Male Overmolded Cable (Threaded) Cable 0.5 m TC-E10T-FT3-PWF/MU3-NWA-0.5PV-S Plastic waterproof cable assembly TC-13543604 TRU COMPONENTS Content: 1 pc(s)

Item no:3385901

USB-C® 3.0 Female Back Mount PCB Receptacle (Threaded) TC-E10T-FT3-PPF TC-13543612 TRU COMPONENTS Content: 1 pc(s)

Item no:3385903

USB-C® 3.0 socket

USB-C ® 3.0 Female Back Mount Receptacle with wire (Threaded) Cable 0.1 m TC-E10T-FT3-PWF-0.2PV Plastic waterproof cable assembly TC-13543616 TRU COMPONENTS Content: 1 pc(s)

Item no:3385904

USB-C® 3.0 socket

USB-C® Female/Male FPC Flat cable 3.1 speed (Threaded) Cable 0.1 m TC-E10T-FT3.1-PWF/MT3.1-NWA-0.1FPC TC-13543620 TRU COMPONENTS Content: 1 pc(s)

Item no:3385905

Documents & Downloads

Datasheet

Datasheet 3385902 USB-C® 3.0 Female to Female Back Mount Receptacle (Threaded) TC-E10T-FT3-PRF TC-13543608 TRU COMPONENTS Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3385902 USB-C® 3.0 Female to Female Back Mount Receptacle (Threaded) TC-E10T-FT3-PRF TC-13543608 TRU COMPONENTS Content: 1 pc(s)
