USB-C® connection cable, TB4, UltraFlex, 0.25m 10080131 BKL Electronic Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
USB-C cable
USB type
C®
Connector standard
USB-C® plug
Type
10080131
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Only 4 Piece(s) available
Highlights & Details

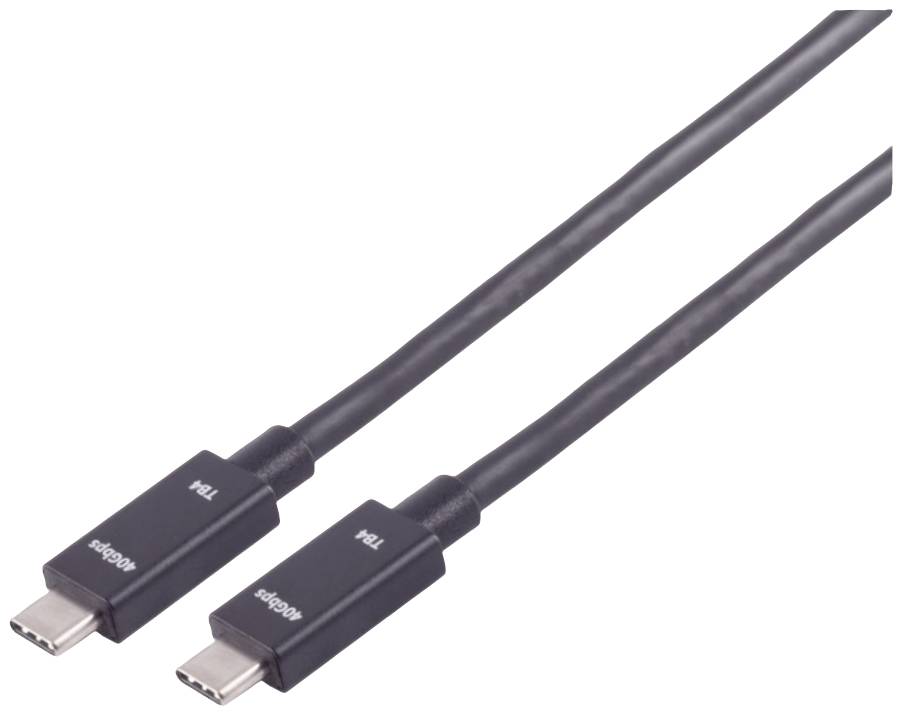

USB-C® connection cable, TB4, UltraFlex, 0.25m
- It supports among others :
- PCI Express (32 Gbps)
- USB4 40Gbps
- DisplayPort 1.4 up to 2x 4K or 1x 8K (HBR2, MST)
- Thunderbolt networking up to 10 Gbit/s.
- Power Delivery (20V/5A)
Technical specifications
- Packaging type
Piece
- Type
10080131
- Product type
USB-C cable
- USB type
C®
- Connector standard
USB-C® plug
- Connection
USB Typ C®
- Type A
USB-C® plug
- Type B
USB-C® plug
- Case material
Soft PVC
- Manufacturer part #
10080131
- Factory colour
Black
- Content
1 pc(s)
- Cable Ø (max.)
4.80 mm
- Cable Ø range
4.80 mm (max)
- Cable length
0.25 m
- Contact material
Au (gold)
- Material
Copper
10 Gbps
- Length
0.25 m
- RoHS-compliant
Yes
- Features
gold-plated contacts
Documents & Downloads
Datasheet
Datasheet 3280540 USB-C® connection cable, TB4, UltraFlex, 0.25m 10080131 BKL Electronic Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3280540 USB-C® connection cable, TB4, UltraFlex, 0.25m 10080131 BKL Electronic Content: 1 pc(s)
Description
Connect your laptop with only one cable to your docking station and you get access to all the important interfaces. For devices with higher power requirements you can also charge your laptop / ultrabook at the same time with up to 100 watt (depending upon the hardware used). With the Thunderbolt wake-up function you can start your laptop or call your end device out of sleep mode with the help of your Thunderbolt 4 docking station. Thunderbolt 4 also supports Daisy Chaining, with Daisy Chain you can cascade up to 6 Thunderbolt 4 devices.
This text is machine translated.
This text is machine translated.
Features
- Connections: USB-C® connector to USB-C® connector
- Supports DisplayPort 1.4 (up to 8K/6K/60Hz, 2x 4K/60Hz), PD up to 100W (20V/5A), SuperSpeed USB 5/10/20Gbps, PCI Express 3.0, bi-directional data transfer, daisy chain (up to 6 devices), Thunderbolt bus Power up to 15W, networking up to 10 Gbps (peer-to-peer), wake-up from sleep via Thunderbolt 3 or 4 docking station,
- Bandwidth up to 40 Gbps
- EJ903W (Intel® certified) chipset
- Compatible with Thunderbolt 3, Thunderbolt 4, USB4
- Number of shields: 3-fold
- Core material: Tin-plated + silver-plated copper
- Cable setup: Coaxial
- Plug: Cast with metal shielding
- Contact surface: Gold-plated pins 15µ
- Plug housing: Metal (aluminum alloy) integrated in "Molding" the cases are securely connected to the plug
- Cable type: Round cable
Hints
Info: Not all devices with USB-C® interface support the 100 watt fast charging capability (PD 3.0), the transmission of video signals (DP alternative mode) or the data transfer of 40 Gbit/s (USB4 40Gbps / Thunderbolt 4). For more information, contact your device manufacturer.
