USB-C® connection cable, USB4 Gen 3x2, 240W, 0.5m 10080128 BKL Electronic Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Single
Product type
USB-C cable
USB type
C®
Connector standard
USB-C® plug
Type
10080128
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Highlights & Details

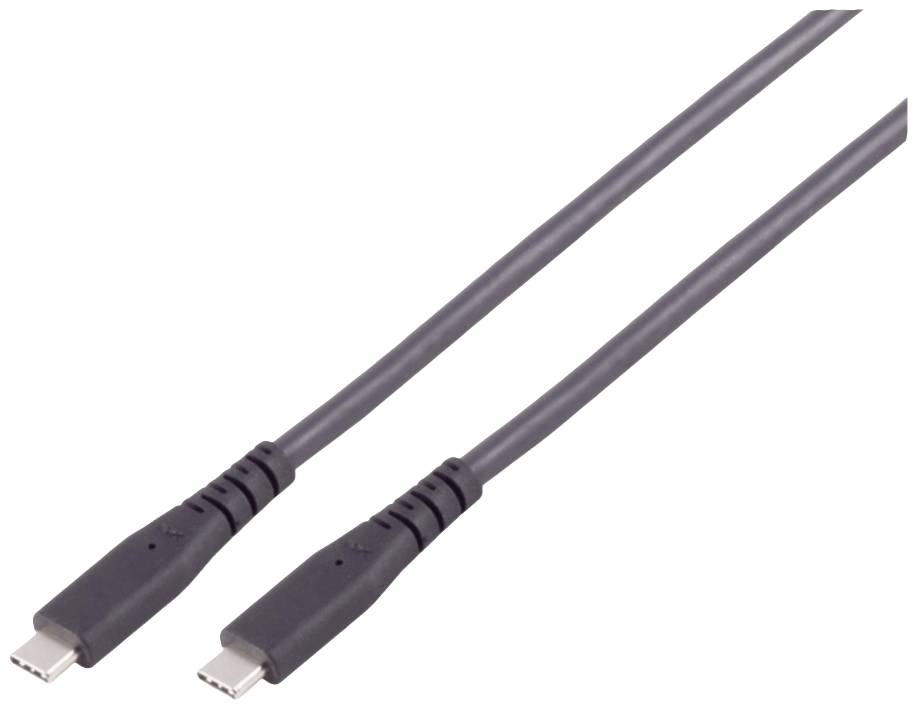

USB-C® connection cable, USB4 Gen 3x2, 240W, 0.5m
- It supports among others :
- PCI Express
- USB4 40Gbps
- Thunderbolt 3 (partial)
- DisplayPort 2.0 up to 8K (uncompressed)
- SuperSpeed USB up to 20 Gbps
- Power Delivery
Technical specifications
- Packaging type
Single
- Type
10080128
- Product type
USB-C cable
- USB type
C®
- Connector standard
USB-C® plug
- Connection
USB Typ C®
- Type A
USB-C® plug
- Type B
USB-C® plug
- Case material
PVC
- Manufacturer part #
10080128
- Factory colour
Black
- Content
1 pc(s)
- Cable Ø (max.)
5.20 mm
- Cable Ø range
5.20 mm (max)
- Cable length
0.50 m
- Contact material
Gold plated
- Material
Copper
10 Gbps
- Length
0.5 m
- RoHS-compliant
Yes
- Features
gold-plated contacts
Documents & Downloads
Datasheet
Datasheet 3280537 USB-C® connection cable, USB4 Gen 3x2, 240W, 0.5m 10080128 BKL Electronic Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3280537 USB-C® connection cable, USB4 Gen 3x2, 240W, 0.5m 10080128 BKL Electronic Content: 1 pc(s)
Description
The PowerDelivery Standard 3.1 supports up to 240 watt charging power (48V/5A), so even more powerful devices can now be operated using USB-C. Connect your laptop with only one cable to your docking station and you get access to all the important interfaces. For devices with higher power requirements you can also charge your laptop / ultrabook at the same time with up to 240 watt (depending upon the hardware used).
This text is machine translated.
This text is machine translated.
Features
- USB-C connector to USB-C connector
- Supports DP alternative mode DisplayPort 2.0 (up to 8K/6K/5K/60Hz, 4K/120Hz, 2x 4K/60Hz), PD up to 240W (48V/5A), SuperSpeed USB 5/10/20Gbps, PCI Express 3.0, bi-directional data transfer
- Bandwidth up to 40 Gbps
- USB version: USB 4.0 2nd Gen (USB4 40Gbps)
- Compatible with all USB-C interfaces (among others): Hi-speed USB, SuperSpeed USB, Thunderbolt 3/4
- Core material: Copper
- Cable setup: Twisted wires
- Plug: Cast with metal shielding
- Contact surface: Gold-plated pins
- Connector housing PVC
- Cable type: Round cable
- Cable sheath TPE
Hints
Info: Not all devices with USB-C interface support the 240 watt fast charging capability (PD 3.1), the transmission of video signals (DP alternative mode) or the data transfer of 40 Gbit/s (USB4 40Gbps / Thunderbolt 3 / Thunderbolt 4). For more information, contact your device manufacturer.
