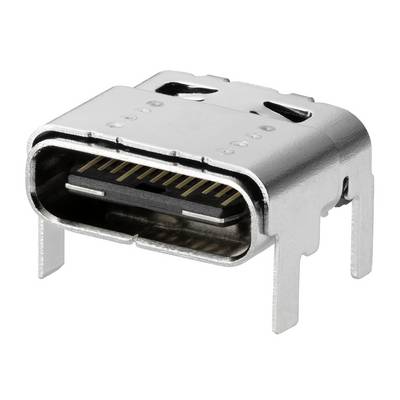

USB Type C Socket 2012670005 Molex Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
USB connector
Connector type
Socket
Number of pins
24
Connector standard
USB 3.2 2nd Gen type B socket (USB 3.1)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1000
-
€ 2.90800
3000
7% = € 0.22
€ 2.69048
5000
10% = € 0.30
€ 2.60324
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.908 / piece)
€ 2,908.00
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Tape on Full reel
- Type
2012670005
- Product type
USB connector
- Connector type
Socket
- Number of pins
24
- Connector standard
USB 3.2 2nd Gen type B socket (USB 3.1)
- Connection
SMT
- Manufacturer part #
2012670005
- Factory colour
Black
- Content
1 pc(s)
- Contact material
Copper alloy gold plated
- Material
Thermoplastic
- Features
+ shielding
+ locking mechanism
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Engineering Part No
201267-0005
- Engineering Series Name
Top 0.35mmType C Rec
- Engineering Series No
201267
Documents & Downloads
Datasheet
Datasheet 3035901 USB Type C Socket 2012670005 Molex Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3035901 USB Type C Socket 2012670005 Molex Content: 1 pc(s)
Circuit diagramm
Circuit diagramm 3035901 USB Type C Socket 2012670005 Molex Content: 1 pc(s)
Description
Universal Serial Bus (USB) Shielded I/O Receptacle, Type C, Right-Angle, Top Mount, Surface Mount, 0.76µm Gold (Au) Plating
