Highlights & Details
Day/night switch with timer
- Flush-mounted installation
- Built-in timer for 1 - 9 hours
- Light sensitivity adjustable from 3 - 500 lx
- For outdoor use
Technical specifications

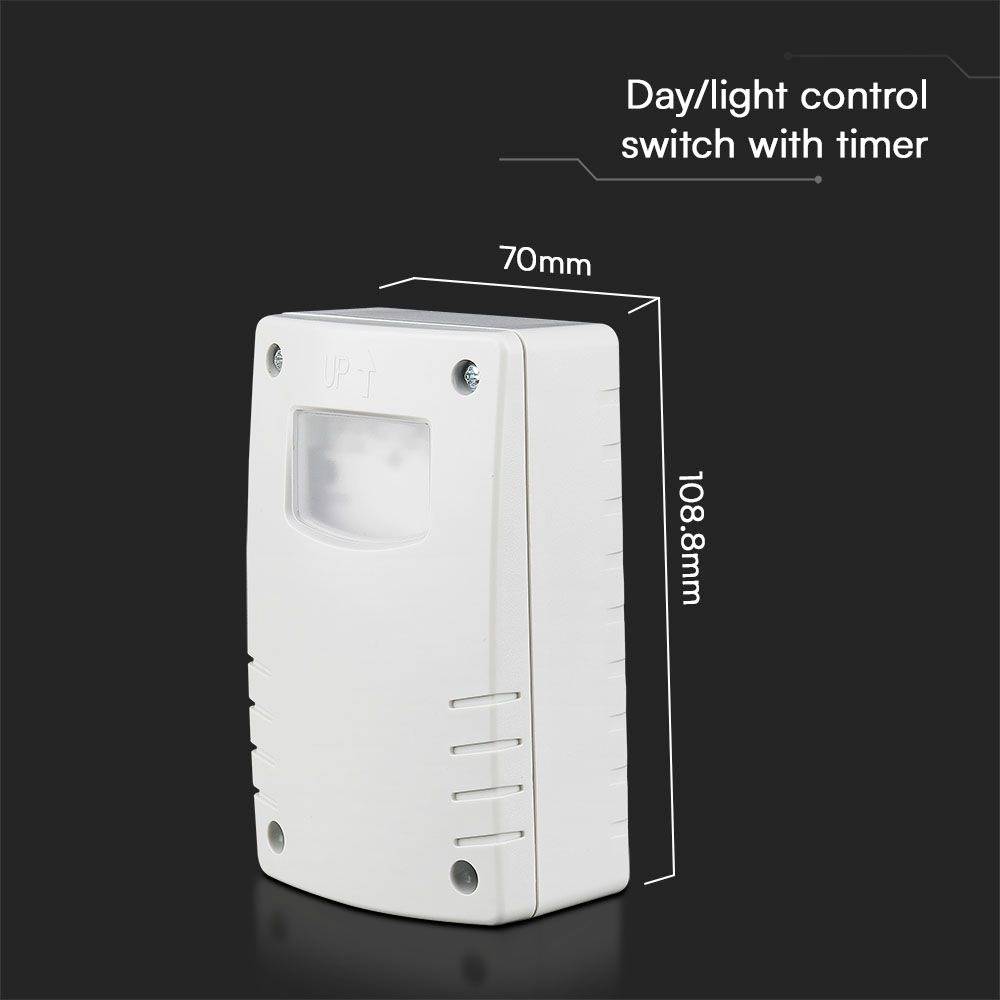

- Dimensions:70 x 109 mm
- Operating temperature -20 to +40°C.
- Timer: 1,2,3,4,5,6,7,8,9 hours
- Max. switching current 10 A
- Switching voltage 220 240 V
- Factory colour
White
- Case colour
White
- (Ø)
75 mm
- Height
120 mm
- Length
75 mm
- Width
47 mm
IP65
- Operating voltage
230 V
- Used at
Outdoors
- Protection class
IP65
- Weight
190 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219239 V-TAC 23423 1 pc(s)
Description
The light module controls the automatic on and off of a light source, e.g. street lighting.
After the automatic switching at darkness or twilight, the light remains on for a defined period of time, even when it becomes Heller again.
The light module must not be installed in the light cone of its own lamp to function correctly.
This text is machine translated.
After the automatic switching at darkness or twilight, the light remains on for a defined period of time, even when it becomes Heller again.
The light module must not be installed in the light cone of its own lamp to function correctly.
This text is machine translated.
Scope of delivery
- Day/night switch with timer
- User manual.
